Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-02A-193-C2-R0HEATSINK 40X40X6MM XCUT T766 |
500 | 5.47 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.236" (6.00mm) | - | 21.10°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

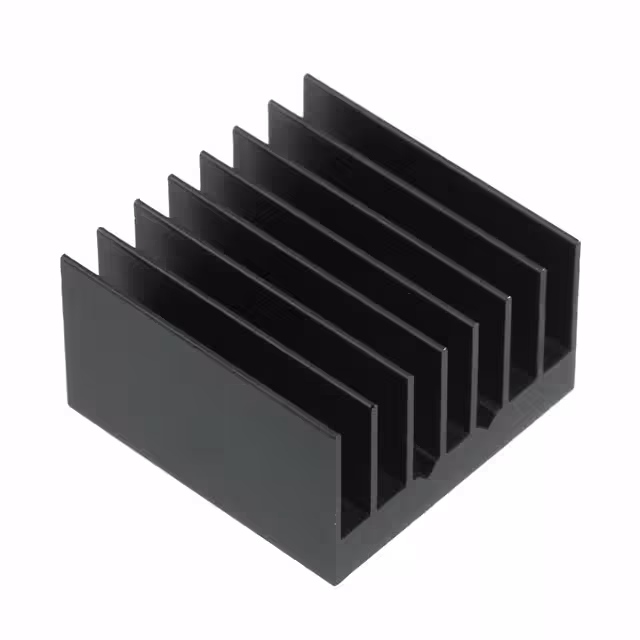

ATS-54250K-C0-R0HEATSINK 25X25X14.5MM W/OUT TIM |
162 | 5.87 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.571" (14.50mm) | - | 8.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-03F-70-C2-R0HEATSINK 45X45X25MM L-TAB T766 |
107 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
501603B00000GHEAT SINK TO-3 1.25" COMPACT |
3,012 | 6.78 |
|
Datasheet |
- | Tray | Active | Board Level | TO-3 | Bolt On | Rhombus | 1.880" (47.75mm) | 1.400" (35.56mm) | - | 1.250" (31.75mm) | 4.0W @ 30°C | 3.00°C/W @ 200 LFM | 7.80°C/W | Aluminum | Black Anodized |
|
|
ATS-17F-193-C2-R0HEATSINK 40X40X6MM XCUT T766 |
125 | 5.47 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.236" (6.00mm) | - | 21.10°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

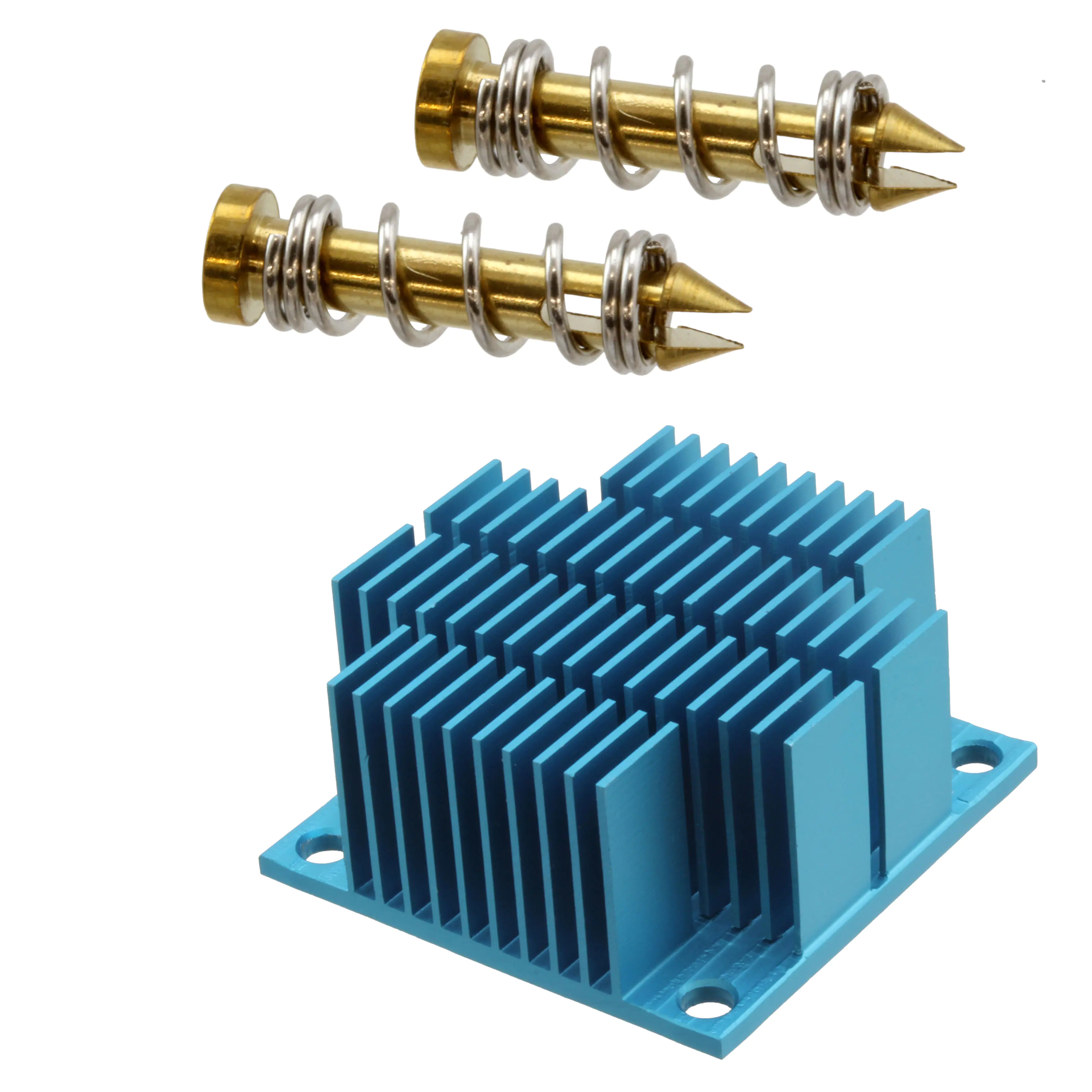

ATS-14D-75-C2-R0HEATSINK 25X25X20MM R-TAB T766 |
113 | 5.64 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 15.02°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

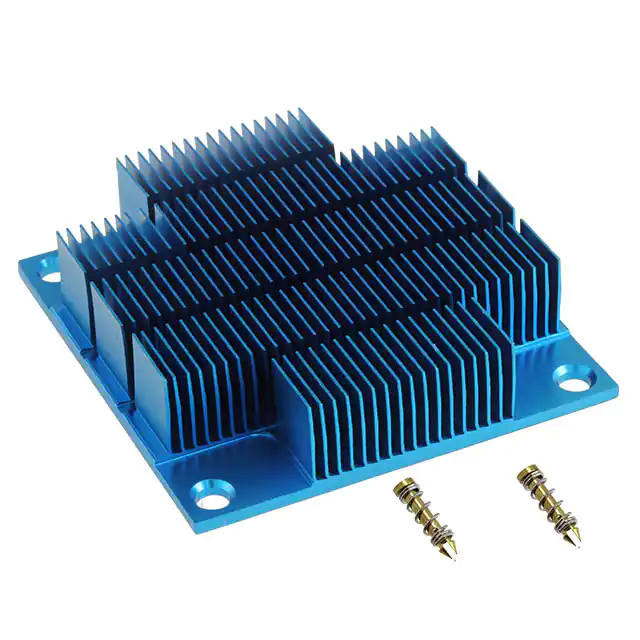

ATS-20F-108-C2-R1HEATSINK 50.00MM X 50.00MM ALUM |
124 | 8.20 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 27.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

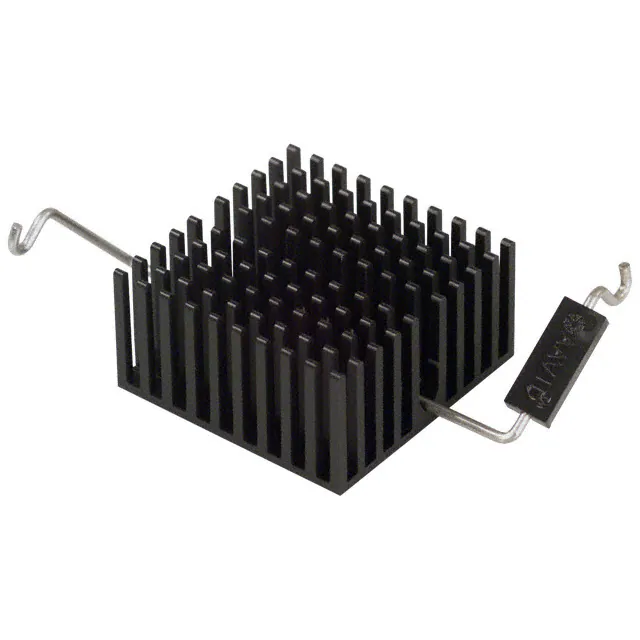

374724B60024GHEATSINK BGA W/O SOLDER ANCHORS |
865 | 6.94 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Solder Anchor | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.709" (18.00mm) | 3.0W @ 50°C | 5.20°C/W @ 200 LFM | 15.30°C/W | Aluminum | Black Anodized |
|
|
ATS-05H-115-C2-R0HEATSINK 40X40X20MM XCUT T766 |
105 | 5.72 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

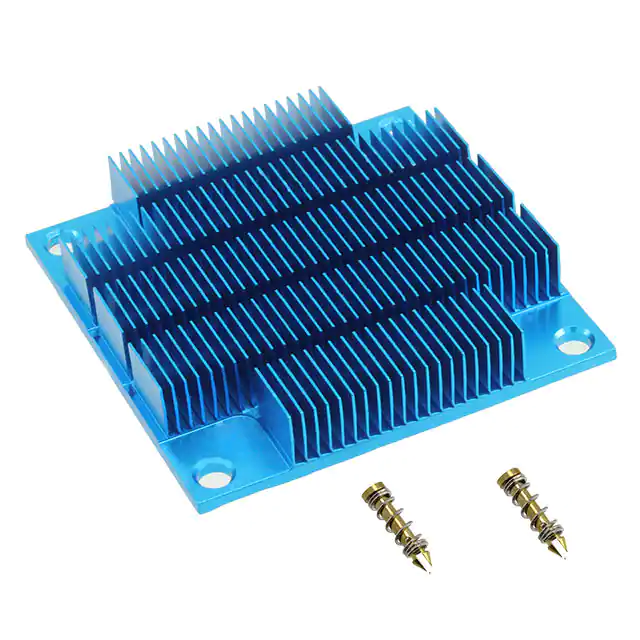

ATS-06A-107-C2-R1HEATSINK 50.00MM X 50.00MM ALUM |
227 | 8.13 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.374" (9.50mm) | - | 27.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

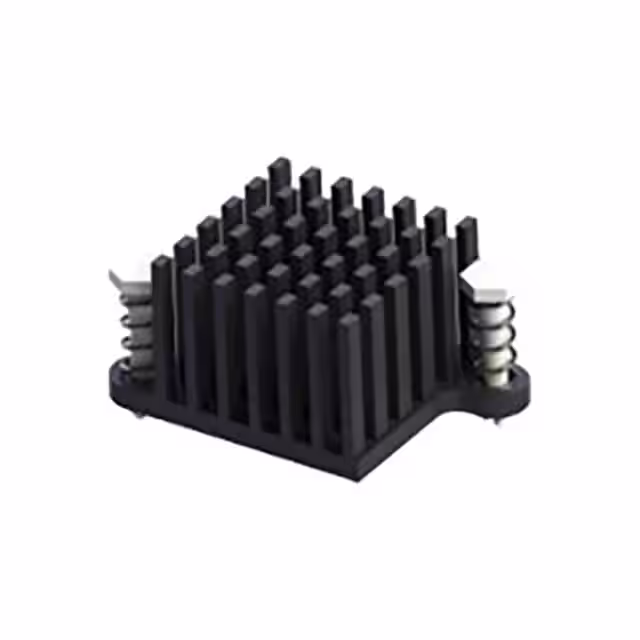

960-27-33-F-AB-0HEATSINK 27X33MM FRONT PUSH PIN |
442 | 7.10 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 1.299" (33.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-48-C2-R0HEATSINK 25X25X35MM L-TAB T766 |
113 | 5.87 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.378" (35.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040035-66-C3-R0HEATSINK 40X40X35MM L-TAB FP |
138 | 5.64 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54150D-C0-R0HEATSINK 15X15X9.5MM W/OUT TIM |
185 | 5.77 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.374" (9.50mm) | - | 26.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

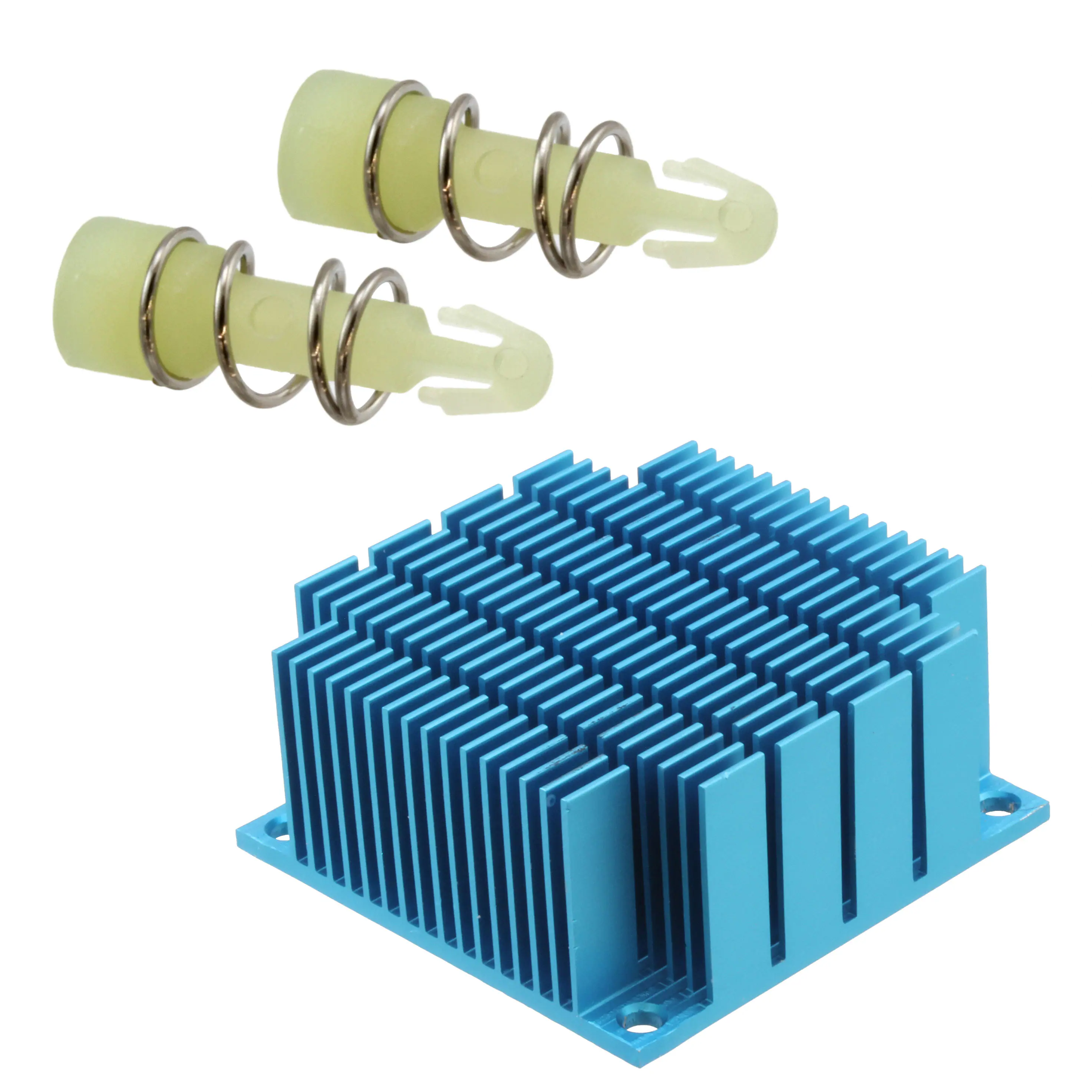

ATS-P1-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
107 | 7.49 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

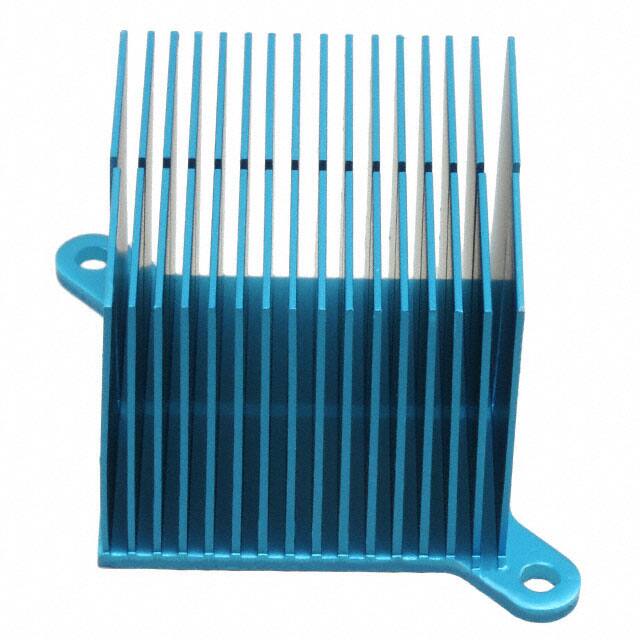

ATS-FPX040040035-66-C2-R0HEATSINK 40X40X35MM L-TAB FP |
300 | 5.95 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07G-143-C2-R0HEATSINK 30X30X20MM L-TAB T766 |
125 | 6.02 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-16E-08-C2-R0HEATSINK 45X45X15MM XCUT T766 |
125 | 6.22 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 14.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-08-C2-R0HEATSINK 45X45X15MM XCUT T766 |
105 | 6.22 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 14.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-TI1OP-519-C1-R0HEATSINK TI TAS5612 AND TAS5614 |
399 | 0.00 |
|
Datasheet |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 3.071" (78.00mm) | 1.417" (36.00mm) | - | 1.402" (35.60mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
