Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

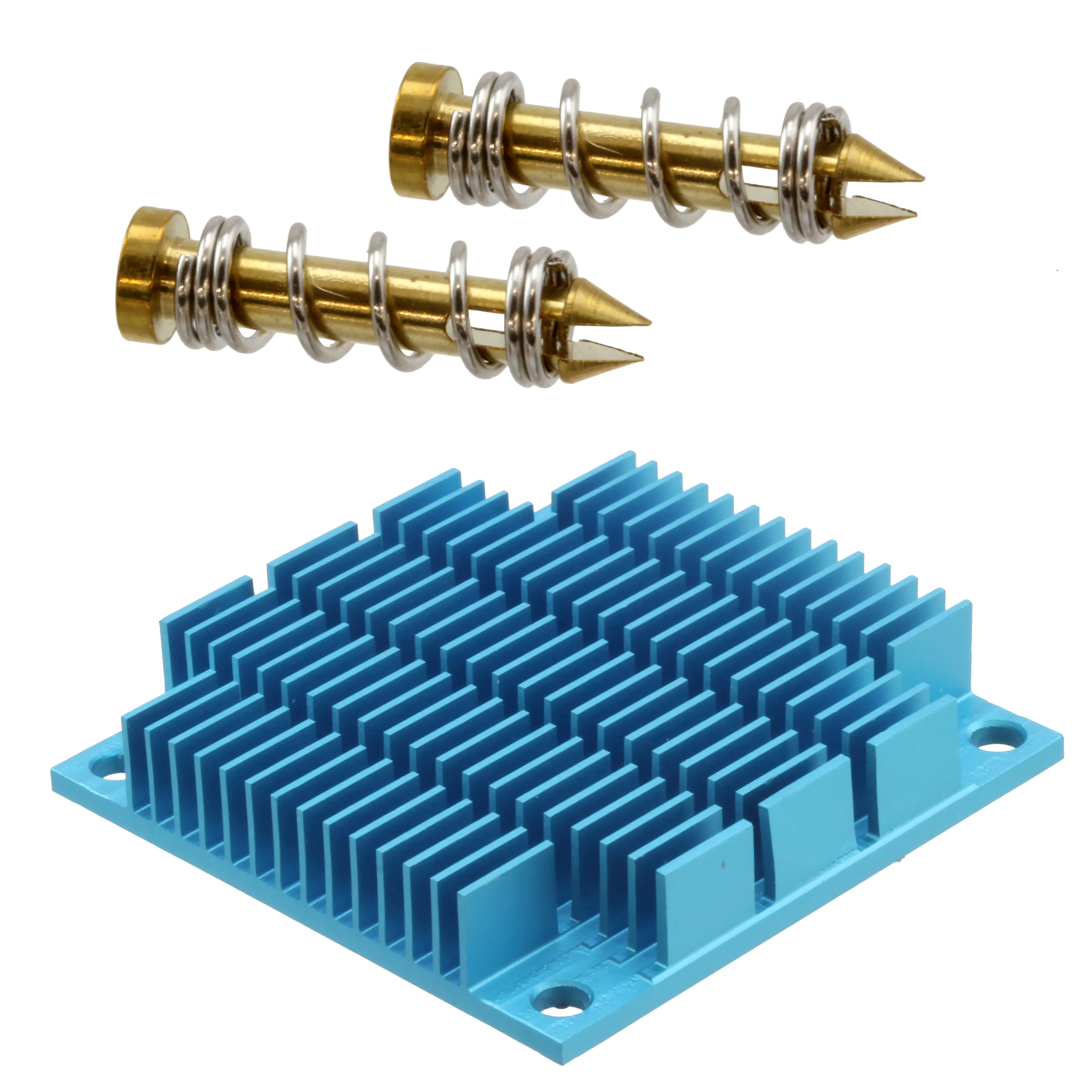

ATS-01E-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
199 | 6.04 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
960-27-33-S-AB-0HEATSINK 27X33MM SIDE PUSH PIN |
166 | 7.10 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 1.299" (33.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

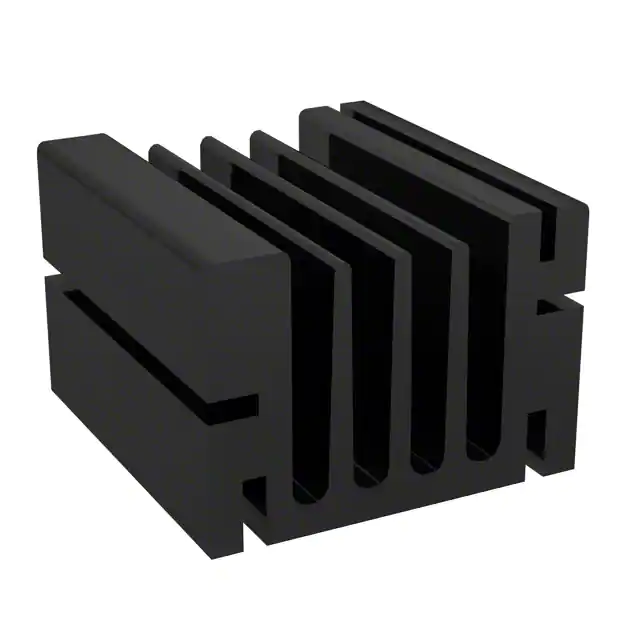

V5583EHEATSINK ALUM ANOD |
162 | 3.94 |
|
Datasheet |
- | Bulk | Active | Top Mount | TO-220 | Bolt On | Rectangular, Fins | 1.969" (50.00mm) | 1.811" (46.00mm) | - | 1.299" (33.00mm) | - | - | 4.60°C/W | Aluminum | Black Anodized |
|
ATS-21G-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
116 | 6.20 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

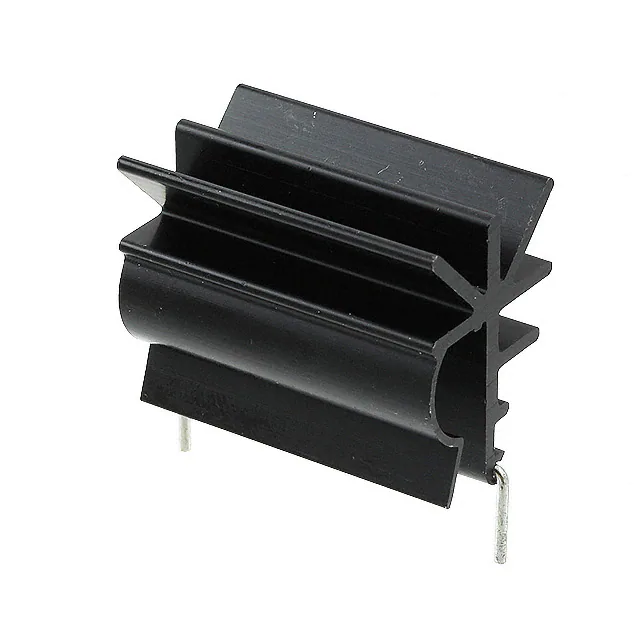

HF35GHEATSINK TO-220 TAB/CLIP-ON |
1,002 | 3.35 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.380" (35.05mm) | 1.102" (28.00mm) | - | 0.787" (19.99mm) | 2.0W @ 20°C | 6.00°C/W @ 300 LFM | 11.10°C/W | Aluminum | Black Anodized |
|
ATS-P2-07-C2-R0HEATSINK 45X45X12.7MM XCUT T766 |
400 | 6.60 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | - | 17.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

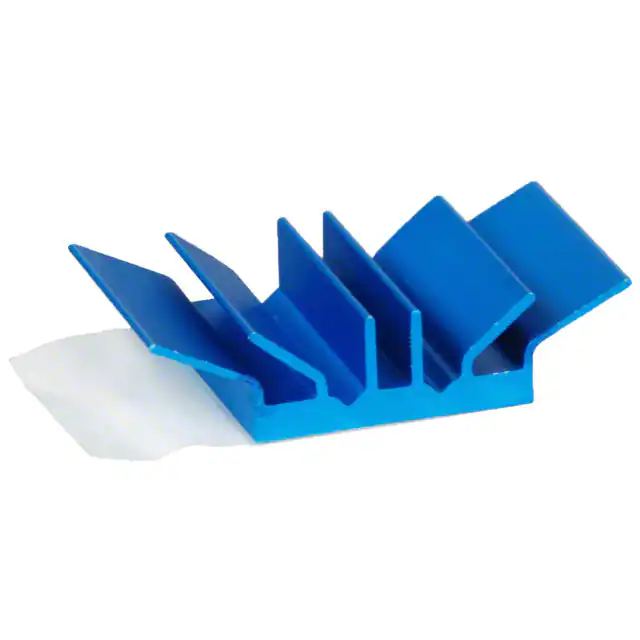

ATS-52190B-C1-R0HEAT SINK 19MM X 19MM X 7.5MM |
487 | 8.26 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.295" (7.50mm) | - | 16.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-04B-178-C2-R0HEATSINK 35X35X25MM R-TAB T766 |
125 | 6.65 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 4.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

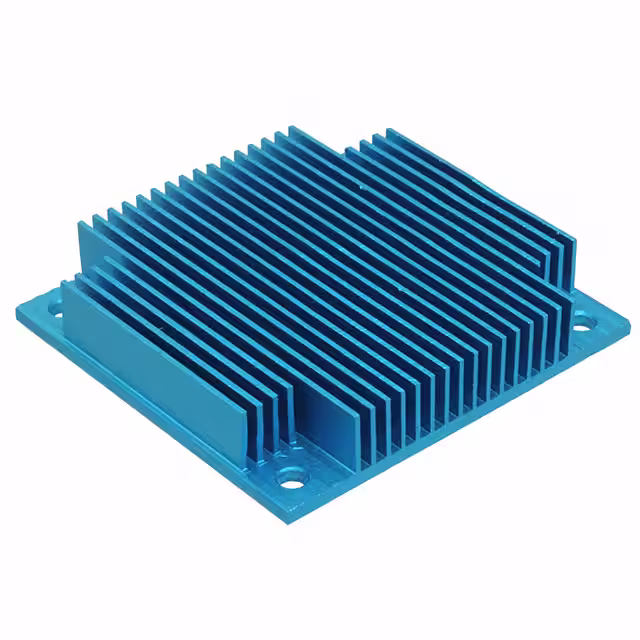

ATS-FPS058061011-40-C2-R0HEATSINK 57.9X60.96X11.43MM FP |
193 | 6.43 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.450" (11.43mm) | - | 14.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20F-58-C2-R0HEATSINK 35X35X25MM L-TAB T766 |
110 | 6.52 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 10.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
APF30-30-10CBHEATSINK LOW-PROFILE FORGED |
101 | 5.62 |
|
Datasheet |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.370" (9.40mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

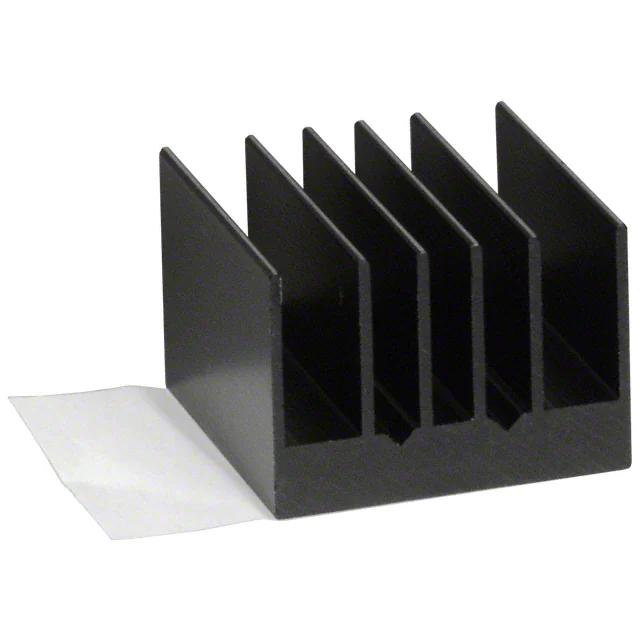

ATS-54210K-C1-R0HEAT SINK 21MM X 21MM X 14.5MM |
809 | 8.48 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.571" (14.50mm) | 0.3W @ 20°C | 11.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-05C-182-C2-R0HEATSINK 40X40X15MM R-TAB T766 |
125 | 6.69 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P2-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
109 | 6.65 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

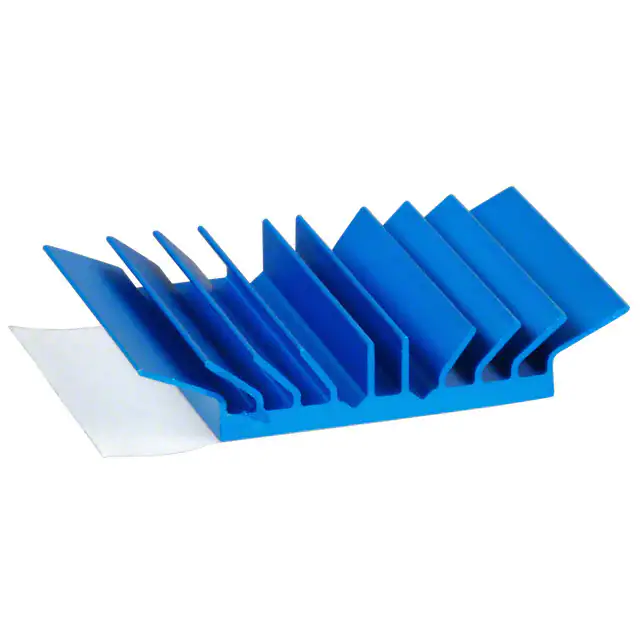

ATS-52300B-C1-R0HEAT SINK 30MM X 30MM X 7.5MM |
452 | 8.76 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.295" (7.50mm) | - | 7.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20E-157-C2-R0HEATSINK 40X40X30MM L-TAB T766 |
110 | 7.14 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 3.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20G-59-C2-R0HEATSINK 35X35X30MM L-TAB T766 |
107 | 7.19 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

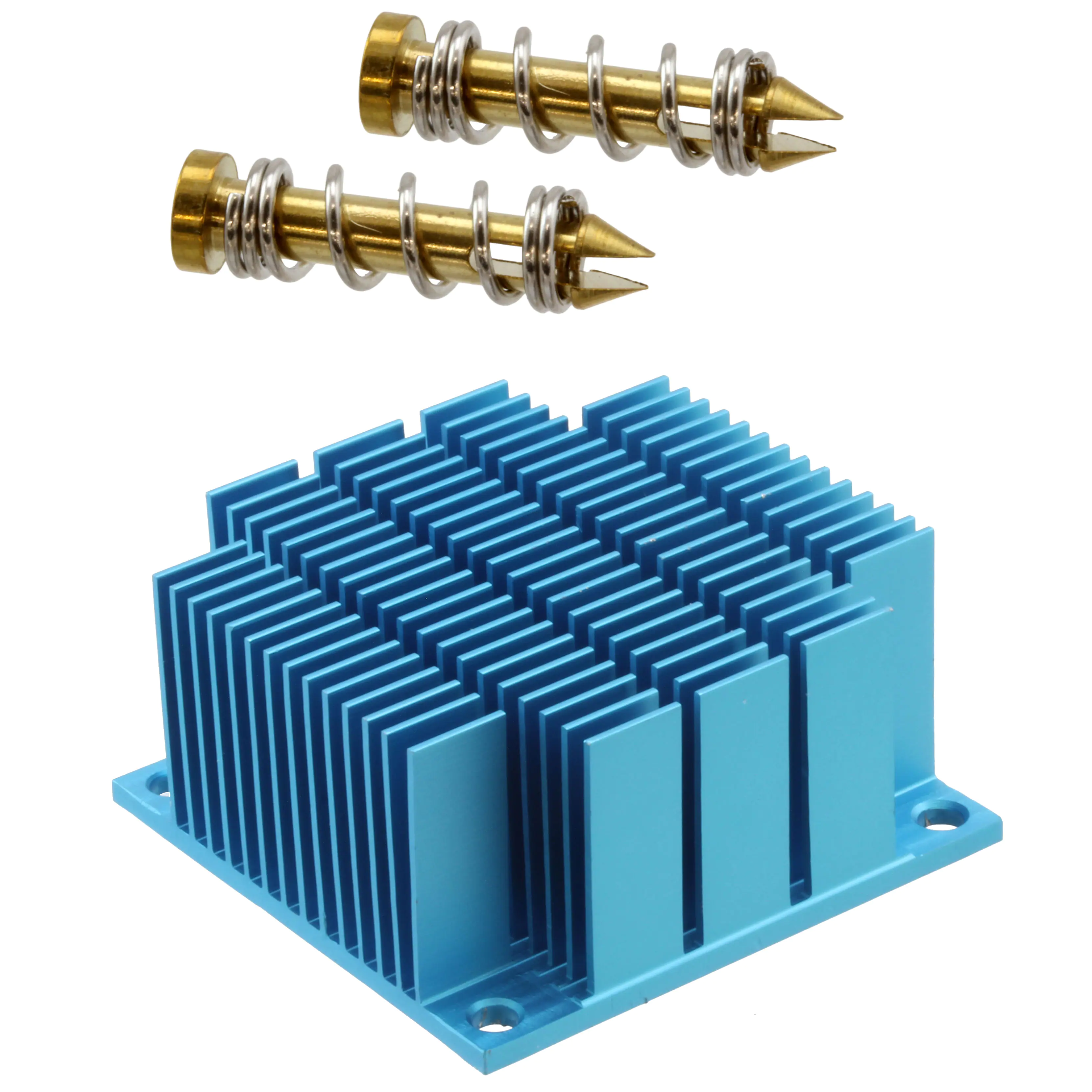

ATS-08A-15-C2-R0HEATSINK 50X50X25MM XCUT T766 |
111 | 7.16 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 7.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

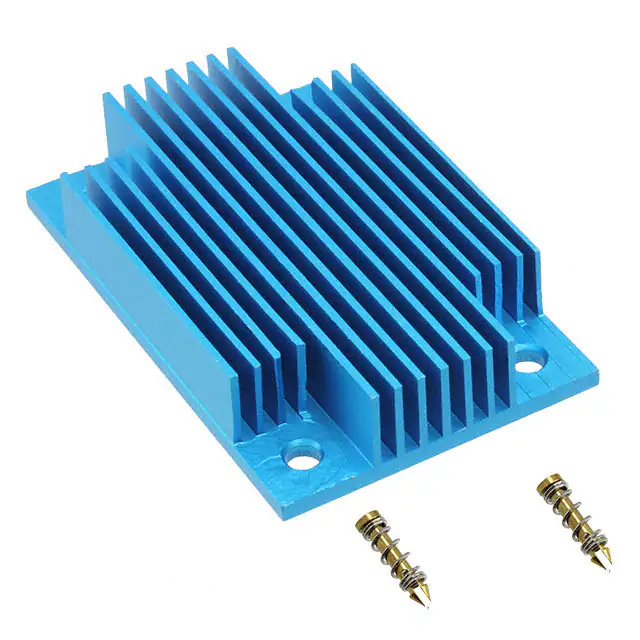

ATS-P2-32-C2-R0HEATSINK 57.9X36.83X11.43MM T766 |
132 | 10.26 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.450" (11.43mm) | - | 21.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

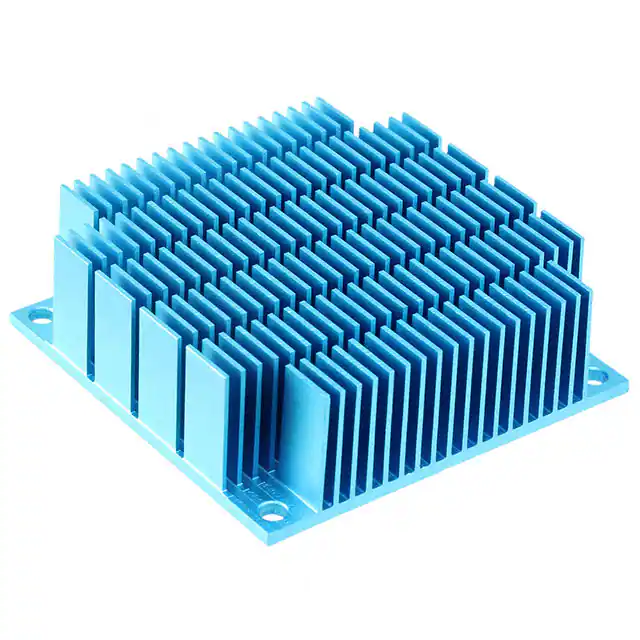

ATS-FPX060060020-24-C2-R0HEATSINK 60X60X20MM XCUT FP |
340 | 7.32 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 8.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
