Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-H1-09-C2-R0HEATSINK 45X45X20MM XCUT T766 |
2,902 | 9.96 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
4,258 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54150R-C0-R0HEATSINK 15X15X19.5MM W/OUT TIM |
1,375 | 6.09 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.768" (19.50mm) | - | 13.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
904-27-1-23-2-B-0HEATSINK 27X27X23MM ELLIPTICAL |
2,205 | 7.89 |
|
Datasheet |
904 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.892" (22.65mm) | - | 3.50°C/W @ 200 LFM | 9.40°C/W | Aluminum | Black Anodized |
|

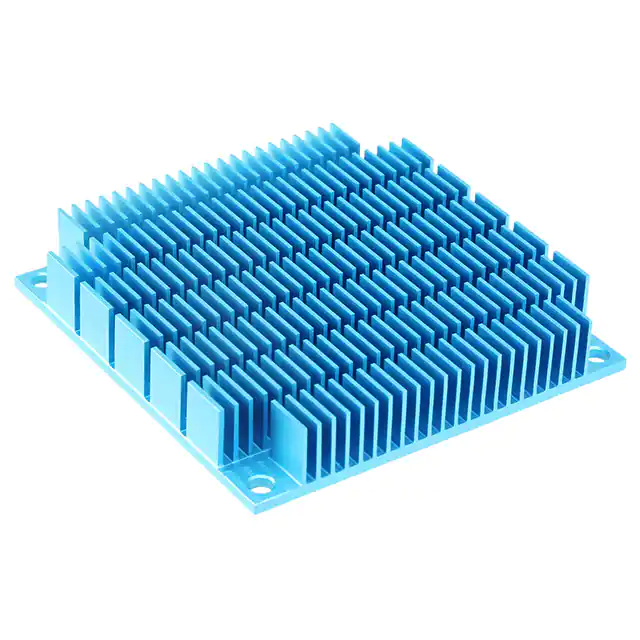

ATS-FPX070070013-27-C2-R0HEATSINK 70X70X12.7MM XCUT FP |
3,992 | 10.05 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.500" (12.70mm) | - | 12.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

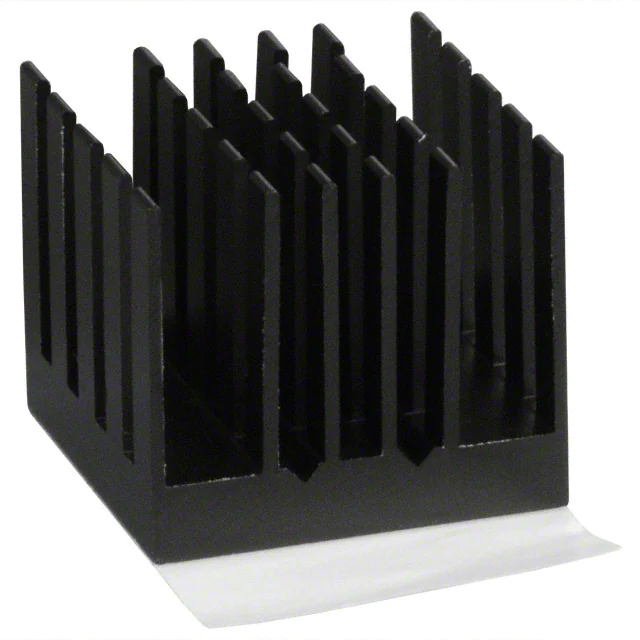

ATS-55230R-C1-R0HEAT SINK 23MM X 23MM X 19.5MM |
3,470 | 9.68 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.768" (19.50mm) | - | 7.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
3,652 | 10.11 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-16G-107-C2-R1HEATSINK 50.00MM X 50.00MM ALUM |
100 | 8.13 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.374" (9.50mm) | - | 27.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-55310R-C1-R0HEAT SINK 31MM X 31MM X 19.5MM |
3,037 | 10.30 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.768" (19.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX070070006-208-C3-R0HEATSINK 70X70X6MM XCUT CP |
4,593 | 8.00 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
4,251 | 10.22 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX070070010-209-C3-R0HEATSINK 70X70X10MM XCUT CP |
4,150 | 8.22 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

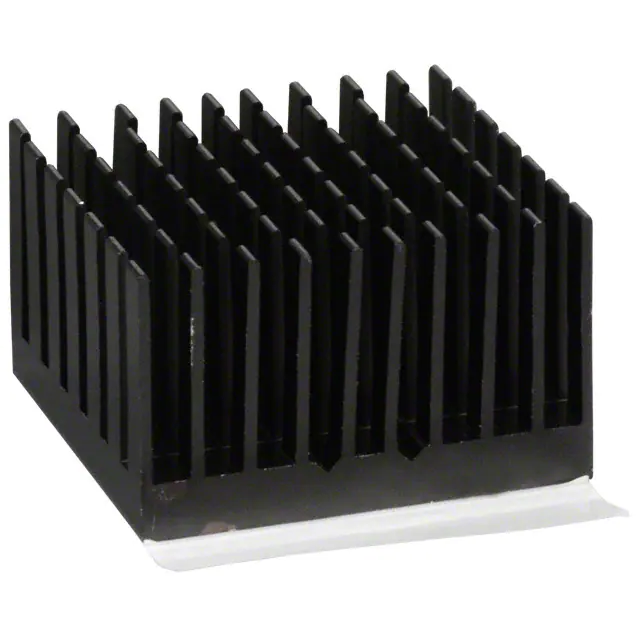

ATS-55330R-C1-R0HEAT SINK 33MM X 33MM X 19.5MM |
2,622 | 10.44 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.768" (19.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-41-C2-R0HEATSINK 57.9X60.96X17.78MM T766 |
4,668 | 10.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

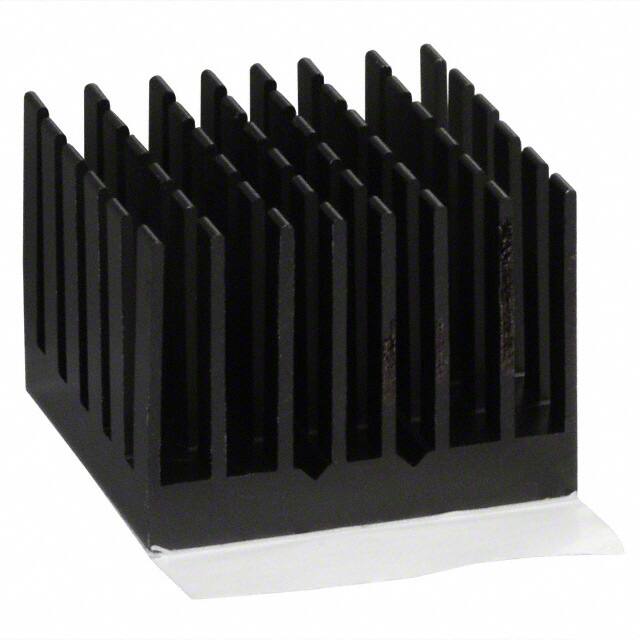

ATS-55270R-C1-R0HEAT SINK 27MM X 27MM X 19.5MM |
3,429 | 9.96 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.768" (19.50mm) | - | 5.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-14-C2-R0HEATSINK 50X50X20MM XCUT T766 |
3,349 | 10.41 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 9.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-111-C2-R1HEATSINK 60X60X9.5MM XCUT T766 |
1,690 | 10.44 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.374" (9.50mm) | - | 26.74°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-33-C2-R0HEATSINK 57.9X36.83X17.78MM T766 |
3,736 | 10.52 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.700" (17.78mm) | - | 17.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-06D-207-C2-R0HEATSINK 60X60X12MM XCUT T766 |
3,346 | 8.17 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.472" (12.00mm) | - | 6.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-55400D-C1-R0HEAT SINK 40MM X 40MM X 9.5MM |
4,078 | 8.26 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 10.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
