Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-06C-152-C2-R0HEATSINK 35X35X35MM L-TAB T766 |
3,542 | 6.95 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-17H-15-C2-R0HEATSINK 50X50X25MM XCUT T766 |
100 | 7.16 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 7.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-158-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
1,345 | 6.95 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 2.80°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-24-C2-R0HEATSINK 60X60X20MM XCUT T766 |
4,620 | 8.97 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 8.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-18F-128-C2-R0HEATSINK 54X54X25MM XCUT T766 |
100 | 7.34 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 2.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-38-C2-R0HEATSINK 36.83X57.6X22.86MM T766 |
2,928 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.900" (22.86mm) | - | 6.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-11C-68-C2-R0HEATSINK 45X45X15MM L-TAB T766 |
4,731 | 7.10 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 15.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07B-89-C2-R0HEATSINK 35X35X30MM R-TAB T766 |
100 | 7.19 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-02-C2-R0HEATSINK 40X40X12.7MM XCUT T766 |
4,631 | 9.21 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 18.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-03-C2-R0HEATSINK 40X40X15MM XCUT T766 |
1,715 | 9.32 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 15.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-22-C2-R0HEATSINK 60X60X12.7MM XCUT T766 |
4,670 | 9.32 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 13.83°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-04-C2-R0HEATSINK 40X40X20MM XCUT T766 |
2,491 | 9.47 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 11.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-05-C2-R0HEATSINK 40X40X25MM XCUT T766 |
1,992 | 9.60 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 8.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-192-C2-R0HEATSINK 45X45X35MM R-TAB T766 |
3,484 | 7.57 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 2.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

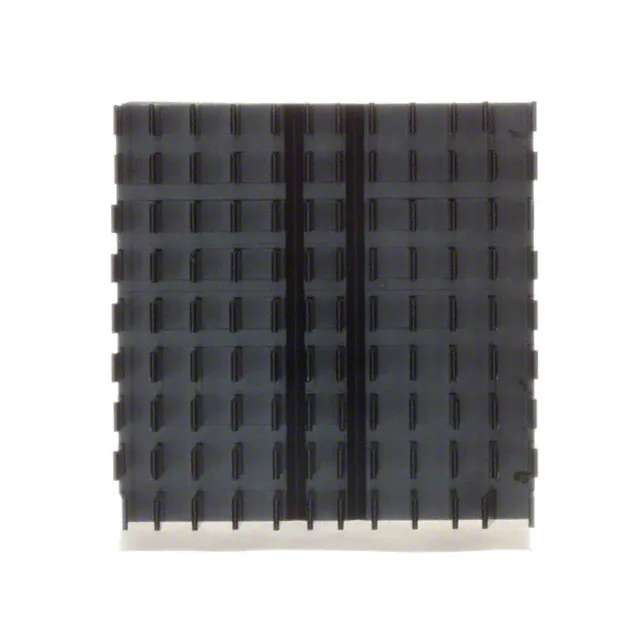

ATS-55425K-C1-R0HEAT SINK 42.5 X 42.5 X 14.5MM |
1,395 | 9.83 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.571" (14.50mm) | - | 4.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

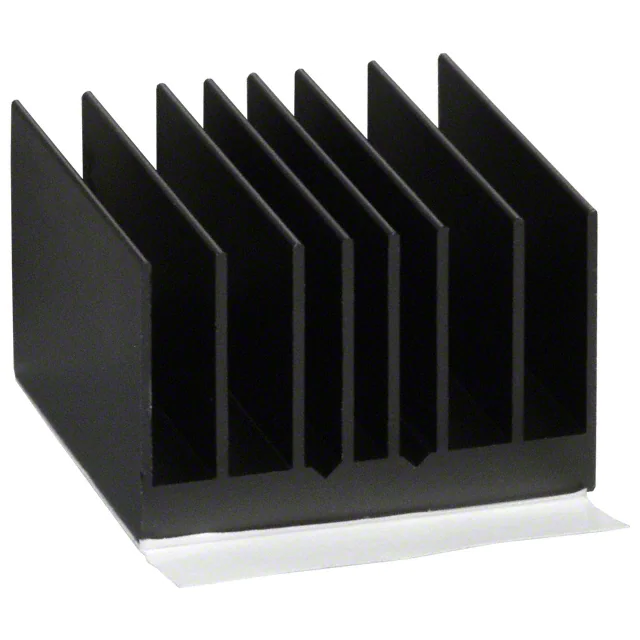

ATS-54310R-C1-R0HEAT SINK 31MM X 31MM X 19.5MM |
1,078 | 9.83 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.768" (19.50mm) | - | 4.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-07-C2-R0HEATSINK 45X45X12.7MM XCUT T766 |
3,522 | 9.68 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | - | 17.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-08-C2-R0HEATSINK 45X45X15MM XCUT T766 |
4,216 | 9.75 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 14.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54330D-C1-R0HEAT SINK 33MM X 33MM X 9.5MM |
4,262 | 7.68 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.374" (9.50mm) | - | 11.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
960-31-28-S-AB-0HEATSINK 31X28MM SIDE PUSH PIN |
2,647 | 7.75 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 1.102" (28.00mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
