Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-H1-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
2,212 | 10.20 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-28-C2-R0HEATSINK 70X70X15MM XCUT T766 |
4,431 | 12.54 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-55250W-C0-R0HEATSINK 25X25X24.5MM W/OUT TIM |
1,917 | 10.24 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.965" (24.50mm) | - | 4.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

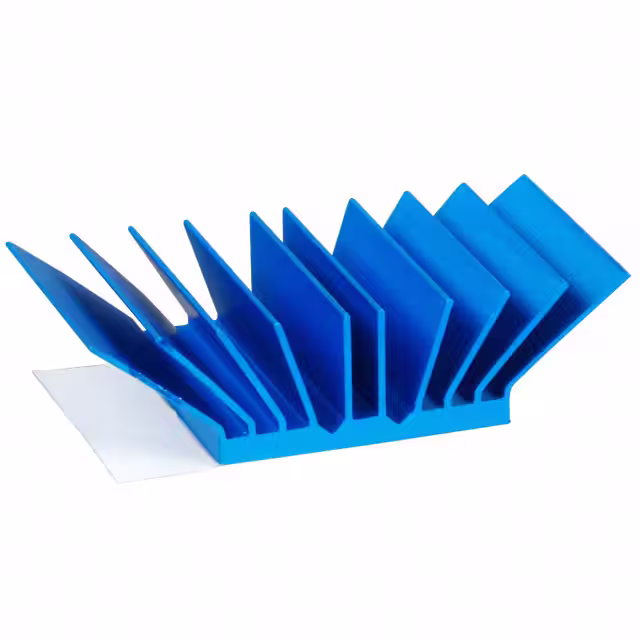

ATS-52270G-C1-R0HEAT SINK 27MM X 27MM X 12.5MM |
1,112 | 10.20 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.492" (12.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-29-C2-R0HEATSINK 70X70X20MM XCUT T766 |
3,068 | 12.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 7.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-55325R-C1-R0HEAT SINK 32.5 X 32.5 X 19.5MM |
4,985 | 10.41 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.768" (19.50mm) | - | 4.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-13F-209-C2-R0HEATSINK 70X70X10MM XCUT T766 |
2,084 | 10.67 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.27°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07G-133-C2-R0HEATSINK 70X70X10MM XCUT T766 |
100 | 10.74 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 7.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-10H-133-C2-R0HEATSINK 70X70X10MM XCUT T766 |
4,923 | 10.74 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 7.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

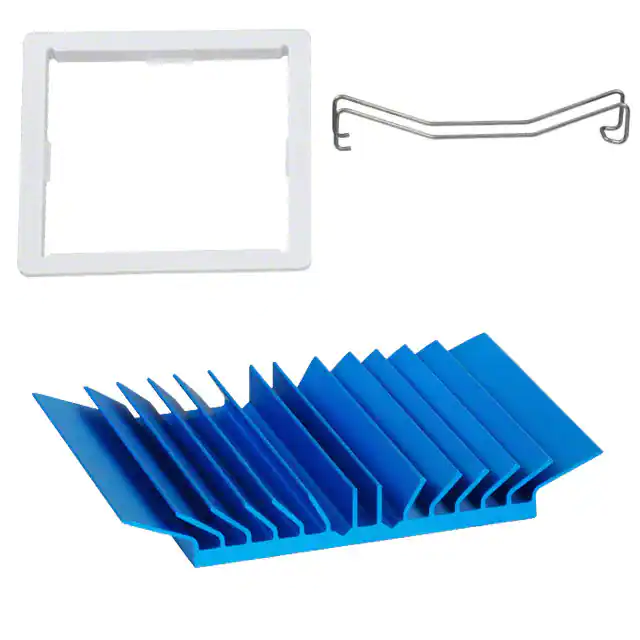

ATS-50425B-C1-R0HEAT SINK 42.5 X 42.5 X 7.5MM |
3,288 | 13.47 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.295" (7.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

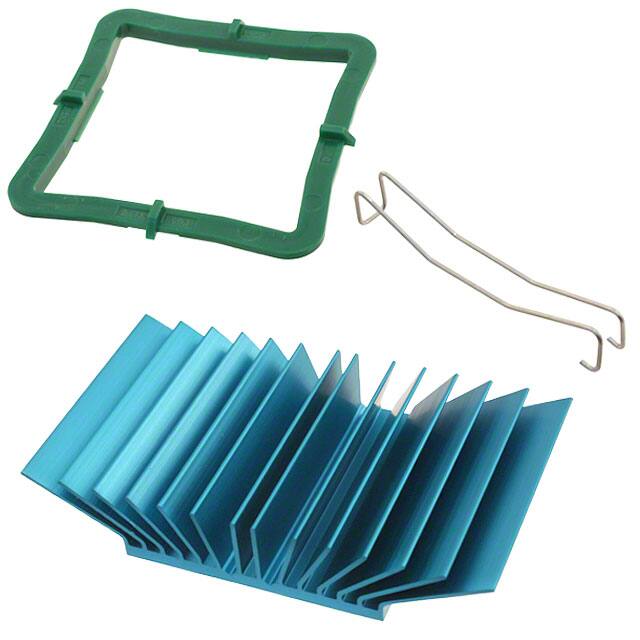

ATS-50400G-C3-R0HEATSINK 40X40X12.5MM |
2,792 | 11.69 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.492" (12.50mm) | - | 2.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-158-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
1,189 | 10.86 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 2.80°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

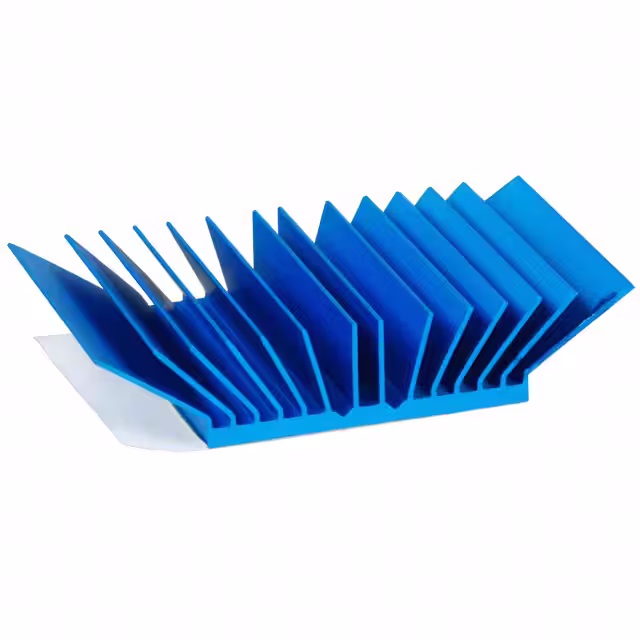

ATS-52375G-C1-R0HEAT SINK 37.5 X 37.5 X 12.5MM |
4,485 | 10.82 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.492" (12.50mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

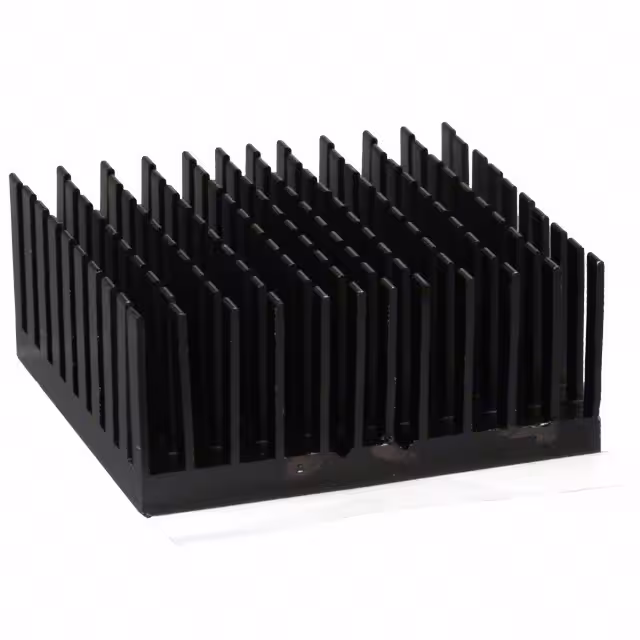

ATS-55450R-C1-R0HEAT SINK 45MM X 45MM X 19.5MM |
4,410 | 10.87 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.768" (19.50mm) | - | 3.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-29-C2-R0HEATSINK 70X70X20MM XCUT T766 |
4,628 | 13.49 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 7.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-30-C2-R0HEATSINK 70X70X25MM XCUT T766 |
2,134 | 13.53 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-13H-41-C2-R0HEATSINK 57.9X60.96X17.78MM T766 |
100 | 11.01 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-11A-41-C2-R0HEATSINK 57.9X60.96X17.78MM T766 |
100 | 11.01 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-136-C2-R0HEATSINK 70X70X25MM XCUT T766 |
1,398 | 15.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-96-C2-R0HEATSINK 40X40X35MM R-TAB T766 |
3,781 | 11.07 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.63°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
