Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ATS-LQHS-74025-C1-R0LIQUID ASSISTED FANSINK ASMBLY, |
2,675 | 0.00 |
|
Datasheet |
fanSINK™ | Box | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.913" (74.00mm) | 2.913" (74.00mm) | - | 1.016" (25.80mm) | - | - | 0.13°C/W | - | Black Anodized |
|
|
ATS-LQHS-84030-C1-R0LIQUID ASSISTED FANSINK ASMBLY, |
2,035 | 0.00 |
|
Datasheet |
fanSINK™ | Box | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 3.307" (84.00mm) | 3.307" (84.00mm) | - | 1.213" (30.80mm) | - | - | - | - | Black Anodized |
|
|
ATS-LQHS-84025-C1-R0LIQUID ASSISTED FANSINK ASMBLY, |
1,763 | 0.00 |
|
Datasheet |
fanSINK™ | Box | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 3.307" (84.00mm) | 3.307" (84.00mm) | - | 1.016" (25.80mm) | - | - | - | - | Black Anodized |
|
|
ATS-UC-CRYQL-100ULTRA COOL HEAT SINK CRYOQOOL, C |
1,015 | 0.00 |
|
Datasheet |
- | Box | Active | Top Mount | Intel LGA2011 & LGA2066 & LGA1366 CPU Cooler | Push Pin, Thermal Material | Rectangular, Fins | 5.394" (137.00mm) | 3.843" (97.60mm) | - | 1.882" (47.80mm) | - | - | - | Copper | - |
|
|
ATS-UC-ARGUS-D200ULTRA COOL DUALFLOW HEAT SINK, A |
3,680 | 0.00 |
|
Datasheet |
- | Box | Active | Top Mount | Intel LGA2011 & LGA2066 CPU Cooler | Push Pin, Thermal Material | Square, Fins | 4.764" (121.00mm) | 4.764" (121.00mm) | - | 2.520" (64.00mm) | - | - | - | Copper | Nickel |
|

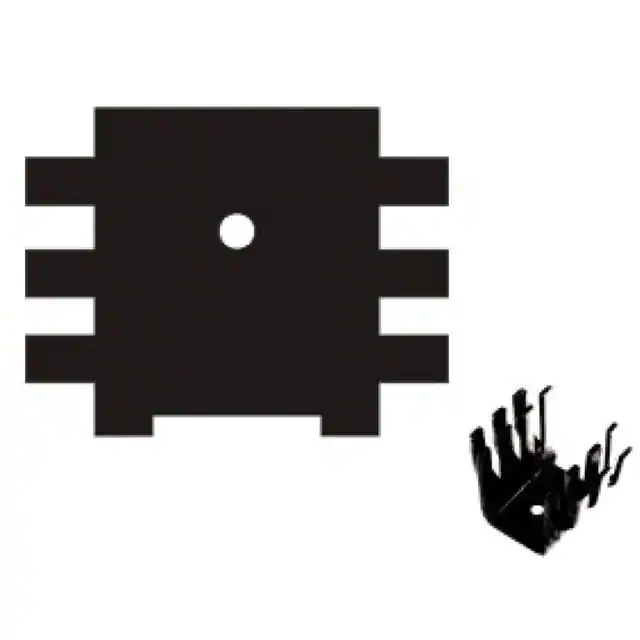

SAR-TR10TRANSISTOR HEATSINK TO-220 |
440 | 0.40 |
|
Datasheet |
- | Bulk | Active | Board Level | - | PC Pin | Rectangular, Fins | 1.122" (28.50mm) | 1.181" (30.00mm) | - | 0.945" (24.00mm) | - | - | - | Aluminum | Black Anodized |
|

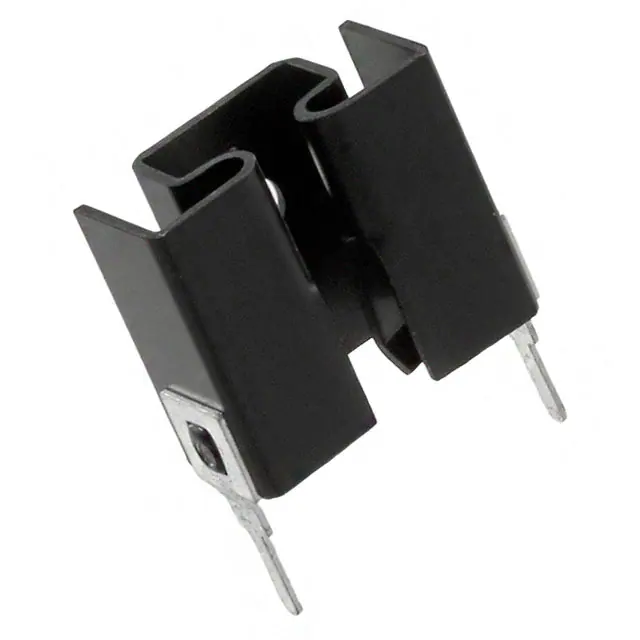

833202B03700HEATSINK STAMP 10X21.2X19MM |
347 | 0.44 |
|
Datasheet |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.835" (21.21mm) | - | 0.394" (10.00mm) | 3.0W @ 60°C | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

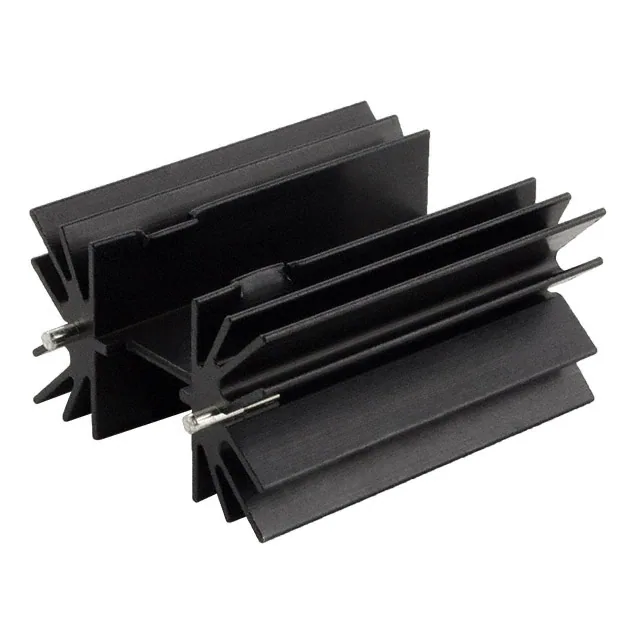

HSE-B18254-035H-00HEAT SINK, EXTRUSION, TO-218, 25 |
2,522 | 0.39 |
|
Datasheet |
HSE | Bulk | Active | Board Level, Vertical | TO-218 | Clip and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.638" (41.60mm) | - | 0.984" (25.00mm) | 10.0W @ 75°C | 4.03°C/W @ 200 LFM | 7.50°C/W | Aluminum Alloy | Black Anodized |
|

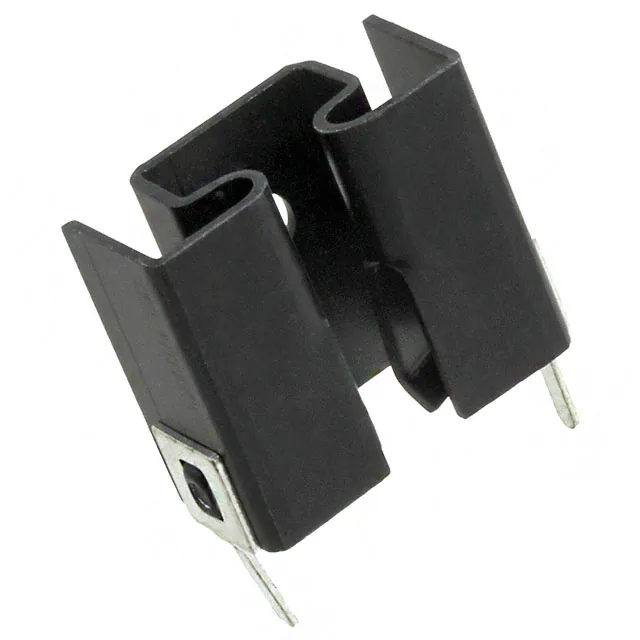

833202B04800HEATSINK STAMP 10X21.2X19MM |
933 | 0.43 |
|
Datasheet |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.835" (21.21mm) | - | 0.394" (10.00mm) | 3.0W @ 60°C | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
XL25-20-20-2.0XL25 CERAMIC BOARD 20X20X2MM |
345 | 0.62 |
|
Datasheet |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.079" (2.00mm) | - | - | - | Ceramic | - |
|

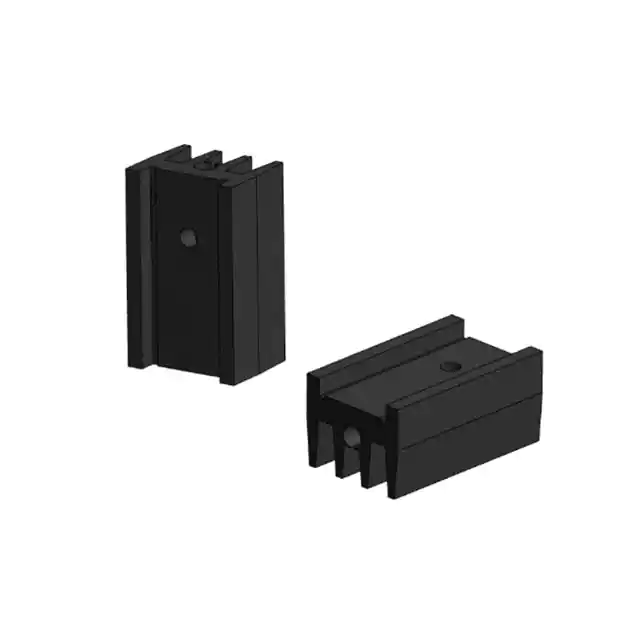

SAR57ASX30MMEXTRUDED HEATSINK 57MM X 30MM |
495 | 0.71 |
|
Datasheet |
57AS | Box | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 1.181" (30.00mm) | 0.602" (15.30mm) | - | 0.472" (12.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
XL25-35-35-10CERAMIC HEAT SPREADER 35X35MM GR |
2,501 | 0.71 |
|
Datasheet |
XL-25 | Tray | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | - | - | Ceramic | - |
|

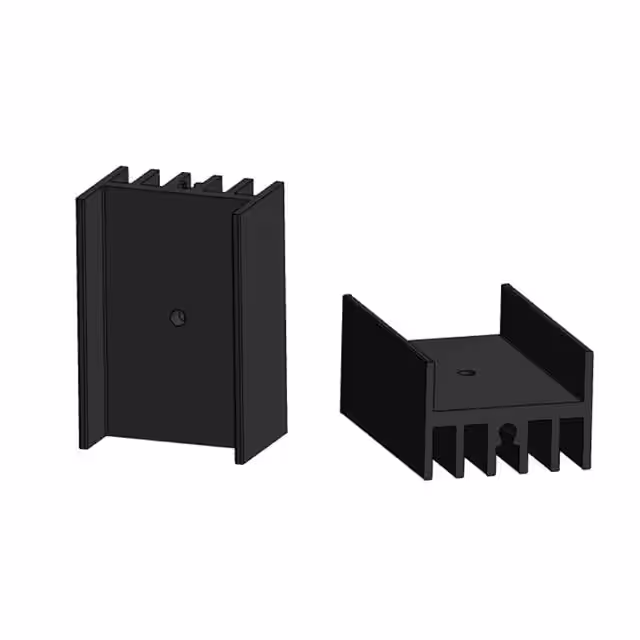

SAR59ASX30MMEXTRUDED HEATSINK 59MM X 30MM |
394 | 0.76 |
|
Datasheet |
59AS | Box | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 1.181" (30.00mm) | 0.933" (23.70mm) | - | 0.650" (16.51mm) | - | - | - | Aluminum | Black Anodized |
|
|
SAR59ASX35MMEXTRUDED HEATSINK 59MM X 35MM |
500 | 0.79 |
|
Datasheet |
59AS | Box | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 1.378" (35.00mm) | 0.933" (23.70mm) | - | 0.650" (16.51mm) | - | - | - | Aluminum | Black Anodized |
|
|
XL25-40-40-10CERAMIC HEAT SPREADER 40X40MM GR |
3,841 | 0.85 |
|
Datasheet |
XL-25 | Tray | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | - | - | Ceramic | - |
|
|
XL25-40-40-10-T1-0.25CERAMIC HEAT SPREADER 40X40MM GR |
4,404 | 1.12 |
|
Datasheet |
XL-25 | Tray | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | - | - | Ceramic | - |
|
|
XL25-40-40-3.0XL25 CERAMIC BOARD 40X40X3MM |
3,575 | 1.21 |
|
Datasheet |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.118" (3.00mm) | - | - | - | Ceramic | - |
|
|
XL25-50-50-10CERAMIC HEAT SPREADER 50X50MM GR |
4,306 | 1.28 |
|
Datasheet |
XL-25 | Tray | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | - | - | Ceramic | - |
|

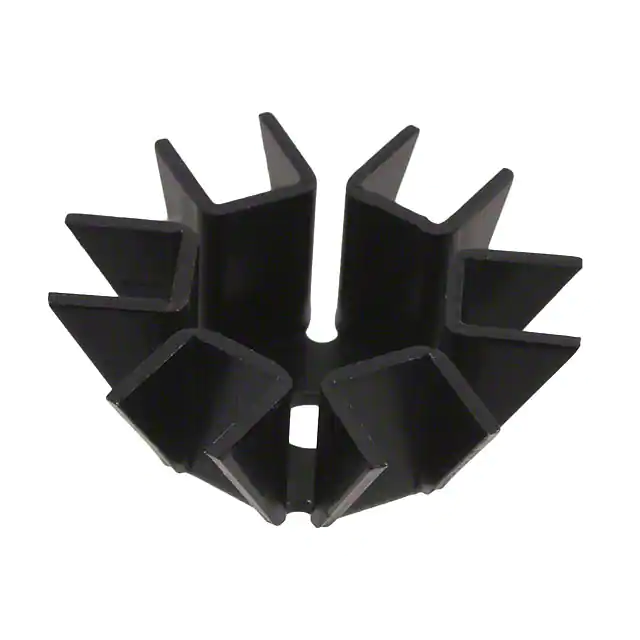

695-1BHEATSINK FOR STUD MT DIODE BLACK |
3,119 | 1.28 |
|
Datasheet |
695 | Bulk | Obsolete | Board Level | Stud Mounted Diode | Bolt On | - | - | - | 0.625" (15.88mm) ID, 1.330" (33.78mm) OD | 0.530" (13.46mm) | 4.0W @ 72°C | 5.20°C/W @ 400 LFM | 18.00°C/W | Aluminum | Black Anodized |
|
|
XL25-50-50-10-T1-0.25CERAMIC HEAT SPREADER 50X50MM GR |
2,873 | 1.67 |
|
Datasheet |
XL-25 | Tray | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | - | - | Ceramic | - |
