Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
960-21-15-S-AB-0HEATSINK 21X15MM SIDE PUSH PIN |
4,432 | 4.86 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.590" (15.00mm) | - | 6.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
UNI-H19052-28P/2.6BUAL HEAT SINK 19X19X28MM WITH PIN |
1,695 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.984" (25.00mm) | - | 4.91°C/W @ 200 LFM | 10.27°C/W | Aluminum Alloy | Black Anodized |
|
|
MBH45001-13LF/2.0AL HEAT SINK 45X45X13MM |
2,341 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.461" (11.70mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
780153U02300G78015 EXTRUSION 2.3" |
4,206 | 3.68 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical, Extrusion | - | Clip and PC Pin | Rectangular, Pin Fins | 2.300" (58.42mm) | 1.063" (27.00mm) | - | 1.970" (50.04mm) | - | - | - | Aluminum | - |
|
|
MBH45001-10LF/2.0AL HEAT SINK 45X45X10MM |
3,681 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
UNI-H27052-12P/2.6YAL HEAT SINK 27X27X12MM WITH PIN |
1,370 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.354" (9.00mm) | - | 4.84°C/W @ 200 LFM | 11.38°C/W | Aluminum Alloy | Black Anodized |
|
|
960-21-15-F-AB-0HEATSINK 21X15MM FRONT PUSH PIN |
3,737 | 4.86 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.590" (15.00mm) | - | 6.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
960-21-15-D-AB-0HEATSINK 21X15MM DIA PUSH PIN |
2,862 | 5.00 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.590" (15.00mm) | - | 6.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX054054015-18-C3-R0HEATSINK 54X54X15MM XCUT FP |
4,386 | 5.07 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 13.45°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
960-21-18-D-AB-0HEATSINK 21X18MM DIA PUSH PIN |
4,315 | 5.14 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.709" (18.00mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX054054025-128-C3-R0HEATSINK 54X54X25MM XCUT CP |
4,245 | 5.07 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 2.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
960-19-21-S-AB-0HEATSINK 19X21MM SIDE PUSH PIN |
2,014 | 5.28 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.827" (21.00mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
960-27-18-S-AB-0HEATSINK 27X18MM SIDE PUSH PIN |
1,409 | 5.95 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.709" (18.00mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
MBA25002-13P/CU/2.3BUCU HEAT SINK 25X25X13MM WITH PIN |
4,310 | 0.00 |
|
- |
MBA | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.433" (11.00mm) | - | - | - | Copper | - |
|
|
MBH14002-14P/CU/2-1CU HEAT SINK 14X14X14MM W/ BLACK |
2,828 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.472" (12.00mm) | - | - | - | Copper | Black Coating |
|
|
HBA25031-10/CU/YCU HEAT SINK 25X25X10MM WITH LIN |
1,880 | 0.00 |
|
- |
HBA | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.307" (7.80mm) | - | - | - | Copper | - |
|

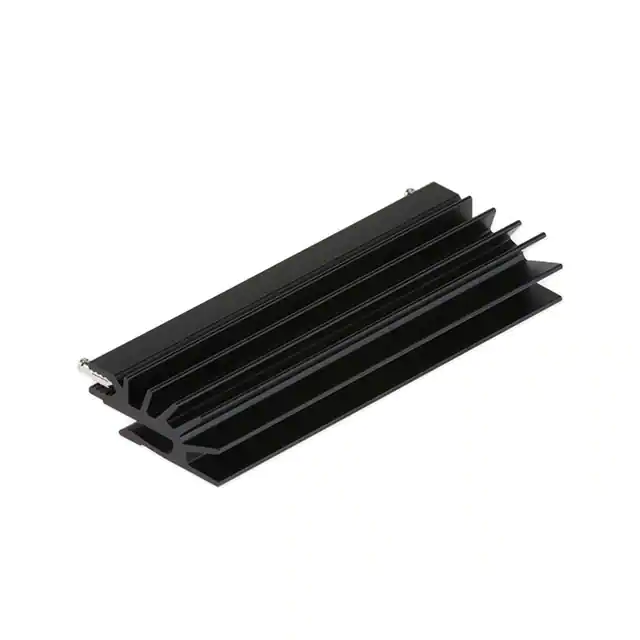

692-75HEATSINK TO126 W/CLIP 75MM |
3,021 | 5.42 |
|
Datasheet |
692 | Box | Active | Board Level, Vertical | TO-126 | Clip and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 0.430" (10.92mm) | - | 1.100" (27.94mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-CPX060060010-206-C3-R0HEATSINK 60X60X10MM XCUT CP |
1,374 | 5.45 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 7.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

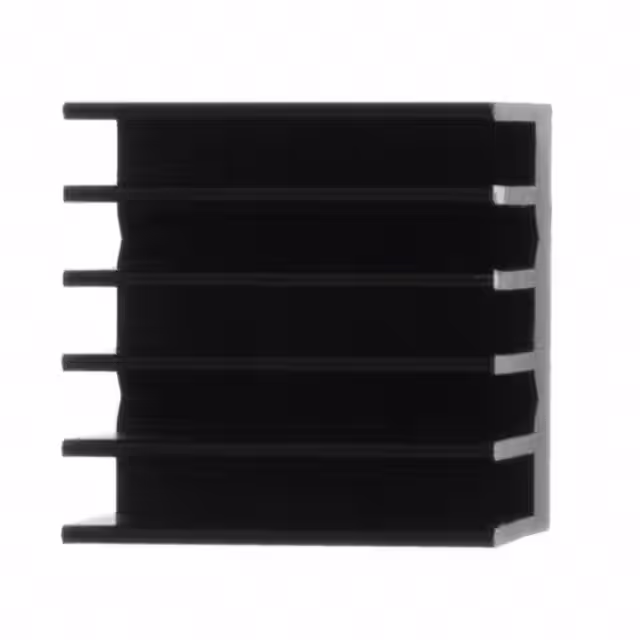

ATS-54170K-C0-R0HEATSINK 17X17X14.5MM W/OUT TIM |
1,014 | 5.62 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.571" (14.50mm) | - | 13.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
960-23-21-D-AB-0HEATSINK 23X21MM DIA PUSH PIN |
4,168 | 5.69 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.827" (21.00mm) | - | 3.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
