Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

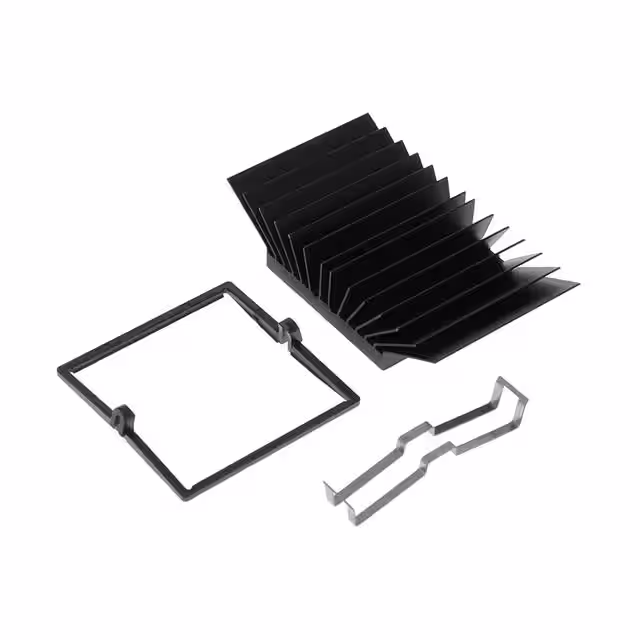

ATS-X51400K-C1-R0MAXIFLOW 39.25X39.25X14.5MM T766 |
115 | 22.82 |
|
Datasheet |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.571" (14.50mm) | - | 2.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

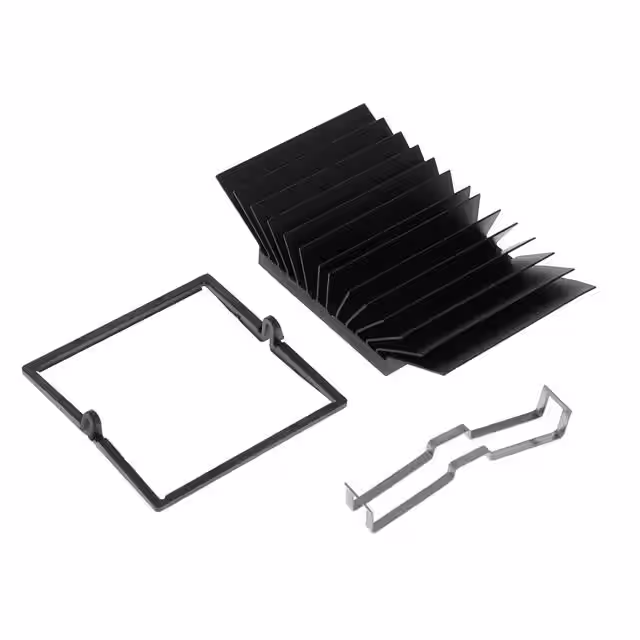

ATS-X51425K-C1-R0MAXIFLOW 41.75X41.75X14.5MM T766 |
125 | 23.02 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

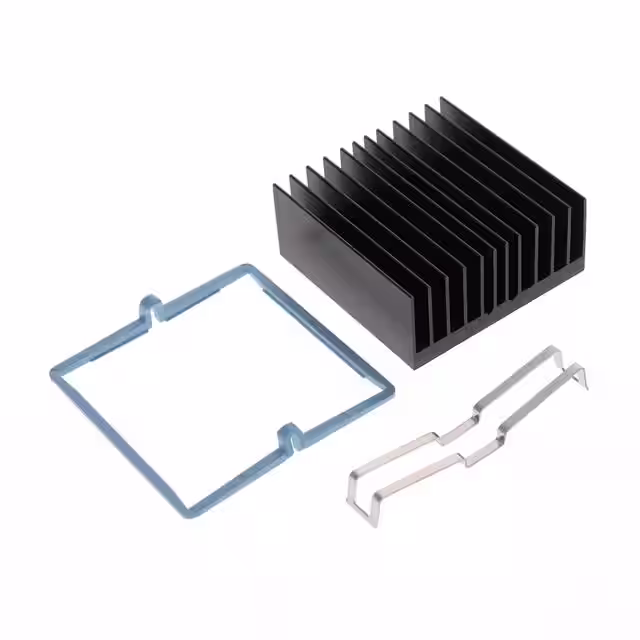

ATS-X53450R-C1-R0STR FIN 44.25X44.25X19.5MM T766 |
125 | 24.03 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

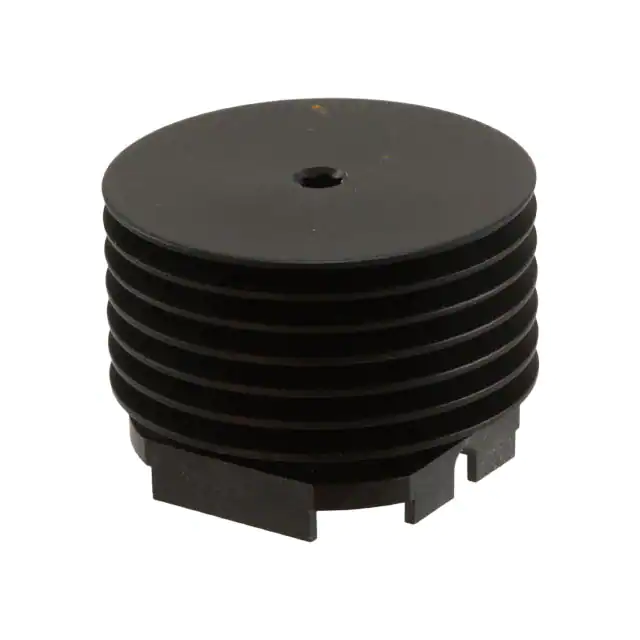

4-1542005-0HEAT SINK BGA 25MM 7FIN RADIAL |
257 | 34.92 |
|
Datasheet |
- | Box | Active | - | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.894" (22.71mm) | - | 3.80°C/W @ 200 LFM | 10.50°C/W | Aluminum | Black Anodized |
|

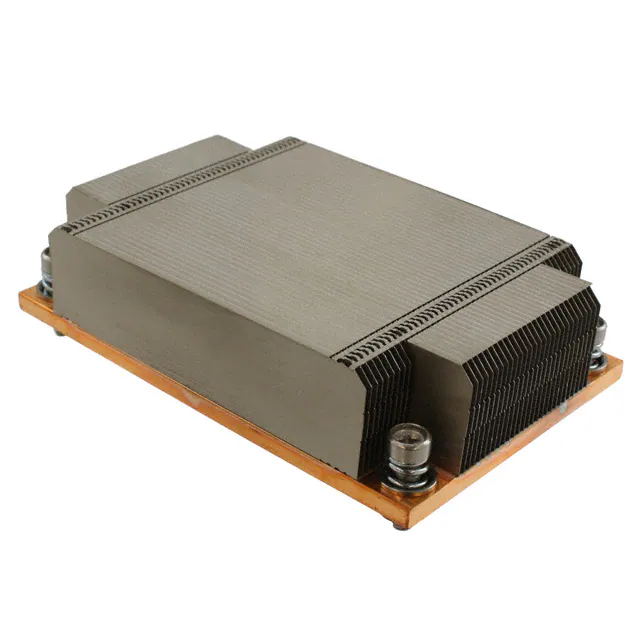

DHS-B10670-04AHEATSINK ASSY LGA2011 NARROW |
288 | 43.18 |
|
Datasheet |
- | Box | Not For New Designs | Board Level | LGA | Bolt On | Rectangular, Fins | 4.173" (106.00mm) | 2.756" (70.00mm) | - | 1.004" (25.50mm) | - | - | 0.26°C/W | Aluminum | - |
|
1277915.64" WIDE X 36" MULTI CHANNEL 7 |
154 | 62.33 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 5.640" (143.26mm) | - | 1.000" (25.40mm) | - | - | 0.57°C/W | Aluminum | - |
|

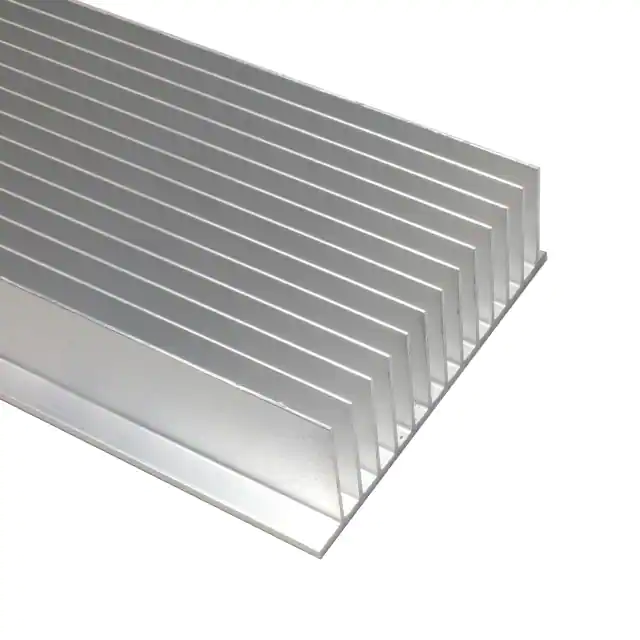

1277615.86" X 36" FLATBACK HEATSINK 14 |
4,072 | 70.38 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 5.860" (148.84mm) | - | 2.000" (50.80mm) | - | - | 0.28°C/W | Aluminum | - |
|
1277574.461" WIDE X 36" FLATBACK HEATS |
2,164 | 78.88 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.461" (113.31mm) | - | 1.310" (33.27mm) | - | - | 0.45°C/W | Aluminum | - |
|
1276893.375" X 12" H STYLE HEATSINK 17 |
3,774 | 114.35 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 3.750" (95.25mm) | - | 9.000" (228.60mm) | - | - | 0.15°C/W | Aluminum | - |
|
ATS-UC-NF-201CPU HEAT SINK NO FAN COPPER |
105 | 157.08 |
|
Datasheet |
- | Box | Active | Top Mount, Skived | Intel LGA2011 & LGA2066 CPU Cooler | Push Pin | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 1.102" (28.00mm) | - | - | - | Copper | Nickel |
|
ATS-UC-QFLOW-200QUADFLOW HEATSINK 1U CU FINS |
4,097 | 160.87 |
|
Datasheet |
quadFLOW™ | Box | Active | Top Mount, Zipper Fin | Intel LGA2011 & LGA2066 CPU Cooler | Push Pin | Square, Fins | 3.637" (92.38mm) | 3.626" (92.11mm) | - | 1.142" (29.00mm) | - | - | - | Copper | Nickel |
|
12777911.42" WIDE X 36" FLATBACK HEAT |
2,062 | 447.36 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 11.420" (290.07mm) | - | 2.559" (65.00mm) | - | - | 0.19°C/W | Aluminum | - |
|
262-75ABE375HEATSINK VERT/HORIZ TO-220 |
4,580 | 0.36 |
|
Datasheet |
262 | Bulk | Active | Board Level, Vertical | TO-220 | Press Fit and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.570" (14.47mm) | - | 0.500" (12.70mm) | 3.0W @ 80°C | 10.00°C/W @ 200 LFM | 26.70°C/W | Aluminum | Black Anodized |
|

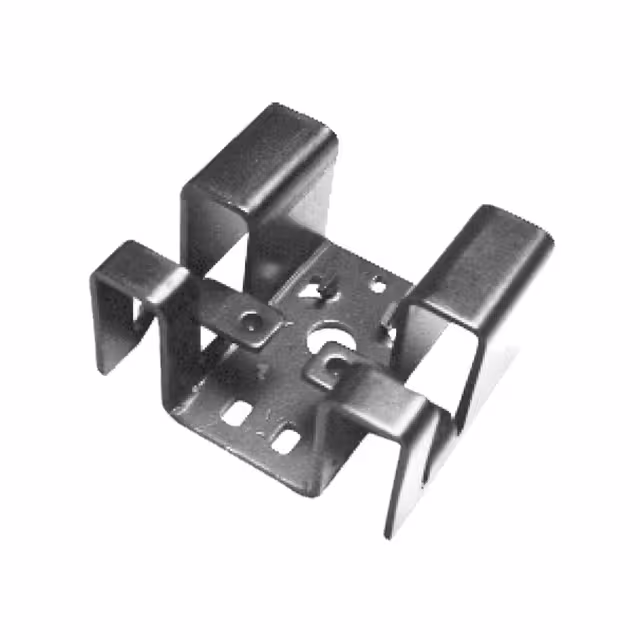

ATS-PCB1032HEATSINK CLIP-ON TO-220 BLK |
2,494 | 1.21 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.850" (21.59mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 9.00°C/W @ 200 LFM | 20.00°C/W | Aluminum | Black Anodized |
|
|
HSB31-212105HEAT SINK, BGA, 21 X 21 X 5 MM |
1,836 | 0.00 |
|
Datasheet |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) | 3.0W @ 75°C | 9.90°C/W @ 200 LFM | 25.33°C/W | Aluminum Alloy | Black Anodized |
|
|
650-BHEATSINK FOR DIPS |
8,889 | 0.00 |
|
Datasheet |
650 | Bulk | Active | Top Mount | 14-DIP and 16-DIP | Thermal Tape, Adhesive (Not Included) | Rectangular, Fins | 0.250" (6.35mm) | 0.740" (18.80mm) | - | 0.240" (6.10mm) | 0.5W @ 40°C | 4.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|

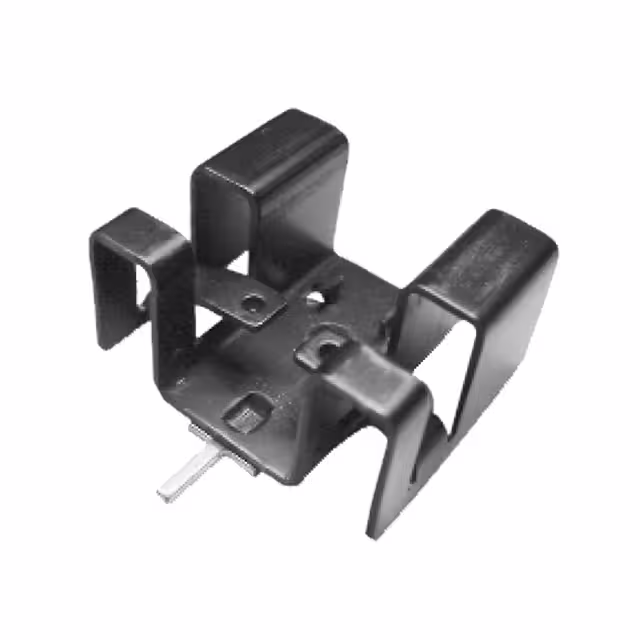

ATS-PCB1033HEATSINK CLIP-ON TO-220 W/TAB |
2,269 | 1.49 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.850" (21.59mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 9.00°C/W @ 200 LFM | 20.00°C/W | Aluminum | Black Anodized |
|

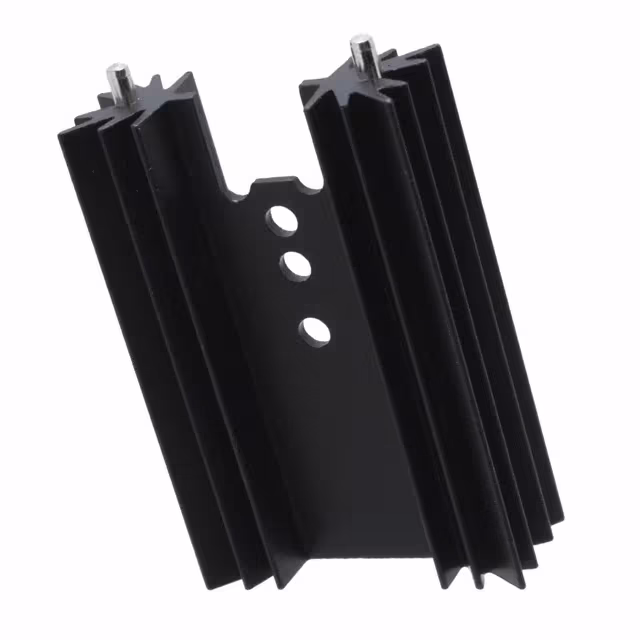

V7477YHEATSINK ALUM ANOD |
200 | 0.78 |
|
Datasheet |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.500" (12.70mm) | - | - | 9.00°C/W | Aluminum | Black Anodized |
|
|
HSB34-282811HEAT SINK, BGA, 28 X 28 X 11.2 M |
1,105 | 0.00 |
|
Datasheet |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.441" (11.20mm) | 5.0W @ 75°C | 5.10°C/W @ 200 LFM | 15.05°C/W | Aluminum Alloy | Black Anodized |
|
|
630-35ABHEATSINK FOR 35MM BGA |
2,831 | 1.08 |
|
Datasheet |
630 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.350" (8.89mm) | - | 5.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
