Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XL25W-TO264-28-22-0.64CERAMIC HEAT SPREADER 28X22MM WH |
3,775 | 0.73 |
|
Datasheet |
XL-25 | Bulk | Active | Heat Spreader | TO-264 | Thermal Tape | Rectangular | 1.102" (28.00mm) | 0.866" (22.00mm) | - | 0.025" (0.64mm) | - | - | - | Ceramic | - |
|
V7466WHEATSINK ALUM ANOD |
1,186 | 0.70 |
|
Datasheet |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.500" (12.70mm) | - | - | 8.20°C/W | Aluminum | Black Anodized |
|
V7477Z2HEATSINK ALUM ANOD |
1,608 | 1.05 |
|
Datasheet |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | PC Pin | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.500" (12.70mm) | - | - | 7.00°C/W | Aluminum | Black Anodized |
|

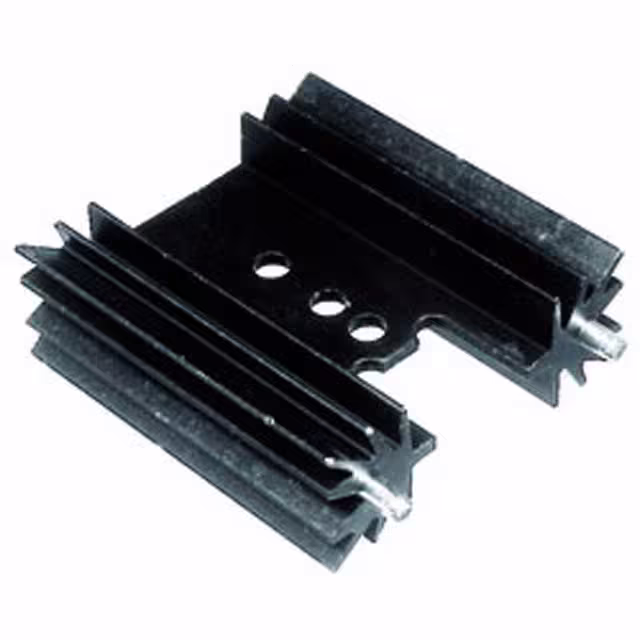

V7477ZHEATSINK ALUM ANOD |
3,479 | 1.05 |
|
Datasheet |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | - | 7.00°C/W | Aluminum | Black Anodized |
|

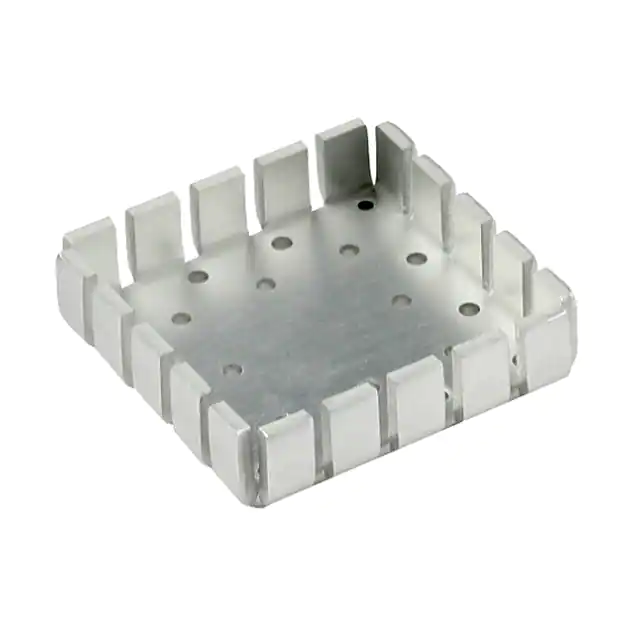

V2136NHEATSINK CPU STAMPED |
3,574 | 1.02 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum Alloy | Natural Anodized |
|

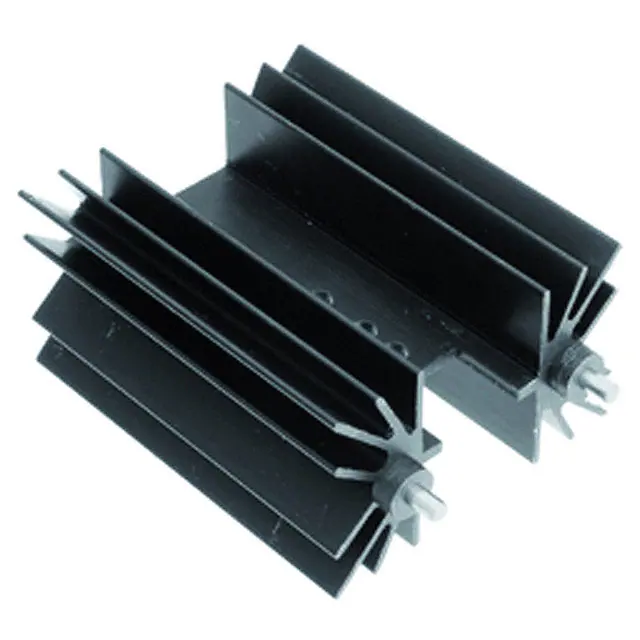

V8511YHEATSINK ALUM ANOD |
2,435 | 1.16 |
|
Datasheet |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | - | 4.00°C/W | Aluminum | Black Anodized |
|

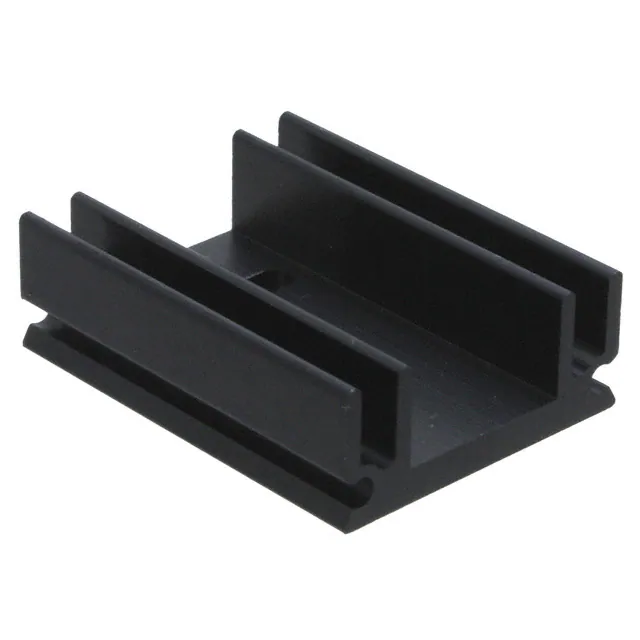

V6560RHEATSINK ALUM ANOD |
4,450 | 1.46 |
|
Datasheet |
- | Bulk | Active | Board Level | KLM | Bolt On | Rectangular, Fins | 1.476" (37.50mm) | 1.142" (29.00mm) | - | 0.472" (12.00mm) | - | - | 13.00°C/W | Aluminum | Black Anodized |
|

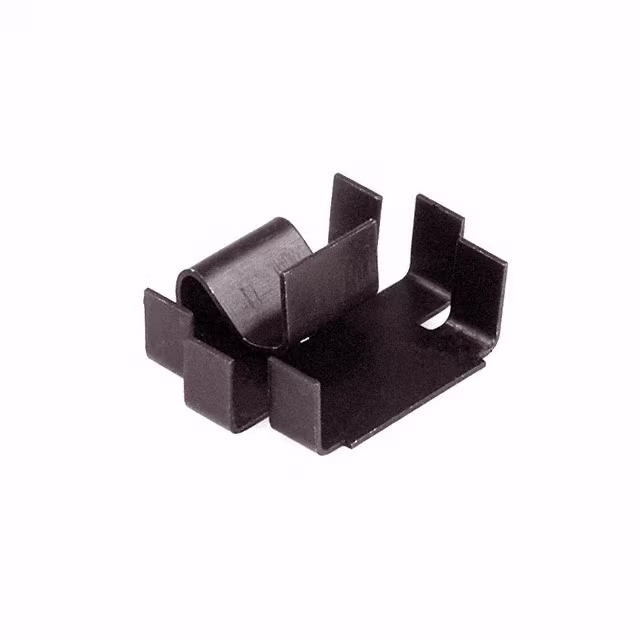

PSC22CBHEATSINK CLIP ON BLACK TO-220 |
1,947 | 2.16 |
|
Datasheet |
PSC2 | Box | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.810" (20.57mm) | 1.000" (25.40mm) | - | 0.310" (7.87mm) | - | - | 41.70°C/W | Aluminum | Black Anodized |
|
ATS-CPX045045012-198-C1-R0HEATSINK 45X45X12MM XCUT CP |
2,270 | 3.03 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.472" (12.00mm) | - | 9.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX025025015-74-C1-R0HEATSINK 25X25X15MM R-TAB FP |
3,169 | 3.05 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 20.28°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX025025020-45-C1-R0HEATSINK 25X25X20MM L-TAB FP |
3,703 | 3.15 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 14.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX025025020-75-C1-R0HEATSINK 25X25X20MM R-TAB FP |
2,265 | 3.15 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 14.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX050050010-200-C1-R0HEATSINK 50X50X10MM XCUT CP |
2,800 | 3.19 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.76°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX025025015-138-C3-R0HEATSINK 25X25X15MM L-TAB CP |
1,283 | 3.22 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX025025025-46-C1-R0HEATSINK 25X25X25MM L-TAB FP |
3,219 | 3.24 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.50°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX025025025-76-C1-R0HEATSINK 25X25X25MM R-TAB FP |
4,170 | 3.24 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.50°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040010-91-C1-R0HEATSINK 40X40X10MM R-TAB FP |
1,415 | 3.28 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX025025010-43-C3-R0HEATSINK 25X25X10MM L-TAB FP |
2,562 | 3.32 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 29.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX025025020-167-C3-R0HEATSINK 25X25X20MM R-TAB CP |
4,301 | 3.34 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX040040010-194-C3-R0HEATSINK 40X40X10MM XCUT CP |
4,662 | 3.34 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 13.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
