Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX070070006-208-C2-R0HEATSINK 70X70X6MM XCUT CP |
2,808 | 8.43 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.50°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

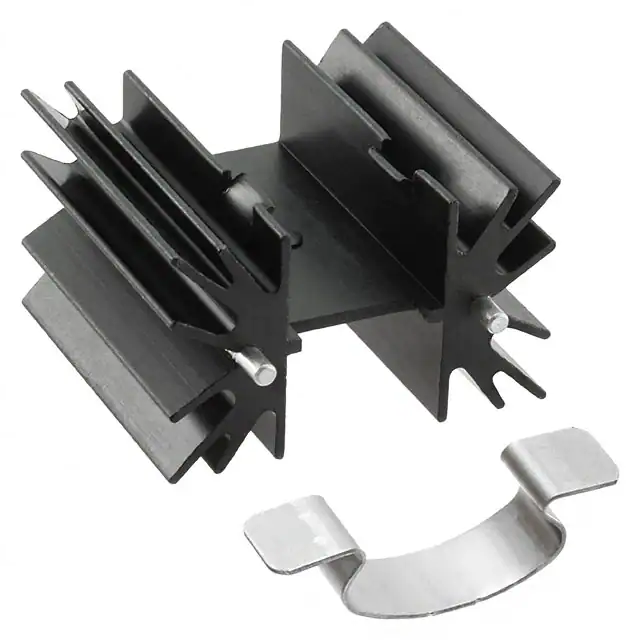

533402B02552GHEATSINK TO-220 SOLDERPIN/CLIP |
1,296 | 2.74 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.650" (41.91mm) | 1.000" (25.40mm) | - | 1.500" (38.10mm) | 8.0W @ 40°C | 2.00°C/W @ 500 LFM | 5.00°C/W | Aluminum | Black Anodized |
|

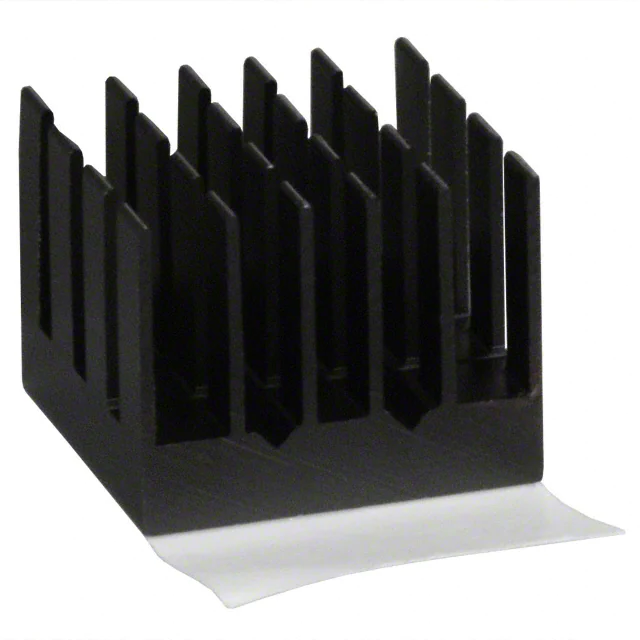

ATS-55190K-C1-R0HEAT SINK 19MM X 19MM X 14.5MM |
4,977 | 8.58 |
|
Datasheet |
- | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.571" (14.50mm) | - | 13.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

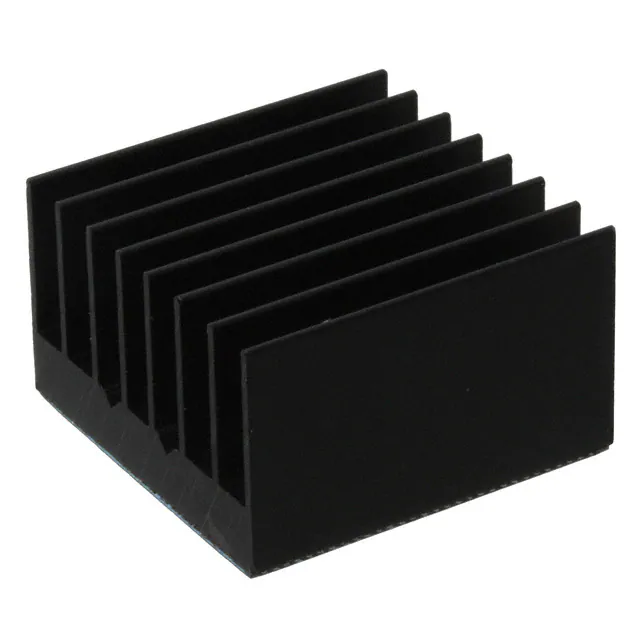

ATS-54250K-C1-R0HEAT SINK 25MM X 25MM X 14.5MM |
4,595 | 8.61 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.571" (14.50mm) | - | 8.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

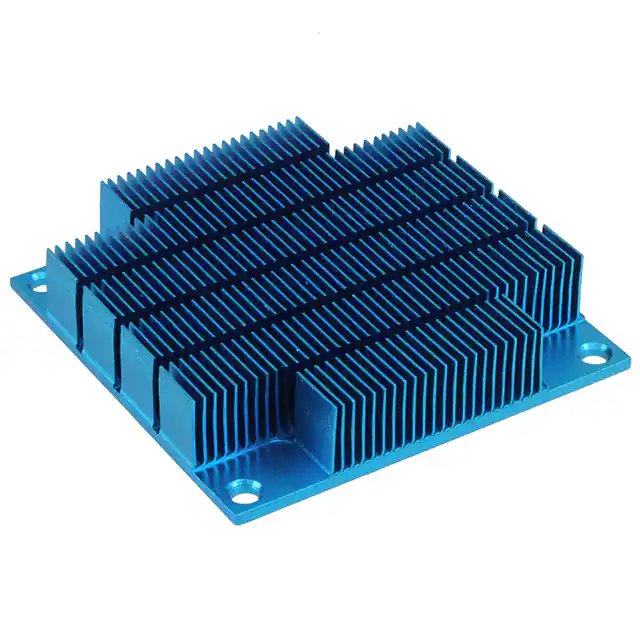

ATS-FPX060060013-112-C2-R1HEATSINK 60X60X12.7MM XCUT SFP |
1,083 | 8.93 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 26.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-52190P-C1-R0HEAT SINK 19MM X 19MM X 17.5MM |
1,056 | 11.18 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.689" (17.50mm) | - | 7.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

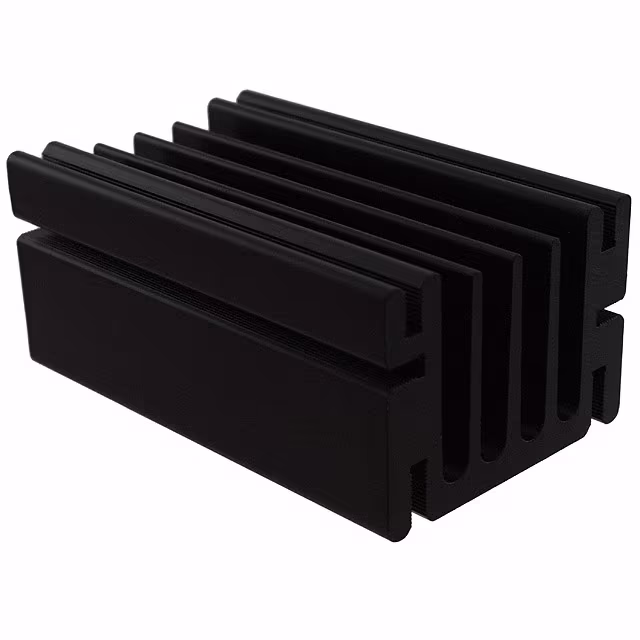

V5583GHEATSINK ALUM ANOD |
4,394 | 5.21 |
|
Datasheet |
- | Bulk | Active | Top Mount | TO-220 | Bolt On | Rectangular, Fins | 2.953" (75.00mm) | 1.811" (46.00mm) | - | 1.299" (33.00mm) | - | - | - | Aluminum | Black Anodized |
|

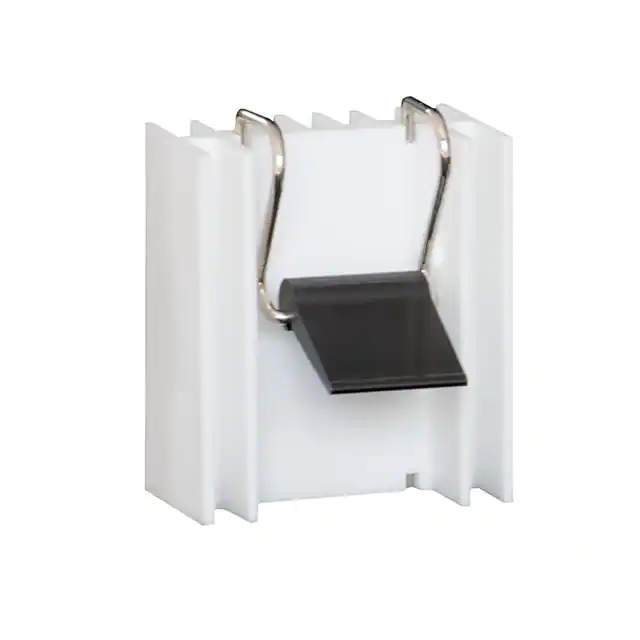

WC-T2X-38ECERAMIC HEATSINK WITH CLIP |
1,801 | 6.65 |
|
Datasheet |
WC | Tray | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 0.803" (20.40mm) | 1.339" (34.00mm) | - | 1.512" (38.40mm) | - | - | 12.00°C/W | Ceramic | - |
|
CR301-75AEALUMINUM HEATSINK 75MM BLK ANODI |
2,826 | 7.01 |
|
Datasheet |
CR | Box | Active | Board Level, Vertical | TO-301 | 2 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 2.362" (60.00mm) | - | - | - | - | 4.50°C/W | Aluminum Alloy | Black Anodized |
|

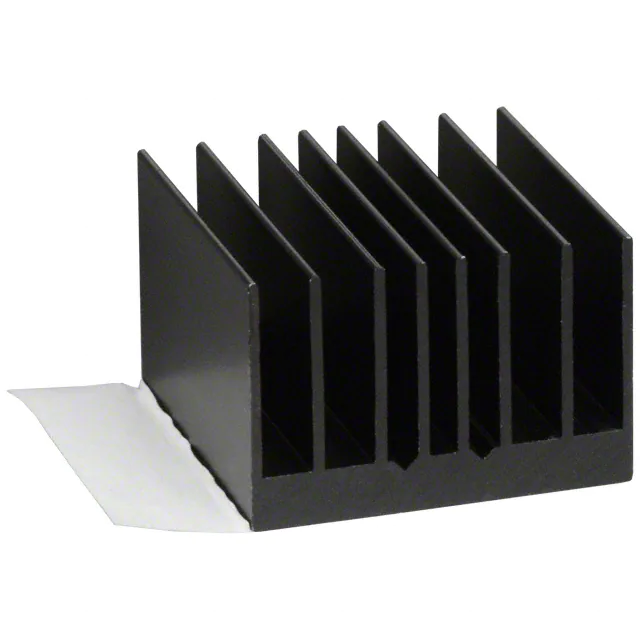

ATS-54300R-C1-R0HEAT SINK 30MM X 30MM X 19.5MM |
2,956 | 9.73 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.768" (19.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

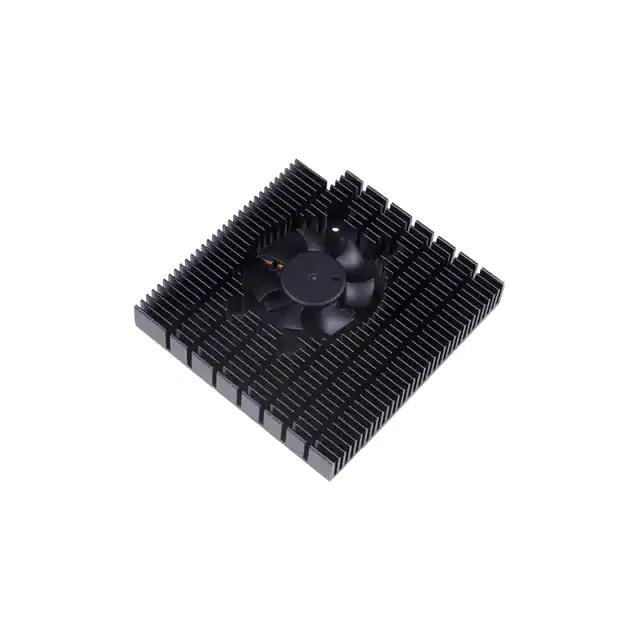

114070141HEATSINK WITH FAN FOR ODYSSEY - |
1,376 | 9.90 |
|
- |
- | Bulk | Active | Board Level with Fan | Odyssey X86J4105 | Bolt On | Square, Fins | - | - | - | - | - | - | - | - | - |
|
ATS-CPX070070025-136-C3-R0HEATSINK 70X70X25MM XCUT CP |
3,727 | 10.20 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.22°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

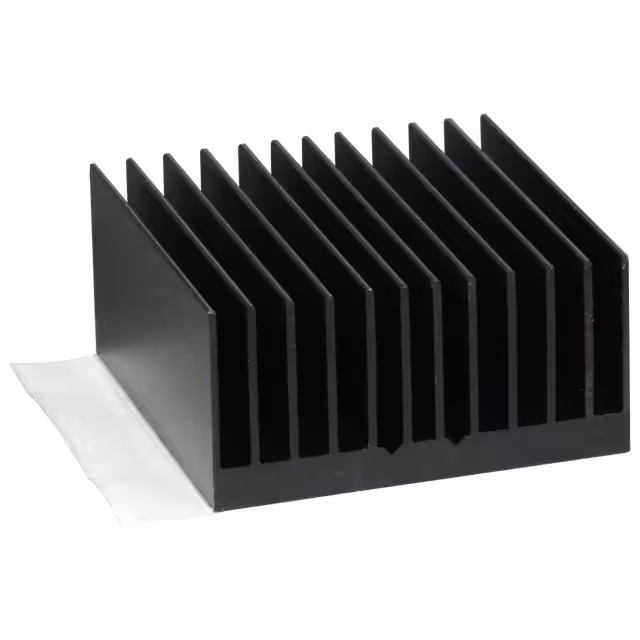

ATS-54400R-C1-R0HEAT SINK 40MM X 40MM X 19.5MM |
1,155 | 10.24 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.768" (19.50mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

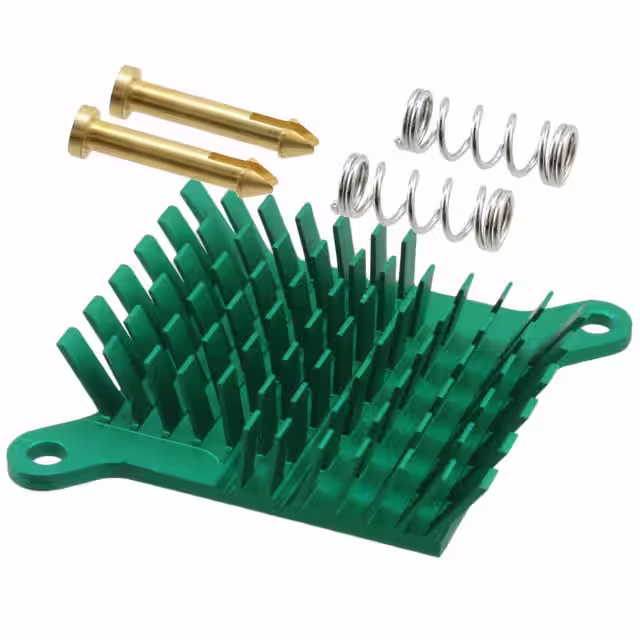

ATS-1038-C2-R0HEATSINK 40X38X10MM BRASSPUSHPIN |
1,596 | 14.18 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.500" (38.10mm) | - | 0.394" (10.00mm) | - | 3.90°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|

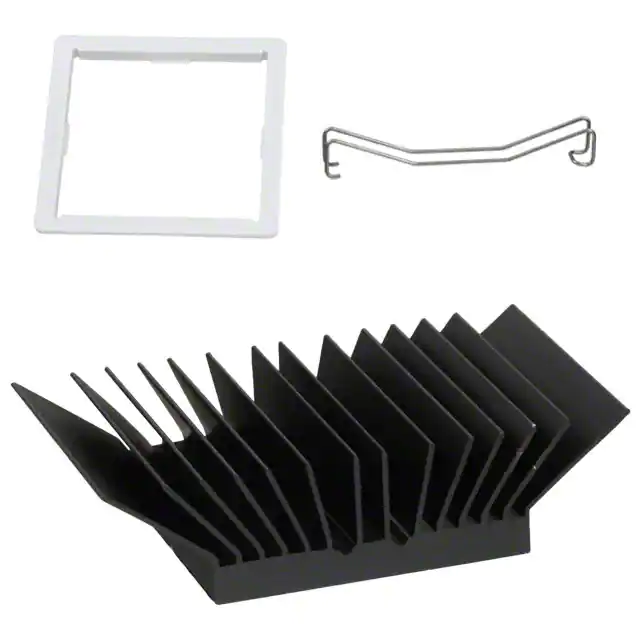

ATS-51350K-C1-R0HEAT SINK 35MM X 35MM X 14.5MM |
3,515 | 14.96 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.571" (14.50mm) | - | 2.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51450R-C0-R0HEAT SINK 45MM X 45MM X 19.5MM |
3,786 | 12.89 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

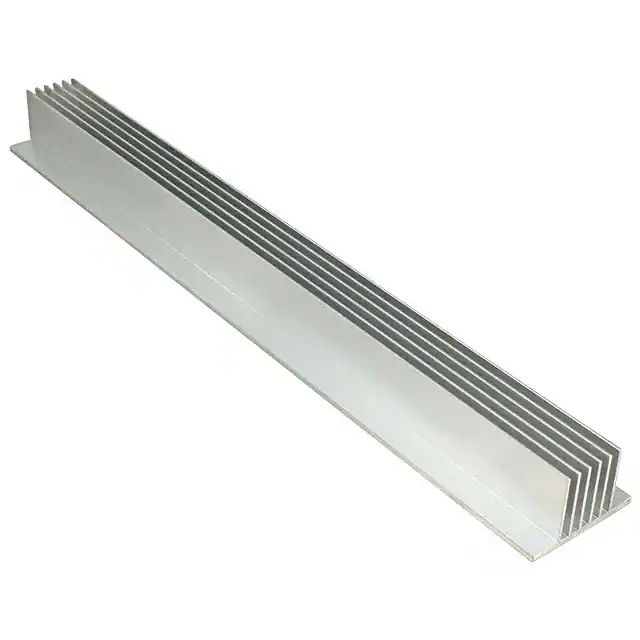

ATS-EXL65-300-R0HEATSINK AL6063 300X25X25MM |
1,928 | 20.82 |
|
Datasheet |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.614" (41.00mm) | - | 0.984" (25.00mm) | - | 4.50°C/W @ 200 LFM | 11.70°C/W | Aluminum | Degreased |
|

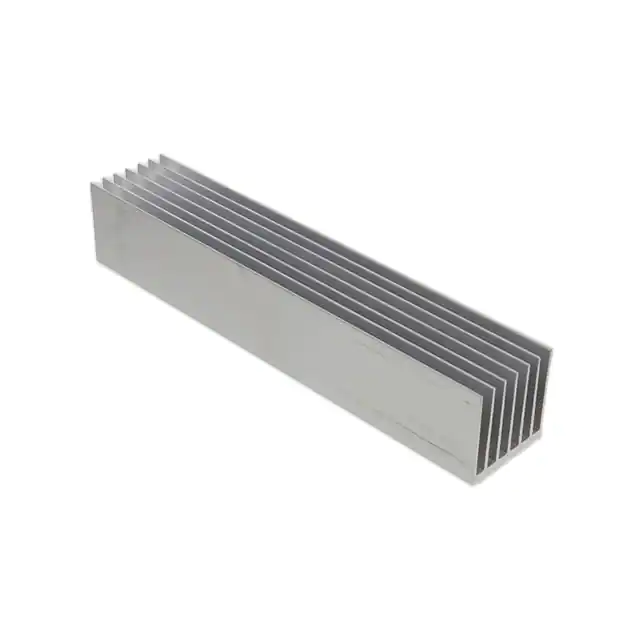

1277012.24" WIDE X 12" FLATBACK HEATSI |
3,386 | 22.18 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.240" (56.90mm) | - | 2.220" (56.39mm) | - | - | 0.60°C/W | Aluminum | - |
|
ATS-EXL72-300-R0HEATSINK AL6063 300X41X6.6MM |
4,575 | 26.71 |
|
Datasheet |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.604" (40.75mm) | - | 0.260" (6.60mm) | - | 17.70°C/W @ 200 LFM | 47.40°C/W | Aluminum | Degreased |
|

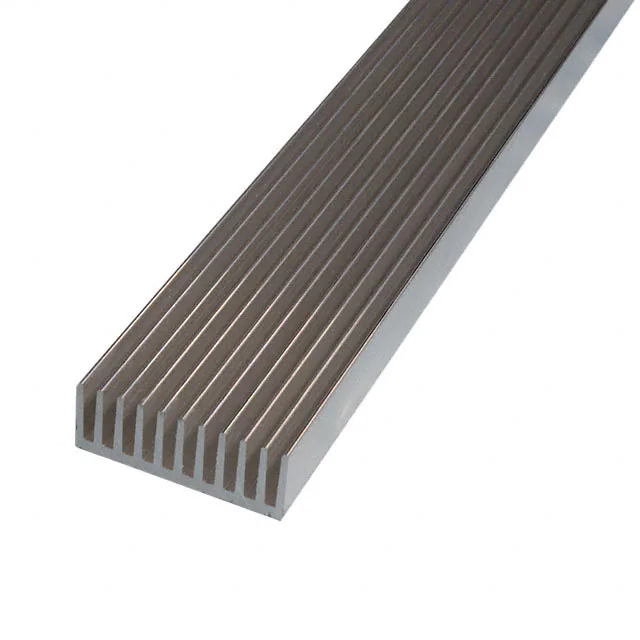

1252901.75WX36" EXTRUS 16249 XX8260-65 |
3,716 | 25.76 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 1.750" (44.45mm) | - | 0.650" (16.51mm) | - | - | 1.95°C/W | Aluminum | - |
