Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

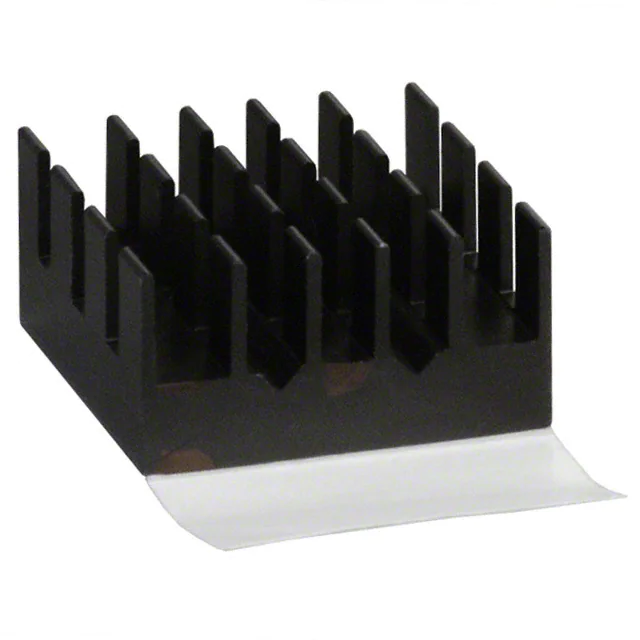

ATS-55190D-C1-R0HEAT SINK 19MM X 19MM X 9.5MM |
245 | 7.23 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.374" (9.50mm) | - | 24.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-TI1OP-518-C1-R0HEAT SINK FOR TI MOD #TAS5611PHD |
627 | 0.00 |
|
Datasheet |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 3.071" (78.00mm) | 1.417" (36.00mm) | - | 1.106" (28.09mm) | - | 3.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

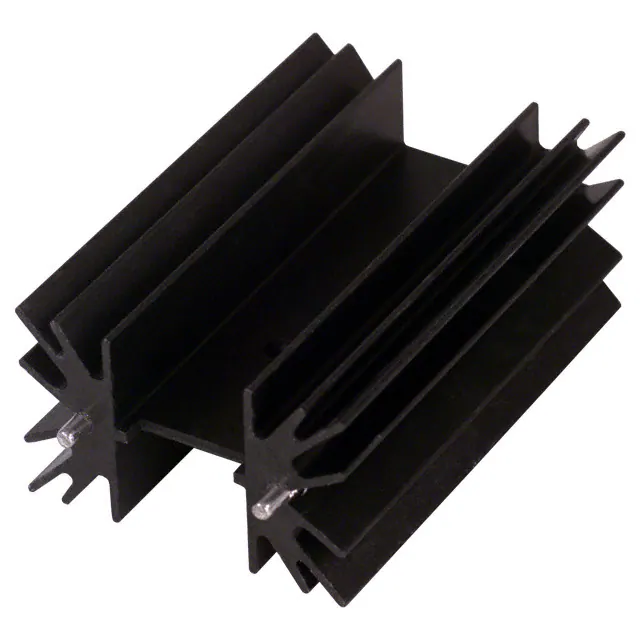

530001B02500GHEATSINK TO-218 10W H=2.5" BLK |
1,826 | 2.34 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 20.0W @ 60°C | 2.00°C/W @ 300 LFM | 8.00°C/W | Aluminum | Black Anodized |
|

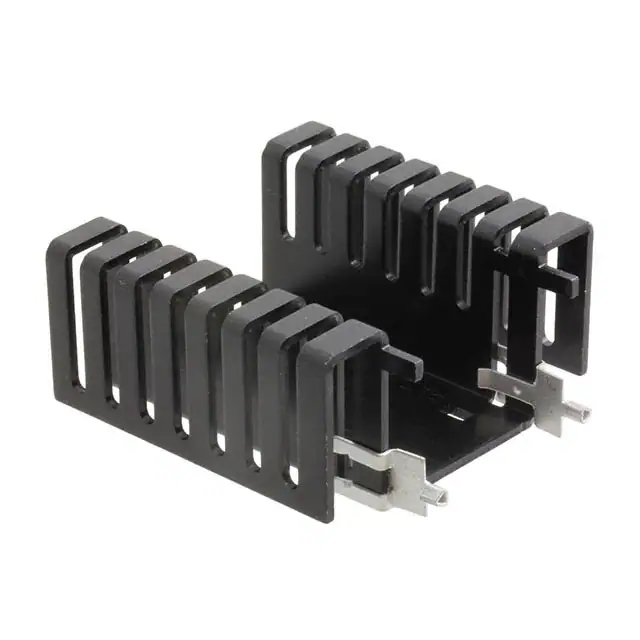

7023B-MTGBOARD LEVEL HEATSINK 1.95" TO220 |
1,102 | 1.69 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.950" (49.53mm) | 1.900" (48.26mm) | - | 0.950" (24.13mm) | 3.0W @ 20°C | 2.50°C/W @ 400 LFM | 4.40°C/W | Aluminum | Black Anodized |
|

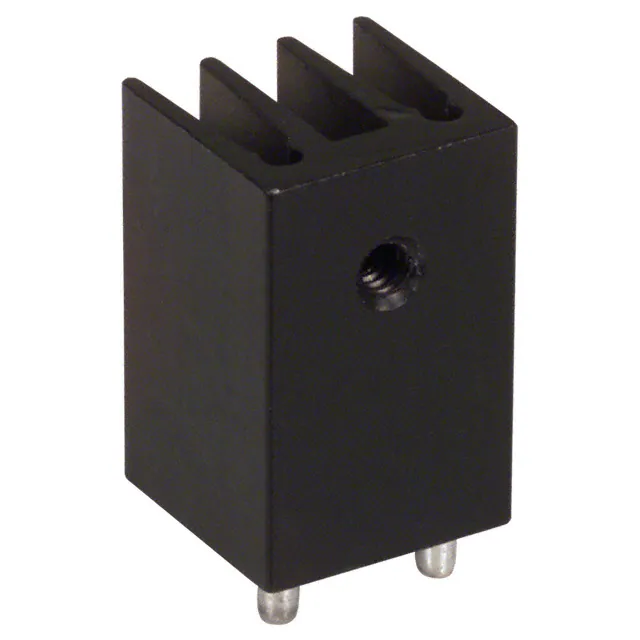

581002B02500GHEATSINK TO-220 PWR BLK W/PINS |
3,425 | 1.51 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | 2.5W @ 50°C | 4.00°C/W @ 500 LFM | 17.40°C/W | Aluminum | Black Anodized |
|
903-23-2-15-2-B-0HEAT SINK PIN FIN 23X23MM CLIP |
181 | 5.85 |
|
Datasheet |
903 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.01mm) | 0.906" (23.01mm) | - | 0.575" (14.60mm) | - | 5.39°C/W @ 200 LFM | 11.40°C/W | Aluminum | Black Anodized |
|
6223BGBRIDGE RECTIFIER HEATSINK 0.163" |
1,275 | 2.65 |
|
Datasheet |
- | Bulk | Active | Board Level | Bridge Rectifiers | Bolt On | Square, Fins | 1.060" (26.92mm) | 1.060" (26.92mm) | - | 1.250" (31.75mm) | 3.0W @ 30°C | 3.00°C/W @ 400 LFM | 9.40°C/W | Aluminum | Black Anodized |
|

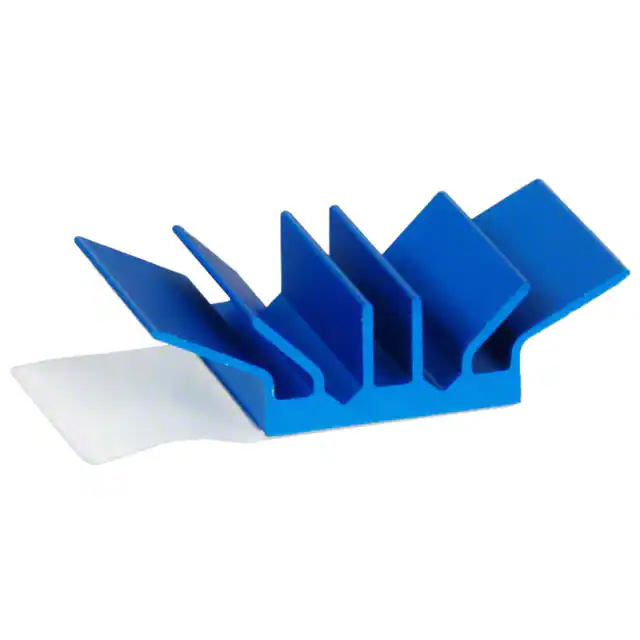

ATS-52150B-C1-R0HEAT SINK 15MM X 15MM X 7.5MM |
756 | 8.07 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.295" (7.50mm) | - | 19.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-52170B-C1-R0HEAT SINK 17MM X 17MM X 7.5MM |
4,420 | 8.17 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.295" (7.50mm) | - | 18.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-TI1OP-519-C1-R3HEATSINK TI TAS5622 AND TAS5624 |
1,697 | 0.00 |
|
Datasheet |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 3.071" (78.00mm) | 1.417" (36.00mm) | - | 1.402" (35.60mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

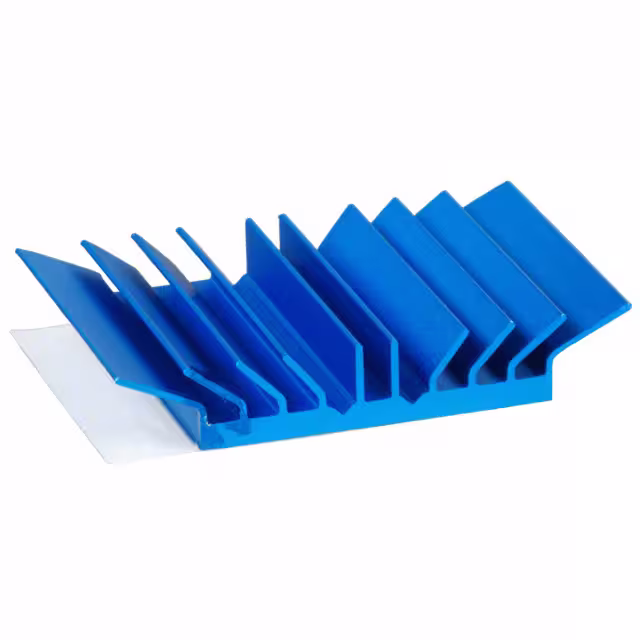

ATS-52310B-C1-R0HEAT SINK 31MM X 31MM X 7.5MM |
1,977 | 8.86 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.295" (7.50mm) | - | 6.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

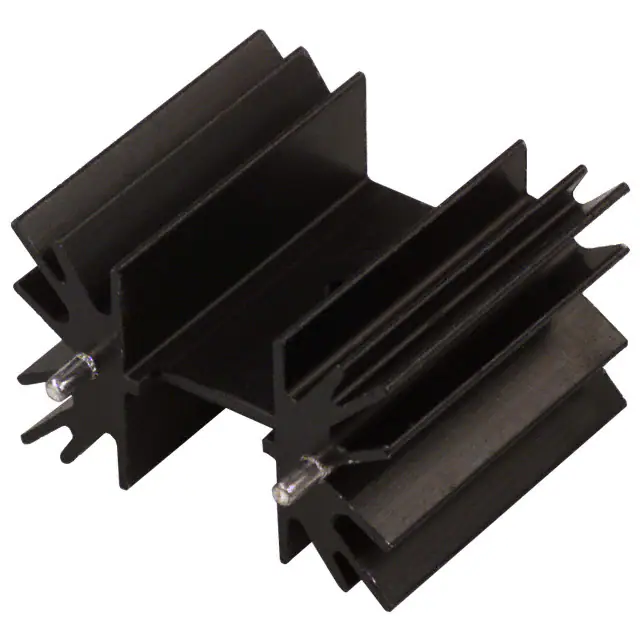

529801B02500GHEATSINK TO-218 W/PINS 1.5"TALL |
2,524 | 7.17 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 10.0W @ 50°C | 2.00°C/W @ 500 LFM | 5.00°C/W | Aluminum | Black Anodized |
|

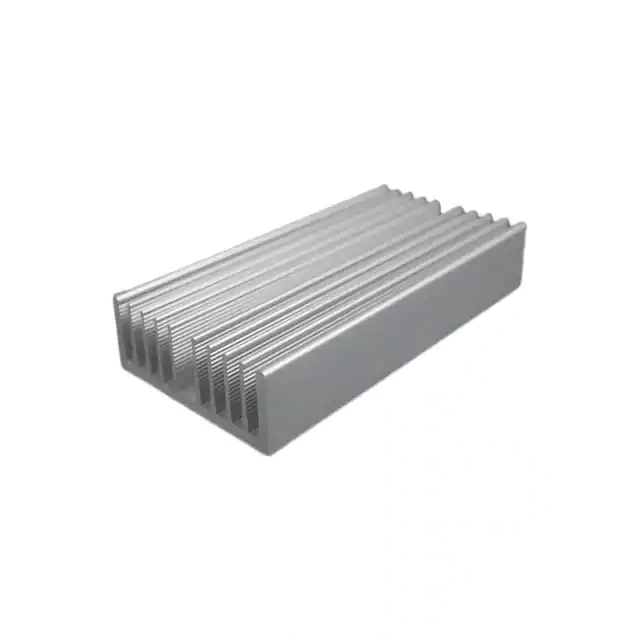

TGH-0510-02ALUMINIUM HEAT SINK 100X51MM |
172 | 8.90 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 3.937" (100.00mm) | 2.008" (51.00mm) | - | 0.787" (19.99mm) | - | - | - | Aluminum | - |
|

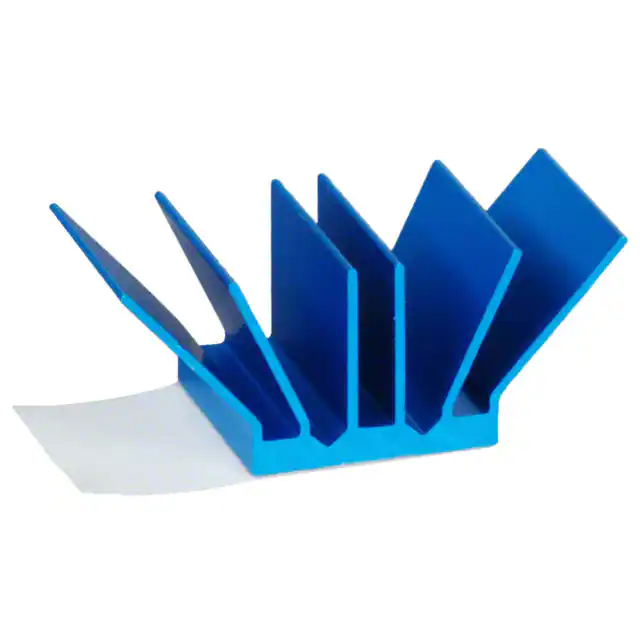

ATS-52150G-C1-R0HEAT SINK 15MM X 15MM X 12.5MM |
225 | 9.59 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.492" (12.50mm) | - | 11.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

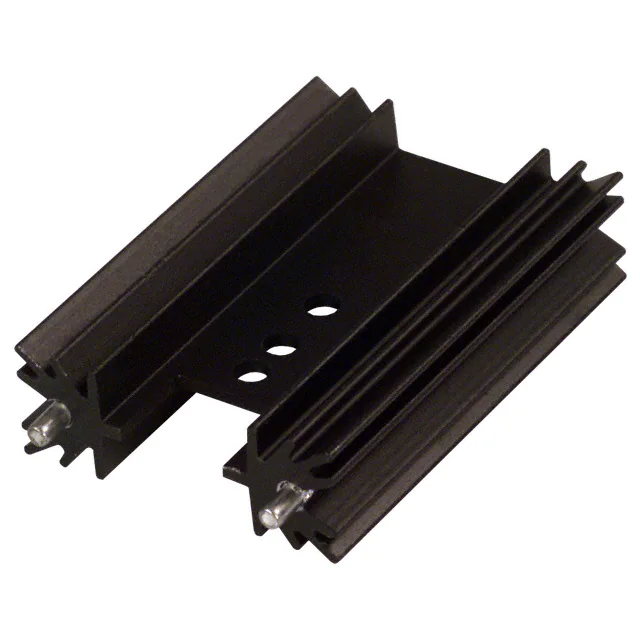

531202B02500GHEATSINK TO-220 POWER W/PINS BK |
110 | 1.37 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-202 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 5.0W @ 40°C | 4.00°C/W @ 600 LFM | 7.50°C/W | Aluminum | Black Anodized |
|

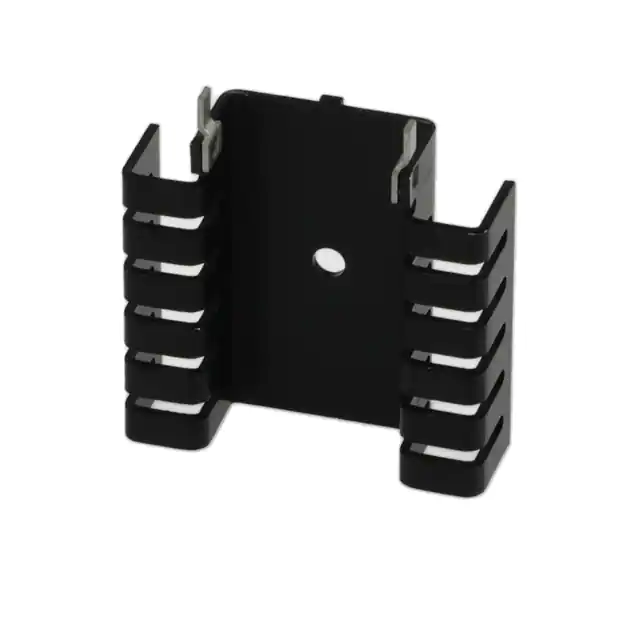

593101B03600GHEATSINK TO-218/TO-247 TAB |
1,503 | 1.89 |
|
Datasheet |
- | Tray | Active | Board Level, Vertical | TO-218, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.640" (41.66mm) | 1.700" (43.18mm) | - | 0.500" (12.70mm) | 6.0W @ 50°C | 4.00°C/W @ 300 LFM | 8.60°C/W | Aluminum | Black Anodized |
|

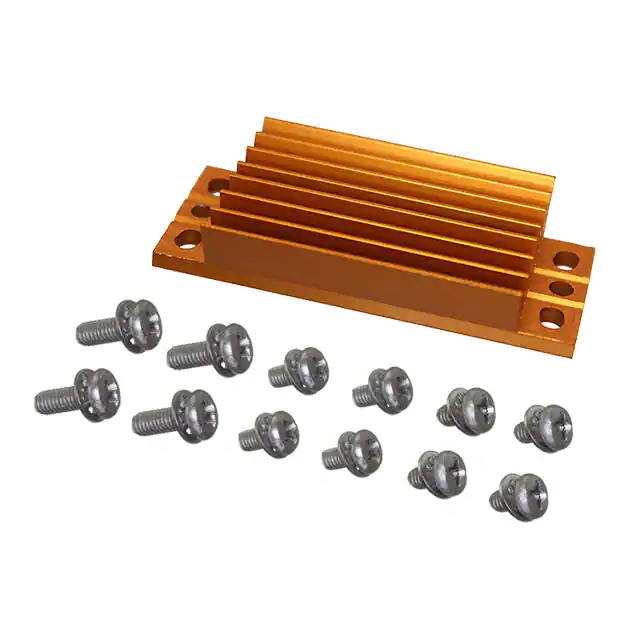

ATS-1178-C1-R01/8 BRICK HEATSINK 58X23X6.1MM |
479 | 10.30 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | Eighth Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.283" (58.00mm) | 0.918" (23.31mm) | - | 0.240" (6.10mm) | - | 18.80°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

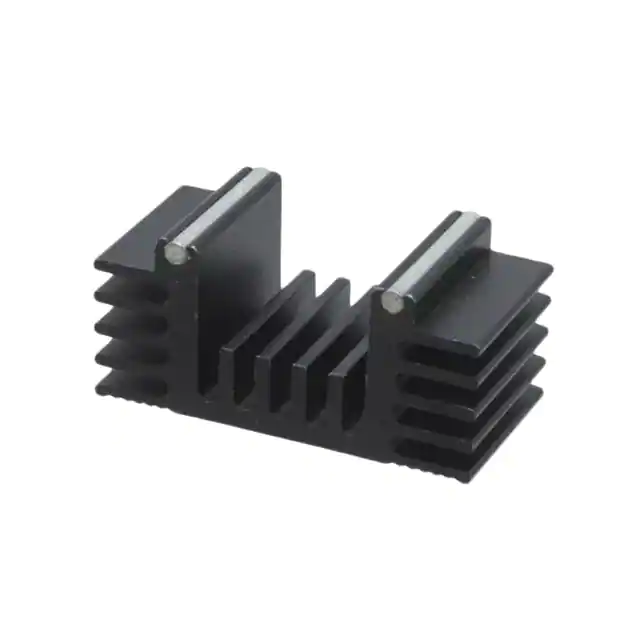

219-263A-TRTO-263 HEAT SINK ANODZD REEL |
798 | 2.86 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | Top Mount | TO-263 (D²Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.020" (25.91mm) | - | 0.480" (12.19mm) | 2.0W @ 30°C | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

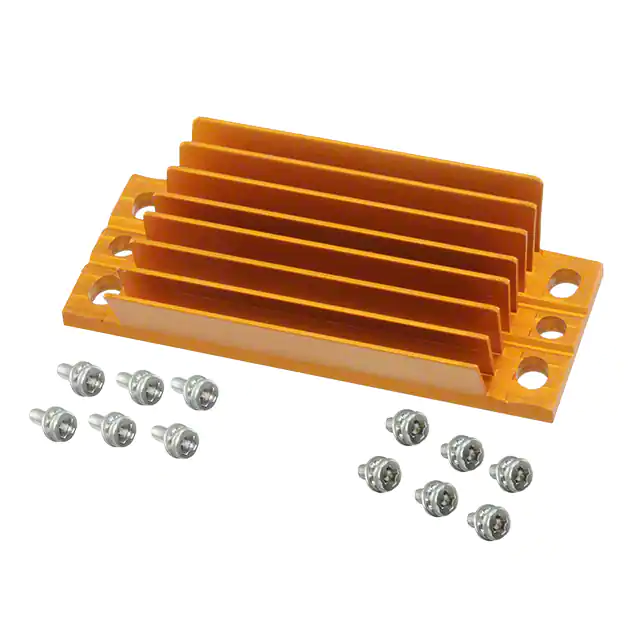

ATS-1179-C1-R01/8 BRICK HEATSINK 58X23X11.4MM |
1,574 | 10.52 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | Eighth Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.283" (58.00mm) | 0.906" (23.00mm) | - | 0.449" (11.40mm) | - | 7.30°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

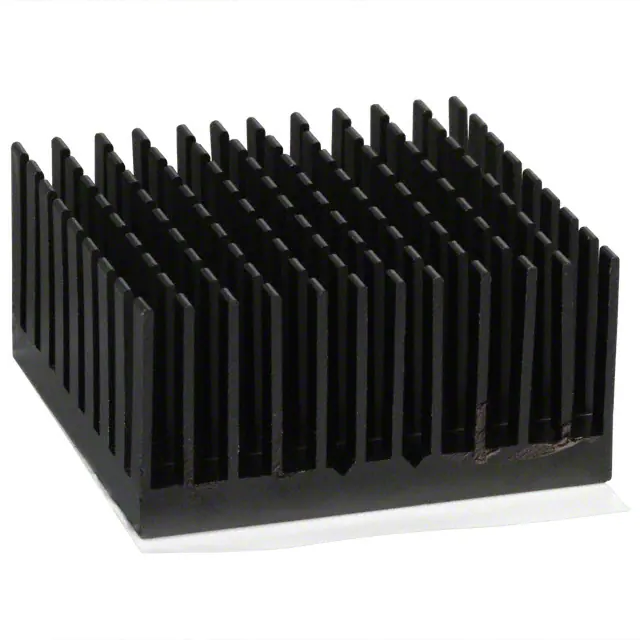

ATS-55400R-C1-R0HEAT SINK 40MM X 40MM X 19.5MM |
242 | 10.67 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.768" (19.50mm) | - | 3.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
