TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESDALC20-1BF4TVS DIODE 20VWM 37VC 0201 |
266,291 | 0.39 |
|
Datasheet |
0201 (0603 Metric) | ESDA | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22V | 37V | 2.4A (8/20µs) | 90W | No | General Purpose | 10.5pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
D3V3M1U2S9-7TVS DIODE 3.3VWM 10VC SOD923 |
255,336 | 0.28 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 10V | 12A (8/20µs) | 120W | No | General Purpose | 70pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
ESDSLC5V0D5-TPTVS DIODE 5VWM 16VC SOD523 |
142,720 | 0.33 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 16V | 5A (8/20µs) | 80W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
ESDA5V3SC5TVS DIODE 3VWM SOT23-5L |
129,031 | 0.48 |
|
Datasheet |
SC-74A, SOT-753 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 4 | - | 3V | 5.3V | - | - | 500W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
D12V0M1U2S9-7TVS DIODE 12VWM 25VC SOD923 |
96,012 | 0.30 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 20pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
ESD239B1W0201E6327XTSA1TVS DIODE 22VWM 26.5VC WLL-2-3 |
73,787 | 0.30 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | - | 26.5V | 3A (8/20µs) | 80W | No | General Purpose | 3.2pF @ 1GHz | -55°C ~ 125°C | - | - | Surface Mount | WLL-2-3 |
|
D5V0S1U2LP-7BTVS DIODE 5.5VWM 13VC DFN1006-2 |
52,606 | 0.30 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | 13V | 40A | 500W | No | HDMI, USB | 210pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|

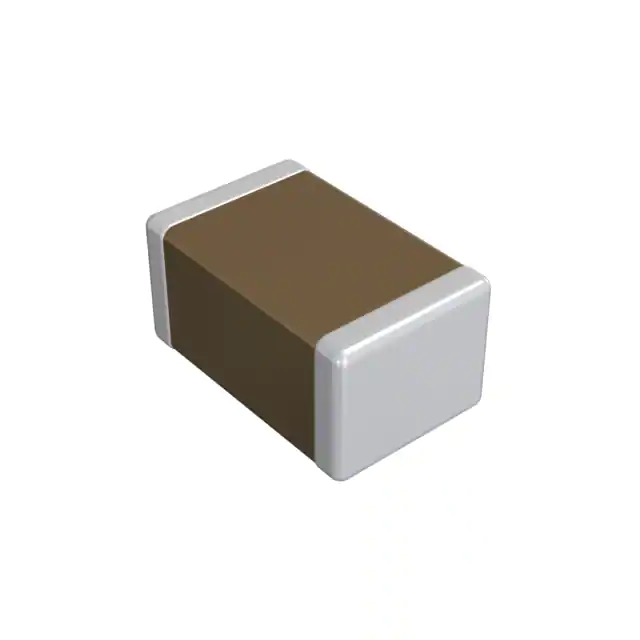

GG0402060R3C2PTVS DIODE 6.5VWM 15.5VC 0402 |
47,777 | 0.27 |
|
Datasheet |
0402 (1005 Metric) | GiGUARD | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7V | 15.5V | 3A (8/20µs) | 54W | No | Ethernet, HDMI, USB | 0.3pF @ 1MHz | -55°C ~ 125°C | - | - | Surface Mount | 0402 |
|
DF2S6M4CT,L3FTVS DIODE 5.5VWM 15VC CST2 |
47,732 | 0.30 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 5.6V | 15V | 2A (8/20µs) | 30W | No | - | 0.35pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | CST2 |
|
D5V0Q1B2LP3-7TVS DIODE 5.5VWM 11VC DFN0603-2 |
36,622 | 0.28 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6V | 11V | 3A (8/20µs) | - | No | General Purpose | 6pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DFN0603-2 |
|
DF2B7ASL,L3FTVS DIODE 5.5VWM 20VC SL2 |
33,943 | 0.19 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 5.8V | 20V | 4A (8/20µs) | 80W | No | General Purpose | 8.5pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SL2 |
|
MMBZ27VAL-7-FTVS DIODE 22VWM 40VC SOT23 |
33,873 | 0.30 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 22V | 25.65V | 40V | 1A | 40W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|

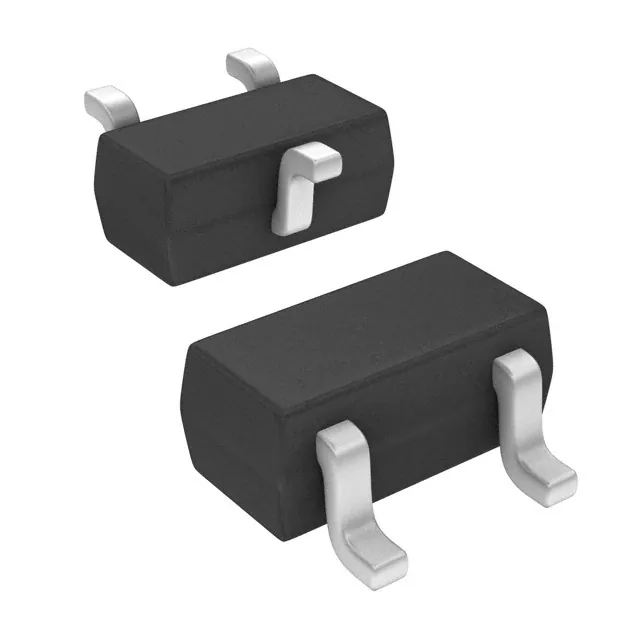

DF3D6.8MS,LFTVS DIODE 5VWM 11VC SSM |
24,290 | 0.28 |
|
Datasheet |
SC-75, SOT-416 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 11V (Typ) | - | - | Yes | General Purpose | 0.5pF @ 1MHz | - | - | - | Surface Mount | SSM |
|
ESD5Z6.0T5GTVS DIODE 6VWM 20.5VC SOD523 |
13,818 | 0.22 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V (Max) | 6.8V | 20.5V | 8.8A (8/20µs) | 181W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
CUZ30V,H3FTVS DIODE 30VWM 47.5VC USC |
12,981 | 0.37 |
|
- |
SC-76, SOD-323 | CUZ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 28V | 47.5V (Typ) | 4A (8/20µs) | 200W | No | General Purpose | 21pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | USC |
|
ESD106B1W0201E6327XTSA1TVS DIODE 5.5VWM 10VC WLL-2-3 |
8,427 | 0.27 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6.1V | 10V (Typ) | 1.5A (8/20µs) | 15W | No | RF Antenna | 0.13pF @ 2.5GHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | PG-WLL-2-3 |
|

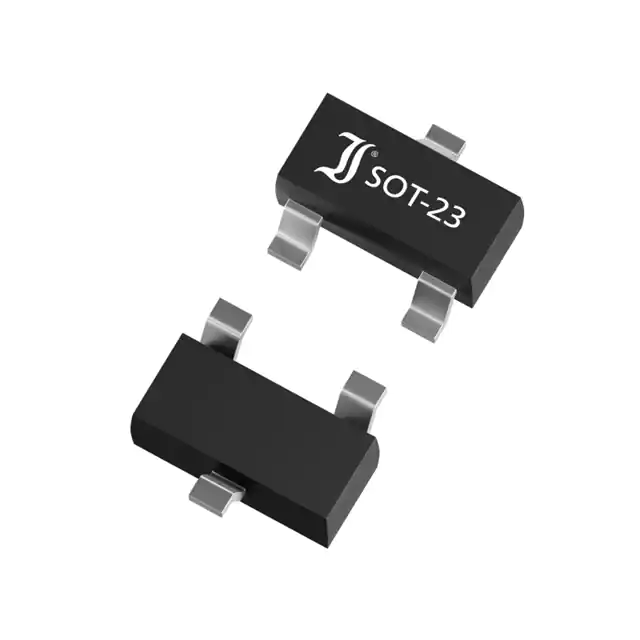

NUP2105LESD SOT23 0.1UA 24V BIDIR |
7,408 | 0.09 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V | 26.2V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 30pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
P6SMBJ15CATVS SMB 15V 600W BI |
2,921 | 0.49 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|

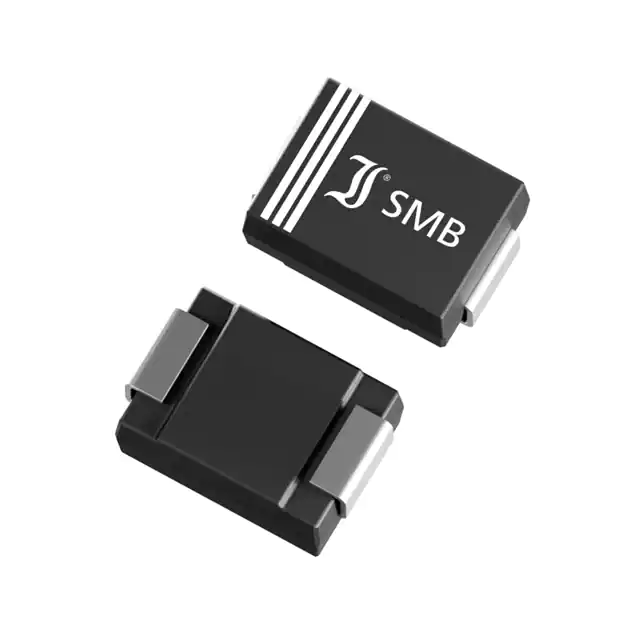

P6SMBJ5.0CATVS DIODE 5VWM 9.2VC SMB/DO214AA |
1,008 | 0.09 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
PESD5V0L1UA,115TVS DIODE 5VWM 12VC SOD323 |
197,922 | 0.38 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 3.5A (8/20µs) | 42W | No | - | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
