TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC2605C1ES_R1_00001VERY LOW CAPACITANCE ESD PROTECT |
12,671 | 0.24 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5V | 12.5V | 3.5A (8/20µs) | - | No | General Purpose | 6pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
ESD9X7.0ST5GTVS DIODE 7VWM 25VC SOD923 |
12,232 | 0.25 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.5V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
SD15C-7TVS DIODE 15VWM 27VC SOD323 |
11,893 | 0.07 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 27V | 12A (8/20µs) | 320W | No | General Purpose | 44pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
P4SMAJ15CATVS SMA 15V 400W BIDIR |
8,888 | 0.09 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMF30ATVS SOD-123FL 30V 200W UNIDIR |
8,476 | 0.49 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 4.13A | 200W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F (SMF) |
|
SMF24ATVS SOD-123FL 24V 200W UNIDIR |
8,078 | 0.49 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 5.14A | 200W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F (SMF) |
|
TPD1E05U06DYAR0.4-PF, 5.5-V, 12-KV ESD PROTECT |
6,275 | 0.11 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.5V | 14V (Typ) | 2.5A (8/20µs) | 40W | Yes | HDMI, USB | 0.42pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
ESD752DBZRDUAL 3.2-PF, 24-V, 30-KV ESD PRO |
6,063 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 35.5V | 37V (Typ) | 5.7A (8/20µs) | 210W | No | CAN, USB | 3pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
P6SMBJ36ATVS SMB 36V 600W UNI |
5,422 | 0.44 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 10.3A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
DF2B5SL,L3FTVS DIODE 3.3VWM 11.5VC SL2 |
4,463 | 0.25 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 11.5V (Typ) | 5.5A (8/20µs) | 77W | No | General Purpose | 7.2pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SL2 |
|
|
P4SMAJ12CATVS SMA 12V 400W BIDIR |
3,784 | 0.09 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SD05C-7TVS DIODE 5.5VWM 16VC SOD323 |
3,387 | 0.45 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6V | 16V | 40A (8/20µs) | 640W | No | - | 200pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SMF33ATVS SOD-123FL 33V 200W UNIDIR |
3,322 | 0.49 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 3.75A | 200W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F (SMF) |
|
|
P6SMBJ30ATVS SMB 30V 600W UNI |
3,054 | 0.49 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
CPDQC5V0AU-HFTVS DIODE 5VWM 15V 0402C/SOD923F |
3,050 | 0.23 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | 15V | 4A (8/20µs) | 60W | No | General Purpose | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0402C/SOD-923F |
|

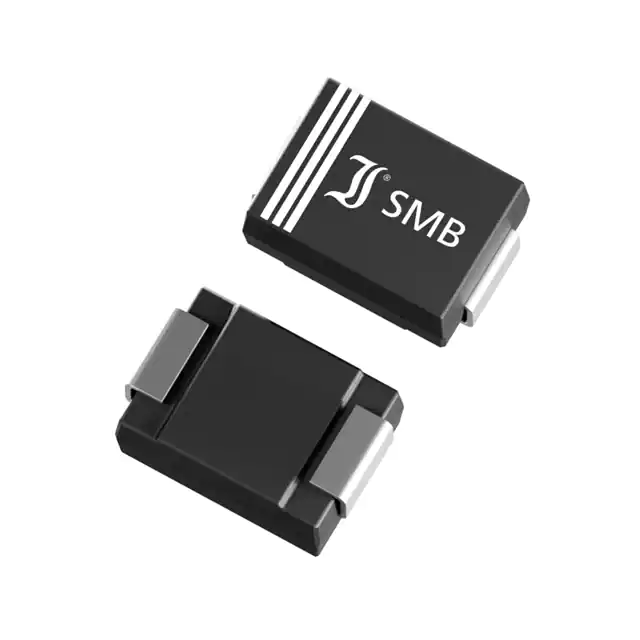

P6SMBJ15ATVS SMB 15V 600W UNI |
2,698 | 0.44 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
PESD5V0S1USF,315TVS DIODE 5VWM 11VC DSN0603-2 |
1,312 | 0.39 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 11V | 3.5A (8/20µs) | 35W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
|
SD09C-7TVS DIODE 9VWM 20VC SOD323 |
1,155 | 0.07 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 9V (Max) | 10V | 20V | 20A (8/20µs) | 400W | No | General Purpose | 68pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
D5V0F1U2LPQ-7BTVS DIODE 5.5VWM 12VC DFN1006-2 |
272,818 | 0.28 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6V | 12V | 1.5A (8/20µs) | - | No | - | 0.5pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
|
D20V0L1B2LP-7BTVS DIODE 20VWM 34VC DFN1006-2 |
267,852 | 0.28 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V (Max) | 21V | 34V | 2A (8/20µs) | 68W | No | - | 7pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
