TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D5V0FS4U10LP-7TVS DIODE 5V 3V U-DFN2510-10 |
27,079 | 0.36 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 5.5V | 3V (Typ) | 3.5A (8/20µs) | 20W | No | USB | 0.45pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2510-10 |
|
D5V0L2B3T-7TVS DIODE 5VWM 14VC SOT523 |
25,943 | 0.36 |
|
Datasheet |
SOT-523 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 6V | 14V | 6A (8/20µs) | 84W | No | General Purpose | 15pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
-GG.jpg)
|
GG0402052R542PTVS DIODE 5VWM 15.5VC 0402 |
21,564 | 0.35 |
|
Datasheet |
0402 (1005 Metric) | GiGUARD | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.5V | 15.5V | 3A (8/20µs) | 46W | No | General Purpose | 2.5pF @ 1MHz | -55°C ~ 125°C | - | - | Surface Mount | 0402 (1005 Metric) |
|
ESDLIN1524BJTVS DIODE 15VWM 24VWM SOD323 |
19,463 | 0.47 |
|
Datasheet |
SC-76, SOD-323 | TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 15V, 24V | 17.1V, 25.4V | 35V, 50V | 5A, 3A (8/20µs) | 160W | No | - | 16pF @ 1MHz | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
VESD01C1-02V-G3-08TVS DIODE 1VWM 6.9VC SOD523 |
18,331 | 0.40 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 1V (Max) | 2.5V | 6.9V | 14.6A (8/20µs) | 100W | No | - | 192pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
VESD16C1-02V-G3-08TVS DIODE 16VWM 28VC SOD523 |
18,299 | 0.40 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 16V (Max) | 17V | 28V | 3.6A (8/20µs) | 100W | No | - | 27pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SMAJ7.0CA-TPTVS DIODE 7VWM 12VC DO214AC |
17,413 | 0.42 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 7.78V | 12V | 33.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
DF2B29FU,H3FTVS DIODE 24VWM 47VC USC |
17,143 | 0.36 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26V | 47V | 3A (8/20µs) | 140W | No | - | 9pF @ 1MHz | - | - | - | Surface Mount | USC |
|
|
VESD12C1-02V-G3-08TVS DIODE 12VWM 22.7VC SOD523 |
16,711 | 0.40 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.9V | 22.7V | 4.4A (8/20µs) | 100W | No | - | 33pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
ESDA15P60-1U1MTVS DIODE 13.2VWM 22.7VC 1610 |
16,089 | 0.45 |
|
Datasheet |
2-UDFN | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 13.2V (Max) | 13.6V | 22.7V | 57A (8/20µs) | 1200W (1.2kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1610 |
|

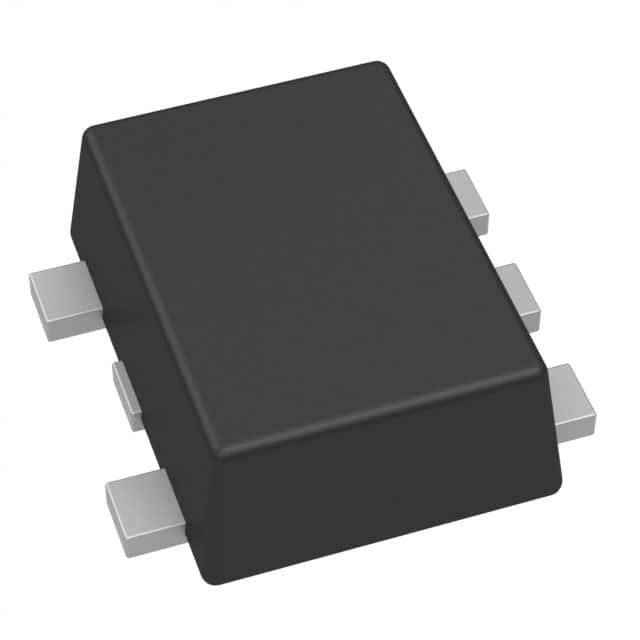

DZQA5V6AXV5-7TVS DIODE 3VWM 13VC SOT553 |
14,349 | 0.36 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3V | 5.3V | 13V | - | 20W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-553 |
|
|
VESD05B1-02V-G3-08TVS DIODE 5VWM 9.5VC SOD523 |
13,614 | 0.40 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 9.5V | 3.5A (8/20µs) | 40W | No | - | 23pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
MSX1PJ-M3/89ATVS DIODE 600VWM MICROSMP |
12,685 | 0.40 |
|
Datasheet |
DO-219AD | eSMP® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 600V | - | - | - | - | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AD (MicroSMP) |
|
D24V0S1U2TQ-7TVS DIODE 24VWM 36VC SOD523 |
10,430 | 0.35 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 27V | 36V | 6A (8/20µs) | 360W | No | - | 35pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
ESD2CANFD24DBZRQ1AUTOMOTIVE, DUAL, 2.5PF 24-V 25- |
9,831 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 35.5V | 37V (Typ) | 3.5A (8/20µs) | 133W | No | CAN | 2.5pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
DESD1CAN2WQ-7GENERAL PROTECTION PP SOT323 T&R |
9,814 | 0.07 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 25.4V | 50V | 3A (8/20µs) | 150W | No | CAN | 9.3pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|

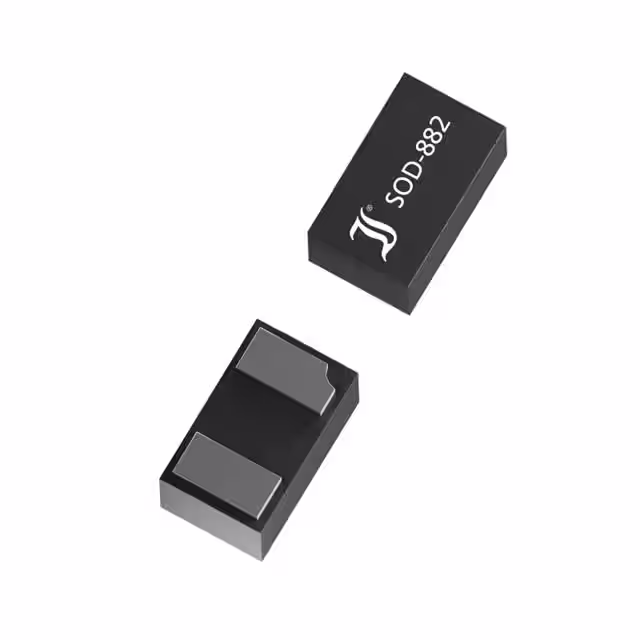

ESD9L1P8ESD DFN1006-2 7.5V 125DEG 0.05UA |
9,260 | 0.17 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 1.8V | 2.2V | 7.5V | 11A (8/20µs) | 80W | No | - | - | -50°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-882 (DFN1006-2) |
|
PESD3V3L1UL,315TVS DIODE 3.3VWM 11VC DFN1006-2 |
8,720 | 0.38 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5.3V | 11V | 4.5A (8/20µs) | 45W | No | - | 34pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
SMAJ33CA-TPTVS DIODE 33VWM 53.3VC DO214AC |
7,713 | 0.42 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMAJ5.0A-TPTVS DIODE 5VWM 9.2VC DO214AC |
7,690 | 0.42 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
