TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD3V3NW-SFYLTVS DIODE 3.3VWM 5.1VC DSN0603-2 |
15,590 | 0.36 |
|
Datasheet |
0201 (0603 Metric) | TrEOS | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6.8V (Typ) | 5.1V (Typ) | 20A (8/20µs) | - | No | Telecom | 0.6pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|

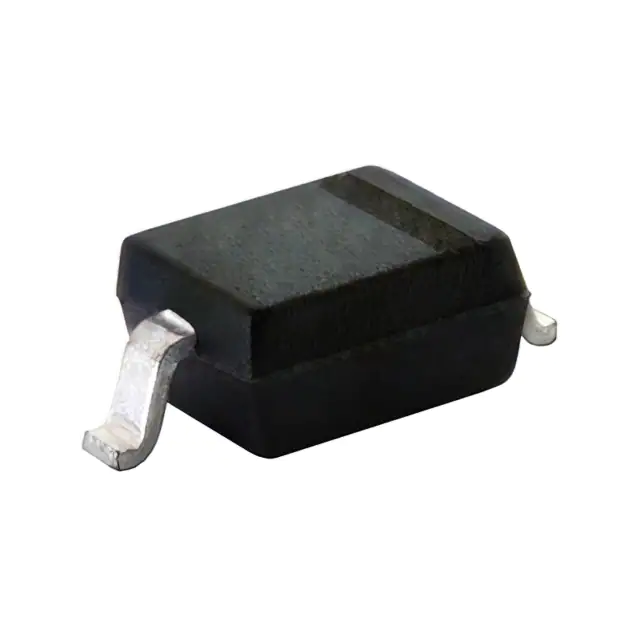

VLIN3333-02G-E3-08ESD PROTECTION DIODE SOD323 |
14,120 | 0.36 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V (Max) | 36V | 57V | 3.5A (8/20µs) | 200W | No | General Purpose | 11pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
ESD2CAN24DBZRQ1AUTOMOTIVE DUAL 3-PF, 24-V, 30-K |
7,495 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 35.5V | 37V (Typ) | 5.7A (8/20µs) | 210W | No | CAN | 3pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
ESD751DYAR2.5-PF 24-V 22-KV ESD PROTECTION |
6,953 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 35.5V | 36.5V (Typ) | 2.8A (8/20µs) | 102W | No | USB | 1.6pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
|
SZNZ8D16V4MX2WT5GTVS DIODE 13VWM 18VC 2-X2DFNW |
6,664 | 0.03 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 13V (Max) | 15.9V | 18V (Typ) | 4.5A (8/20µs) | - | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 2-X2DFNW (1x0.6) |
|

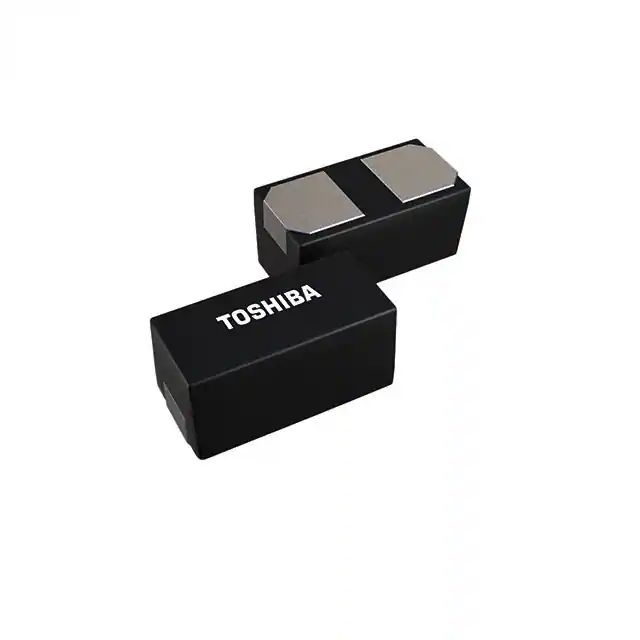

DF2B5M4ASL,L3FTVS DIODE 3.6VWM 15VC SL2 |
5,278 | 0.37 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 4V | 15V | 2A (8/20µs) | 30W | No | General Purpose | 0.15pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SL2 |
|
P6KE20CATVS DIODE 17.1VWM 27.7VC DO204AC |
2,973 | 0.35 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 17.1V | 19V | 27.7V | 22A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
DESD12VL2BTQ-7TRANSIENT VOLTAGE SUPPRESSOR PP |
1,895 | 0.07 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V | 13.5V | 22V | 5A | 230W | No | HDMI, USB | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
D1213A-01T-7TVS DIODE 3.3VWM 10VC SOD523 |
1,024,382 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 6V | 10V (Typ) | 1A (8/20µs) | - | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
ESD5V0D3-TPTVS DIODE 5VWM 15.5VC SOD323 |
674,950 | 0.35 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 15.5V | 12A (8/20µs) | 350W | No | General Purpose | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
PESD5V0X1UALD,315TVS DIODE 5VWM 9VC DFN1006D-2 |
2,343 | 0.45 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | 9V | 2A (8/20µs) | - | No | - | 1.55pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1006D-2 |
|
SMBJ58A-13-FTVS DIODE 58VWM 93.6VC SMB |
217,421 | 0.46 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
.jpg)
|
PESD5V0S1BB,115TVS DIODE 5VWM 14VC SOD523 |
182,716 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOD-523 |
|
|
SMBJ33CA-13-FTVS DIODE 33VWM 53.3VC SMB |
164,006 | 0.39 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 11.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESDH5V0D5-TPTVS DIODE 5VWM 14VC SOD523 |
133,405 | 0.30 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 14V | 22A (8/20µs) | 300W | No | General Purpose | 160pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
ESD5481MUT5GTVS DIODE 5VWM 12.4VC 2X3DFN |
109,583 | 0.26 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.7V | 12.4V | 2A (8/20µs) | - | No | General Purpose | 12pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X3DFN (0.6x0.3) (0201) |
|
VESD26C1-02VHG3-08TVS DIODE 26VWM 48VC SOD523 |
82,956 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V (Max) | 27.6V | 48V | 2.1A (8/20µs) | 100W | No | - | 17.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|

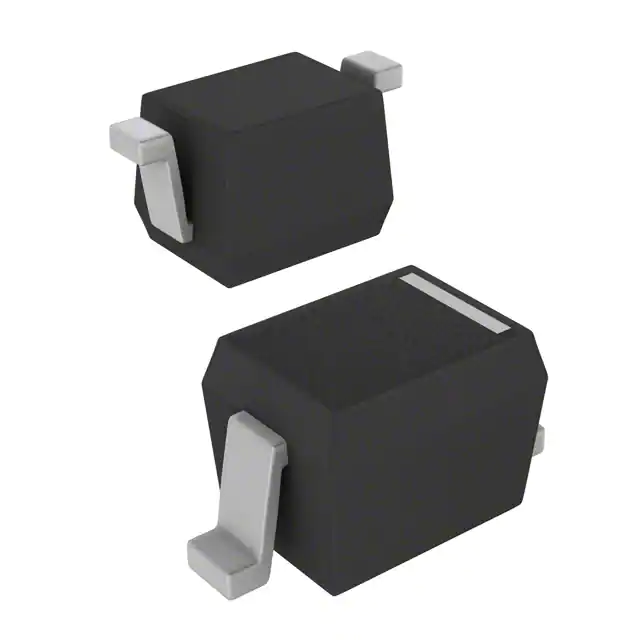

ESDA8V2-1JTVS DIODE 5VWM 20VC SOD323 |
78,340 | 0.47 |
|
Datasheet |
SC-76, SOD-323 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 8.2V | 20V | 25A (8/20µs) | 500W | No | General Purpose | 210pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
VESD33C1-02VHG3-08TVS DIODE 33VWM 62.5VC SOD523 |
59,105 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V (Max) | 35.5V | 62.5V | 1.6A (8/20µs) | 100W | No | - | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
ESDARF02-1BU2CKTVS DIODE 3.6VWM 12VC 0201 |
51,504 | 0.43 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V | 5V | 12V | 1.5A (8/20µs) | 20W | No | General Purpose | 0.2pF @ 200MHz ~ 3GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
