TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VESD12A2-03G-G3-08TVS DIODE 12VWM 22.7VC SOT323 |
43,971 | 0.39 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 12V (Max) | 13.9V | 22.7V | 4.4A (8/20µs) | 100W | No | - | 33pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
VESD01C1-02VHG3-08TVS DIODE 1VWM 6.9VC SOD523 |
37,933 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 1V (Max) | 2.5V | 6.9V | 14.6A (8/20µs) | 100W | No | - | 192pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SZESD9B5.0ST5GTVS DIODE 5VWM 12.5VC SOD923 |
29,977 | 0.39 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.8V | 12.5V | 15A (8/20µs) | - | No | - | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-923 |
|
|
VESD05B1-02VHG3-08TVS DIODE 5VWM 9.5VC SOD523 |
26,549 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 9.5V | 3.5A (8/20µs) | 40W | No | - | 23pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
CPDT-5V0U-HFTVS DIODE 5VWM 10VC SOT23-3 |
25,857 | 0.32 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V | 6.1V | 10V | 8A (8/20µs) | 80W | No | General Purpose | - | - | - | - | Surface Mount | SOT-23-3 |
|
|
VESD05A2-03G-G3-08TVS DIODE 5VWM 11.5VC SOT323 |
23,954 | 0.39 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.85V | 11.5V | 8.7A (8/20µs) | 100W | No | - | 67pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | - | Surface Mount | SOT-323 |
|

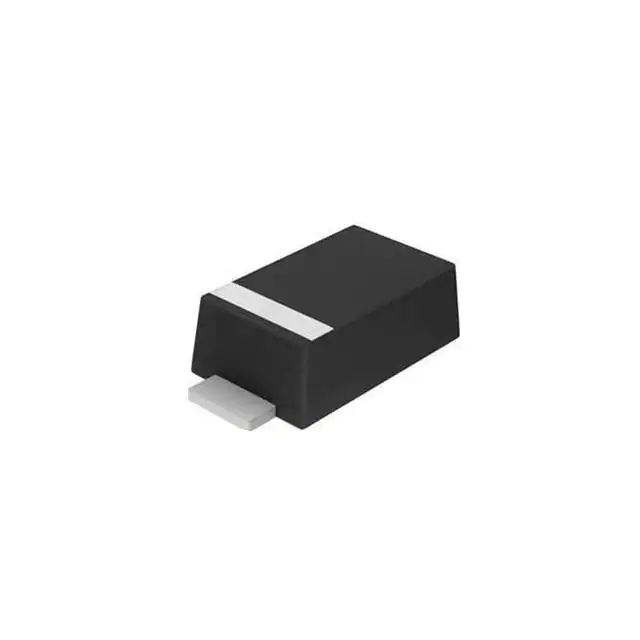

P4SMF26ATVS DIODE 26VWM 42.1VC SOD123FL |
21,212 | 0.30 |
|
Datasheet |
SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 9.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
VESD16C1-02VHG3-08TVS DIODE 16VWM 28VC SOD523 |
17,872 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 16V (Max) | 17V | 28V | 3.6A (8/20µs) | 100W | No | - | 27pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SM6T36ATVS DIODE 30.8VWM 49.9VC SMB |
15,199 | 0.56 |
|
Datasheet |
DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
VESD05C1-02VHG3-08TVS DIODE 5VWM 11.5VC SOD523 |
14,752 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.85V | 11.5V | 8.7A (8/20µs) | 100W | No | - | 67pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SMAJ30A-TRTVS DIODE 30VWM 64.3VC SMA |
14,461 | 0.45 |
|
Datasheet |
DO-214AC, SMA | SMAJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 64.3V | 36A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESD7V0D5-TPTVS DIODE 7VWM 22.7VC SOD523 |
14,189 | 0.28 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.5V | 22.7V | 8.8A (8/20µs) | 200W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
.jpg)
|
SMCJ20A-TPTVS DIODE 20VWM 32.4VC DO214AB |
12,545 | 0.72 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
P4SMF24ATVS DIODE 24VWM 38.9VC SOD123FL |
11,255 | 0.30 |
|
Datasheet |
SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 10.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
.jpg)
|
PESD5V0S1BB,335TVS DIODE 5VWM 14VC SOD523 |
10,567 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOD-523 |
|
SMA6J24ATVS DIODE |
9,852 | 0.14 |
|
Datasheet |
DO-214AC, SMA | SMA6J | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
RSBC6.8CMT2NTVS DIODE 5VWM VMN2M |
9,766 | 0.39 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.62V | - | - | - | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | VMN2M (SOD-923) |
|
|
VESD16A2-03G-G3-08TVS DIODE 16VWM 28VC SOT323 |
9,529 | 0.39 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 16V (Max) | 17V | 28V | 3.6A (8/20µs) | 100W | No | - | 27pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|

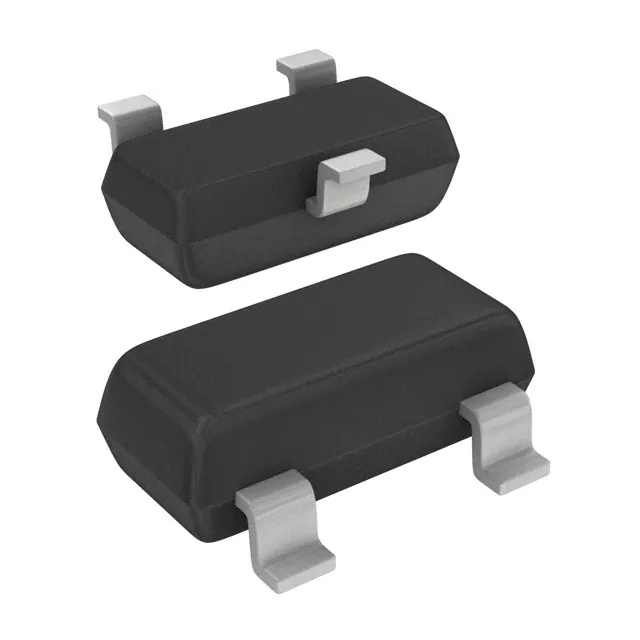

ESDCAN04-2BWYTVS DIODE 25.5VWM 43VC SOT323-3 |
9,033 | 0.46 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 25.5V | 27.5V | 43V | 3.7A (8/20µs) | 170W | No | CAN | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323-3 |
|
|
P4SMF30ATVS DIODE 30VWM 48.4VC SOD123FL |
7,016 | 0.30 |
|
Datasheet |
SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
