Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WT202012-15F2-IDTX 1 COIL 2 LYR 6.2UH |
10,954 | 4.42 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 6.2µH | ±5% | 80mOhm | - | - | - | - | - | 0.80" Dia x 0.10" H (20.3mm x 2.7mm) |
|

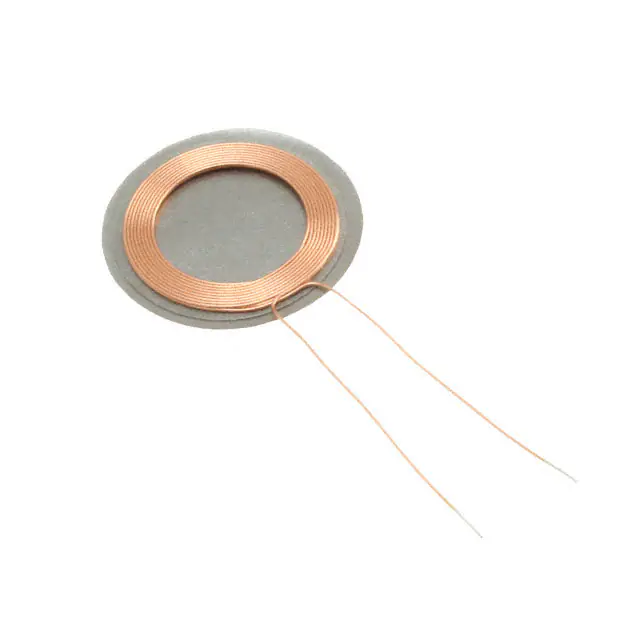

WR202010-18M8-IDRX 1 COIL 2 LYR 11UH |
1,404 | 4.15 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 11µH | ±5% | 350mOhm | - | - | - | - | - | 0.79" Dia x 0.03" H (20.0mm x 0.8mm) |
|

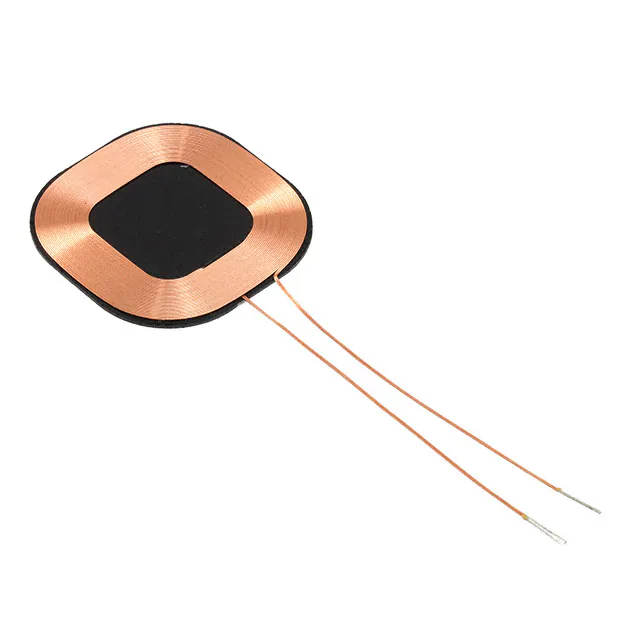

WR303050-15F5-GRX 1 COIL 2 LYR 12.3UH |
236 | 4.91 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 12.3µH | - | 410mOhm | - | - | - | - | - | 1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm) |
|

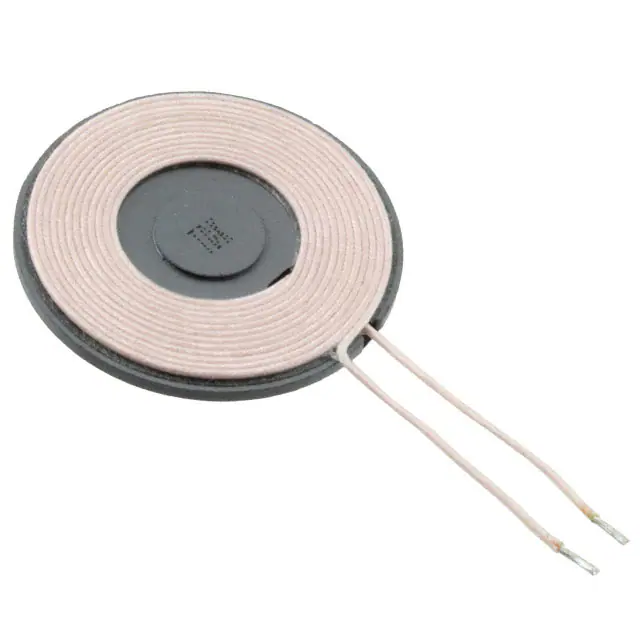

WT303012-12F2-IDTX 1 COIL 2 LYR 6.3UH |
2,281 | 5.72 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 6.3µH | ±5% | 90mOhm | - | - | - | - | - | 1.18" Dia x 0.08" H (30.0mm x 2.0mm) |
|

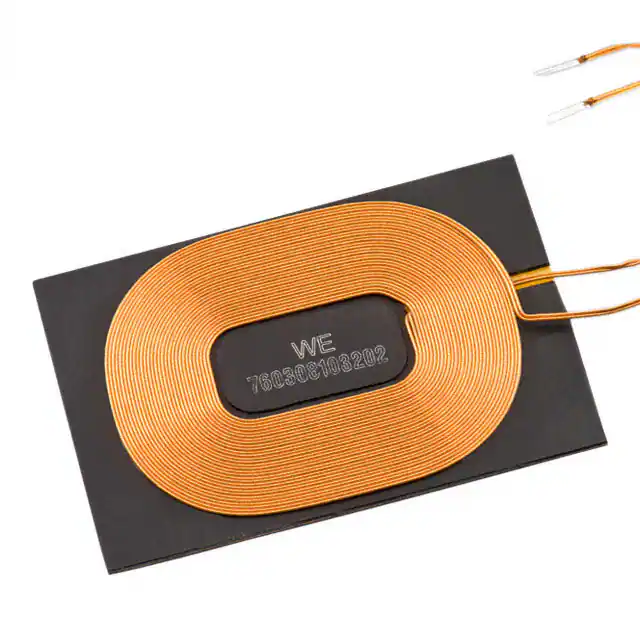

760308103202RX 1 COIL 1 LYR BIFILAR 12UH |
1,322 | 6.45 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer, Bifilar | 12µH | ±10% | 160mOhm | 33 @ 125kHz | 2.9A | 6A | 25MHz | -20°C ~ 105°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm) |
|

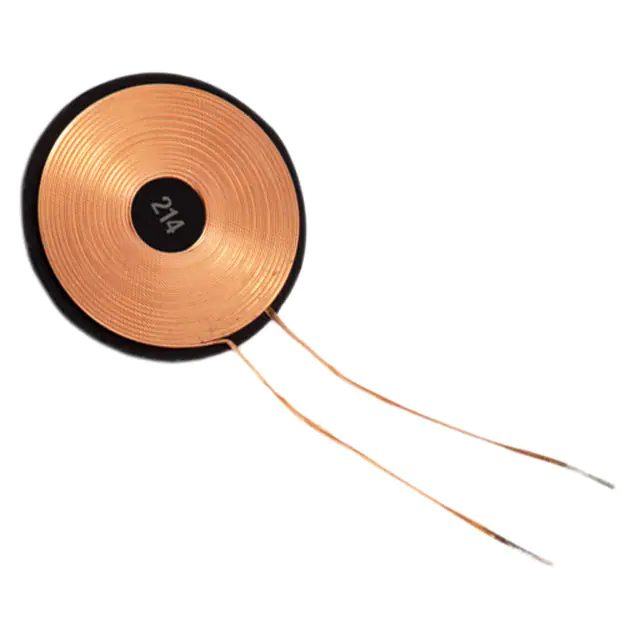

760308101214RX 1 COIL 3 LAYER 26UH 1.1A |
570 | 7.98 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 3 Layer | 26µH | ±10% | 520mOhm Max | 25 @ 125kHz | 1.1A | 2A | 11MHz | -20°C ~ 105°C | 0.75" Dia x 0.03" H (19.0mm x 0.8mm) |
|

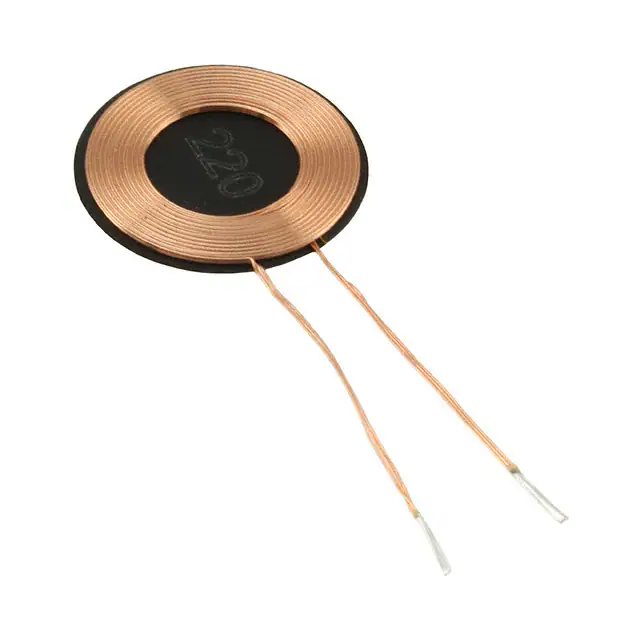

760308101220RX 1 COIL 3 LAYER BIFILAR 12.6UH |
207 | 8.50 |
|
Datasheet |
WE-WPCC | Box | Active | Receiver | 1 Coil, 3 Layer, Bifilar | 12.6µH | ±10% | 340mOhm Max | 20 @ 125kHz | 1.1A | 2.5A | 19MHz | -20°C ~ 105°C | 0.67" Dia x 0.03" H (17.0mm x 0.8mm) |
|

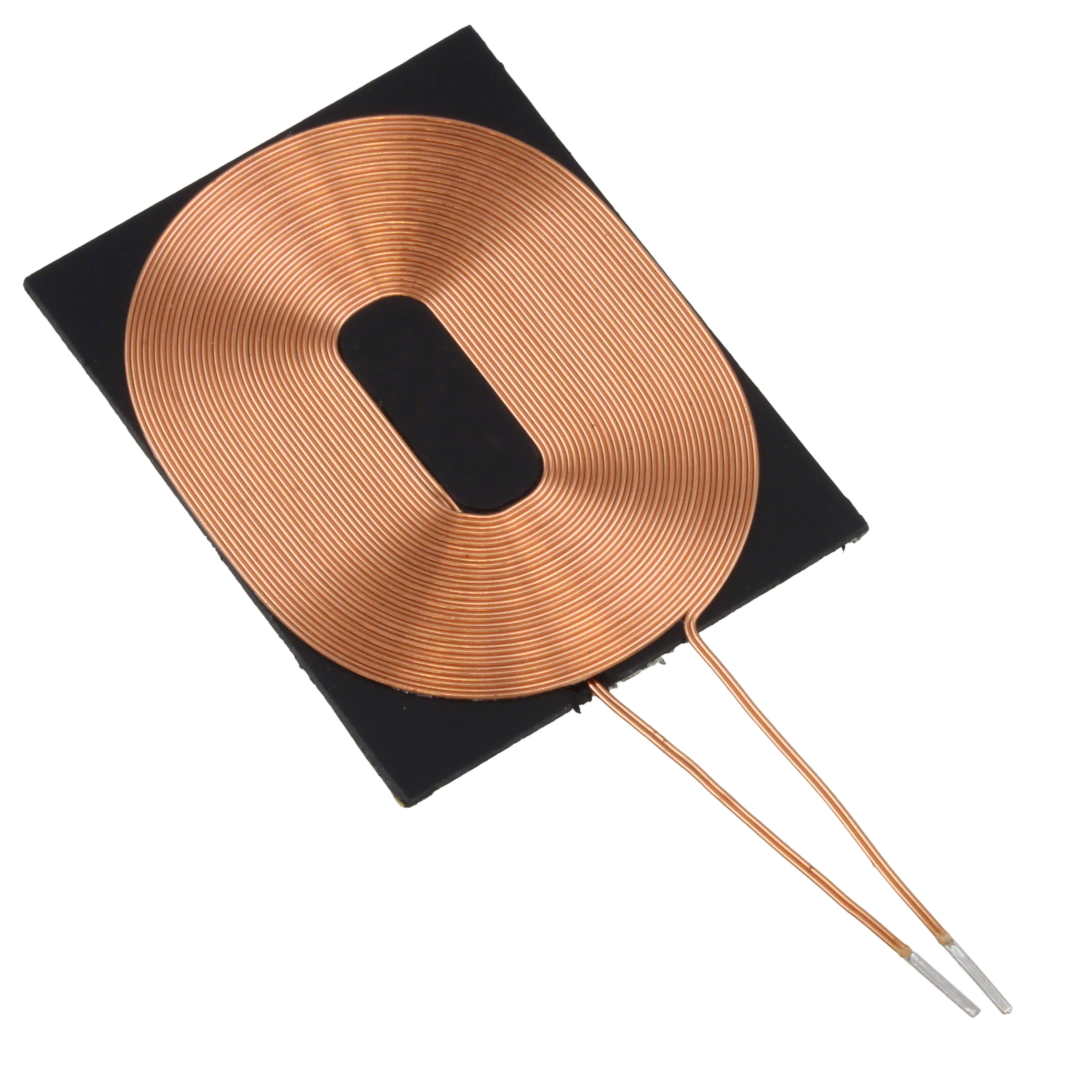

760308103205RX 1 COIL 1 LYR BIFILAR 11UH |
754 | 8.70 |
|
Datasheet |
WE-WPCC | Box | Active | Receiver | 1 Coil, 1 Layer, Bifilar | 11µH | ±10% | 180mOhm | 30 @ 125kHz | 2.5A | 4A | 16MHz | -20°C ~ 105°C | 1.34" L x 1.04" W x 0.04" H (34.0mm x 26.5mm x 0.9mm) |
|
760308101104TX 1 COIL 2 LAYER 6.3UH 2.5A |
573 | 13.13 |
|
Datasheet |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 6.8µH | ±10% | 125mOhm Max | 42 @ 125kHz | 2.5A | 6A | 20MHz | -20°C ~ 105°C | 0.81" Dia x 0.10" H (20.5mm x 2.6mm) |
|
IWAS3010AZEB130KF1WIRELESS CHARGING RECEIVE COIL |
2,668 | 1.59 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 12.9µH | ±10% | 780mOhm Max | 11 @ 100kHz | 800mA | - | - | -40°C ~ 85°C | 1.18" L x 0.39" W x 0.03" H (30.0mm x 10.0mm x 0.7mm) |
|

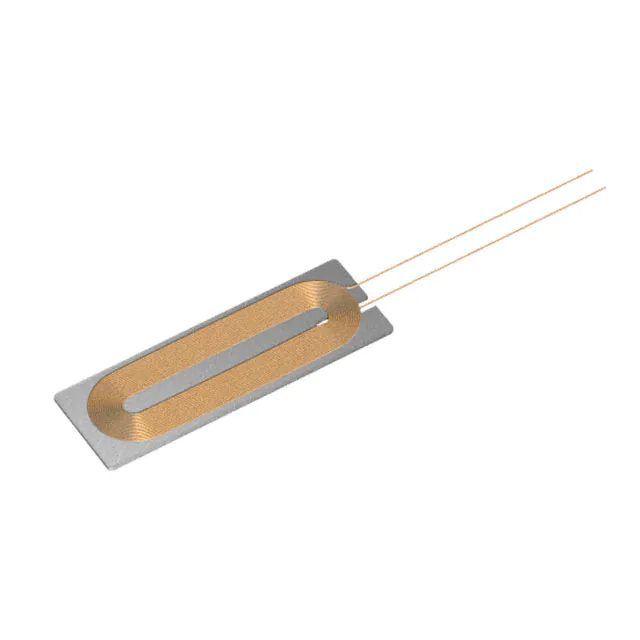

WR301025-19M8-GRX 1 COIL 2 LYR 12.8UH |
8,188 | 2.59 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 12.8µH | - | 1.27Ohm Max | - | - | - | - | - | - |
|
|
IWTX50R0DZEB6R3KF1WIRELESS CHARGING TRANSMIT COIL |
1,874 | 3.70 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | 90 @ 100kHz | 10A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|

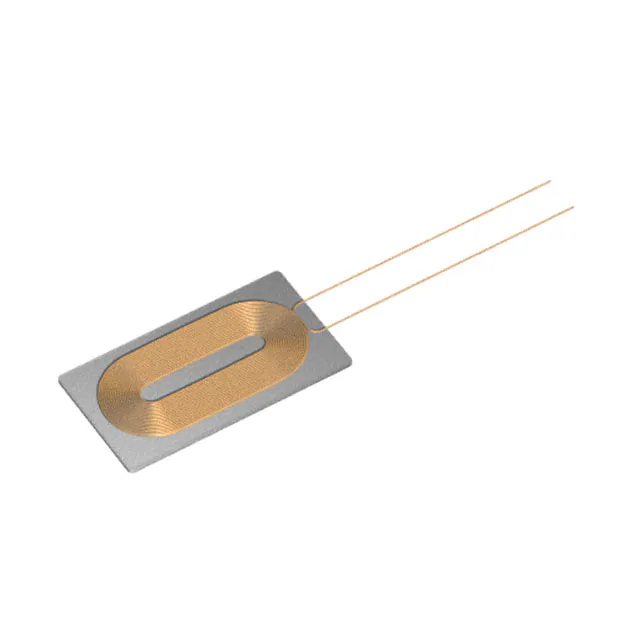

WR221230-36M8-GRX 1 COIL 2 LYR 27.9UH |
939 | 2.36 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 27.9µH | - | 1.21Ohm Max | - | - | - | - | - | - |
|
|
IWTX50R0CZEB6R3KF1WIRELESS CHARGING TRANSMIT COIL |
1,440 | 2.79 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 45mOhm Max | 120 @ 100kHz | 5A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|

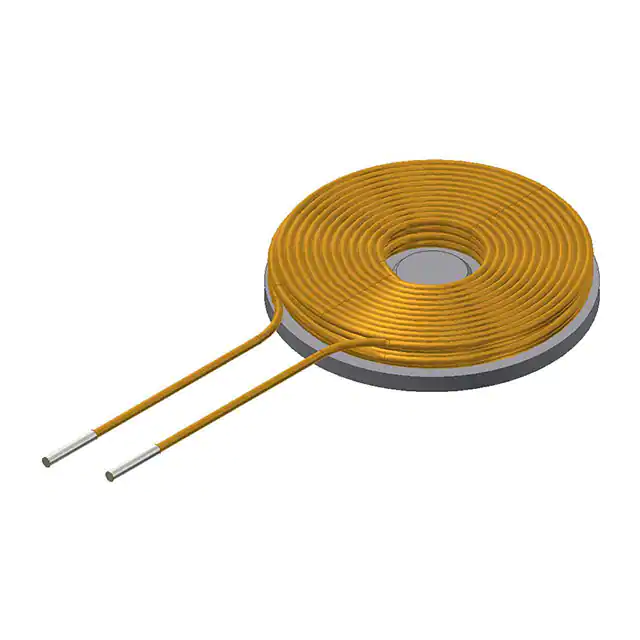

WR151580-48F2-GRX 1 COIL 4 LYR 27.1UH |
636 | 4.24 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 4 Layer | 27.1µH | - | 500mOhm | - | - | - | - | - | 0.59" Dia x 0.10" H (15.0mm x 2.6mm) |
|
|
IWAS3827ABEB110JF1IWAS-3827AB-F1 10 5% EB E2 |
1,737 | 5.56 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.65µH | ±5% | 185mOhm | 30 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.50" L x 1.05" W x 0.07" H (38.1mm x 26.7mm x 1.7mm) |
|

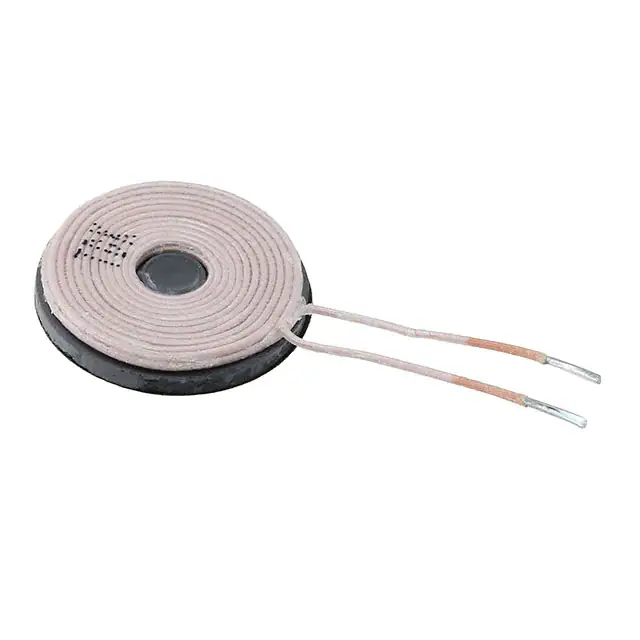

WT151512-22F2-IDTX 1 COIL 2 LYR 6.8UH |
2,474 | 4.30 |
|
Datasheet |
WT | Box | Active | Transmitter | 1 Coil, 2 Layer | 6.8µH | ±5% | 170mOhm | - | - | - | - | - | 0.60" Dia x 0.09" H (15.3mm x 2.2mm) |
|

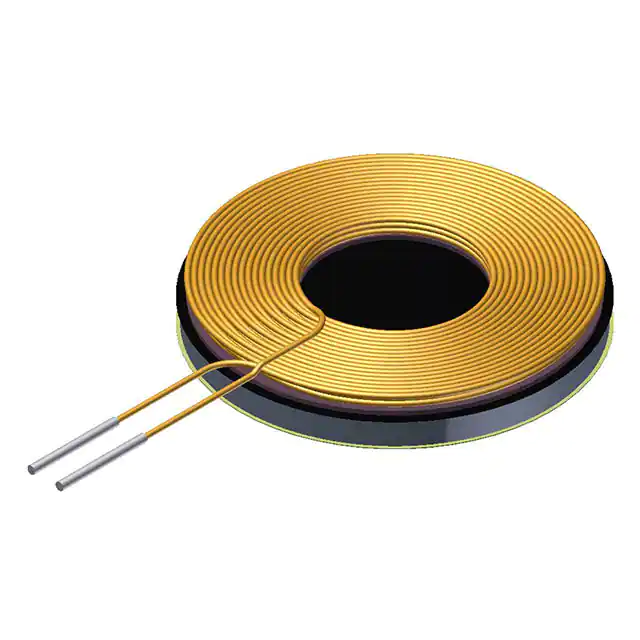

WR111180-49F5-GRX 1 COIL 3 LYR 31.8UH |
151 | 3.39 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 3 Layer | 31.8µH | ±5% | 1.34Ohm | - | - | - | - | - | 0.43" Dia x 0.07" H (11.0mm x 1.7mm) |
|

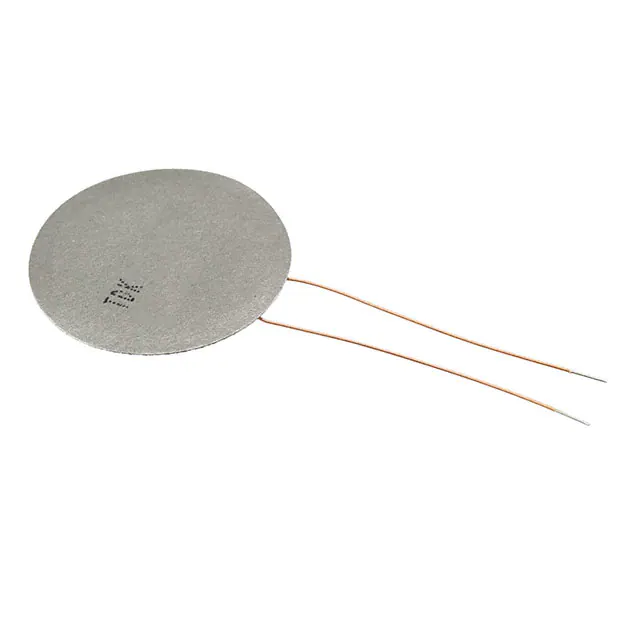

WR202010-18M8-SMRX 1 COIL 2 LYR 10.68UH |
290 | 4.09 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 10.68µH | ±5% | 350mOhm | - | - | - | - | - | 0.79" Dia x 0.03" H (20.0mm x 0.8mm) |
|

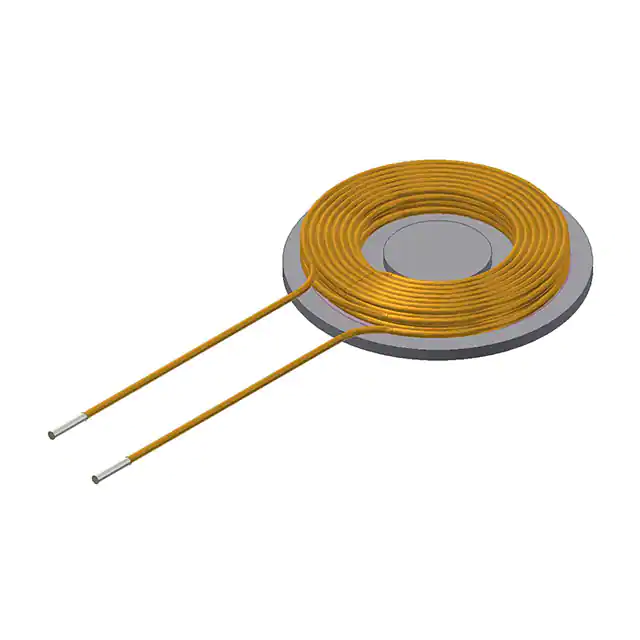

WT202080-28F2-GTX 1 COIL 4 LYR 20.9UH |
463 | 5.03 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 4 Layer | 20.9µH | - | 300mOhm | - | - | - | - | - | 0.79" Dia x 0.11" H (20.0mm x 2.7mm) |
