Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

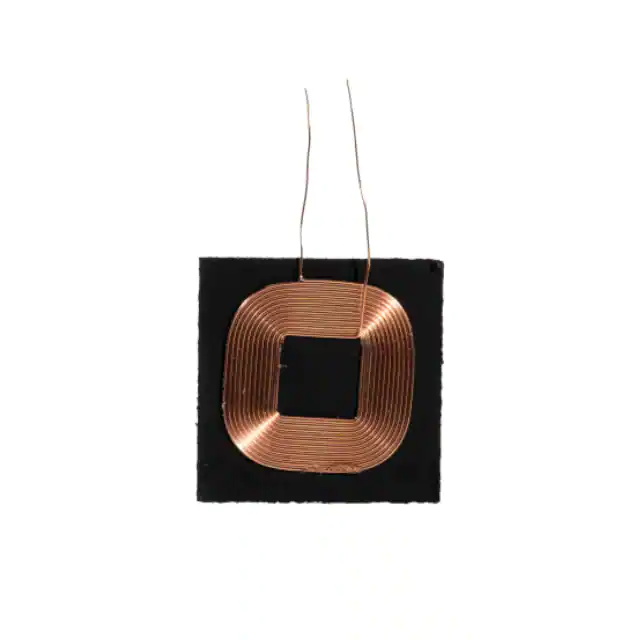

RCC-2020-RX-NLINDUCTOR |
3,722 | 0.81 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 275mOhm | - | - | - | - | -25°C ~ 85°C | 0.79" L x 0.79" W x 0.04" H (20.0mm x 20.0mm x 1.0mm) |
|

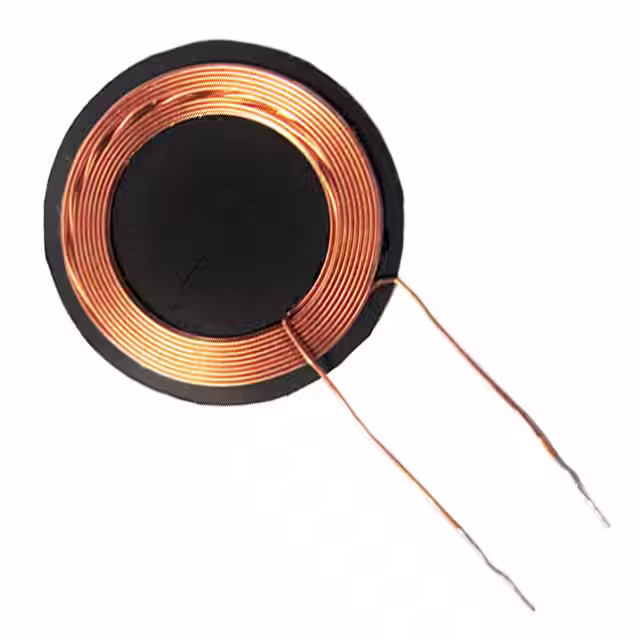

AWCCA-18R18H10-C01-BRX 1 COIL 1 LAYER 10.5UH |
4,591 | 0.00 |
|
Datasheet |
AWCCA | Bulk | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 330mOhm | 17 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.72" Dia x 0.04" H (18.3mm x 1.0mm) |
|
SCR35018R3KBRX 1 COIL 2 LAYER 8.3UH 2000MA |
380 | 0.00 |
|
Datasheet |
SCR | Bag | Active | Receiver | 1 Coil, 1 Layer | 8.3µH | ±10% | 160mOhm Max | - | 2A | - | - | -40°C ~ 85°C | 1.38" Dia x 0.05" H (35.0mm x 1.2mm) |
|
|
IWTX55R0DZEB8R9KF1WIRELESS CHARGING TRANSMIT COIL |
552 | 2.00 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 8.9µH | ±10% | 55mOhm Max | 98.5 @ 100kHz | 6A | - | - | -40°C ~ 125°C | 2.17" Dia x 0.16" H (55.0mm x 4.0mm) |
|
|
IWTX5555DEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
216 | 2.32 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 80mOhm Max | 99 @ 100kHz | 6A | - | - | -40°C ~ 85°C | 2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm) |
|

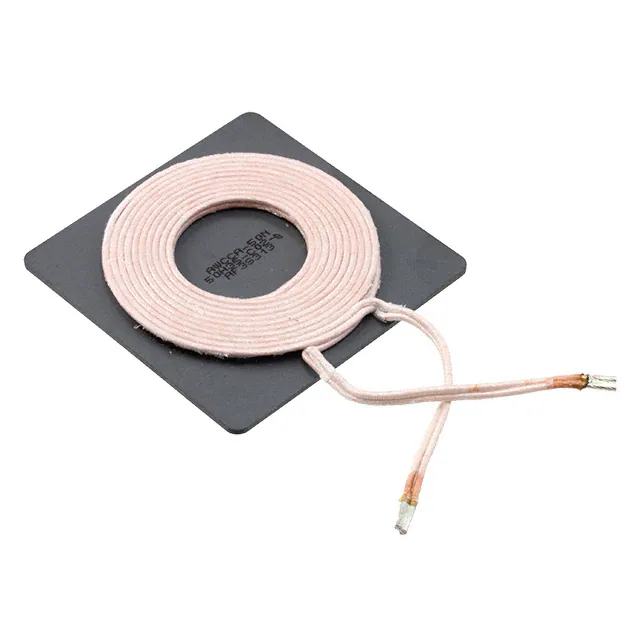

AWCCA-50N50H35-C02-BRX TX 1 COIL 1 LAYER 6.3UH 10.6A |
4,232 | 4.47 |
|
Datasheet |
AWCCA-50N50 | Bulk | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 72 @ 100kHz | 10.6A | 36A | 6.4MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm) |
|

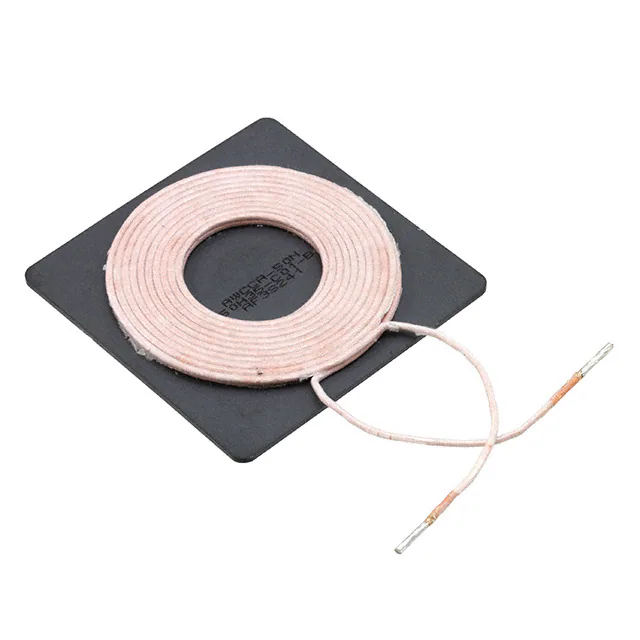

AWCCA-50N50H35-C01-BRX TX 1 COIL 1 LAYER 24UH 5.4A |
2,390 | 4.47 |
|
Datasheet |
AWCCA-50N50 | Bulk | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 160 @ 100kHz | 5.4A | 21A | 3MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm) |
|
|
IWTX5050DEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
427 | 3.30 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 29.7mOhm Max | 200 @ 100kHz | 9A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.18" H (50.0mm x 4.5mm) |
|
|
IWAS3222CZEB190JF1IWAS-3222CZ-F1 19 5% EB E2 |
1,512 | 3.54 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 19.6µH | ±5% | 357mOhm | 29 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.26" L x 0.87" W (32.0mm x 22.0mm) |
|
1461798011RX 1 COIL 1 LAYER 2.6UH |
3,849 | 6.68 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 2.6µH | ±2% | 245mOhm | 90 @ 6.78MHz | - | - | - | - | 1.04" Dia x 0.02" H (26.5mm x 0.5mm) |
|
|
IWTX4646DCEB240JF1IWTX-4646DC-F1 24 5% EB E2 |
1,036 | 4.38 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±5% | 75mOhm | 185 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C | 1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm) |
|
|
IWTX9955DEEB110KF3WIRELESS CHARGING TRANSMIT COIL |
219 | 4.81 |
|
Datasheet |
- | Tray | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH, 11.3µH, 11.3µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 6.5A | - | - | -40°C ~ 125°C | 3.90" L x 2.19" W x 0.16" H (99.0mm x 55.6mm x 4.0mm) |
|

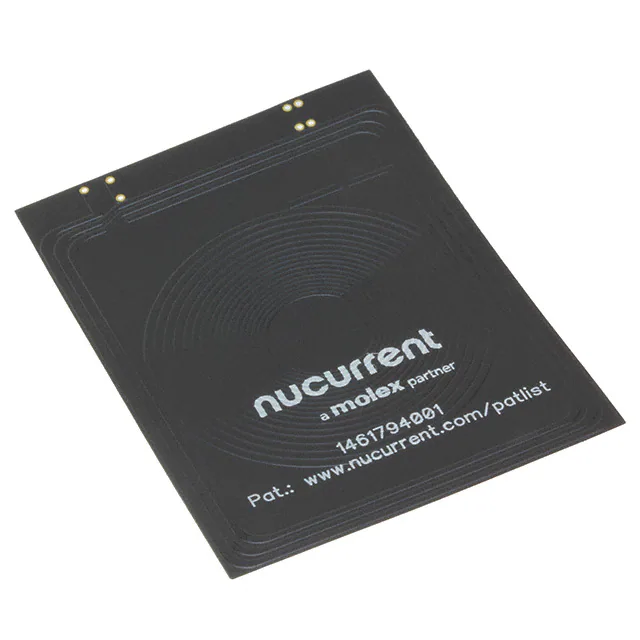

1461794001RX 2 COIL, 1 LYR 8.9UH |
5,492 | 11.22 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Box | Active | Receiver | 2 Coil, 1 Layer | 8.9µH | ±2% | 350mOhm | 25 @ 200kHz | - | - | - | - | 2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm) |
|
|
IWTXA148DGEB9R8KF3WIRELESS CHARGING TRANSMIT COIL |
129 | 4.93 |
|
Datasheet |
- | Tray | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 7A | - | - | -40°C ~ 125°C | 4.01" L x 2.26" W x 0.19" H (101.8mm x 57.3mm x 4.7mm) |
|
|
IWTXA653FZEB120KF3WIRELESS CHARGING TRANSMIT COIL |
230 | 5.21 |
|
Datasheet |
- | Tray | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | 110 @ 100kHz, 100 @ 100kHz, 110 @ 100kHz | 6.5A | - | - | -40°C ~ 85°C | 4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm) |
|
|
IWTX5547EEEB8R5KF1INDUCT WW SNGL COIL MISC |
1,265 | 0.00 |
|
Datasheet |
- | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 8.5µH | ±10% | 56mOhm | 140 @ 125kHz | 6A | 10A | 11MHz | -40°C ~ 105°C | 2.17" L x 1.85" W x 0.22" H (55.0mm x 47.0mm x 5.5mm) |
|

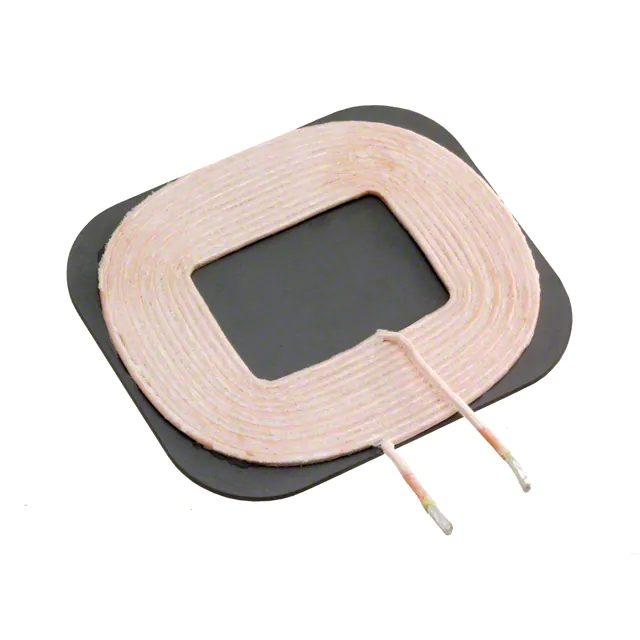

SWC5547AK120-500TX 1 COIL 1 LAYER 12.5UH |
225 | 6.14 |
|
Datasheet |
SWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) |
|

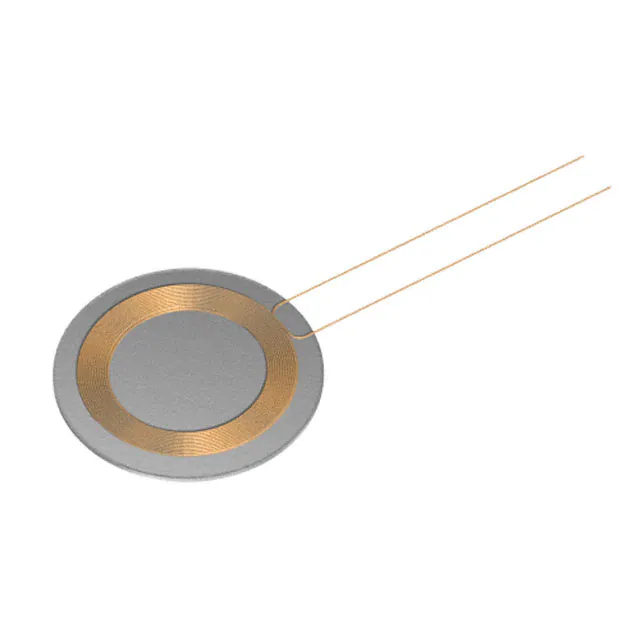

WR222230-26M8-GRX 1 COIL 2 LYR 27UH |
4,471 | 3.18 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 27µH | - | 1.1Ohm Max | - | - | - | - | - | 0.87" Dia x 0.03" H (22.0mm x 0.9mm) |
|

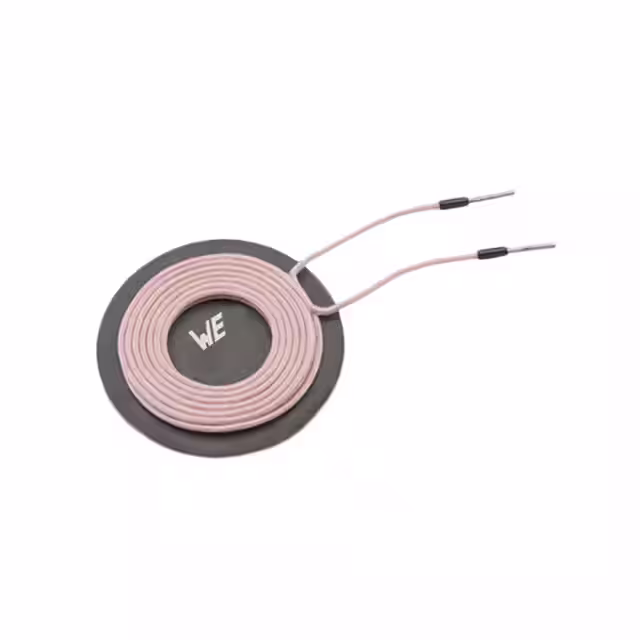

760308101141WE-WPCC WIRELESS POWER CHARGING |
1,167 | 18.28 |
|
Datasheet |
WE-WPCC | Bulk | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 30mOhm Max | 220 @ 125kHz | 9A | 16A | 11MHz | -20°C ~ 105°C | 1.97" Dia x 0.20" H (50.0mm x 5.0mm) |
|

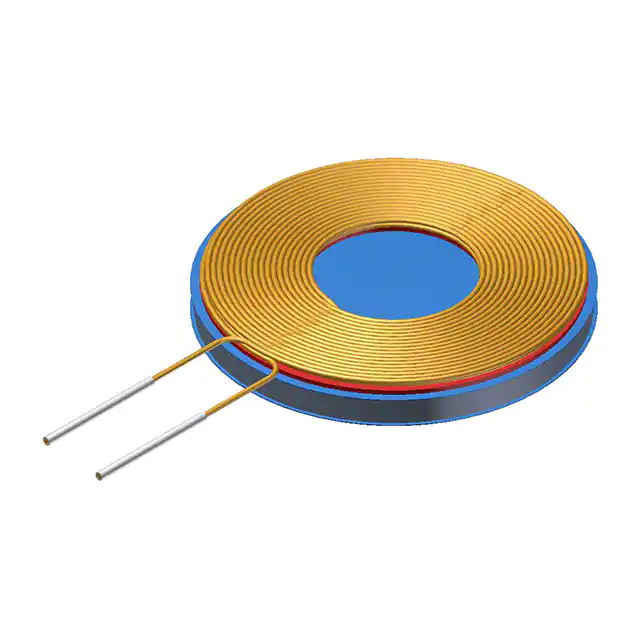

WR111180-36F5-B1RX 1 COIL 2 LYR 16.6UH |
3,226 | 6.08 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 16.6µH | - | 1Ohm | - | - | - | - | - | 0.43" Dia x 0.06" H (11.0mm x 1.5mm) |
