Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IWAS4532AGEB140KF1WIRELESS CHARGING RECEIVE COIL |
990 | 2.40 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 14µH | ±10% | 355mOhm Max | 24 @ 100kHz | 1.2A | - | - | -40°C ~ 85°C | 1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm) |
|
|
WRSR-12R0K-13WIRELESE CHARGE COIL 12.0UH 6.0A |
452 | 0.00 |
|
Datasheet |
WRSR | Bulk | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 200mOhm Max | 33 @ 125kHz | 3A | 6A | - | -25°C ~ 105°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) |
|

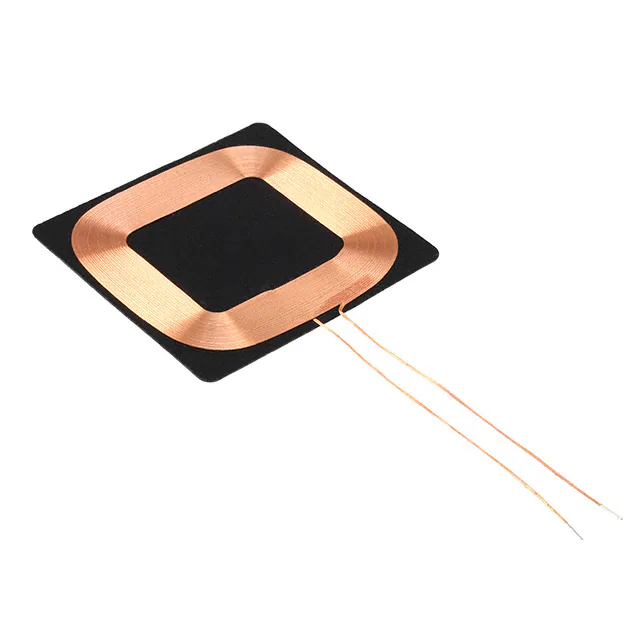

WR444030-16F3-GRX 1 COIL 1 LYR 19UH |
518 | 6.30 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 19µH | - | 700mOhm | - | - | - | - | - | 1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.6mm) |
|
|
WRSR-16R7K-11WIRELESE CHARGE COIL 16.7UH 4.0A |
405 | 0.00 |
|
Datasheet |
WRSR | Bulk | Active | Receiver | 1 Coil, 1 Layer | 16.7µH | ±10% | 430mOhm Max | 32 @ 125kHz | 2.5A | 4A | - | -25°C ~ 105°C | 1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm) |
|

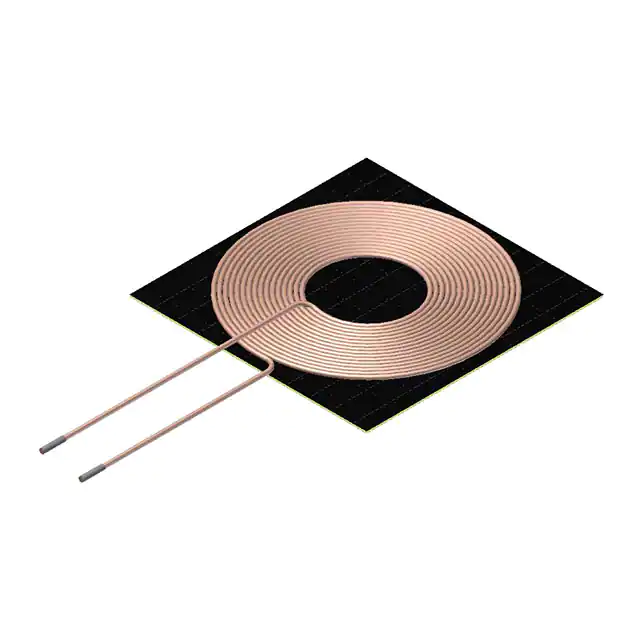

WR555540-16K2-FS2RX 1 COIL 2 LYR 15.8UH |
544 | 7.58 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 15.8µH | - | 100mOhm | 98 @ 100kHz | - | - | - | - | 2.13" L x 2.13" W x 0.09" H (54.0mm x 54.0mm x 2.4mm) |
|

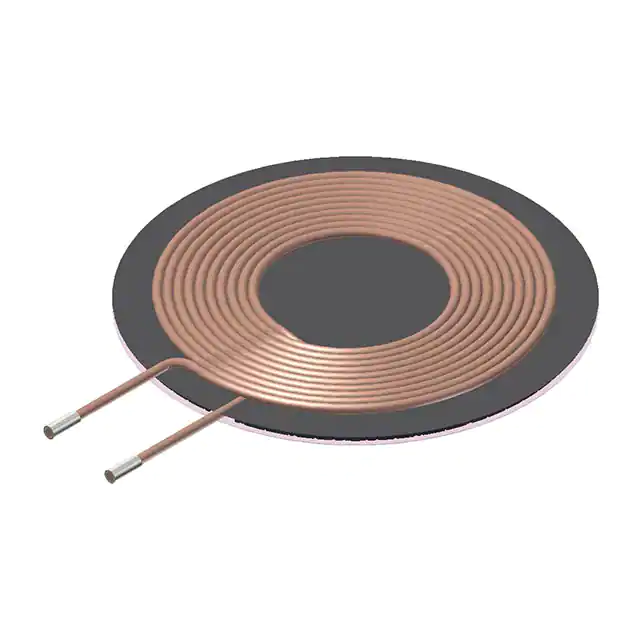

WT505090-10F2-LP-G1TX 1 COIL, 1 LYR 6.3UH |
115 | 5.69 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | 2.02" Dia x 0.13" H (51.4mm x 3.4mm) |
|

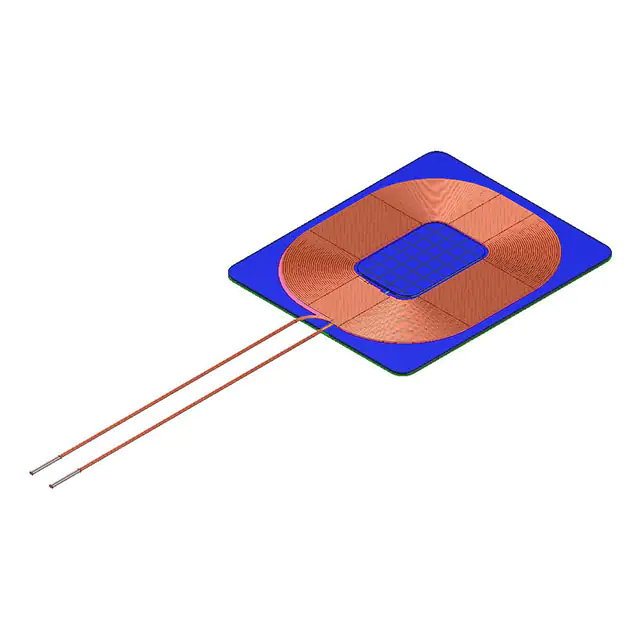

WR383245-17F5-GRX 1 COIL, 1 LYR 13.9UH |
286 | 5.69 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 13.9µH | - | 310mOhm | 28 @ 100kHz | - | - | - | - | 1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm) |
|

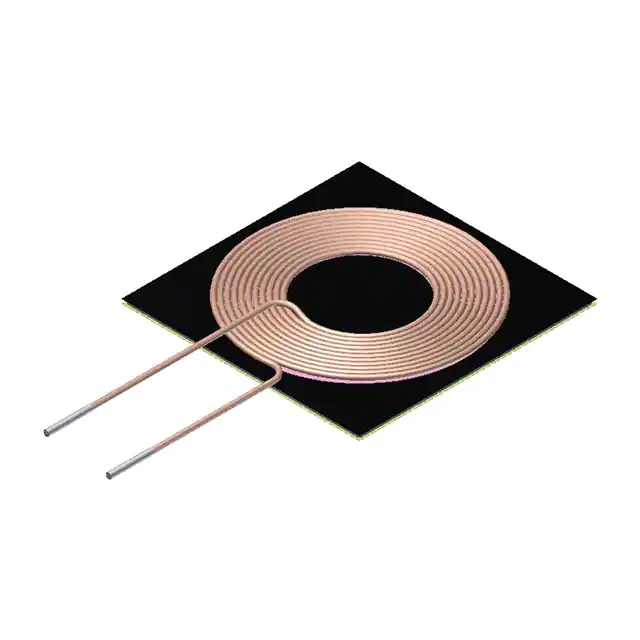

WT545490-11K2-FSTX 1 COIL 2 LYR 8.9UH |
136 | 7.70 |
|
Datasheet |
WT | Tray | Not For New Designs | Transmitter | 1 Coil, 2 Layer | 8.9µH | - | 60mOhm | 104 @ 100kHz | - | - | - | - | 2.13" L x 2.13" W x 0.13" H (54.0mm x 54.0mm x 3.3mm) |
|

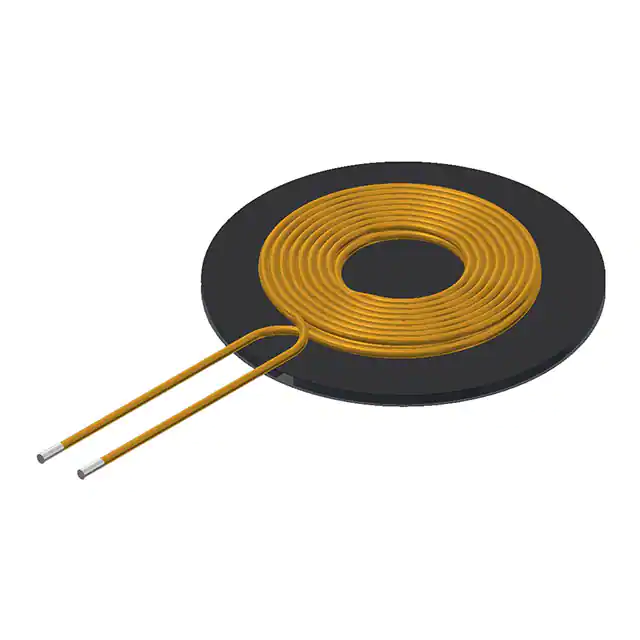

WT282890-16F2-GTX 1 COIL 2 LYR 7.4UH |
139 | 6.44 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 7.4µH | - | 110mOhm | - | - | - | - | - | 1.12" Dia x 0.10" H (28.4mm x 2.4mm) |
|
WT1005690-12F2-A6-G1TX COIL UNIT |
148 | 11.76 |
|
Datasheet |
WT | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|

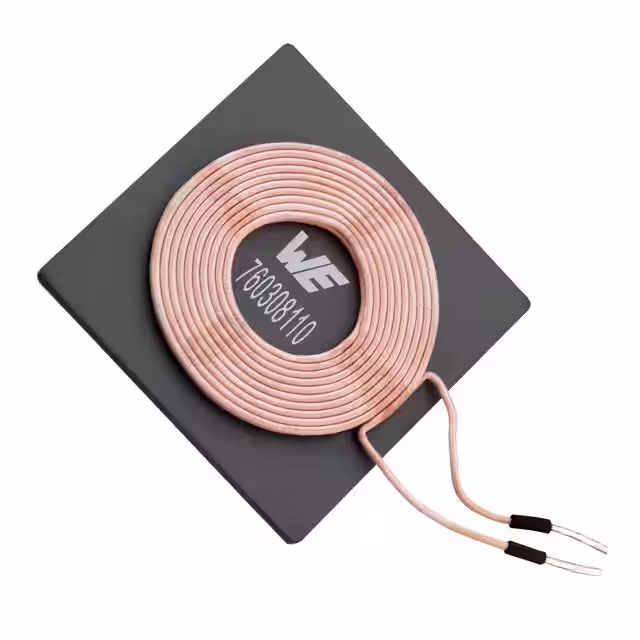

760308110TX 1 COIL 2 LAYER 24UH 6A |
103 | 13.60 |
|
Datasheet |
WE-WPCC | Bulk | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 180 @ 125kHz | 6A | 10A | 5MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
|

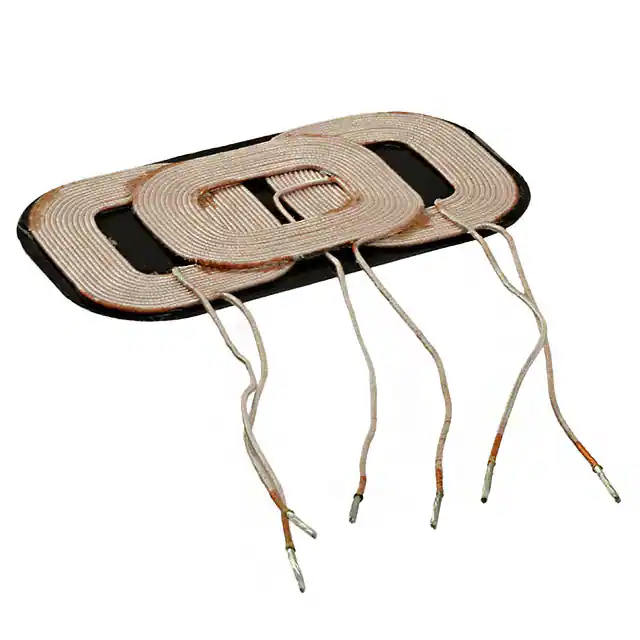

WT1005690-12K2-A6-GTX 3 COIL 1 LAYER 11.5 - 12.5UH |
103 | 12.87 |
|
- |
WT | Tray | Not For New Designs | Transmitter | 3 Coil, 1 Layer | 11.5 ~ 12.5µH | - | 80mOhm | - | - | - | - | - | 3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm) |
|
|
IWTX5050DZEB6R3KF1WIRELESS CHARGING TRANSMIT COIL |
232 | 3.70 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | 90 @ 100kHz | 10A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|

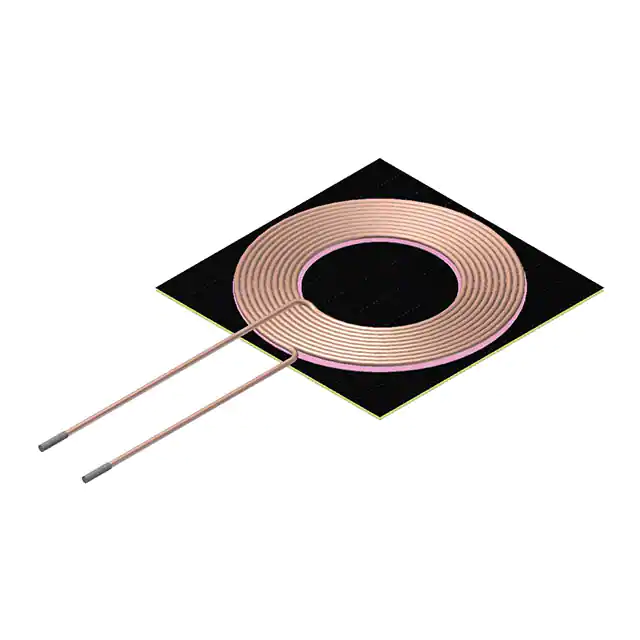

WR464650-10K2-FS3RX 1 COIL, 1 LYR 7.3UH |
133 | 8.14 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.3µH | - | 70mOhm | - | - | - | - | - | 1.81" L x 1.81" W x 0.12" H (46.0mm x 46.0mm x 3.0mm) |
|
WR444025-17M6-GRX 1 COIL, 1 LYR 16.7UH |
237 | 9.42 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 16.7µH | - | 650mOhm | - | - | - | - | - | 1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.5mm) |
|
|
IWTX5050FEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
1,300 | 3.12 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 29.7mOhm Max | 200 @ 100kHz | 9A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.26" H (50.0mm x 6.5mm) |
|
|
IWAS3222CZEB190JR1WIRELESS CHARGE RX RECT 19.6UH 1 |
425 | 0.00 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 19.6µH | ±5% | 357mOhm | 28.5 @ 200kHz | 1.2A | 2.4A | - | -40°C ~ 105°C | 1.26" L x 0.87" W x 0.12" H (32.0mm x 22.0mm x 3.0mm) |
|
|
IWTX47R0DAEB6R3JR1WIRELESS CHARGE TX ROUND 6.3UH 7 |
231 | 0.00 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±5% | 40mOhm | 190 @ 200kHz | 7A | 22A | - | -40°C ~ 105°C | 1.85" Dia x 0.17" H (47.0mm x 4.2mm) |
|
|
IWTX47R0EBEB240JR1WIRELESS CHARGE TX ROUND 24UH 6A |
229 | 0.00 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±5% | 75mOhm | 200 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C | 1.85" Dia x 0.21" H (47.0mm x 5.3mm) |
|
|
IWTX4646DCEB240JR1WIRELESS CHARGE TX SQUARE 24UH 6 |
219 | 0.00 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±5% | 75mOhm | 185 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C | 1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm) |
