Wireless Charging Coils

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension

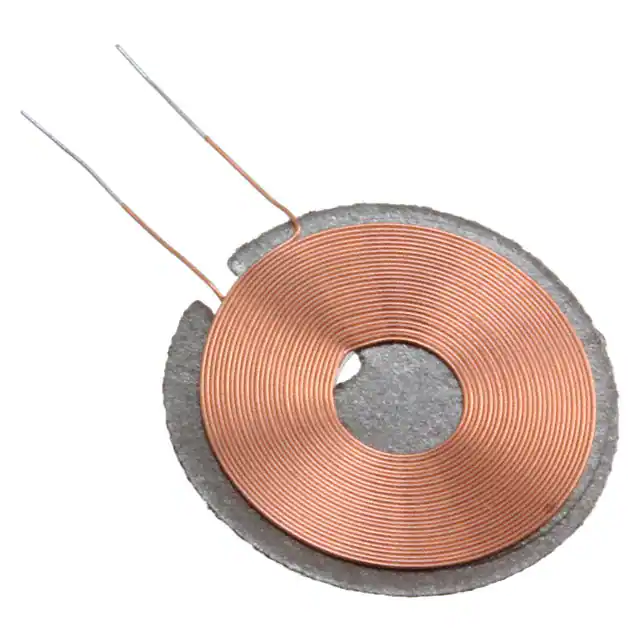

WR121210-27M8-ID RX 1 COIL 1 LYR 8.32UH TDK Corporation	3,181	3.15	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	8.32µH	±5%	950mOhm	-	-	-	-	-	0.47" Dia x 0.01" H (12.0mm x 0.3mm)
IWAS4832ABEB110JF1 IWAS-4832AB-F1 11 5% EB E2 Vishay Dale	1,021	6.39	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	10.8µH	±5%	187mOhm	60 @ 200kHz	-	-	-	-40°C ~ 105°C	1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.7mm)

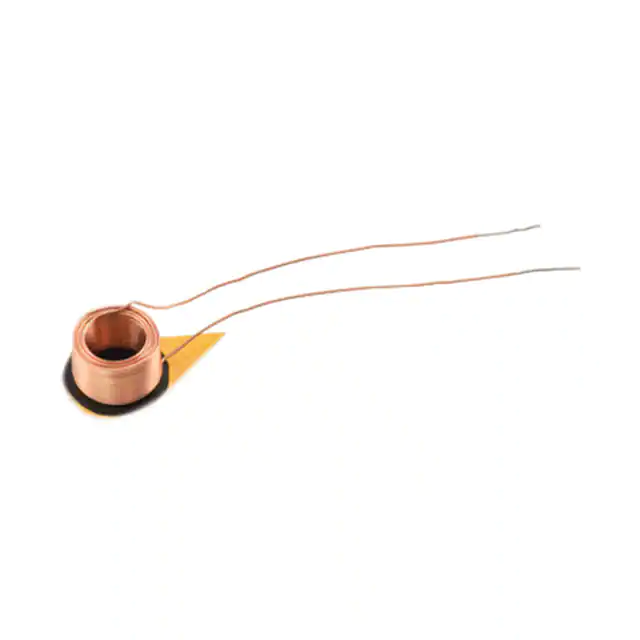

760308101221 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,119	6.31	RFQ	Datasheet	WE-WPCC	Bulk	Active	Receiver	1 Coil, 6 Layer	24µH	±10%	1.15Ohm Max	16 @ 125kHz	400mA	1A	10MHz	-20°C ~ 105°C	0.24" Dia x 0.16" H (6.0mm x 4.0mm)

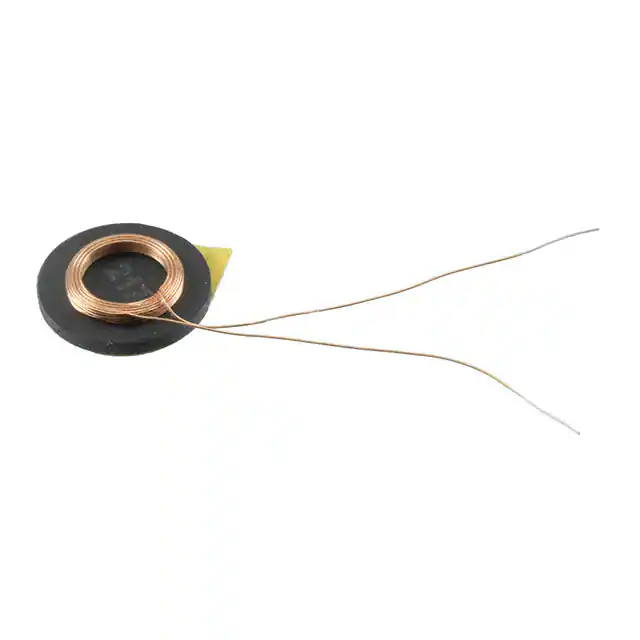

760308101217 RX 1 COIL 6 LAYER 24.2UH 400MA Würth Elektronik	1,439	8.80	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 6 Layer	24.2µH	±10%	1.4Ohm Max	13 @ 125kHz	400mA	1A	14.5MHz	-20°C ~ 105°C	0.41" Dia x 0.07" H (10.3mm x 1.9mm)
760308101216 RX 1 COIL 6 LAYER 7.2UH 500MA Würth Elektronik	2,241	8.80	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 6 Layer	7.2µH	±10%	440mOhm Max	10 @ 125kHz	500mA	1A	32MHz	-20°C ~ 105°C	0.24" Dia x 0.08" H (6.0mm x 2.0mm)

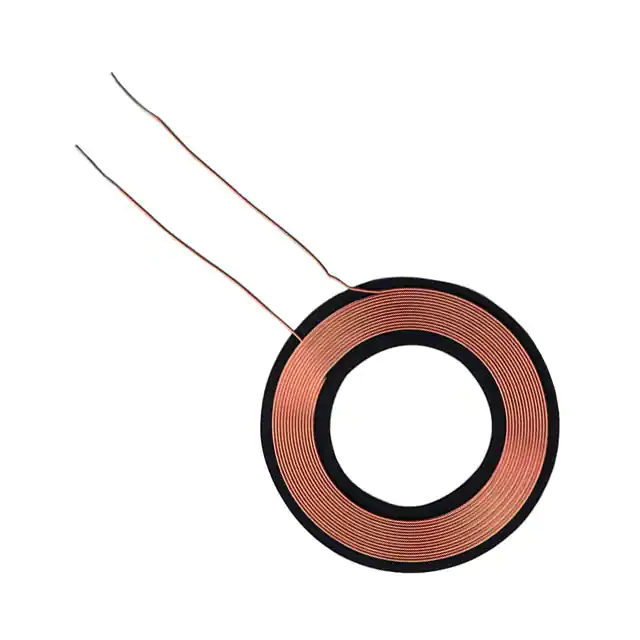

760308105309 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,639	10.13	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	10.5µH	±10%	450mOhm	19 @ 125kHz	1.5A	3A	18.5MHz	-20°C ~ 105°C	1.035" Dia x 0.019" H (26.30mm x 0.49mm)

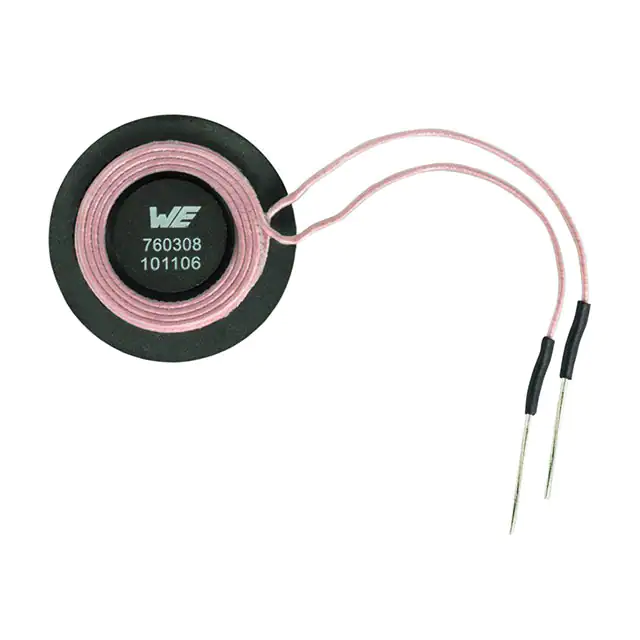

760308101106 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,025	10.28	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	2.5µH	±10%	90mOhm	30 @ 125kHz	2.5A	8A	38MHz	-20°C ~ 105°C	0.807" Dia x 0.110" H (20.50mm x 2.80mm)

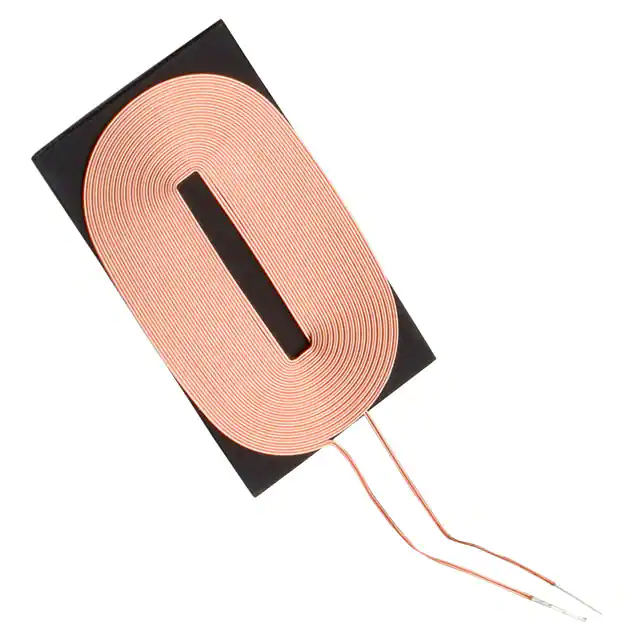

760308103206 RX 1 COIL 1 LAYER 7.5UH 1.55A Würth Elektronik	3,194	10.51	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 1 Layer	7.5µH	±10%	340mOhm	16 @ 125kHz	1.55A	3A	23MHz	-20°C ~ 105°C	1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm)

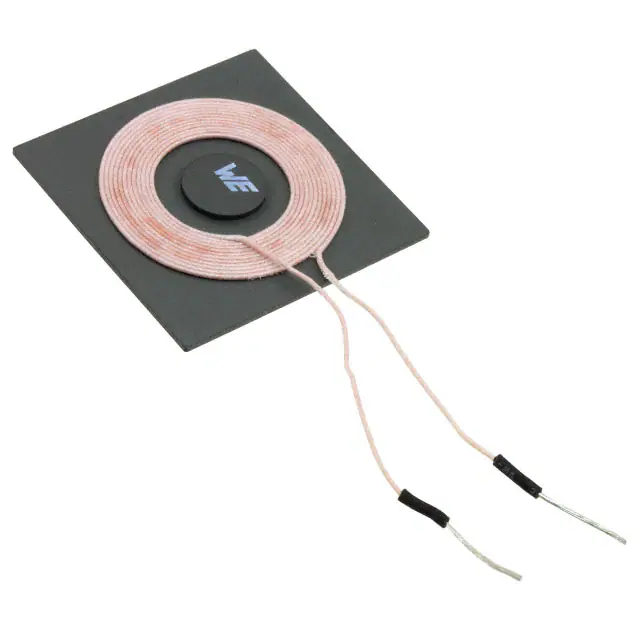

760308102210 RX 1 COIL 1 LAYER 7.5UH 3A Würth Elektronik	4,523	11.61	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	7.5µH	±10%	180mOhm Max	45 @ 125kHz	3A	6A	22MHz	-20°C ~ 105°C	1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm)

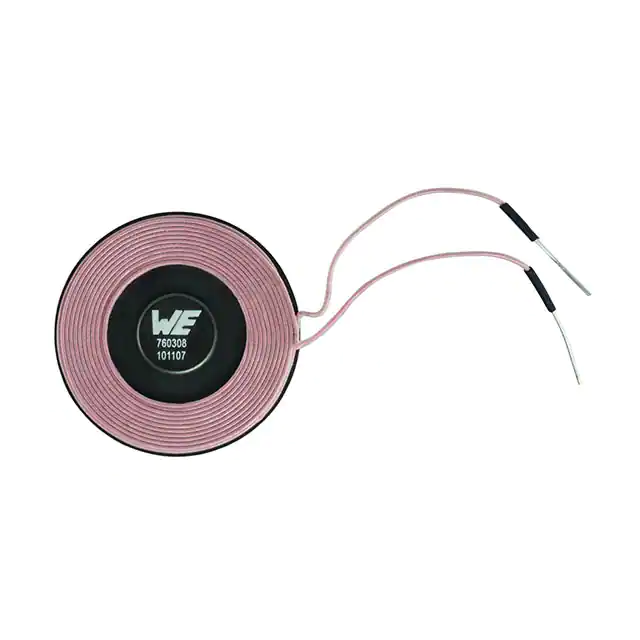

760308101107 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,974	12.80	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	24µH	±10%	315mOhm	55 @ 125kHz	2A	8A	7.5MHz	-20°C ~ 105°C	1.220" Dia x 0.098" H (31.00mm x 2.50mm)
760308104113 TX 1 COIL 1 LAYER 12UH 7A Würth Elektronik	4,622	16.30	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	12µH	±10%	72mOhm Max	120 @ 125kHz	7A	12A	16MHz	-20°C ~ 105°C	2.34" L x 2.05" W x 0.15" H (59.5mm x 52.0mm x 4.0mm)
760308102142 TX 1 COIL 1 LYR BIFIL 5.8UH 18A Würth Elektronik	1,957	21.40	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer, Bifilar	5.8µH	±10%	12mOhm Max	100 @ 125kHz	18A	30A	12MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm)

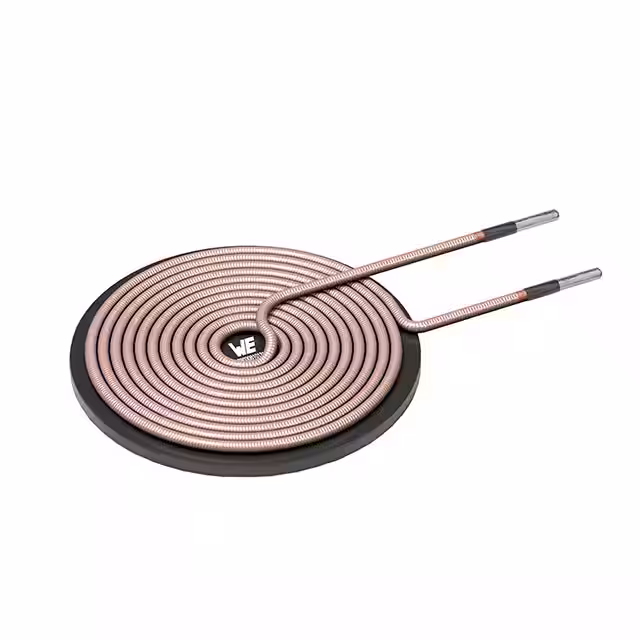

760308101311 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	4,532	23.91	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	5.8µH	±10%	14mOhm	220 @ 125kHz	21A	-	13MHz	-20°C ~ 105°C	2.76" Dia x 0.33" H (70.0mm x 8.5mm)

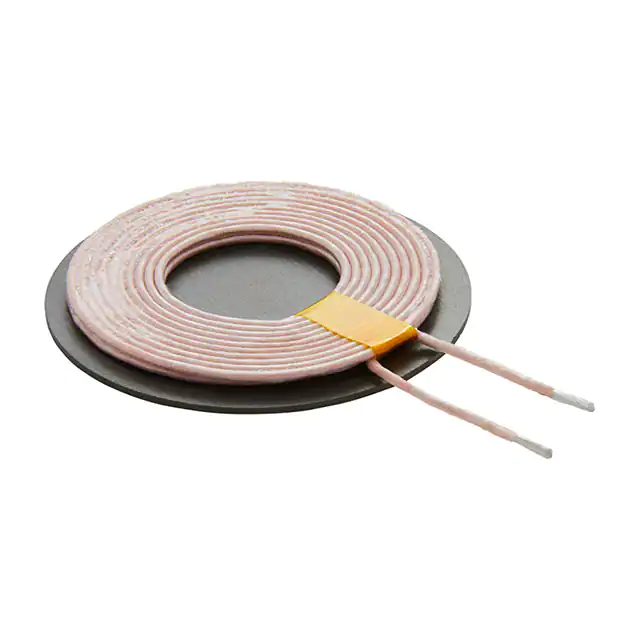

WTSC-24R0K-A10 SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	1,152	10.99	RFQ	Datasheet	WCC	Box	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	85mOhm Max	-	6A	10A	-	-20°C ~ 85°C	1.97" Dia x 0.16" H (50.0mm x 4.0mm)

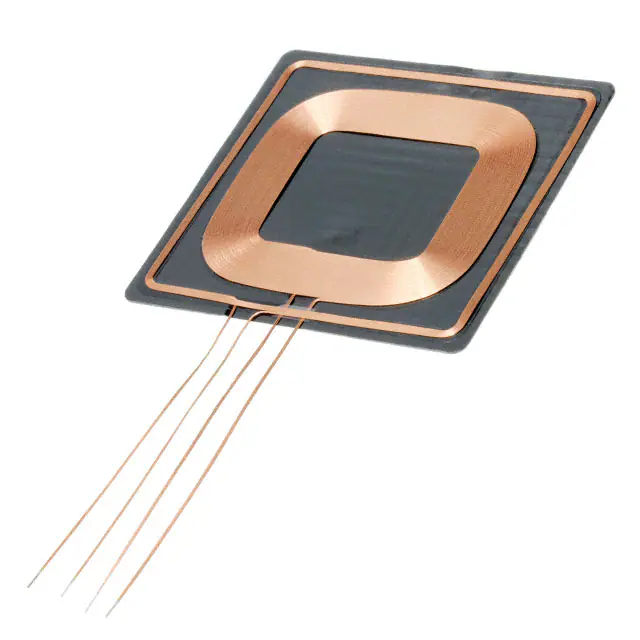

WR524830-16F3-NF-G RX 1 COIL, 1 LYR 19.5UH TDK Corporation	4,559	9.14	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	19.5µH	-	800mOhm	-	-	-	-	-	2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.6mm)

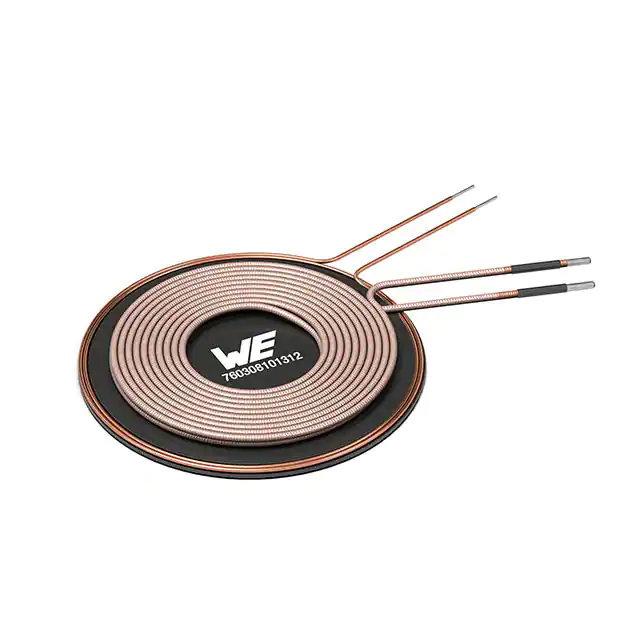

760308101312 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,259	11.92	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	2 Coil, 1 Layer	24µH, 700nH	±10%	90mOhm, 30mOhm	125 @ 125kHz, 30 @ 125kHz	6A, 13A	-	7MHz, 63MHz	-20°C ~ 105°C	2.13" Dia x 0.16" H (54.0mm x 4.0mm)

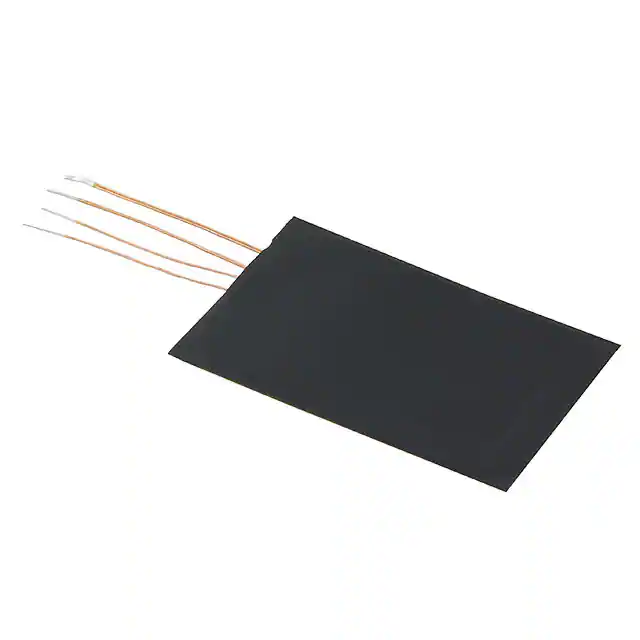

760308103307 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	1,580	11.71	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	2 Coil, 1 Layer	7.8µH, 1.6µH	±10%	340mOhm Max, 90mOhm Max	19 @ 125kHz, 47 @ 125kHz	1.5A, 4A	3A, 7A	22MHz, 24MHz	-20°C ~ 105°C	1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm)

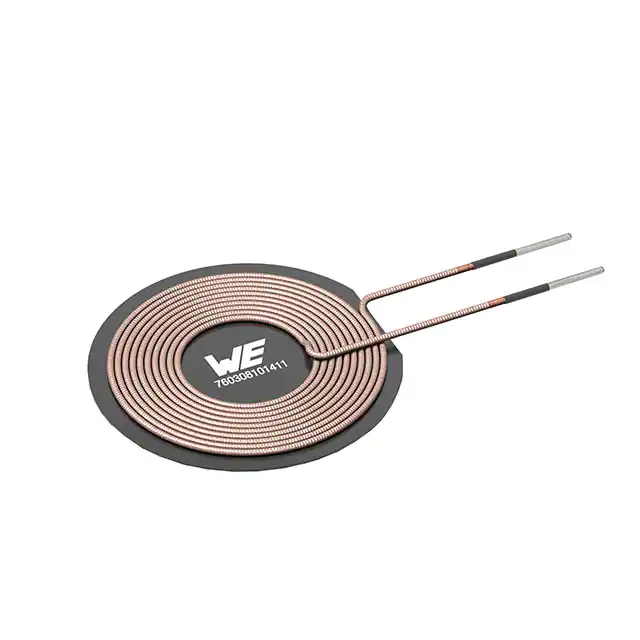

760308101411 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	1,612	12.83	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	48mOhm	110 @ 125kHz	7.5A	10A	20MHz	-20°C ~ 105°C	1.97" Dia x 0.11" H (50.0mm x 2.8mm)

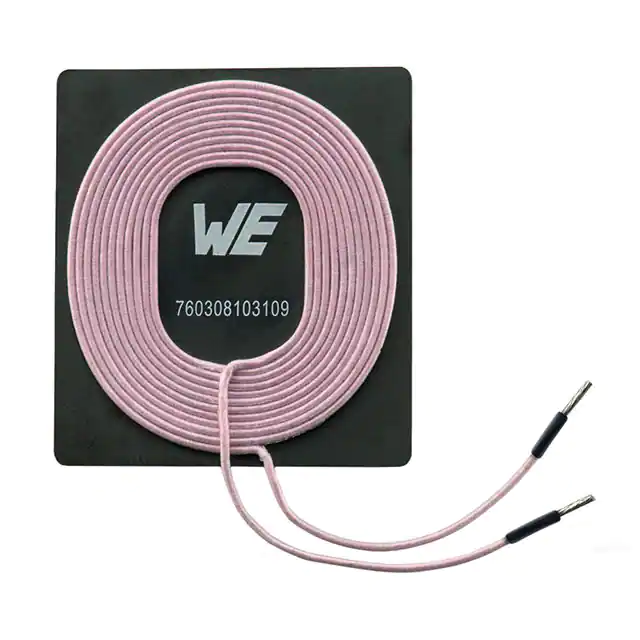

760308103109 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,403	14.83	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	10.2µH	±10%	50mOhm	130 @ 125kHz	9A	18A	11MHz	-20°C ~ 105°C	2.244" L x 2.008" W x 0.165" H (57.00mm x 51.00mm x 4.20mm)

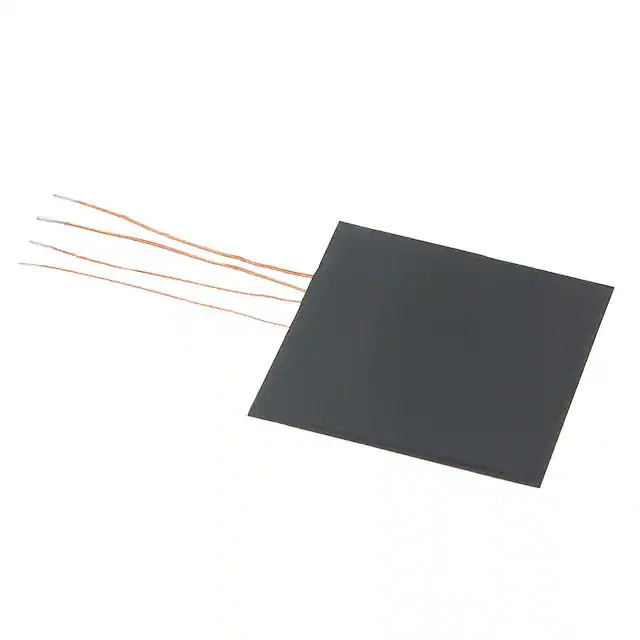

760308102306 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,100	17.00	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	2 Coil, 1 Layer	8µH, 1.4µH	±10%	400mOhm Max, 100mOhm Max	19 @ 125kHz, 47 @ 125kHz	2A, 5A	5A, 5A	17.5MHz, 19MHz	-20°C ~ 105°C	1.73" L x 1.73" W x 0.03" H (44.0mm x 44.0mm x 0.75mm)

Total 267 Record«Prev 1 2 3 456 7 8...14 Next»
