Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

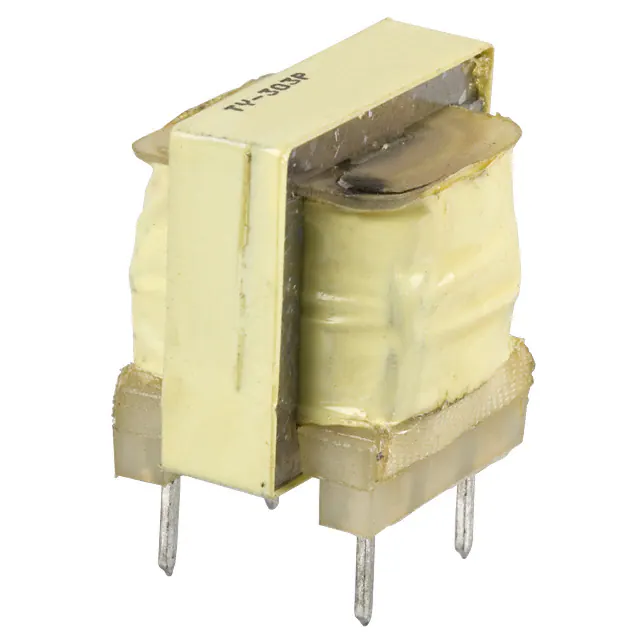

TY-303P-BAUDIO XFMR 4K / 600 TH |
4,810 | 3.50 |
|
Datasheet |
TY | Bulk | Active | 2.43:1 | 4k | 600 | 260Ohm | 52Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.715" W (20.62mm x 18.16mm) | 0.740" (18.80mm) | PC Pin |
|
TY-311P-BAUDIO XFMR 600 / 600 TH |
2,772 | 3.38 |
|
Datasheet |
TY | Bulk | Active | 1:1.05 | 600 | 600 | 38Ohm | 53Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.715" W (20.62mm x 18.16mm) | 0.740" (18.80mm) | PC Pin |
|
TG110-BP05NV6LFTRISO MOD 1G BACKPLN QUAD X-TEMP |
2,427 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TY-403P-BAUDIO XFMR 600 / 600 TH |
2,821 | 3.64 |
|
Datasheet |
TY | Bulk | Active | 1.81:1 | 600 | 600 | 80Ohm | 56Ohm, 56Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.75dB Typ | 15dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.815" L x 1.250" W (20.70mm x 31.75mm) | 0.530" (13.46mm) | PC Pin |
|
|
TG110-BP05NV6RLISO MOD 1G BACKPLN QUAD X-TEMP 4 |
1,826 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-BP05NV6RLTRISO MOD 1G BACKPLN QUAD X-TEMP |
3,666 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TY-307P-BAUDIO XFMR 600 / 600 TH |
3,855 | 3.77 |
|
Datasheet |
TY | Bulk | Active | 1:1.07 | 600 | 600 | 43Ohm | 61Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.670" L x 0.781" W (17.02mm x 19.84mm) | 0.470" (11.94mm) | PC Pin |
|
TY-141P-BAUDIO XFMR 10KCT / 10KCT TH |
3,275 | 3.65 |
|
Datasheet |
TY | Bulk | Active | 1:1 | 10kCT | 10kCT | 820Ohm | 1.07kOhm | Data/Voice Coupling | 200Hz ~ 15kHz | ±2dB | 1500V | 1.5dB @ 1kHz | 26dB | - | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
TY-142P-BAUDIO XFMR 10KCT / 2KCT TH |
3,812 | 3.65 |
|
Datasheet |
TY | Bulk | Active | 2.24:1 | 10kCT | 2kCT | 750Ohm | 217Ohm | Data/Voice Coupling | 200Hz ~ 15kHz | ±2dB | 1500V | 1.5dB @ 1kHz | 26dB | - | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
TY-144P-BAUDIO XFMR 15KCT / 15KCT TH |
4,234 | 3.78 |
|
Datasheet |
TY | Bulk | Active | 1:1 | 15kCT | 15kCT | 1.18kOhm | 1.6kOhm | Data/Voice Coupling | 200Hz ~ 15kHz | ±2dB | 1500V | 1.5dB @ 1kHz | 26dB | - | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
TY-145P-BAUDIO XFMR 600CT / 600CT TH |
4,734 | 3.65 |
|
Datasheet |
TY | Bulk | Active | 1:1 | 600CT | 600CT | 44Ohm | 58Ohm | Data/Voice Coupling | 200Hz ~ 15kHz | ±2dB | 1500V | 1.5dB @ 1kHz | 26dB | - | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
TY-304P-BAUDIO XFMR 600CT / 600CT TH |
1,969 | 3.78 |
|
Datasheet |
TY | Bulk | Active | 1:1.05 | 600CT | 600CT | 42Ohm | 60Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.790" L x 0.812" W (20.07mm x 20.62mm) | 0.740" (18.80mm) | PC Pin |
|
|
TG110-RP16NV6LFISO MOD 10/100 QUAD POE 0.35A 48 |
2,642 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-RP16NV6LFTRISO MOD 10/100 QUAD POE 0.35A |
2,306 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
142CAUDIO XFMR 15KCT / 15KCT TH |
2,604 | 0.00 |
|
- |
142 | Bulk | Active | 1:1 | 15kCT | 15kCT | 1.05kOhm | 1.39kOhm | Impedance Matching | 200Hz ~ 15kHz | ±1dB | 1500V | - | - | 100mW | -40°C ~ 85°C | - | Through Hole | 0.750" L x 0.695" W (19.05mm x 17.65mm) | 0.720" (18.29mm) | PC Pin |
|
|
142BAUDIO XFMR 10KCT / 2KCT TH |
1,103 | 0.00 |
|
- |
142 | Bulk | Active | 1:0.447 | 10kCT | 2kCT | 720Ohm | 210Ohm | Impedance Matching | 200Hz ~ 15kHz | ±1dB | 1500V | - | - | 100mW | -40°C ~ 85°C | - | Through Hole | 0.750" L x 0.695" W (19.05mm x 17.65mm) | 0.720" (18.29mm) | PC Pin |
|
|
142AAUDIO XFMR 10KCT / 10KCT TH |
4,702 | 0.00 |
|
- |
142 | Bulk | Active | 1:1 | 10kCT | 10kCT | 720Ohm | 925Ohm | Impedance Matching | 200Hz ~ 15kHz | ±1dB | 1500V | - | - | 100mW | -40°C ~ 85°C | - | Through Hole | 0.750" L x 0.695" W (19.05mm x 17.65mm) | 0.720" (18.29mm) | PC Pin |
|

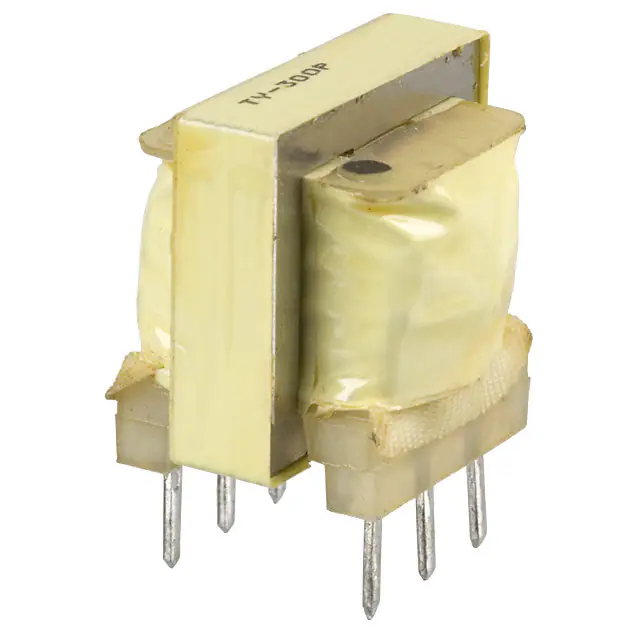

TY-300P-BAUDIO XFMR 600 / 600/600 TH |
3,202 | 4.07 |
|
Datasheet |
TY | Bulk | Active | 1:2.48 | 600 | 600/600 | 172Ohm | 66Ohm, 66Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | - | 1500VAC | 0.8dB Typ | 30dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
|
H4006FNLTAUDIO XFMR SMD |
4,904 | 6.95 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H4004FNLTAUDIO XFMR SMD |
1,917 | 6.95 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
