Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MET-06TRANSFORMER 25K:1KCT .25MADC |
4,907 | 0.00 |
|
Datasheet |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MET-18AUDIO XFMR 10KCT / 4 TH |
1,656 | 7.58 |
|
Datasheet |
MET | Tube | Active | 1:0.02 | 10kCT | 4 | 1.2kOhm | 1Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-22AUDIO XFMR 2.5KCT / 2.5KCT TH |
4,561 | 8.11 |
|
Datasheet |
MET | Tube | Active | 1:1 | 2.5kCT | 2.5kCT | 280Ohm | 350Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-24AUDIO XFMR 1.5KCT / 600 TH |
4,836 | 7.56 |
|
Datasheet |
MET | Tube | Active | 1.58:1 | 1.5kCT | 600 | 160Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 1 Minute | 2dB Max @ 1kHz | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-25AUDIO XFMR 1.2KCT / 3.2 TH |
1,499 | 6.21 |
|
Datasheet |
MET | Tube | Active | 19.4:1 | 1.2kCT | 3.2 | 125Ohm | 700mOhm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-26AUDIO XFMR 1KCT / 1KCT TH |
3,986 | 7.77 |
|
Datasheet |
MET | Tube | Active | 1:1 | 1kCT | 1kCT | 95Ohm | 110Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-27AUDIO XFMR 1KCT / 600CT TH |
2,433 | 7.76 |
|
Datasheet |
MET | Tube | Active | 1.29:1 | 1kCT | 600CT | 95Ohm | 85Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-40AUDIO XFMR 320CT / 3.2 TH |
3,207 | 6.74 |
|
Datasheet |
MET | Tube | Active | 10:1 | 320CT | 3.2 | 35Ohm | 700mOhm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-41TRANSFORMER 300CT:600 7.0MADC |
3,738 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | Data/Voice Coupling | - | - | - | - | - | - | - | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-43AUDIO XFMR 120CT / 3.2 TH |
4,071 | 7.36 |
|
Datasheet |
MET | Tube | Active | 6.12:1 | 120CT | 3.2 | 13Ohm | 700mOhm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 1 Minute | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-44AUDIO XFMR 300CT / 12 TH |
4,138 | 7.04 |
|
Datasheet |
MET | Tube | Active | 5.07:1 | 300CT | 12 | 42Ohm | 3.4Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-45XFMR 10K / 10K 2.5K/2.5K TH |
3,481 | 7.19 |
|
Datasheet |
MET | Tube | Active | 1:0.5:0.5 | 10k | 10k, 2.5k/2.5k | 1.3kOhm | 735 ~ 390Ohm, 850 ~ 455Ohm | Data/Voice Coupling | 300Hz ~ 20kHz | ±3dB | 500VRMS @ 30 Seconds | - | - | 75mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-10AUDIO XFMR 10KCT / 4KCT TH |
3,988 | 7.56 |
|
Datasheet |
MET | Tube | Active | 1.58:1 | 10kCT | 4kCT | 1kOhm | 500Ohm | - | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-36AUDIO XFMR 600CT / 3.2 TH |
4,500 | 7.12 |
|
Datasheet |
MET | Tube | Active | 13.7:1 | 600CT | 3.2 | 60Ohm | 700mOhm | - | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-37AUDIO XFMR 500CT / 600 TH |
1,535 | 7.22 |
|
Datasheet |
MET | Tube | Active | 0.918:1 | 500CT | 600 | 65Ohm | 95Ohm | - | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|

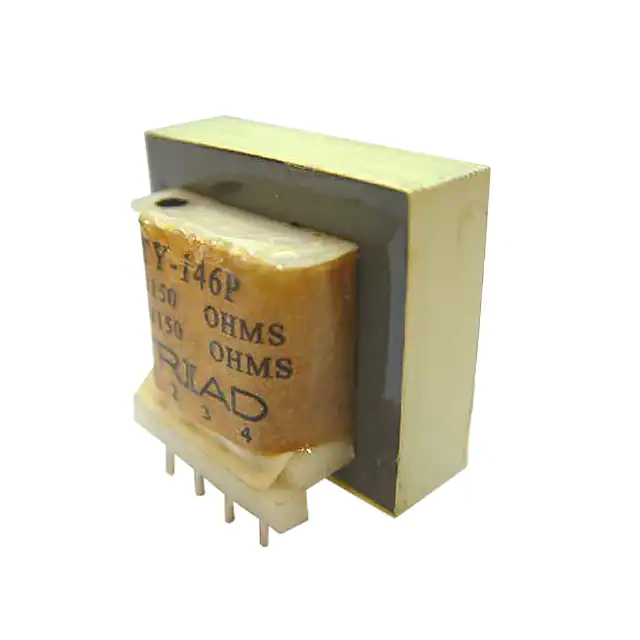

TY-146P-BXFMR 600 150/150 / 600 150/150 |
1,177 | 5.58 |
|
Datasheet |
TY | Bulk | Active | 1:1 | 600, 150/150 | 600, 150/150 | 17Ohm, 19Ohm | 14.5Ohm, 22Ohm | Data/Voice Coupling | 200Hz ~ 15kHz | ±2dB | 1500V | 1.5dB @ 1kHz | 26dB | - | -20°C ~ 85°C | - | Through Hole | 1.375" L x 1.187" W (34.93mm x 30.15mm) | 1.187" (30.15mm) | PC Pin |
|
|
TG110-AMX3NHLFISO MOD 10/100 SIX 60P SMD |
4,280 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S652NHLFISO MOD 10/100 SIX 60P SMD |
4,869 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S653NHLFISO MOD 10/100 SIX 60P SMD |
2,506 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S651NHLFISO MOD 10/100 SIX 60P SMD |
4,922 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
