Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-2337824-2AUDIO XFMR SMD |
4,598 | 5.52 |
|
Datasheet |
- | Tube | Active | 1CT:1CT | - | - | - | - | - | - | - | 1500Vrms | -1dB Max @ 100kHz ~ 100MHz | -18dB Min @ 1MHz ~ 30MHz | - | -40°C ~ 105°C | - | Surface Mount | 1.232" L x 0.480" W (31.30mm x 12.20mm) | 0.285" (7.24mm) | Gull Wing |
|
|
TGR74-3755NCRLTRISO MOD T1 1C:1C/1C:2C REINF |
1,203 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TGR110-E055N16LFISO MOD 10/100 REINF 4KV 16P SMD |
3,223 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S035NXLFISO MOD 10/100 DUAL 40P SMD |
3,506 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

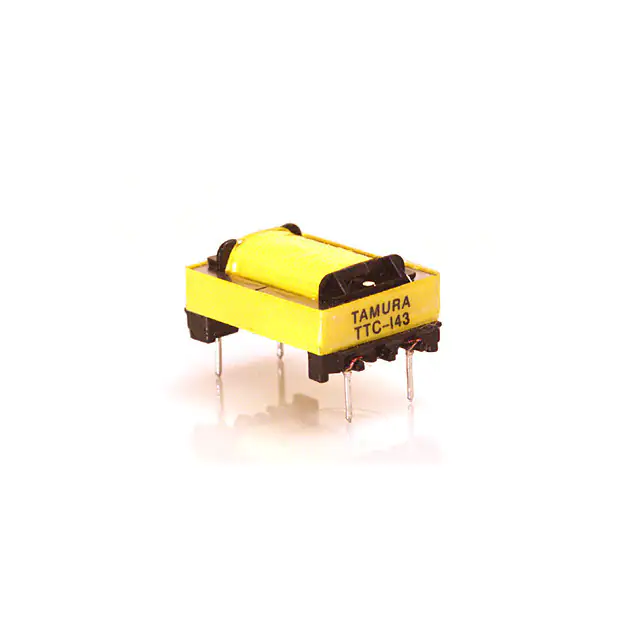

TTC-143AUDIO XFMR 600 / 600 TH |
2,862 | 4.99 |
|
Datasheet |
TTC | Bulk | Active | 1:1.04 | 600 | 600 | 75Ohm | 100Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | -2dB ~ 0.2dB | 1500VRMS @ 1 Minute | 1.7dB Max @ 1.8kHz | 14dB Min @ 1.8kHz | -45dB ~ 10dB | - | CSA-C22.2 No. 66-M1988, UL1863 | Through Hole | 0.799" L x 1.201" W (20.30mm x 30.50mm) | 0.500" (12.70mm) | PC Pin |
|
|
TGR110-E055N16LFTRISO MOD 10/100 REINF 4KV 16P SMD |
2,794 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S222NXLFISO MOD 10/100 DUAL 2C:1C 40P SM |
4,382 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5-2337822-5AUDIO XFMR SMD |
4,528 | 5.81 |
|
Datasheet |
- | Tube | Active | 1CT:1CT | - | - | - | - | - | - | - | 1500Vrms | -1dB Max @ 100kHz ~ 100MHz | -18dB Min @ 1MHz ~ 30MHz | - | -40°C ~ 105°C | - | Surface Mount | 0.719" L x 0.482" W (18.25mm x 12.24mm) | 0.285" (7.24mm) | Gull Wing |
|
|
TG110-S035NXLFTRISO MOD 10/100 DUAL 40P SMD T/R |
4,495 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TTC-143-LBAUDIO XFMR 600 / 600 TH |
3,893 | 5.20 |
|
Datasheet |
- | Bulk | Active | 1:1.1 | 600 | 600 | 85Ohm | 110Ohm | Impedance Matching | 300Hz ~ 3.5kHz | - | - | - | - | -45dB ~ 10dB | - | - | Through Hole | - | 0.350" (8.89mm) | PC Pin |
|
|
TG110-S222NXLFTRISO MOD 10/100 DUAL 2C:1C 40P SM |
4,981 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S220NXLFISO MOD 10/100 DUAL 2C:1C 40P SM |
4,226 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S225NXLFISO MOD 10/100 DUAL 2C:1C 40P SM |
1,186 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S220NXLFTRISO MOD 10/100 DUAL 2C:1C 40P SM |
4,252 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S225NXLFTRISO MOD 10/100 DUAL 2C:1C 40P SM |
4,705 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-BP05NV6LFISO MOD 1G BACKPLN QUAD X-TEMP 4 |
1,766 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

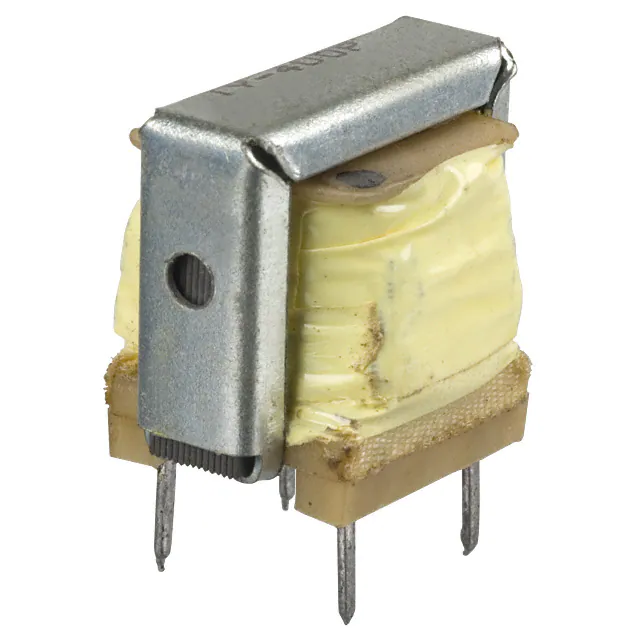

TY-400P-BAUDIO XFMR 600 / 600 TH |
1,719 | 3.55 |
|
Datasheet |
TY | Bulk | Active | 1:1.07 | 600 | 600 | 76.5Ohm | 108Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.75dB Typ | 15dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.820" L x 0.715" W (20.83mm x 18.16mm) | 0.750" (19.05mm) | PC Pin |
|
TY-401P-BAUDIO XFMR 600CT / 600CT TH |
2,298 | 3.32 |
|
Datasheet |
TY | Bulk | Active | 1:1.07 | 600CT | 600CT | 76.53Ohm | 108Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.75dB Typ | 15dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.820" L x 0.715" W (20.83mm x 18.16mm) | 0.750" (19.05mm) | PC Pin |
|

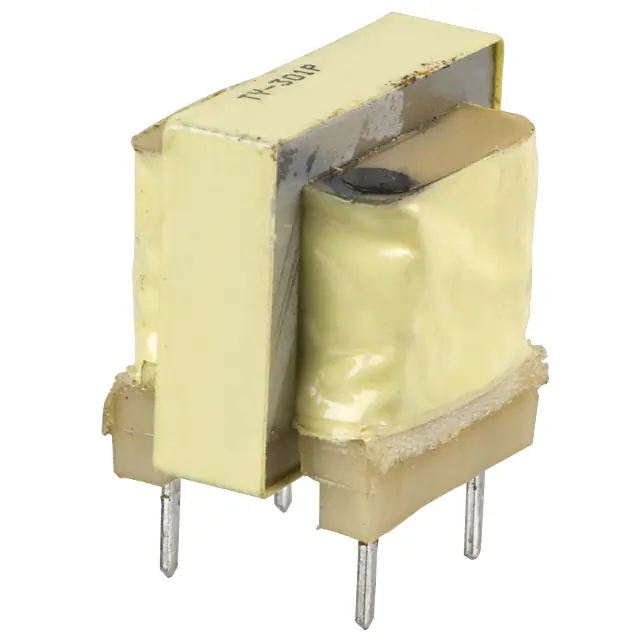

TY-301PAUDIO XFMR 600 / 900 TH |
1,331 | 4.31 |
|
Datasheet |
TY | Bulk | Active | 1:1.27 | 600 | 900 | 36Ohm | 76Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
|
TY-301P-BAUDIO XFMR 600 / 900 TH |
2,760 | 3.38 |
|
Datasheet |
TY | Bulk | Active | 1:1.27 | 600 | 900 | 36Ohm | 76Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
