Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H4006FNLAUDIO XFMR SMD |
1,870 | 6.95 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H4009FNLTAUDIO XFMR SMD |
2,603 | 6.95 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H4004FNLAUDIO XFMR SMD |
2,402 | 6.95 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H4009FNLAUDIO XFMR SMD |
3,205 | 6.95 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

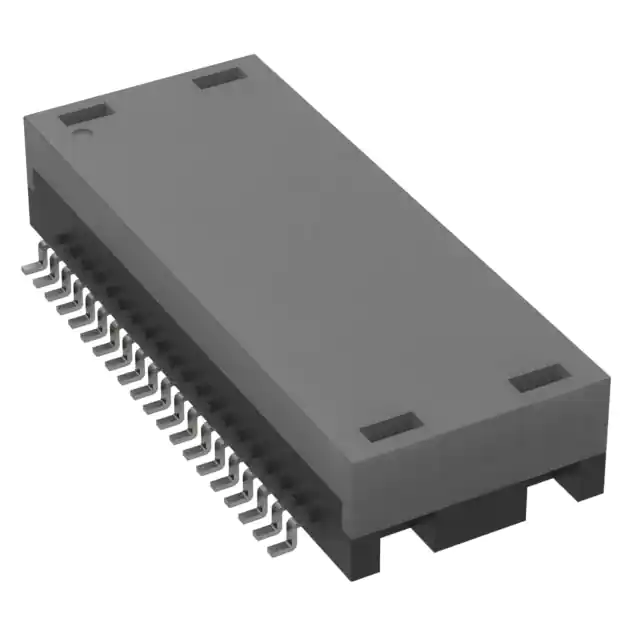

5-2337826-1AUDIO XFMR SMD |
3,817 | 7.74 |
|
Datasheet |
- | Tube | Active | 1CT:1CT | - | - | - | - | - | - | - | 1500Vrms | -1dB Max @ 100kHz ~ 100MHz | -18dB Min @ 1MHz ~ 30MHz | - | -40°C ~ 105°C | - | Surface Mount | 1.232" L x 0.482" W (31.30mm x 12.25mm) | 0.285" (7.24mm) | Gull Wing |
|
|
TGR1G-S405N24LFISO MOD 1G REINF 4KV 24P SMD |
4,469 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TTC-03AUDIO XFMR 600CT / 600CT TH |
1,898 | 7.29 |
|
Datasheet |
TTC | Bulk | Active | 1:1.06 | 600CT | 600CT | 46Ohm | 63Ohm | - | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.2dB Max @ 1kHz | 26dB Min @ 300Hz | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.799" L x 0.650" W (20.30mm x 16.50mm) | 0.488" (12.40mm) | PC Pin |
|
|
142DAUDIO XFMR 600CT / 600CT TH |
3,082 | 0.00 |
|
- |
142 | Bulk | Active | 1:1 | 600CT | 600CT | 44Ohm | 58Ohm | Impedance Matching | 200Hz ~ 15kHz | ±1dB | 1500V | - | - | 100mW | -40°C ~ 85°C | - | Through Hole | 0.750" L x 0.695" W (19.05mm x 17.65mm) | 0.720" (18.29mm) | PC Pin |
|
|
TGR1G-S405N24LFTRISO MOD 1G REINF 4KV 24P SMD T/R |
4,716 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TY-302P-BAUDIO XFMR 600 / 600/600 TH |
1,336 | 4.55 |
|
Datasheet |
TY | Bulk | Active | 1:1.47 | 600 | 600/600 | 34Ohm | 24Ohm, 24Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | - | 1500VAC | 0.65dB Typ | 32dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 1.040" L x 0.960" W (26.42mm x 24.38mm) | 0.870" (22.10mm) | PC Pin |
|

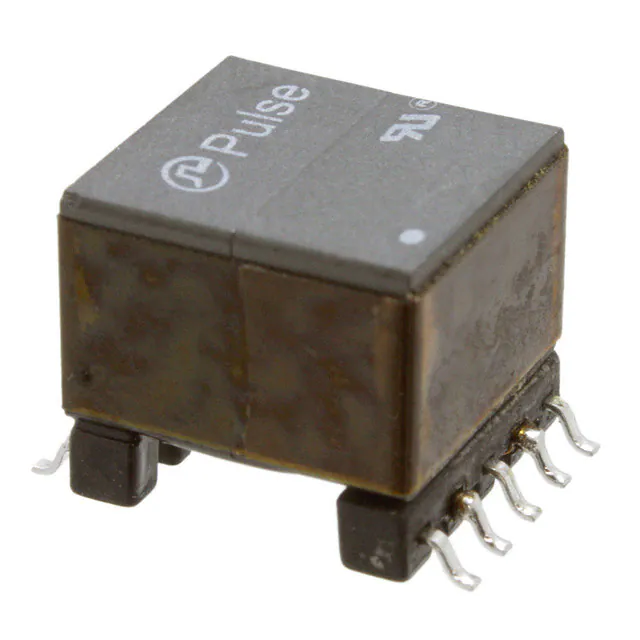

T6003NLTAUDIO XFMR 600 / 600 SMD |
3,532 | 7.60 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | 1:1 | 600 | 600 | 55Ohm | 70Ohm | General Purpose | - | - | 1500Vrms | 1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz | 20dB @ 200Hz, 1dB @ 1kHz, 25dB @ 10kHz | - | - | - | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | Gull Wing |
|
|
TG111-HPE2NWRLISO MOD 1G DUAL POE 0.6A X-TEMP |
4,652 | 0.00 |
|
- |
- | Tube | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG111-HPE2NWRLTRISO MOD 1G DUAL POE 0.6A X-TEMP |
3,665 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TGR1G-S410N24LFISO MOD 1G REINF 4KV 24P SMD |
3,371 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TTC-118AUDIO XFMR 600 / 600 TH |
4,859 | 7.18 |
|
Datasheet |
TTC | Bulk | Active | 1:1.06 | 600 | 600 | 46Ohm | 63Ohm | - | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.2dB Max @ 1kHz | 26dB Min @ 300Hz | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.799" L x 0.650" W (20.30mm x 16.50mm) | 0.488" (12.40mm) | PC Pin |
|
|
TGR1G-S410N24LFTRISO MOD 1G REINF 4KV 24P SMD T/R |
1,181 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ATT-81AUDIO XFMR |
2,328 | 7.63 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MET-05AUDIO XFMR 25KCT / 1KCT TH |
3,101 | 8.59 |
|
Datasheet |
MET | Tube | Active | 5:1 | 25kCT | 1kCT | 1.6kOhm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 30mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|

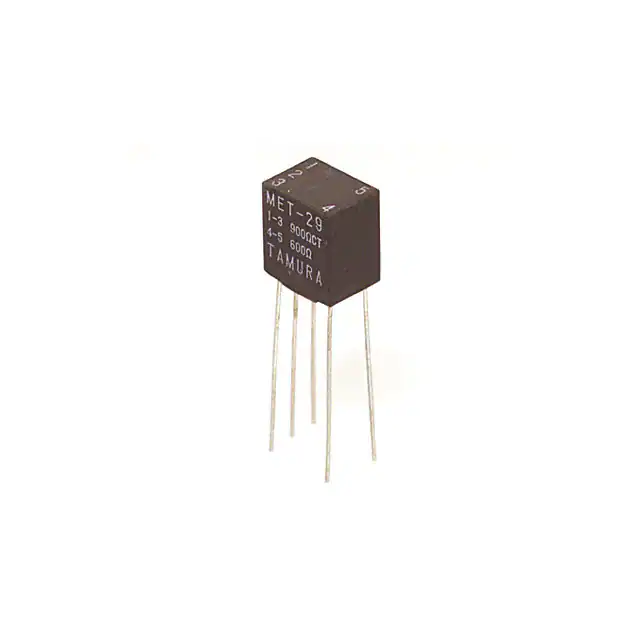

MET-29AUDIO XFMR 900CT / 600 TH |
3,519 | 7.70 |
|
Datasheet |
MET | Tube | Active | 1.22:1 | 900CT | 600 | 80Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-03AUDIO XFMR 50KCT / 1KCT TH |
3,293 | 8.70 |
|
Datasheet |
MET | Tube | Active | 7.07:1 | 50kCT | 1kCT | 3.8kOhm | 105Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 25mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
