Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCN35XV-110-1R5A014JHCMC 12.2UH 11A 2LN TH AEC-Q200 |
160 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12.2 µH @ 100 kHz | 11A | 8.95mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35XV-140-1R7A010JHCMC 7.5UH 14A 2LN TH AEC-Q200 |
160 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 14A | 5.05mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

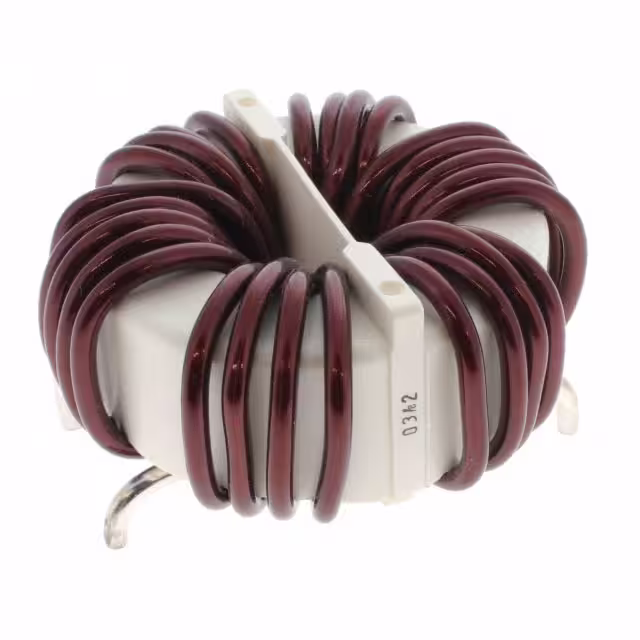

SC-30-E100CMC 1MH 30A 2LN TH |
109 | 14.11 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 30A | 6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR25XV-110-1R4A013JHCMC 2.1MH 11A 2LN TH AEC-Q200 |
167 | 12.47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.1 mH @ 100 kHz | 11A | 7.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-050-1R0A027JVCMC 8.9MH 5A 2LN TH AEC-Q200 |
109 | 12.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8.9 mH @ 100 kHz | 5A | 30.59mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR25XV-150-1R6A010JVCMC 1.23MH 15A 2LN TH AEC-Q200 |
105 | 12.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.23 mH @ 100 kHz | 15A | 4.62mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

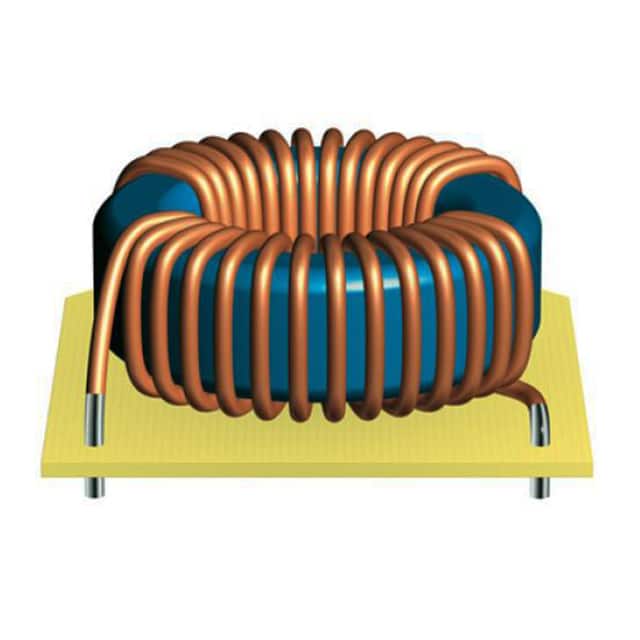

B82726S2183N020CMC 1.3MH 18A 2LN TH |
120 | 14.63 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 10 kHz | 18A | 5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RT8122-12-5M0CMC 5MH 12A 2LN TH |
126 | 10.22 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 12A | 14mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
|
SCR25XV-070-1R1A022JHCMC 5.9MH 7A 2LN TH AEC-Q200 |
119 | 12.47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.9 mH @ 100 kHz | 7A | 21.35mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-280-2R1A005JHCMC 200UH 28A 2LN TH AEC-Q200 |
109 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 28A | 1.44mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-240-2R0A006JVCMC 290UH 24A 2LN TH AEC-Q200 |
140 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 290 µH @ 100 kHz | 24A | 1.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
CM6460R-185CMC 1.8MH 1.4A 2LN SMD |
405 | 16.42 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.8 mH @ 10 kHz | 1.4A | 106mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6296R-304CMC 300UH 7.5A 2LN SMD |
385 | 13.02 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 300 µH @ 1 kHz | 7.5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296R-253CMC 25UH 10A 2LN SMD |
339 | 13.02 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 25 µH @ 1 kHz | 10A | 14mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
SCF25XV-190-1R8A008JVCMC 1.6MH 19A 2LN TH AEC-Q200 |
440 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 19A | 2.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-310-2R3A004JHCMC 400UH 31A 2LN TH AEC-Q200 |
325 | 12.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 31A | 1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-170-1R7A009JHCMC 2MH 17A 2LN TH AEC-Q200 |
120 | 12.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 17A | 3.83mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-080-1R2A018JVCMC 7.9MH 8A 2LN TH AEC-Q200 |
117 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.9 mH @ 100 kHz | 8A | 14.41mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-070-1R1A022JHCMC 11.8MH 7A 2LN TH AEC-Q200 |
112 | 12.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 11.8 mH @ 100 kHz | 7A | 21.35mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-150-1R6A010JHCMC 2.5MH 15A 2LN TH AEC-Q200 |
105 | 12.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 100 kHz | 15A | 4.74mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
