Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLW5BTH251TQ2LCMC 3A 2LN 250 OHM SMD AEC-Q200 |
2,405 | 1.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 250 Ohms @ 100 MHz | - | 3A | 20mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5BTH102TQ2LCMC 2A 2LN 1K OHM SMD AEC-Q200 |
801 | 1.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SRF7035A-701YCMC 7UH 4A 2LN 700OHM SMD |
7,784 | 2.08 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 700 Ohms @ 100 MHz | 7 µH @ 100 kHz | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

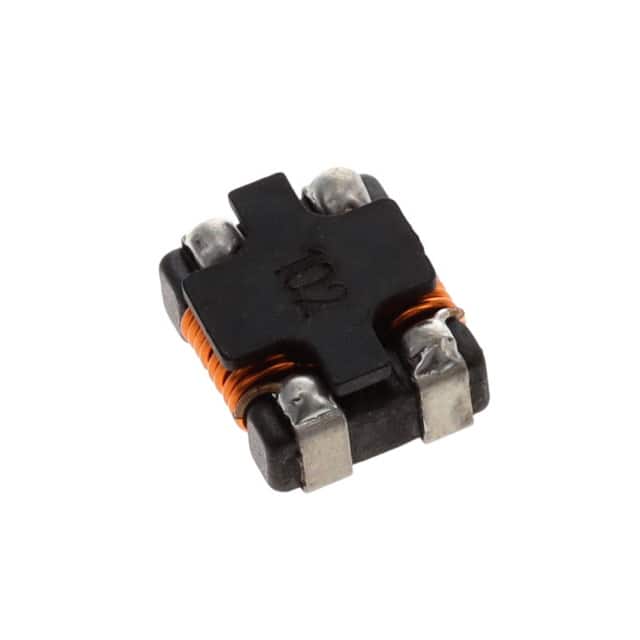

SRF7035A-132YCMC 10.4UH 2.5A 2LN 1.3KOHM SMD |
1,087 | 2.08 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 1.3 kOhms @ 100 MHz | 10.4 µH @ 100 kHz | 2.5A | 25mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM12V-701-2PL-TL00CMC 8A 2LN 700 OHM SMD AEC-Q200 |
17,280 | 2.48 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

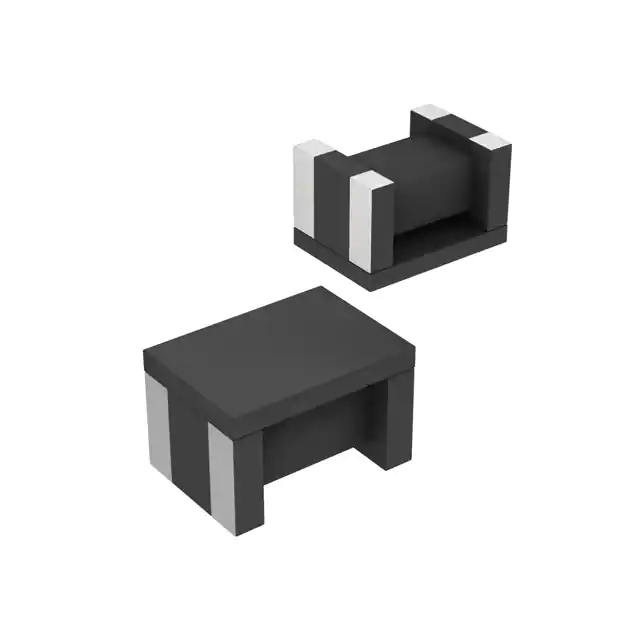

ACT45R-101-2P-TL001CMC 100UH 200MA 2LN 5.5KOHM SMD |
55,162 | 2.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 200mA | 1.5Ohm | 50V | - | -40°C ~ 150°C | - | - | - | - | - |
|

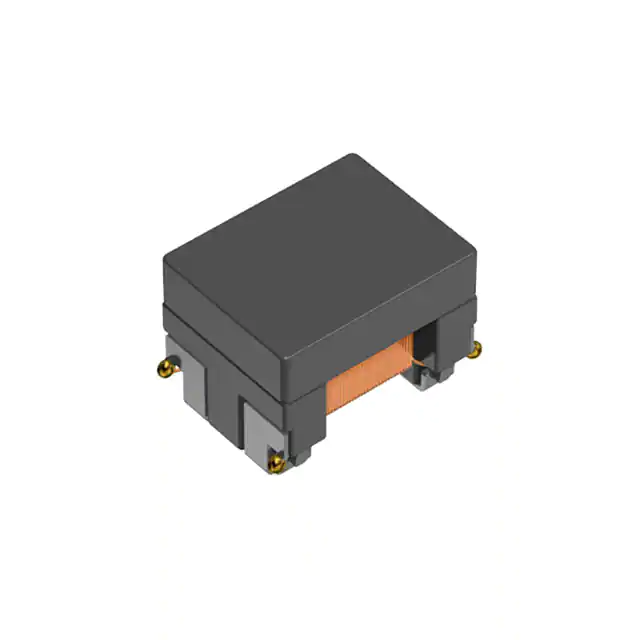

ACT1210G-800-2P-TL05CMC 80UH 70MA 2LN SMD AEC-Q200 |
21,252 | 2.25 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 80 µH @ 100 kHz | 70mA | 2.4Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM1211-102-2PL-TL01CMC 6A 2LN 1K OHM SMD |
12,994 | 2.25 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 6A | 14mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|

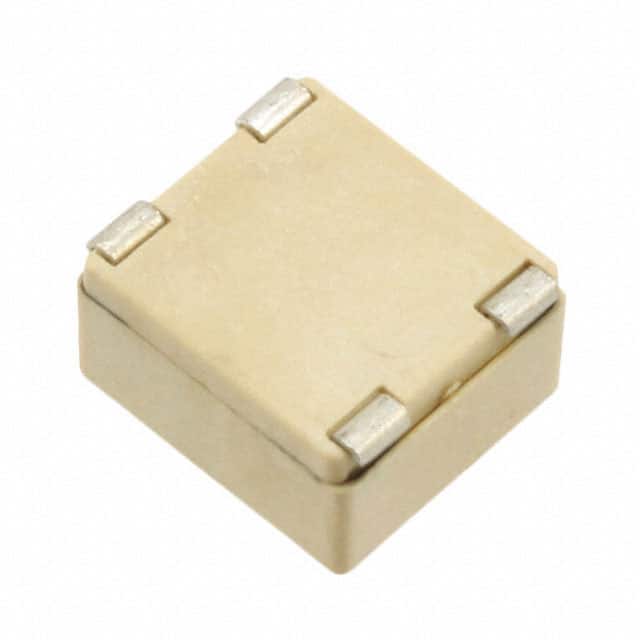

CPFC85NP-WH07CMC 4A 2LN 1KOHM SMD |
18,368 | 2.44 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 4A | 20mOhm | - | - | - | - | - | - | - | - |
|
B82790C0225N265CMC 2.2MH 400MA 2LN SMD AEC-Q200 |
17,558 | 3.68 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 2.2 mH @ 10 kHz | 400mA | 400mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82793C0475N265CMC 4.7MH 400MA 2LN SMD AEC-Q200 |
5,066 | 2.54 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 400mA | 550mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82793C0113N201CMC 11UH 800MA 2LN SMD AEC-Q200 |
2,927 | 2.54 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 11 µH @ 100 kHz | 800mA | 80mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
7414-RCCMC 20MH 600MA 2LN TH |
6,578 | 2.37 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 600mA | 1.11Ohm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|

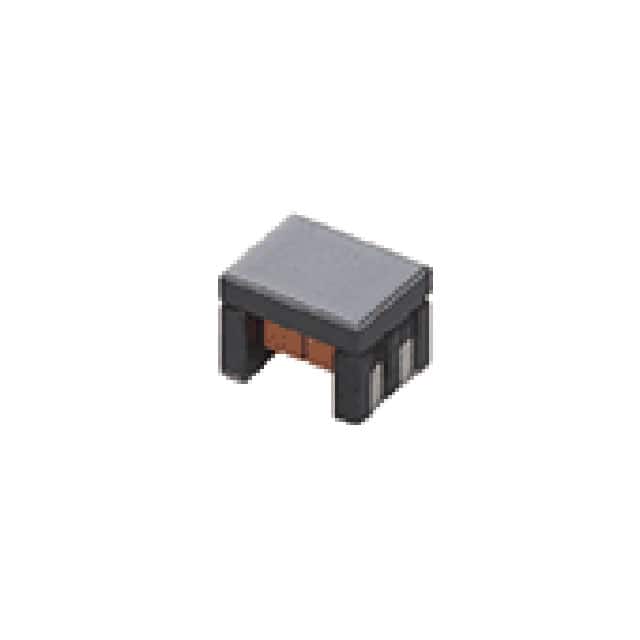

DLW32SH101XF2LCMC 100UH 115MA 2LN SMD AEC-Q200 |
3,686 | 1.79 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 115mA | 2.1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM1513-551-2PL-TLHFCMC 10A 2LN 550 OHM SMD |
28,309 | 2.47 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 4mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

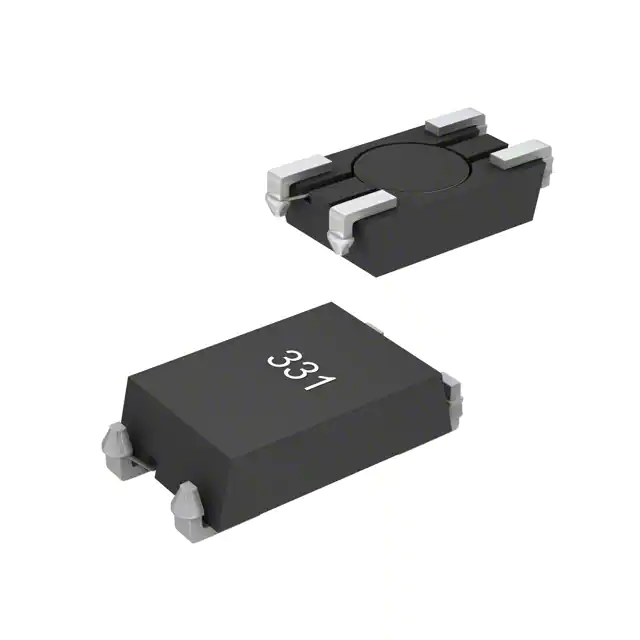

SRF0602-331YCMC 330UH 300MA 2LN 900 OHM SMD |
4,610 | 2.49 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 3 MHz | 330 µH @ 10 kHz | 300mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
RN102-0.3-02-12MCMC 12MH 300MA 2LN TH |
7,780 | 2.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 1.1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN202-2-02-1M1CMC 1.1MH 2A 2LN TH |
5,417 | 2.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN102-1-02-3M0CMC 3MH 1A 2LN TH |
3,091 | 2.08 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 210mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN102-1.5-02-1M6CMC 1.6MH 1.5A 2LN TH |
2,660 | 2.08 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 1.5A | 94mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
