Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACT1210D-131-2P-TL00CMC 130UH 115MA 2LN 6.7KOHM SMD |
7,341 | 1.88 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 6.7 kOhms @ 10 MHz | 130 µH @ 100 kHz | 115mA | 3.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW43MH201XK2LCMC 200UH 110MA 2LN SMD AEC-Q200 |
349 | 1.72 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 110mA | 4.5Ohm | 20V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|

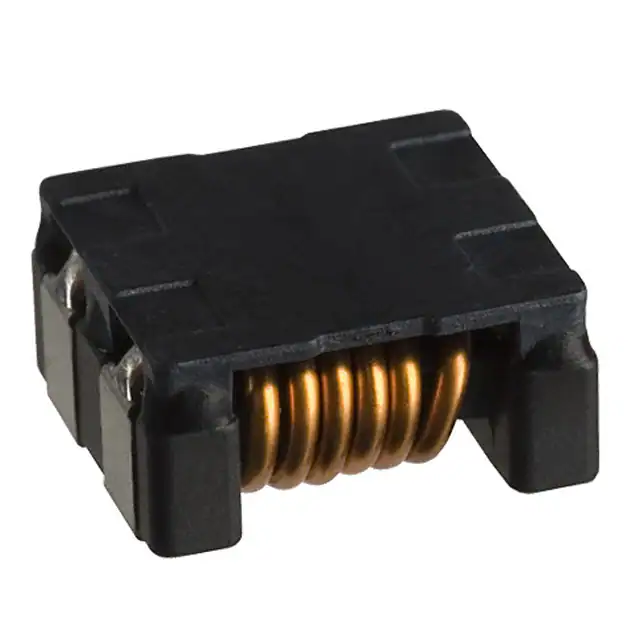

ACM1211-701-2PL-TL01CMC 8A 2LN 700 OHM SMD |
11,057 | 2.25 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM90V-701-2PL-TL00CMC 8A 2LN 100MHZ SMD |
10,165 | 2.06 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | Automotive | AEC-Q200 |
|
CM0805A371R-10CMC 100MA 2LN 370 OHM SMD |
196,866 | 2.61 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 100mA | 500mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82789C0104H002CMC 100UH 150MA 2LN SMD AEC-Q200 |
10,294 | 2.10 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 150°C | - | - | - | - | - |
|
B82793S0513N201CMC 51UH 800MA 2LN SMD AEC-Q200 |
7,084 | 2.22 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 800mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW32MH201XK2LCMC 200UH 70MA 2LN SMD AEC-Q200 |
13,244 | 1.73 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 200 µH @ 100 kHz | 70mA | 4.8Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW32MH101XK2LCMC 100UH 100MA 2LN SMD AEC-Q200 |
2,360 | 1.73 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 100mA | 3.36Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACT1210L-201-2P-TL00CMC 200UH 70MA 2LN SMD AEC-Q200 |
15,208 | 2.07 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACT45B-510-2P-TL003CMC 51UH 200MA 2LN 2.8KOHM SMD |
10,405 | 2.05 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACT45B-220-2P-TL003CMC 22UH 200MA 2LN 1.2KOHM SMD |
42,088 | 2.05 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
ACT1210L-101-2P-TL00CMC 100UH 150MA 2LN SMD AEC-Q200 |
20,674 | 2.05 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | A2B | - | - |
|

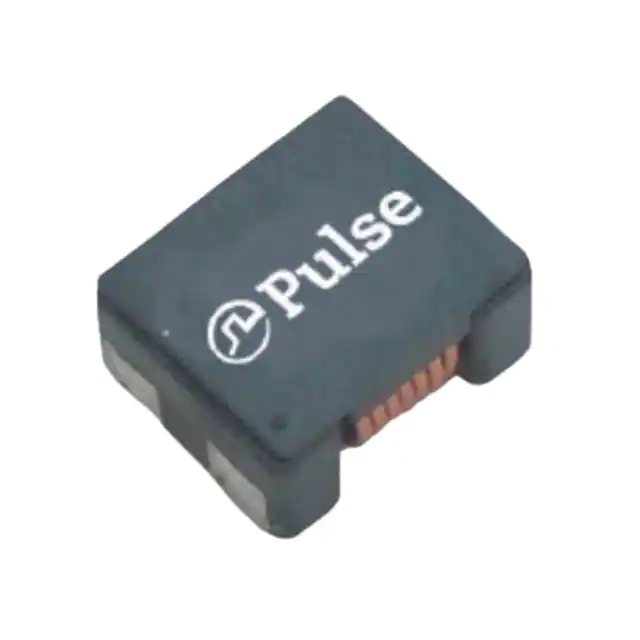

PA4339.101NLTCMC 1.8UH 9A 2LN 140 OHM SMD |
15,622 | 2.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 140 Ohms @ 100 MHz | 1.8 µH @ 100 kHz | 9A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4339.132NLTCMC 9UH 2.5A 2LN 1.3K OHM SMD |
5,005 | 2.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1.3 kOhms @ 100 MHz | 9 µH @ 100 kHz | 2.5A | 21mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4339.701NLTCMC 5UH 4A 2LN 700 OHM SMD |
3,678 | 2.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 700 Ohms @ 100 MHz | 5 µH @ 100 kHz | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACT1210-110-2P-TL00CMC 11UH 300MA 2LN 550OHM SMD |
49,017 | 2.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 400mOhm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
|
EMI8142MUTAGCMC 100MA 4LN SMD ESD |
22,761 | 1.14 |
|
Datasheet |
10-XFDFN | Signal Line | 4 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

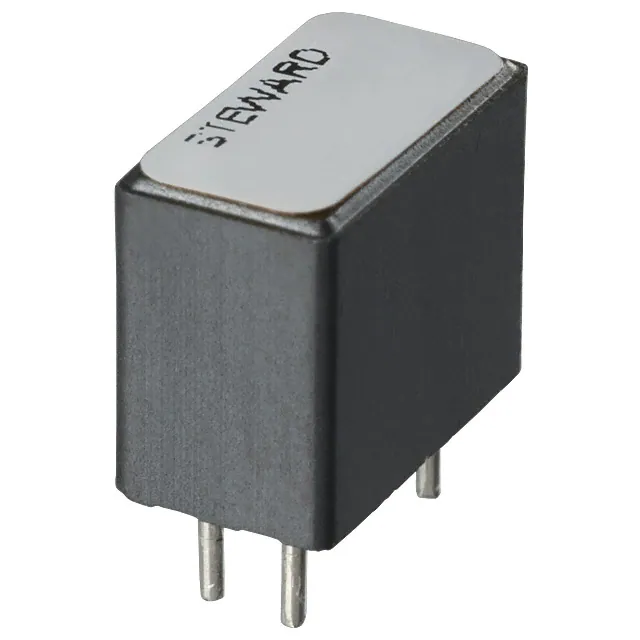

CM2545X171B-10CMC 10A 2LN 170 OHM TH |
26,091 | 2.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 170 Ohms @ 100 MHz | - | 10A | 10mOhm | 340V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DLW5BTH142TQ2LCMC 1.5A 2LN 1.4KOHM SMD AECQ200 |
3,343 | 1.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
