Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR331-513BECMC 51UH 500MA 2LN SMD |
7,532 | 1.63 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 300mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
2744065447CMC 5A 2LN 255 OHM SMD |
2,318 | 1.19 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 255 Ohms @ 100 MHz | - | 5A | 4.1mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
ACT1210-101-2P-TL00CMC 100UH 150MA 2LN 5.1KOHM SMD |
45,605 | 2.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
|
ACM70V-701-2PL-TL00CMC 4A 2LN 700 OHM SMD AEC-Q200 |
29,502 | 2.03 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-1000-2P-TCMC 2A 2LN 1K OHM SMD |
4,445 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 24mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-100-2P-TCMC 6.5A 2LN 100 OHM SMD |
2,709 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 6.5A | 9mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM0805D900R-10CMC 400MA 2LN 90 OHM SMD |
40,145 | 2.35 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7442335900CMC 500MA 2LN 90OHM SMD AEC-Q200 |
5,720 | 1.71 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 500mA | 270mOhm | 20V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
7442335600CMC 600MA 2LN 60OHM SMD AEC-Q200 |
3,429 | 1.71 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 60 Ohms @ 100 MHz | - | 600mA | 220mOhm | 20V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SPDL485025-1400-2P-TCMC 1.5A 2LN 1.4K OHM SMD |
2,237 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 40mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

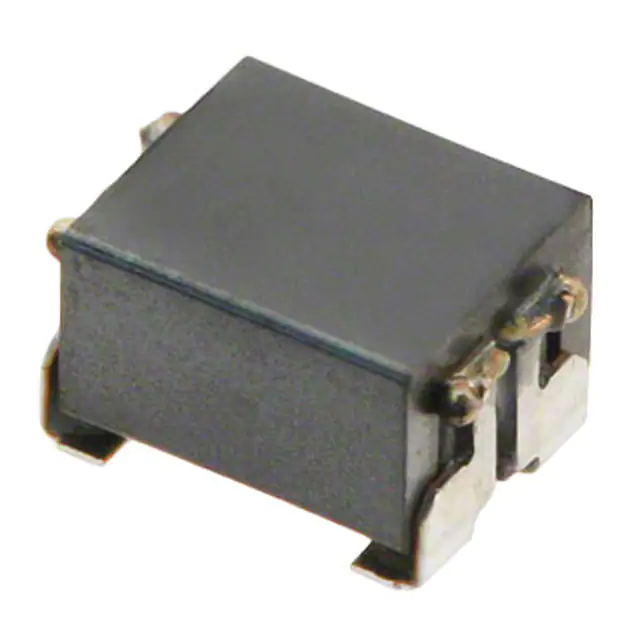

B82789C0104N002CMC 100UH 150MA 2LN SMD AEC-Q200 |
14,086 | 1.93 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 125°C | - | - | - | - | - |
|
|
B82789C0513N002CMC 51UH 250MA 2LN SMD AEC-Q200 |
13,659 | 1.93 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 250mA | 550mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
B82789C0513H002CMC 51UH 250MA 2LN SMD AEC-Q200 |
22,811 | 2.10 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 250mA | 550mOhm | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
744235801CMC 1.3UH 1A 2LN 800OHM SMD |
5,964 | 1.80 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | 1.3 µH @ 100 kHz | 1A | 120mOhm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744235900CMC 300NH 2A 2LN 90OHM SMD |
3,025 | 1.80 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | 300 nH @ 100 kHz | 2A | 50mOhm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744235110CMC 11UH 450MA 2LN 5KOHM SMD |
2,066 | 1.80 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 100 MHz | 11 µH @ 100 kHz | 450mA | 800mOhm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744235601CMC 1UH 1.2A 2LN 600OHM SMD |
1,003 | 1.80 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | 1 µH @ 100 kHz | 1.2A | 120mOhm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACT45B-101-2P-TL003CMC 100UH 150MA 2LN 5.8KOHM SMD |
16,486 | 2.05 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 50V | - | -40°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
|
ACT1210D-101-2P-TL00CMC 100UH 150MA 2LN 5.1KOHM SMD |
8,704 | 1.88 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 115mA | 3Ohm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

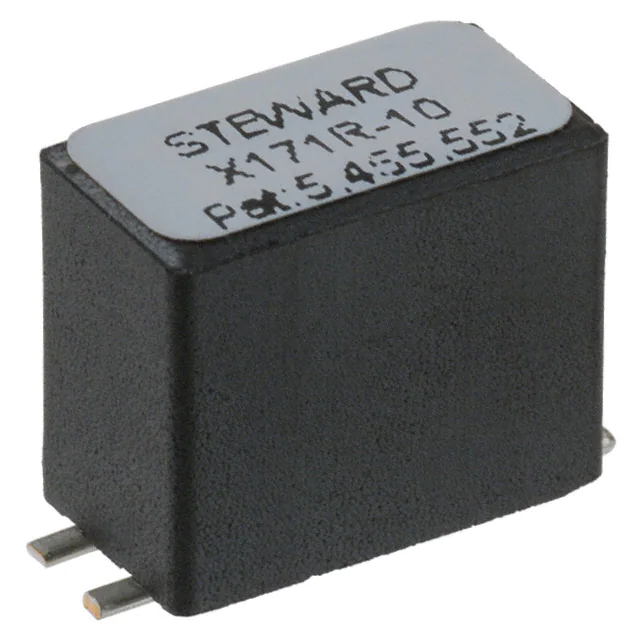

CM2545X171R-10CMC 10A 2LN 170 OHM SMD |
30,065 | 2.55 |
|
Datasheet |
Vertical, 4 Flat Lead | Power Line | 2 | 170 Ohms @ 100 MHz | - | 10A | 10mOhm | 285V | - | -40°C ~ 125°C | - | - | - | - | - |
