Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
B82725S2303A040SMD RING CORE CHOKE 2X0.36MH 30A |
240 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 360 µH @ 100 kHz | 30A | 1.3mOhm (Typ) | - | 250V | - | - | - | - | - | - |
|
|
B82725S2363A040SMD RING CORE CHOKE 2X0.12MH 36A |
240 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 120 µH @ 100 kHz | 36A | 0.78mOhm (Typ) | - | 250V | - | - | - | - | - | - |
|
|
3-137-418DKCV-1 COMP.CHOKE 2PH 4A 7.8MH |
180 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4A | 15.7mOhm | 450V | 300V | -40°C ~ 100°C | - | UR, VDE | - | - | - |
|
|
3-137-414DKCV-1 COMP.CHOKE 2PH 500MA 180M |
180 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 500mA | 430mOhm | 450V | 300V | -40°C ~ 100°C | - | UR, VDE | - | - | - |
|
|
3-137-419DKCV-1 COMP.CHOKE 2PH 6A 2.7MH |
180 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 6A | 5.7mOhm | 450V | 300V | -40°C ~ 100°C | - | UR, VDE | - | - | - |
|
|
3-137-420DKCV-1 COMP.CHOKE 2PH 8A 1.9MH |
180 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 8A | 4mOhm | 450V | 300V | -40°C ~ 100°C | - | UR, VDE | - | - | - |
|
|
3-137-415DKCV-1 COMP.CHOKE 2PH 1A 55MH |
180 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 155mOhm | 450V | 300V | -40°C ~ 100°C | - | UR, VDE | - | - | - |
|
|
3-137-421DKCV-1 COMP.CHOKE 2PH 10A 0.9MH |
180 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 10A | 1.85mOhm | 450V | 300V | -40°C ~ 100°C | - | UR, VDE | - | - | - |
|
|
3-137-417DKCV-1 COMP.CHOKE 2PH 3A 12MH |
180 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | 23.7mOhm | 450V | 300V | -40°C ~ 100°C | - | UR, VDE | - | - | - |
|
|
3-137-416DKCV-1 COMP.CHOKE 2PH 2A 45MH |
180 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 122mOhm | 450V | 300V | -40°C ~ 100°C | - | UR, VDE | - | - | - |
|
|
LDFW013412YV-V0ECMC 4.1MH 13A 2LN TH |
199 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 4.1 mH @ 100 kHz | 13A | 10mOhm (Typ) | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
B82725S2243B040SMD RING CORE CHOKE 2X0.82MH 24A |
180 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 820 µH @ 100 kHz | 24A | 2.21mOhm (Typ) | - | 250V | - | - | - | - | - | - |
|
|
LDFL009412VD-V0ECMC 4.1MH 9A 2LN TH |
456 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 4.1 mH @ 100 kHz | 9A | 16mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
B82725S2133N040CHOKES |
153 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 10 kHz | 13A | 5.3mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UL | - | - | - |
|
|
LDFL006832VD-V0ECMC 8.3MH 5.5A 2LN TH |
407 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 8.3 mH @ 100 kHz | 5.5A | 26mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFL016362V8-V0ECMC 3.6MH 16A 2LN TH |
112 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 100 kHz | 16A | 7.5mOhm | 500V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFL023162V8-V0ECMC 1.6MH 23A 2LN TH |
120 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 23A | 3.7mOhm | 500V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|

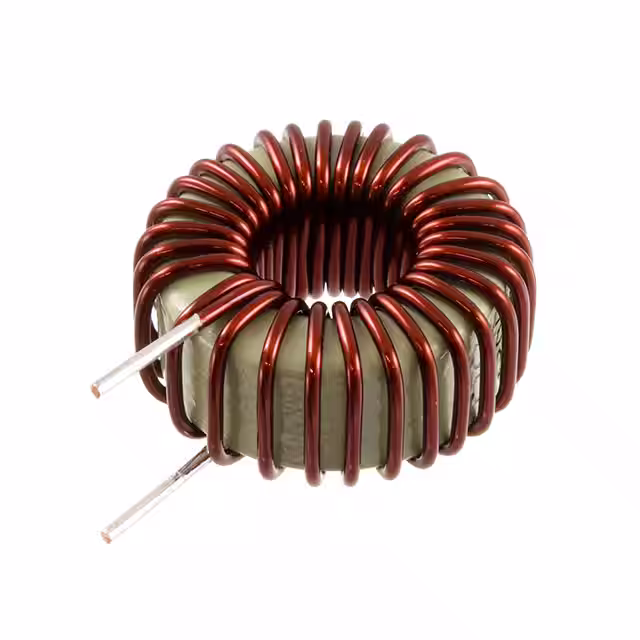

PHBC14-1R2A0067VCMC 67UH 8A 2LN TH |
118 | 8.07 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 67 µH @ 100 kHz | 8A | 22.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL005332L6-V0ENANOCRYSTALLINE COMMON MODE COIL |
109 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 3.3 mH @ 100 kHz | 5A | 21mOhm | - | - | - | - | - | - | - | - |
|
|
LDFW008123YV-V0ECMC 11.5MH 8A 2LN TH |
190 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 11.5 mH @ 100 kHz | 8A | 26mOhm (Typ) | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
