Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCM2012FS121MDGFLTR,CM,120,M,0.30,370MA,2KPC,HF |
9,535 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -25°C ~ 125°C | - | - | - | - | - |
|
CMCC1206601NTCMC 260MA 2LN 600 OHM SMD |
18,000 | 0.16 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 260mA | 800mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
WCM 2012F2SF-900T042 LINE COMMON MODE CHOKE SURFACE |
5,909 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 2012F2SF-670T042 LINE COMMON MODE CHOKE SURFACE |
4,000 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 2012F2SF-161T032 LINE COMMON MODE CHOKE SURFACE |
3,988 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 350mA | 350mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 2012F2SF-121T042 LINE COMMON MODE CHOKE SURFACE |
3,610 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 120 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
HSF 2012F2SF-900T03-H2 LINE COMMON MODE CHOKE SURFACE |
4,175 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
HSF 2012F2SF-600T03-H2 LINE COMMON MODE CHOKE SURFACE |
4,000 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMCC0805161MT-CTCMC 330MA 2LN 160 OHM SMD |
5,875 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 160 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
PCMF1USB30ZCMC 2LN SMD ESD |
53,203 | 0.13 |
|
Datasheet |
5-UFBGA, WLCSP | Signal Line | 2 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

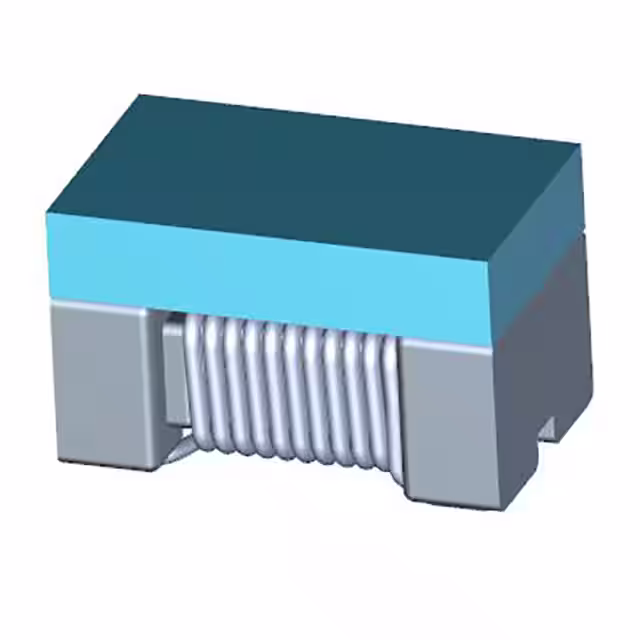

CC2012A-601CMC 330MA 2LN 600 OHM SMD |
2,000 | 0.15 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

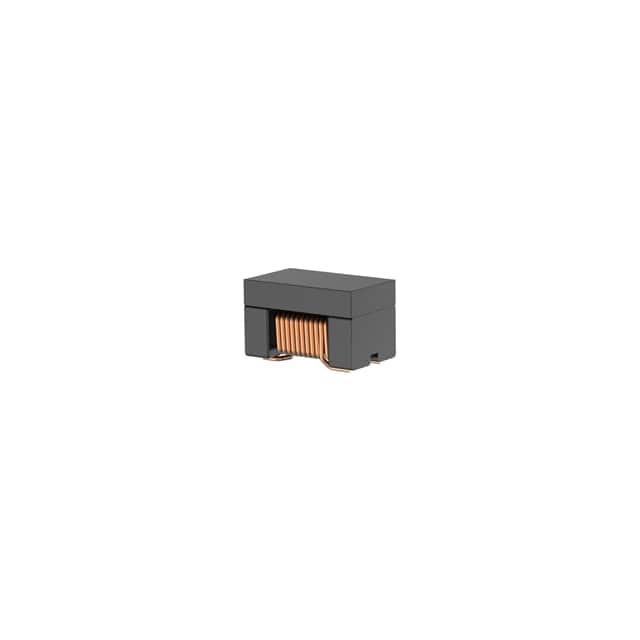

CC2012A-801CMC 300MA 2LN 800 OHM SMD |
1,700 | 0.15 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 800 Ohms @ 100 MHz | - | 300mA | 880mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

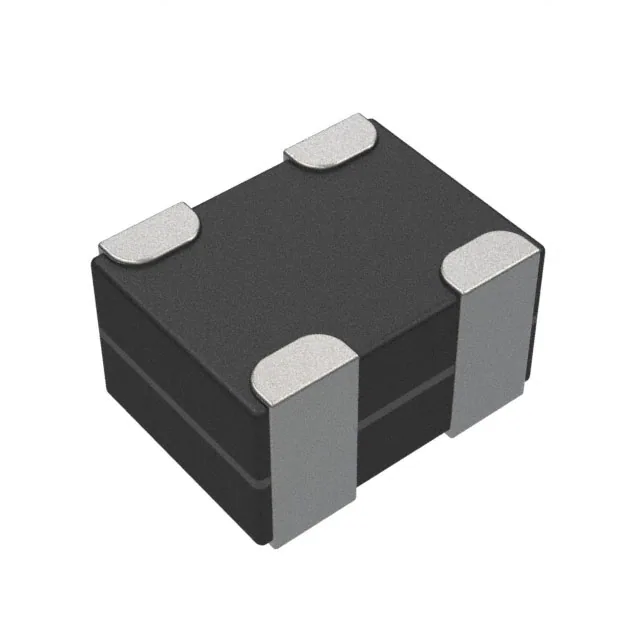

LCF080602A750TGCMC 100MA 2LN 75 OHM SMD |
19,869 | 0.22 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF080602B750TGCMC 110MA 2LN 75 OHM SMD |
20,099 | 0.24 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 110mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCM1012B121F06BPDGCMF 1210 120OHM 300MA 2LN SMD |
17,945 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 300mA | 600mOhm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
MCM1012B900F06BPDGCMC 300MA 2LN 90 OHM SMD |
16,086 | 0.02 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 600mOhm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
HSF 1210F2SF-900T022 LINE COMMON MODE CHOKE SURFACE |
5,806 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 200mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 2012F2SV-900T042 LINE COMMON MODE CHOKE SURFACE |
5,585 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CMCC1206102MT-CTCMC 230MA 2LN 1K OHM SMD |
9,675 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1 kOhms @ 100 MHz | - | 230mA | 1Ohm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCM2012B121GBEDGCMF 2012 120OHM 400MA 2LN SMD |
14,980 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 400mA | 400mOhm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
