Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
WCM2012F2SF-201T03CMC 2LN 200OHM 400MOHM 300MA |
3,985 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 200 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM2012F2SF-181T03CMC 2LN 180OHM 350MOHM 350MA |
3,950 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 180 Ohms @ 100 MHz | - | 350mA | 350mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM2012F2SF-221T03CMC 2LN 220OHM 400MOHM 300MA |
3,950 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM3225F2SF-102T042 LINE COMMON MODE CHOKE SURFACE |
3,940 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | 1A | - | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
EMI4172MTTAGCMC 100MA 4LN SMD ESD |
4,279 | 0.29 |
|
Datasheet |
10-WDFN | Signal Line | 4 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
MCZ0605AH350SDT000CMC 100MA 2LN 35 OHM SMD |
9,227 | 0.43 |
|
Datasheet |
0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
EMI4183MUTAGCMC 100MA 6LN SMD ESD |
1,646 | 0.33 |
|
Datasheet |
16-UFDFN | Signal Line | 6 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
EMI4183MUTAGCMC 100MA 6LN SMD ESD |
174,000 | 0.33 |
|
Datasheet |
16-UFDFN | Signal Line | 6 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM-21H-900-TCMC 280MA 2LN 90 OHM SMD |
2,395 | 0.18 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 400mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
CMA0805A121R-1ACMC 370MA 2LN 120OHM SMD AECQ200 |
9,920 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 220mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CMA0805A361R-1ACMC 220MA 2LN 360OHM SMD AECQ200 |
9,916 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 220mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CMA0805A201R-1ACMC 350MA 2LN 200OHM SMD AECQ200 |
9,767 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 350mA | 250mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CMA0805A681R-1ACMC 200MA 2LN 680OHM SMD AECQ200 |
6,835 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 680 Ohms @ 100 MHz | - | 200mA | 1.3Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
-0,92-4-Lead-DLP11S-Series.jpg)
|
DLP11SN201HL2LCMC 110MA 2LN 200 OHM SMD |
2,289 | 0.43 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 110mA | 3.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM 3225F2SV-102T152 LINE COMMON MODE CHOKE SURFACE |
12,089 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 100mOhm | 60V | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
ACM-21-361M-TCMC 280MA 2LN 360 OHM SMD |
2,037 | 0.14 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 280mA | 400mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM-21-121M-TCMC 370MA 2LN 120 OHM SMD |
2,000 | 0.19 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

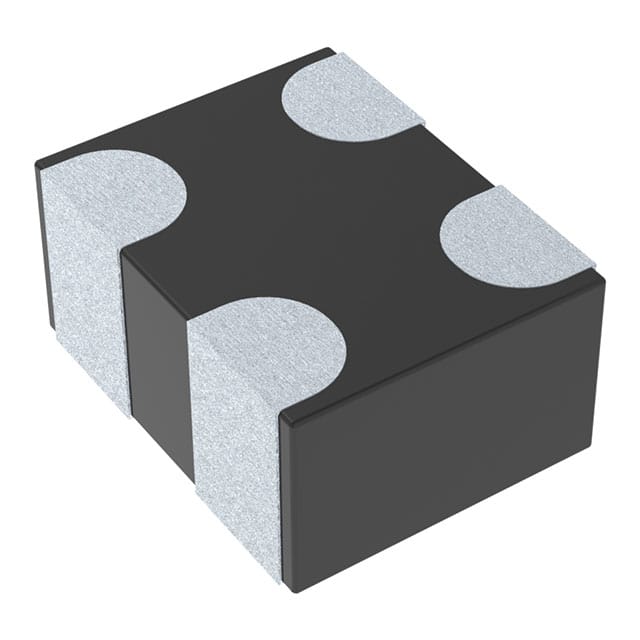

SDMM0806H-2-350TCMC 100MA 2LN 35 OHM SMD |
9,755 | 0.44 |
|
Datasheet |
0302 (0806 Metric) | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11SN281HL2LCMC 90MA 2LN 280 OHM SMD |
1,490 | 0.43 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 280 Ohms @ 100 MHz | - | 90mA | 5.25Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-X4CT900XCMC 100MA 2LN 90 OHM SMD |
7,380 | 0.46 |
|
Datasheet |
0202 (0505 Metric) | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm (Typ) | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
