Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECMF02-3F3CMC 3LN SMD ESD |
1,574 | 0.43 |
|
- |
6-UFBGA, FCBGA | Signal Line | 3 | - | - | - | 4.5Ohm | - | - | -30°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM-31-161M-TCMC 340MA 2LN 160 OHM SMD |
2,890 | 0.20 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

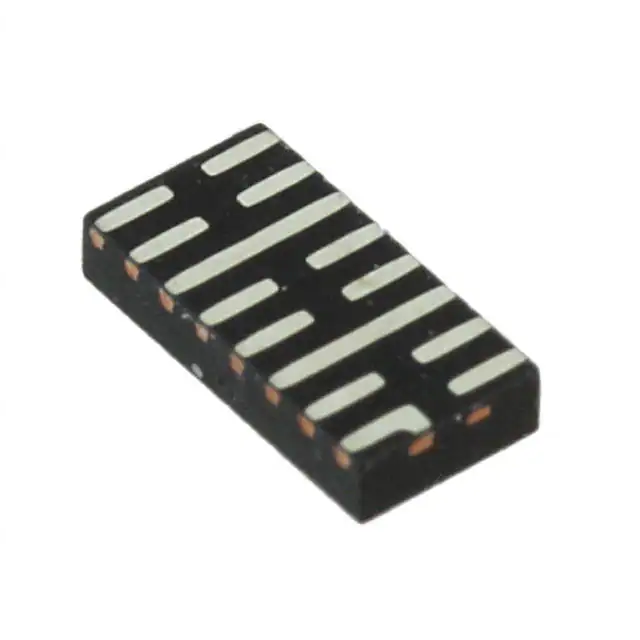

EMI4183MTTAGCMC 100MA 6LN SMD ESD |
3,451 | 0.42 |
|
Datasheet |
16-WFDFN Exposed Pad | Signal Line | 6 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
EMI4163MUTAGCMC 100MA 6LN SMD ESD |
3,585 | 0.43 |
|
Datasheet |
16-UFDFN | Signal Line | 6 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
EMI4162MUTAGCMC 100MA 4LN SMD ESD |
2,574 | 0.43 |
|
Datasheet |
10-UFDFN | Signal Line | 4 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
MCZ0806AH500L2TA0GCMC 100MA 2LN 50 OHM SMD |
16,990 | 0.42 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCZ0806AH900L2TA0GCMC 100MA 2LN 90 OHM SMD |
13,306 | 0.42 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
WCM3216F2SF-221T03CMC 2LN 220OHM 450MOHM 300MA |
4,000 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | - | 2 | 220 Ohms @ 100 MHz | - | 300mA | 450mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM2012F2SV-121T03CMC 2LN 120OHM 300MOHM 400MA AE |
4,000 | 0.00 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WCM2012F2SV-201T03CMC 2LN 200OHM 400MOHM 300MA AE |
4,000 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 200 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM3216F2SF-161T03CMC 2LN 160OHM 400MOHM 350MA |
4,000 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | - | 2 | 160 Ohms @ 100 MHz | - | 350mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM3216F2SF-121T03CMC 2LN 120OHM 300MOHM 350MA |
4,000 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | - | 2 | 120 Ohms @ 100 MHz | - | 350mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM3216F2SF-261T03CMC 2LN 260OHM 500MOHM 300MA |
3,988 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM2012F2SV-221T03CMC 2LN 220OHM 400MOHM 300MA AE |
3,950 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM2012F2SV-261T03CMC 2LN 260OHM 400MOHM 300MA AE |
3,945 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM2012F2SV-181T03CMC 2LN 180OHM 350MOHM 350MA AE |
3,940 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 180 Ohms @ 100 MHz | - | 350mA | 350mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM3216F2SF-361T03CMC 2LN 360OHM 600MOHM 300MA |
3,900 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | - | 2 | 360 Ohms @ 100 MHz | - | 300mA | 600mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCZ0806AH220L2TA0GCMC 100MA 2LN 22 OHM SMD |
2,317 | 0.42 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 22 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
NUC2401MNTAGCMC 100MA 2LN 90 OHM SMD ESD |
1,116 | 0.46 |
|
Datasheet |
8-VFDFN Exposed Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCF080602G900TGCMC 100MA 2LN 90 OHM SMD |
19,197 | 0.65 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 14Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
