Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MCM2012B161GBEDGCMF 2012 160OHM 400MA 2LN SMD |
14,960 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 400mA | 400mOhm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCM2012B900GBEDGCMF 2012 90OHM 400MA 2LN SMD |
12,065 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 400mOhm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
WCM 3216F2SF-900T042 LINE COMMON MODE CHOKE SURFACE |
4,109 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 2012F2SV-670T042 LINE COMMON MODE CHOKE SURFACE |
4,000 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM 3216F2SF-601T032 LINE COMMON MODE CHOKE SURFACE |
3,500 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 300mA | 800mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DCM 321620F2SF-600T02-1R160 UH @ 100 KHZ 2 LINE COMMON MO |
1,425 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 60 µH @ 100 kHz | 200mA | 1.1Ohm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMCC1206222ST-CTCMC 200MA 2LN 2.2K OHM SMD |
13,875 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
PCMF2HDMI14SZCMC |
2,434 | 0.20 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCM1012GD670A05PDGCMF 1210 67OHM 100MA 2LN SMD |
19,980 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
HCM1012GD500A05PDGCMF 1210 50OHM 100MA 2LN SMD |
18,997 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|

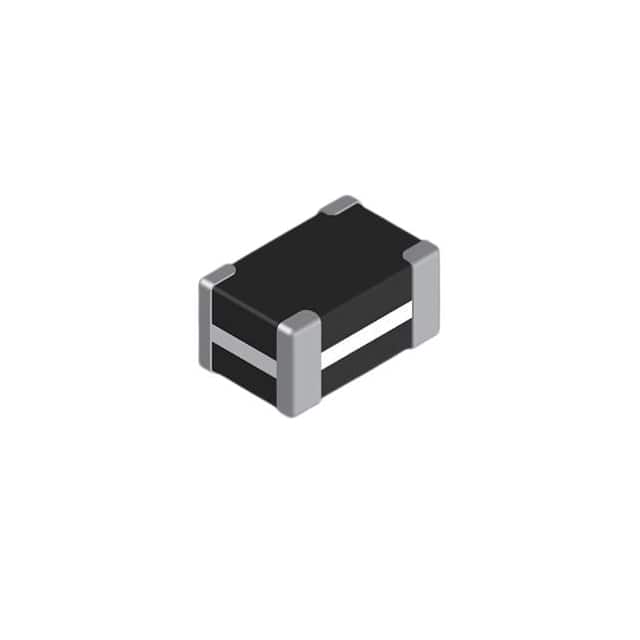

HCM1012GD900B05PDGCMC 100MA 2LN 90 OHM SMD |
7,960 | 0.02 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
RFHCM1012GD900B05TCMC 100MA 2LN 90 OHM SMD |
6,650 | 0.27 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
HCM1012GS150A05PDGCMF 1210 15OHM 100MA 2LN SMD |
19,950 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 15 Ohms @ 100 MHz | - | 100mA | 800mOhm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
WCM 3216F2SF-222T022 LINE COMMON MODE CHOKE SURFACE |
2,889 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | - | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
EMI4182MUTAGCMC 100MA 4LN SMD ESD |
4,916 | 0.27 |
|
- |
10-UFDFN | Signal Line | 4 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCF121002B350TGCMC 200MA 2LN 35 OHM SMD |
6,030 | 0.39 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 200mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
EOWS201212M900CMC 90 OHM 350MA 2LN SMD |
1,680 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 350mA | 350mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
EXC-18CS900UCMC 100MA 4LN 90 OHM SMD ESD |
10,070 | 0.39 |
|
Datasheet |
0603 (1608 Metric) | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm (Typ) | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
WCM 3225F2SF-601T102 LINE COMMON MODE CHOKE SURFACE |
7,018 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 1A | 200mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM2012F2SF-261T03CMC 2LN 260OHM 400MOHM 300MA |
3,995 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
