Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

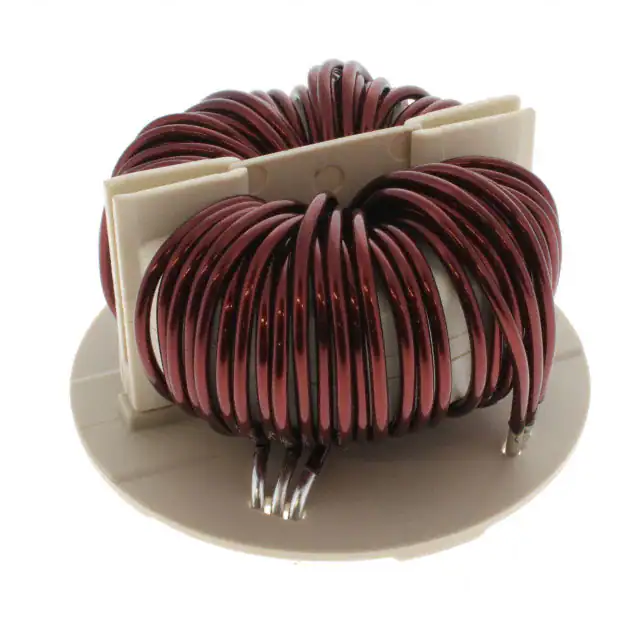

SCF47C-400-1R8C040JHCMC 4MH 40A 2LN TH |
1,614 | 18.41 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 40A | 2.1mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
RT8122-20-3M0CMC 3MH 20A 2LN TH |
4,657 | 12.46 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 20A | 7mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|

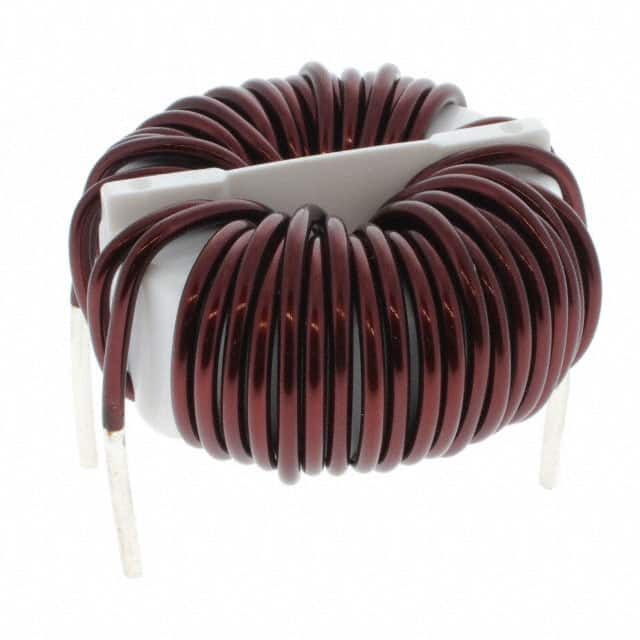

SC-20-300CMC 3MH 20A 2LN TH |
4,590 | 13.87 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 20A | 13mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
DKIV-1-3243-258J-NKCMC 25A 2LN TH |
2,727 | 18.37 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 25A | 1.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
HHBC24N-2R3A0104VCMC 104UH 20A 2LN TH |
2,282 | 24.39 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 104 µH @ 100 kHz | 20A | 10.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

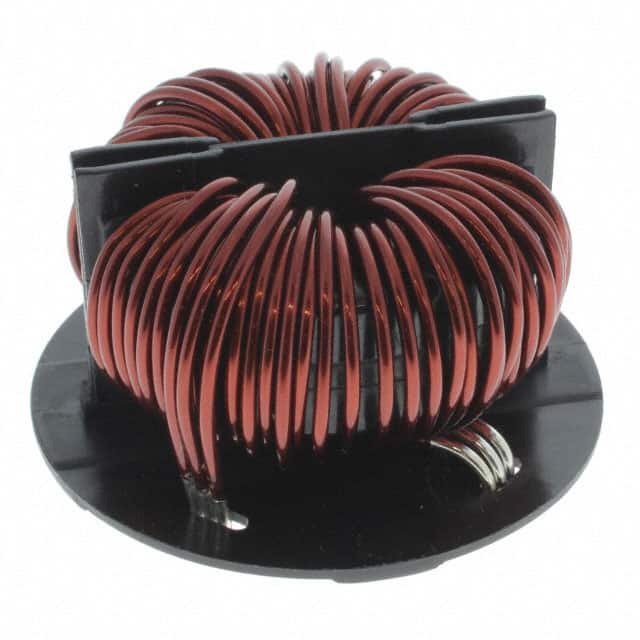

SCR47B-350-1R6C016JH-DCMC 1.6MH 35A 2LN TH |
4,054 | 14.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 35A | 3.5mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|

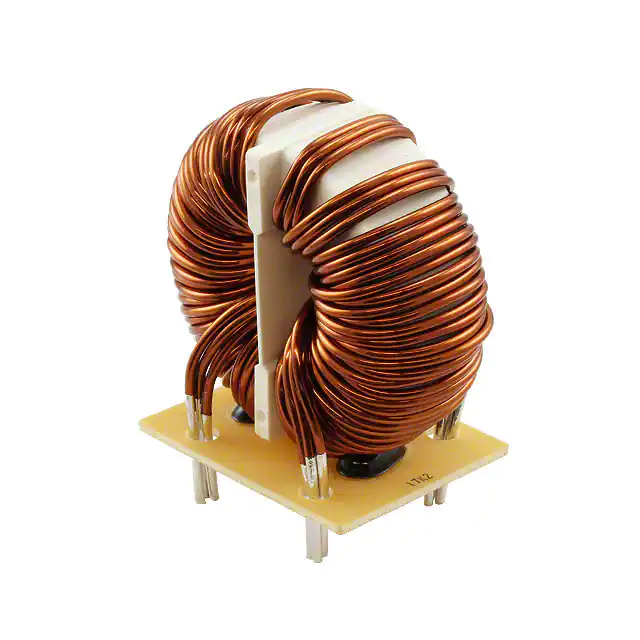

SCR47-350-1R6C016JCMC 1.6MH 35A 2LN TH |
1,957 | 18.56 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 35A | 3.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR47B-400-1R8C010JHCMC 1MH 40A 2LN TH |
4,751 | 14.36 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 40A | 2.1mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SCR47-400-1R9C008JHCMC 800UH 40A 2LN TH |
4,947 | 19.94 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 10 kHz | 40A | 1.8mOhm | - | - | -25°C ~ 120°C | - | - | - | - | - |
|
DKIH-3237-122Q-NKCMC 12A 2LN TH |
1,225 | 20.86 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 12A | 7mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|

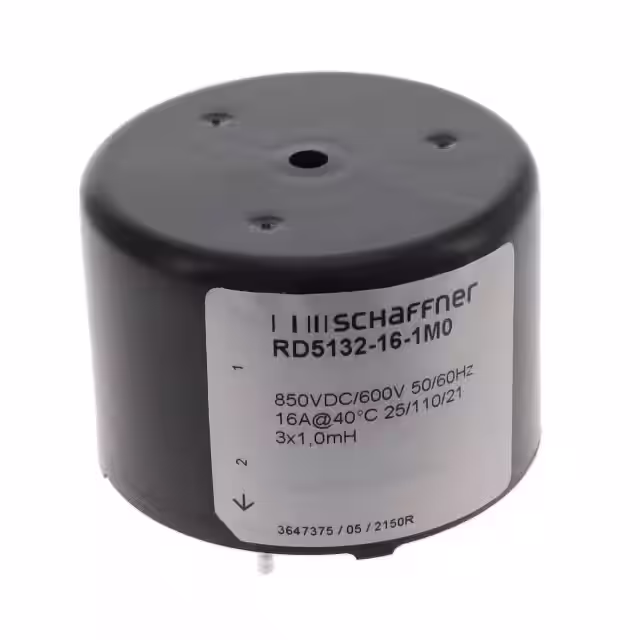

RD5132-16-1M0CMC 1MH 16A 3LN TH |
1,514 | 14.54 |
|
Datasheet |
- | Power Line | 3 | - | 1 mH @ 400 Hz | 16A (Typ) | 6.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
HHBC24N-2R0A0219VCMC 219UH 15A 2LN TH |
3,388 | 24.74 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 219 µH @ 100 kHz | 15A | 19.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC24N-2R3A0104VCMC 104UH 20A 2LN TH |
3,930 | 25.03 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 104 µH @ 100 kHz | 20A | 10.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
RB6122-25-0M6CMC 640UH 25A 2LN TH |
3,195 | 15.26 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 640 µH @ 400 Hz | 25A | 2.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

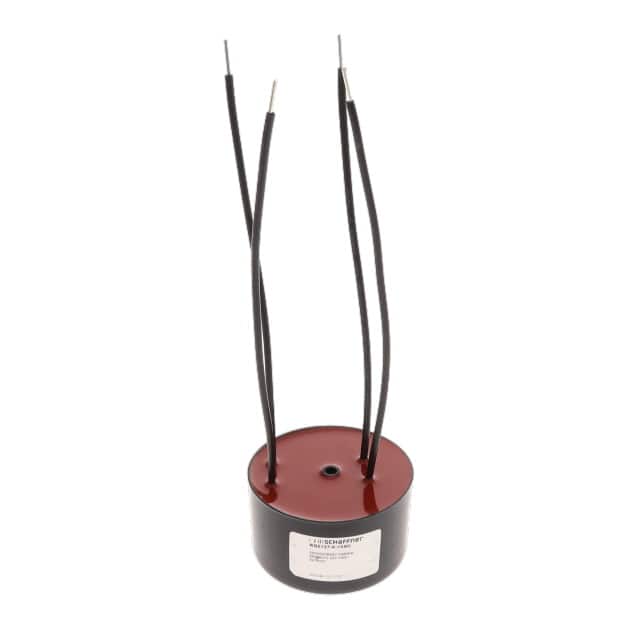

RD6127-6-15M0CMC 15MH 6A 2LN TH |
2,734 | 16.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 400 Hz | 6A (Typ) | 66.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DLFP-0125-0501CMC 5A 2LN CHAS MNT |
2,449 | 26.03 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 5A | 120mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|

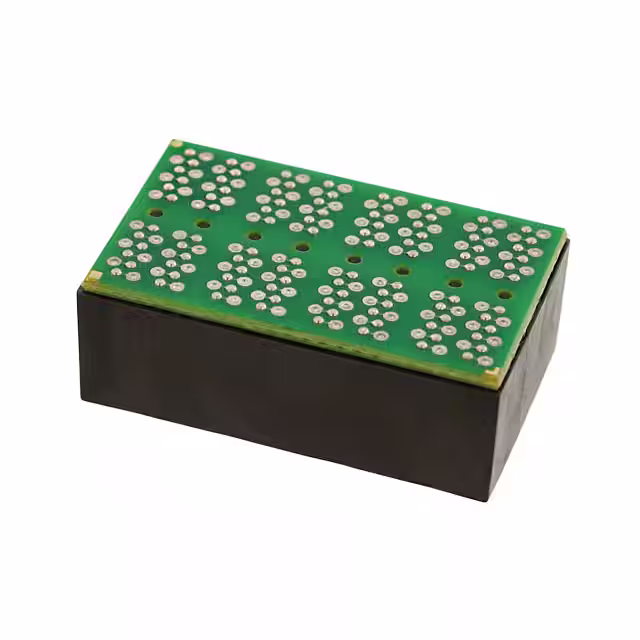

H6400NLCMC 600MA 4LN SMD |
3,276 | 22.33 |
|
Datasheet |
96-BGA Module | - | 4 | - | - | 600mA | 65mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
LDFL027282VJUV0ECMC 2.8MH 27A 2LN TH |
4,906 | 19.82 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 2.8 mH @ 100 kHz | 27A | 3.1mOhm | 700V | - | - | - | - | - | - | - |
|
RD6127-10-9M0CMC 9MH 10A 2LN TH |
3,816 | 16.81 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9 mH @ 400 Hz | 10A (Typ) | 25.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DKIH-3452-161K-NKCMC 16A 4LN TH |
3,527 | 27.02 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 16A | - | 500V | 500V | -40°C ~ 100°C | - | - | - | - | - |
