Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DKIP-0331-2001CMC 20A 3LN TH |
3,720 | 55.08 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 20A | 8mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKIP-0331-1502CMC 15A 3LN TH |
1,566 | 55.87 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 15A | 13mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
RD8127-16-12M0CMC 12MH 16A 2LN TH |
2,842 | 41.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 16A (Typ) | 20.05mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

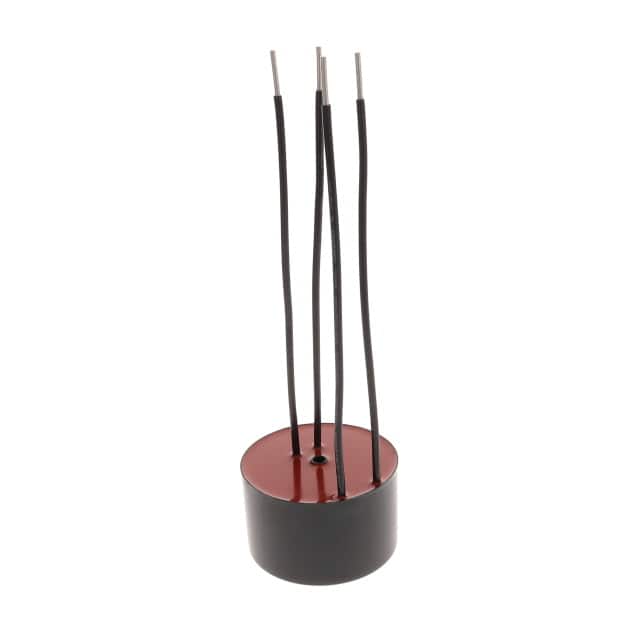

RD8127-25-5M0CMC 5MH 25A 2LN TH |
3,547 | 42.57 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 400 Hz | 25A (Typ) | 8.45mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD8137-16-5M0CMC 5MH 16A 3LN TH |
2,499 | 43.80 |
|
Datasheet |
- | Power Line | 3 | - | 5 mH @ 400 Hz | 16A (Typ) | 11.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
RD8137-25-2M5CMC 2.5MH 25A 3LN TH |
3,014 | 45.11 |
|
Datasheet |
- | Power Line | 3 | - | 2.5 mH @ 400 Hz | 25A (Typ) | 6.4mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

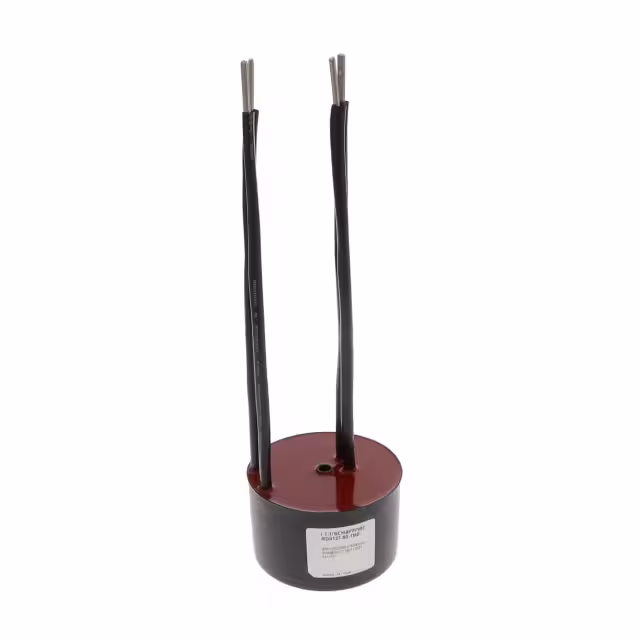

RD8127-50-1M0CMC 1MH 50A 2LN TH |
1,704 | 45.88 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 50A (Typ) | 2.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
RD8137-36-1M5CMC 1.5MH 36A 3LN TH |
3,913 | 47.31 |
|
Datasheet |
- | Power Line | 3 | - | 1.5 mH @ 1 kHz | 36A (Typ) | 3.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD8127-64-0M8CMC 800UH 64A 2LN TH |
1,116 | 47.53 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 400 Hz | 64A (Typ) | 1.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

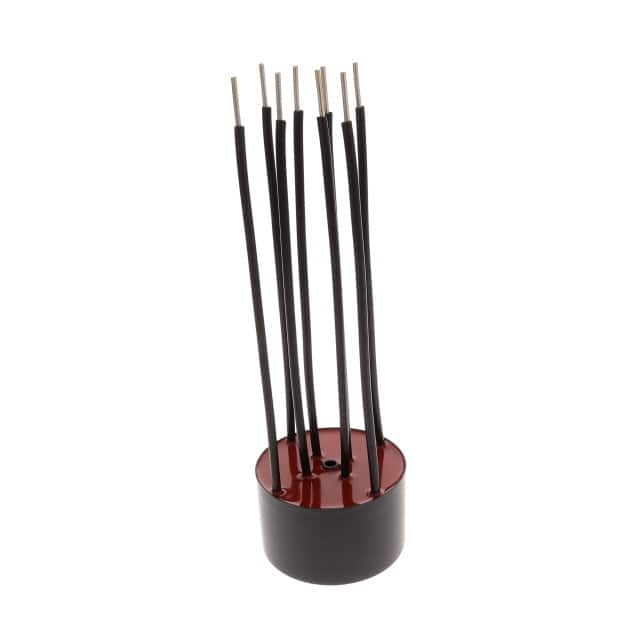

RD8147-25-1M3CMC 1.3MH 25A 4LN TH |
3,494 | 51.34 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 1.3 mH @ 400 Hz | 25A (Typ) | 5.05mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

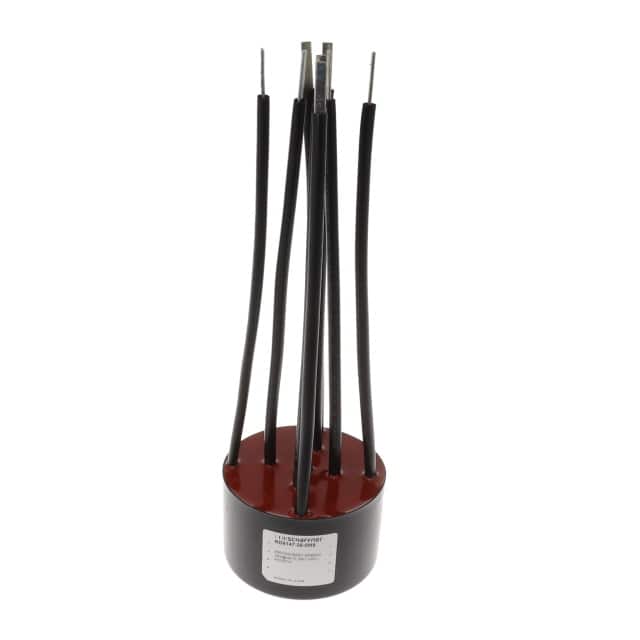

RD8147-36-0M8CMC 800UH 36A 4LN TH |
4,965 | 53.84 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 800 µH @ 1 kHz | 36A (Typ) | 3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

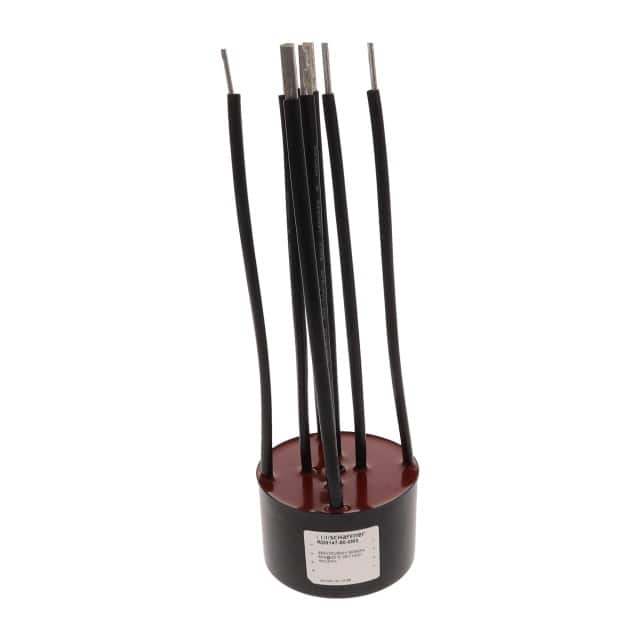

RD8147-50-0M3CMC 300UH 50A 4LN TH |
1,006 | 55.33 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 300 µH @ 400 Hz | 50A (Typ) | 1.75mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

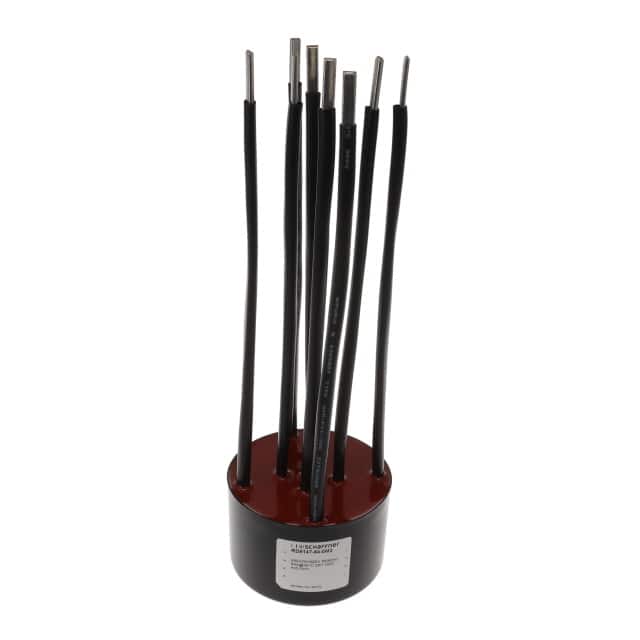

RD8147-64-0M2CMC 200UH 64A 4LN TH |
2,851 | 60.32 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 200 µH @ 1 kHz | 64A (Typ) | 1.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DKIP-0333-2504CMC 25A 3LN TH |
2,149 | 140.24 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 25A | 12mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|

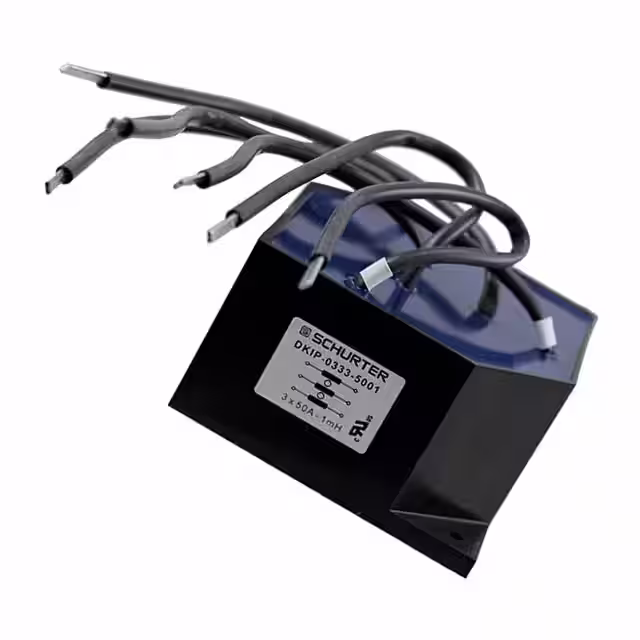

DKIP-0333-5001CMC 50A 3LN TH |
1,047 | 159.64 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 50A | 4mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
50225ACCMC 2.2MH, 0.5A SM TOROID |
990 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 4 | - | 2.2 mH @ 100 kHz | 500mA | 480mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
50503ACCMC 51UH, 0.8A SM TOROID |
910 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 800mA | 168mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
50513ACCMC 51UH, 0.8A SM TOROID |
503 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 4 | - | 51 µH @ 100 kHz | 800mA | 168mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg)
|
DLW21SZ261XQ2LCMC 220MA 2LN 260OHM SMD AECQ200 |
553 | 0.28 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 220mA | 590mOhm | 20V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
DLW21SZ181XQ2LWINDING TYPE COMMON |
275 | 0.28 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 240mA | 390mOhm | 20V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
