Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RV8541-50-S02RV COMMON MODE CHOKE, NANO, FOUR |
4,010 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 230 µH @ 100 kHz | 50A | 1mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
|
744837002460CMC 200UH 46A 3LN TH |
4,814 | 54.50 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 200 µH @ 10 kHz | 46A | 1.6mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
744837018220CMC 1.8MH 22A 3LN TH |
3,032 | 54.50 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.8 mH @ 10 kHz | 22A | 9mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|

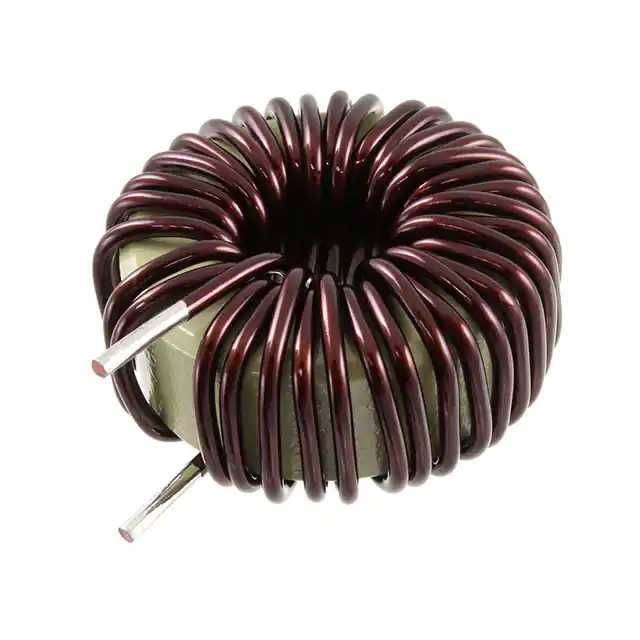

PHBC24W-2R4A0174VCMC 174UH 20A 2LN TH |
3,360 | 40.13 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 174 µH @ 100 kHz | 20A | 11.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF56X-400-S2R4B009JHIND CMC 1.72MH 40A 1.84MOHM |
2,500 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.72 mH @ 100 kHz | 40A | 1.84mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
3-143-899DKUH-1 COMP.CHOKE 2PH 50A 24MH |
1,368 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 50A | 2.5mOhm | 800V | 250V | -40°C ~ 100°C | - | CE, UKCA | - | - | - |
|
|
3-143-900DKUH-1 COMP.CHOKE 2PH 64A 14MH |
1,021 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 64A | 1.4mOhm | 800V | 250V | -40°C ~ 100°C | - | CE, UKCA | - | - | - |
|
|
3-143-902DKUH-1 COMP.CHOKE 2PH 85A 11MH |
2,821 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 85A | 0.9mOhm | 800V | 250V | -40°C ~ 100°C | - | CE, UKCA | - | - | - |
|
|
3-143-903DKUH-1 COMP.CHOKE 2PH 100A 7.0MH |
1,153 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 100A | 0.35mOhm | 800V | 250V | -40°C ~ 100°C | - | CE, UKCA | - | - | - |
|
|
WCM 2012F2SF-361T032 LINE COMMON MODE CHOKE SURFACE |
399 | 0.00 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
RGCMF1210900H3TCMC 300MA 2LN 90 OHM SMD |
283 | 0.21 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
WCM 3216F2SF-102T022 LINE COMMON MODE CHOKE SURFACE |
191 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 200mA | 1Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 4532F2SF-601T25-HI2 LINE COMMON MODE CHOKE SURFACE |
500 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 2.5A | 60mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACM 4532F2WV-201T01-D200 UH @ 100 KHZ 2 LINE COMMON M |
610 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 100mA | 4.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM 4532F2NV-101T02-D200MA @ 100 KHZ 2 LINE COMMON M |
1,442 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 200mA | - | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACM 4532F2NV-110T03-D11 UH @ 100 KHZ 2 LINE COMMON MO |
967 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 360mA | 600mOhm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACM 4532F2NV-510T02-D51 UH @ 100 KHZ 2 LINE COMMON MO |
916 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACM 4532F2NV-220T03-D22 UH @ 100 KHZ 2 LINE COMMON MO |
750 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 310mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
WCM 4532F2SF-901T23-HI2 LINE COMMON MODE CHOKE SURFACE |
1,125 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 100 MHz | - | 2.3A | 70mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 4532F2SF-142T20-HI2.0A LINE COMMON MODE CHOKE SUR |
672 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | 2A | - | - | - | -40°C ~ 125°C | - | - | - | - | - |
