Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

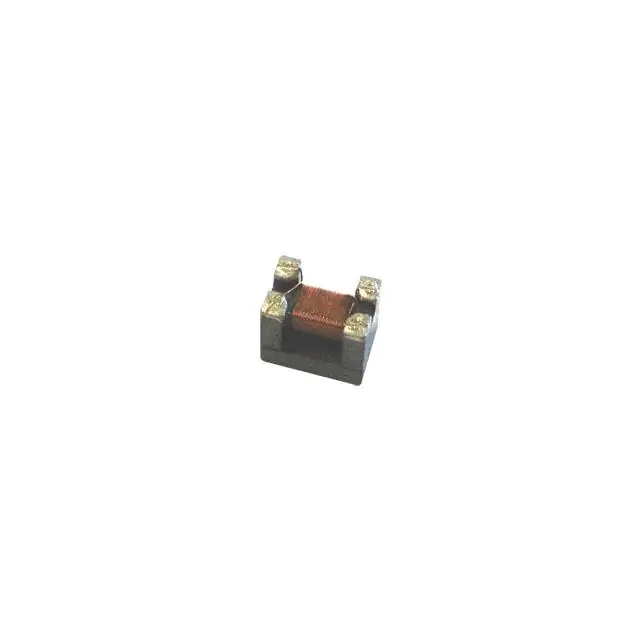

CTDLW43SF-220YCMC 22UH 200MA 2LN 1.2K OHM SMD |
3,782 | 0.49 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CTDLW43SF-110YCMC 11UH 250MA 2LN 600 OHM SMD |
3,700 | 0.49 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 250mA | 600mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

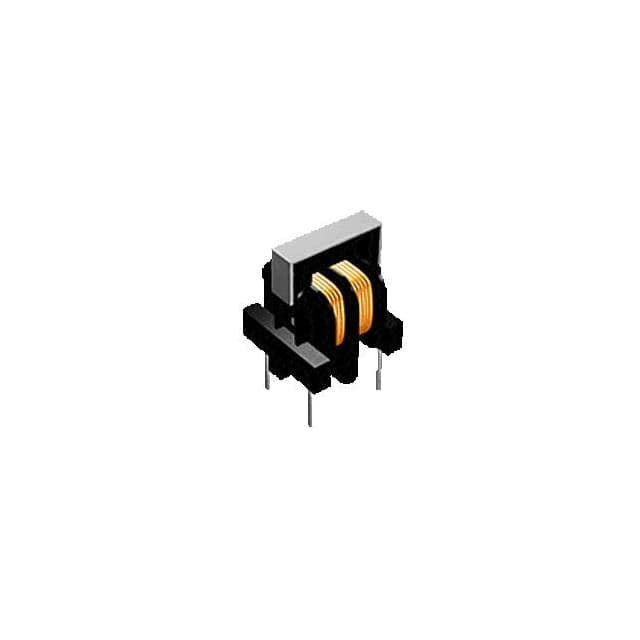

CTUF0917VF-103MR25CMC 250MA 2LN TH |
1,924 | 2.28 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 250mA | 3.5Ohm | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
MSD7342-564MLCFIXED IND 560UH 260MA 4.43OHM SM |
3,192 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 560 µH @ 100 kHz | 260mA | 4.43Ohm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
MSD7342-394MLCFIXED IND 390UH 320MA 3.05OHM SM |
3,352 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 390 µH @ 100 kHz | 320mA | 3.05Ohm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|

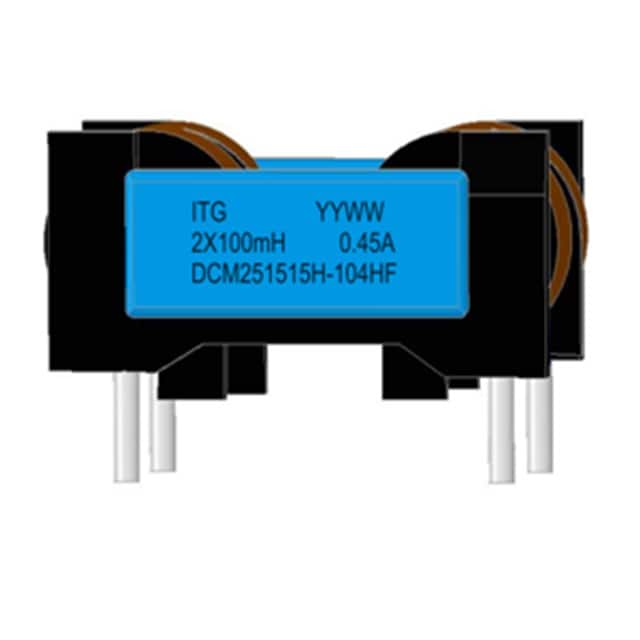

DCM251515H-393HF39,000uH,1100mOhm,0.8Amp DIP CMC |
4,382 | 2.50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 800mA | 1.1Ohm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM251515H-103HF10,000uH,260mOhm, 1.6Amp DIP CMC |
4,859 | 2.50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.6A | 260mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM251515H-683HF68,000uH,1970mOhm,0.6Amp DIP CMC |
2,150 | 2.50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 600mA | 1.97Ohm (Typ) | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM251515H-273HF27,000uH,770mOhm, 0.9Amp DIP CMC |
3,175 | 2.50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 900mA | 770mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM251515H-153HF15,000uH,430mOhm, 1.3Amp DIP CMC |
4,423 | 2.50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.3A | 430mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM251515H-104HF100,000uH,2670mOhm,0.45Amp CMC |
3,589 | 2.50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 450mA | 2.67Ohm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM251515H-473HF47,000uH,1260mOhm,0.7Amp DIP CMC |
3,679 | 2.50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 700mA | 1.26Ohm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
DCM191320V-502NHF5,000uH, 350mOhm, 1.2Amp DIP CMC |
2,627 | 2.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1.2A | 350mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM191320V-352NHF3,500uH, 230mOhm, 1.8Amp DIP CMC |
1,101 | 2.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 1.8A | 230mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM191320V-273NHF27,000uH,1650mOhm,0.5Amp DIP CMC |
4,622 | 2.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.65Ohm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM191320V-902NHF9,000uH, 500mOhm, 1Amp DIP CMC |
2,810 | 2.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 1A | 500mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM191320V-473NHF47,000uH,2750mOhm,0.35AmpDIP CMC |
3,184 | 2.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 350mA | 2.75Ohm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM191320V-153NHF15,000uH,960mOhm,0.63Amp DIP CMC |
2,489 | 2.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 630mA | 960mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM191320V-393NHF39,000uH,2300mOhm,0.4Amp DIP CMC |
1,893 | 2.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 400mA | 2.3Ohm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PMCU-5330CMC 200MA 2LN TH |
100 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 33 mH @ 1 kHz | 200mA | 4.95Ohm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
