Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACE1V2012-102-RCMC 190MA 2LN 1KOHM SMD AEC-Q200 |
17,602 | 0.72 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 190mA | 1.5Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
ACE1V2012-222-RCMC 150MA 2LN 2.2KOHM SMD |
2,054 | 0.67 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 150mA | 2Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
.jpg)
|
PE-1206CCMC900STSCMC 370MA 2LN 90 OHM SMD |
5,218 | 0.94 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | - | - | - | - | - | - |
|
PCMF2HDMI2SZCMC 4LN SMD ESD |
7,225 | 0.86 |
|
Datasheet |
10-UFBGA, WLCSP | Signal Line | 4 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
MCZ1210DH800CPTD25CMC 100MA 2LN 80OHM SMD AEC-Q200 |
6,750 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|

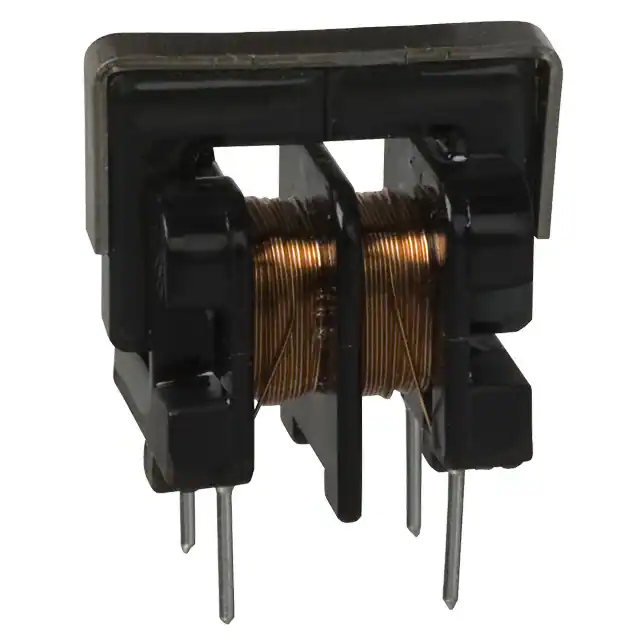

UU9LFNP-B103CMC 10MH 200MA 2LN TH |
2,457 | 0.92 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 200mA | 4Ohm | - | - | - | - | - | - | - | - |
|

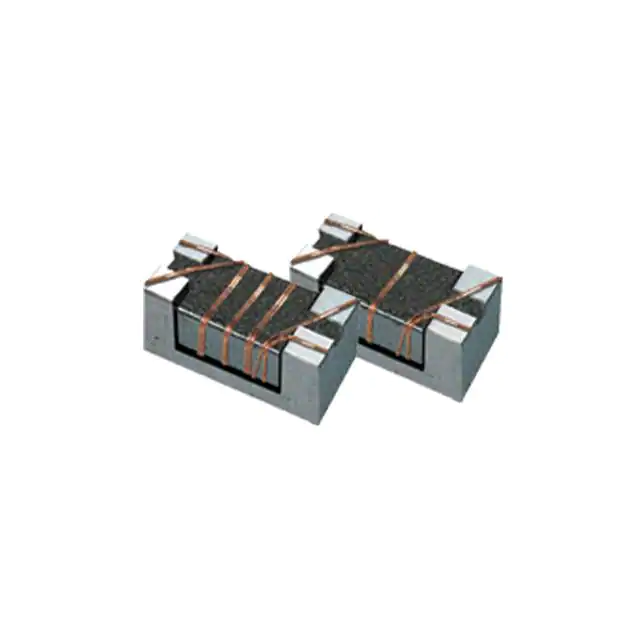

BWCU00160811221M02CMC 500MA 2LN 220 OHM SMD |
2,386 | 0.38 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 500mA | 209mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|

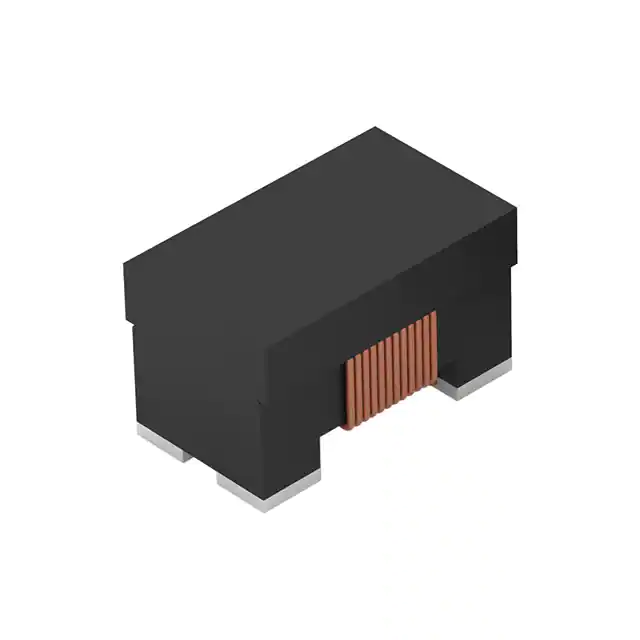

784231371CMC 280MA 2LN 370OHM SMD AECQ200 |
1,620 | 0.91 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACE1V3225-101-RCMC 100UH 150MA 2LN 5.1KOHM SMD |
8,660 | 0.89 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

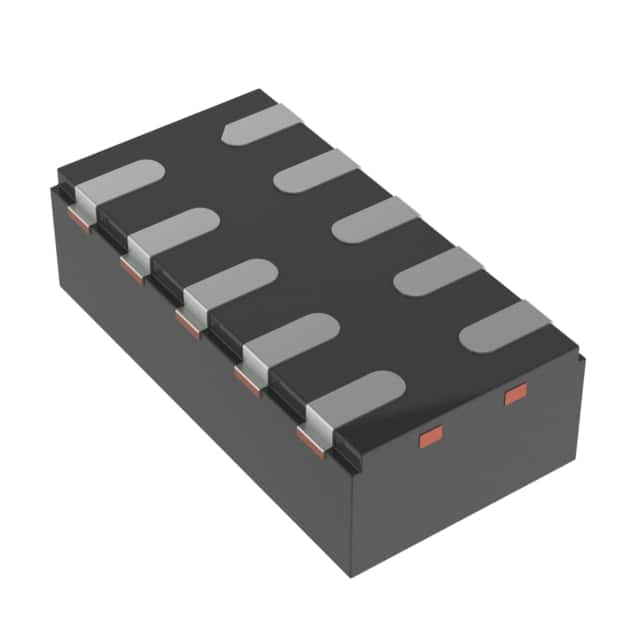

ECMF04-4HSWM10YCMC 100MA 4LN SMD ESD AEC-Q200 |
6,589 | 1.00 |
|
Datasheet |
10-WFDFN | Signal Line | 4 | - | - | 100mA | 5.5Ohm (Typ) | - | - | -55°C ~ 125°C | AEC-Q200 | - | TVS Diode ESD Protection | - | - |
|

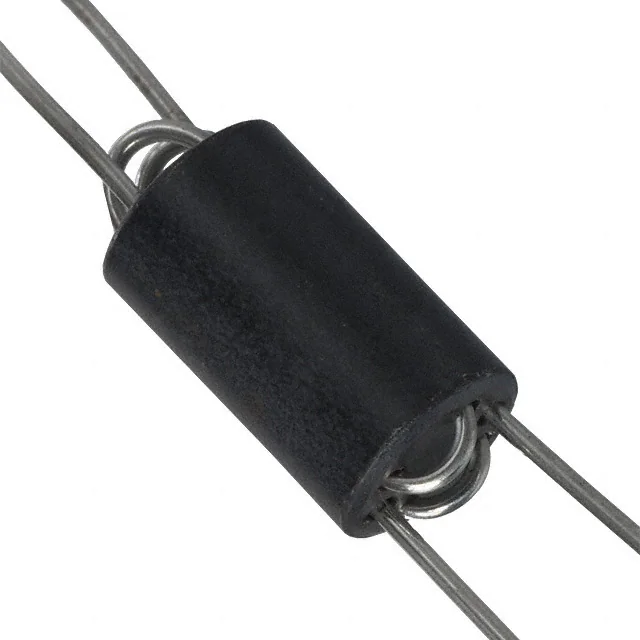

FB20011-3B-RCCMC 2LN 430 OHM TH |
1,761 | 0.70 |
|
Datasheet |
Axial - 4 Leads | - | 2 | 430 Ohms @ 100 MHz | - | - | - | - | - | - | - | - | - | - | - |
|
PE-1812ACC220STSCMC 310MA 2LN 1.2KOHM SMD |
21,527 | 0.96 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | - | 310mA | 600mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PE-1812ACC110STSCMC 360MA 2LN 600OHM SMD AECQ200 |
51,559 | 0.96 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | - | 360mA | 500mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PCMF1USB3BA/CZCMC 2LN SMD ESD |
7,606 | 0.66 |
|
Datasheet |
- | Signal Line | 2 | - | - | - | 2.6Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|

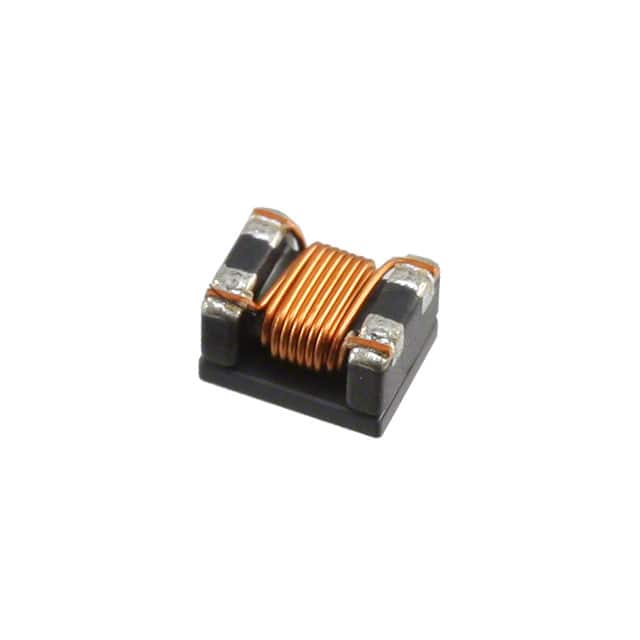

ACP3225-102-2P-TL000CMC 1.5A 2LN 1K OHM SMD |
21,108 | 1.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 50mOhm (Typ) | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCFE160804H101TGCMC 100MA 4LN 100 OHM SMD ESD |
4,000 | 1.14 |
|
Datasheet |
0603 (1608 Metric), 10 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM4520-142-2P-TL000CMC 1.5A 2LN 1.4K OHM SMD |
9,218 | 1.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 80mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACT45C-110-2P-TL000CMC 11UH 250MA AEC-Q200 125DEGC |
19,720 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 250mA | 600mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM2012-201-2P-T001CMC 350MA 2LN 200 OHM SMD |
9,501 | 1.65 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 350mA | 250mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
ACT45C-101-2P-TL000CMC 100UH 150MA AEC-Q200 125DEGC |
3,315 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
