Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

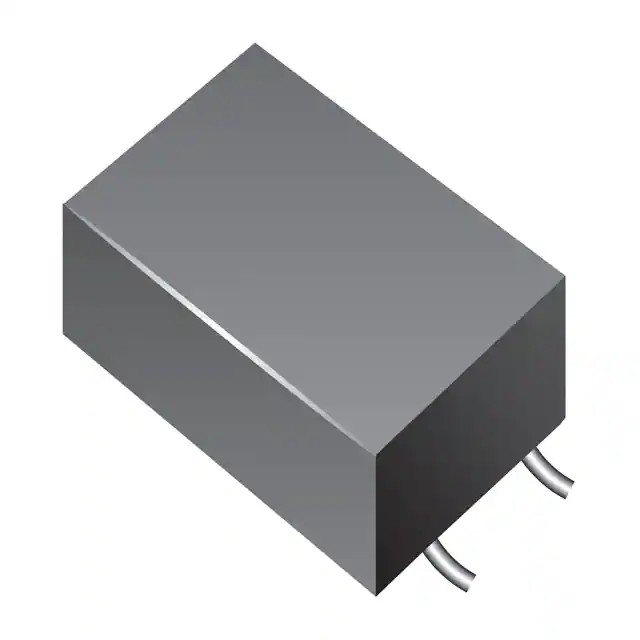

DR221-513AECMC 50UH 200MA 2LN SMD |
11,191 | 1.50 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 50 µH @ 10 kHz | 200mA | 320mOhm | 50V | 100V | -40°C ~ 125°C | - | - | - | - | - |
|
DLW5BTZ142TQ2LCMC 1.5A 2LN 1.4K OHM SMD |
421 | 1.36 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 56mOhm | 100V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
DR221-113AECMC 11UH 250MA 2LN SMD |
180 | 1.50 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 11 µH @ 10 kHz | 250mA | 180mOhm | 50V | 100V | -40°C ~ 125°C | - | - | - | - | - |
|
LCFE080602H900TGCMC 100MA 2LN 90 OHM SMD ESD |
12,240 | 1.74 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SRF0905-400YCMC 40UH 900MA 2LN 800 OHM SMD |
12,149 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 20 MHz | 40 µH @ 1 kHz | 900mA | 250mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
.jpg)
|
744233900CMC 280MA 2LN 90OHM SMD AEC-Q200 |
7,838 | 1.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 300mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
744233670CMC 320MA 2LN 67OHM SMD AEC-Q200 |
2,109 | 1.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 320mA | 240mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
SRF0905-500YCMC 50UH 800MA 2LN 1.5KOHM SMD |
678 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 20 MHz | 50 µH @ 1 kHz | 800mA | 320mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF1006-251YCMC 250UH 1.19A 2LN 400 OHM SMD |
1,310 | 1.60 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 400 Ohms @ 5 MHz | 250 µH @ 100 kHz | 1.19A | 35mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF0905A-100YCMC 10UH 1.6A 2LN SMD AEC-Q200 |
4,501 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 20 MHz | 10 µH @ 1 kHz | 1.6A | 80mOhm | 80V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
SRF0905A-500YCMC 50UH 800MA 2LN SMD AEC-Q200 |
3,994 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 20 MHz | 50 µH @ 1 kHz | 800mA | 320mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905A-102YCMC 1MH 800MA 2LN SMD AEC-Q200 |
3,380 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 1 MHz | 1 mH @ 100 kHz | 800mA | 310mOhm | 80V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
SRF0905A-471YCMC 470UH 1.1A 2LN SMD AEC-Q200 |
2,929 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 2 MHz | 470 µH @ 100 kHz | 1.1A | 140mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
744232101CMC 90MA 2LN 6K OHM SMD AEC-Q200 |
1,960 | 1.52 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 6 kOhms @ 10 MHz | - | 90mA | 5.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF0905A-251YCMC 250UH 1.2A 2LN SMD AEC-Q200 |
561 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 3 MHz | 250 µH @ 100 kHz | 1.2A | 130mOhm | 80V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
ACMP-5045-302-TCMC 500MA 2LN 3K OHM SMD |
4,896 | 2.18 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 3 kOhms @ 100 MHz | - | 500mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

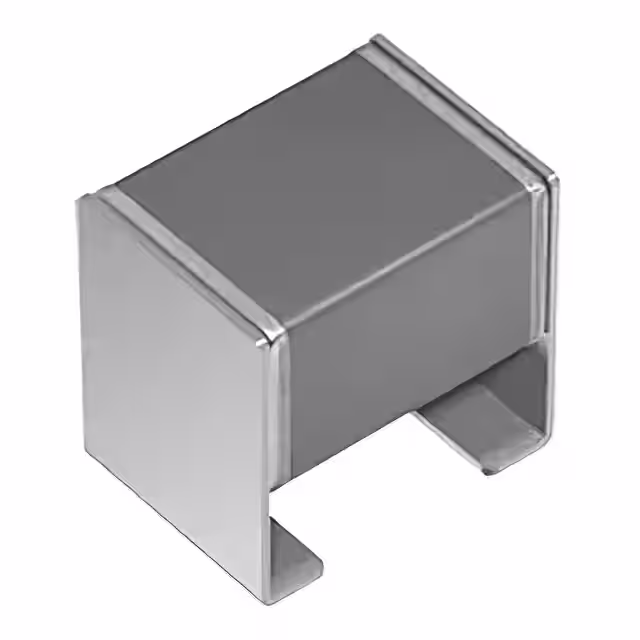

ACT1210R-101-2P-TL00CMC 100UH 150MA 2LN SMD AEC-Q200 |
12,066 | 2.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82793C0474N215CMC 470UH 700MA 2LN SMD AEC-Q200 |
23,659 | 2.54 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 470 µH @ 100 kHz | 700mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82793C0502N201CMC 5UH 1.2A 2LN SMD AEC-Q200 |
15,216 | 2.54 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 5 µH @ 100 kHz | 1.2A | 60mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SRF0504-302YCMC 6UH 500MA 2LN 3KOHM SMD |
11,400 | 1.68 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 100 MHz | 6 µH @ 100 kHz | 500mA | 200mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
