Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACM2012-121-2P-T001CMC 370MA 2LN 120 OHM SMD |
5,169 | 1.65 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 220mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|

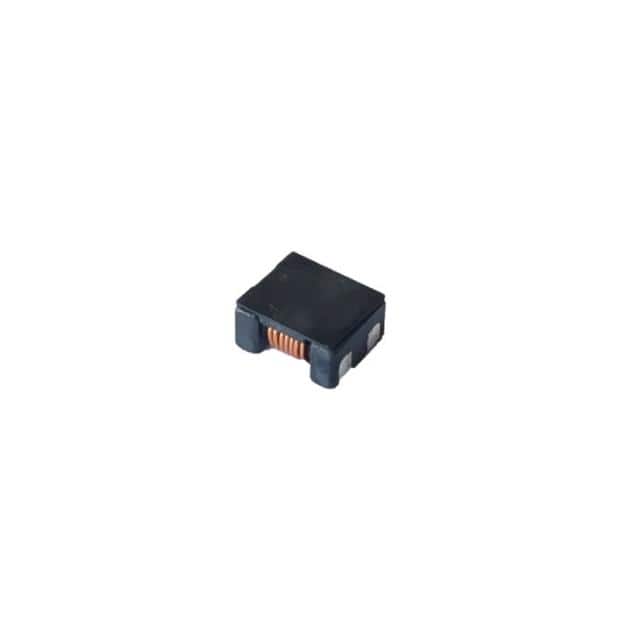

ECMS1V0704-451-RCMC 5A 2LN 450 OHM SMD |
2,854 | 1.09 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 450 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SRF3225TABM-201YCMC 200UH 70MA 2LN 10KOHM SMD |
870 | 1.15 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 10 kOhms @ 10 MHz | 200 µH @ 100 kHz | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ECMS1V0704-102-RCMC 3A 2LN 1.02K OHM SMD |
759 | 1.07 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.02 kOhms @ 100 MHz | - | 3A | 17mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg)
|
744231061CMC 400MA 2LN 67OHM SMD AEC-Q200 |
4,132 | 1.13 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ECMS1V0704-141-RCMC 9A 2LN 140 OHM SMD |
3,093 | 1.09 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 140 Ohms @ 100 MHz | - | 9A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744231261CMC 300MA 2LN 260OHM SMD AECQ200 |
1,024 | 1.13 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PCMF3HDMI2SZCMC 6LN SMD ESD |
28,640 | 1.15 |
|
Datasheet |
15-UFBGA, WLCSP | Signal Line | 6 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
DR331-475BECMC 4.7MH 200MA 2LN SMD |
181,229 | 1.19 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 4.7 mH @ 100 kHz | 200mA | 700mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
DR331-113BECMC 11UH 500MA 2LN SMD |
22,370 | 1.19 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 11 µH @ 100 kHz | 500mA | 120mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
DR331-225BECMC 2.2MH 300MA 2LN SMD |
9,687 | 1.19 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 2.2 mH @ 100 kHz | 300mA | 700mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
DR331-253AECMC 25UH 500MA 2LN SMD |
8,210 | 1.19 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 25 µH @ 100 kHz | 500mA | 200mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
.jpg)
|
DLW31SH222SQ2LCMC 80MA 2LN 2.2KOHM SMD AECQ200 |
35,264 | 1.17 |
|
Datasheet |
1206 (3216 Metric) | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 80mA | 1.92Ohm | 32V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW31SN601SQ2LCMC 260MA 2LN 600 OHM SMD |
5,254 | 1.12 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 260mA | 800mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW31SN261SQ2LCMC 310MA 2LN 260 OHM SMD |
3,882 | 1.12 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 310mA | 500mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DR331-474BECMC 470UH 500MA 2LN SMD |
126 | 1.19 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 470 µH @ 100 kHz | 500mA | 280mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
DLW5ATN112MQ2LCMC 2A 2LN 1.1K OHM SMD |
680 | 1.57 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.1 kOhms @ 100 MHz | - | 2A | 56mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF4532TA-282YCMC 10UH 2800 OHM 0.9A SMD |
1,314 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 100 MHz | 10 µH @ 100 kHz | 900mA | 350mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82789S0223N002CMC 22UH 250MA 2LN SMD AEC-Q200 |
43,950 | 1.93 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 580mOhm | 80V | 42V | -55°C ~ 125°C | - | - | - | - | - |
|
|
PCMF3USB3B/CZCMC 6LN SMD ESD |
1,027 | 1.17 |
|
Datasheet |
15-UFBGA, WLCSP | Signal Line | 6 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
