Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCU00453226104TT2CMC 100UH 150MA 2LN SMD AEC-Q200 |
10,788 | 1.52 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 50V | - | -50°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
|
ECMT1V1717S-100-RCMC 10MH 1.2A 2LN TH |
8,893 | 2.75 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1.2A | 600mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
DLW5BTM251TQ2LCMC 5A 2LN 250 OHM SMD |
2,581 | 1.23 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 250 Ohms @ 100 MHz | - | 5A | 20mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SU9VF-01250CMC 25MH 100MA 2LN TH |
541 | 1.32 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 100mA | 9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ACM4520V-421-2P-T00CMC 1.4A 2LN 420OHM SMD AEC-Q200 |
1,838 | 1.47 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 420 Ohms @ 100 MHz | - | 1.4A | 55mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744230450CMC 650MA 2LN 45OHM SMD AEC-Q200 |
5,332 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 45 Ohms @ 100 MHz | - | 650mA | 110mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
.jpg)
|
744232601CMC 260MA 2LN 600OHM SMD AECQ200 |
4,103 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 260mA | 800mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744232161CMC 340MA 2LN 160OHM SMD AECQ200 |
3,691 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744232261CMC 310MA 2LN 260OHM SMD AECQ200 |
1,766 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 310mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82789C0223H002CMC 22UH 250MA 2LN SMD AEC-Q200 |
28,747 | 2.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 580mOhm | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACM4520V-231-2P-T00CMC 1.5A 2LN 230OHM SMD AEC-Q200 |
18,931 | 1.47 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 1.5A | 50mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DR334A-105BECMC 1000UH 500MA 2LN 2.8KOHM SMD |
1,582 | 1.41 |
|
Datasheet |
- | - | 2 | 2.8 kOhms @ 1 MHz | 1000 µH @ 100 kHz | 500mA | 400mOhm | 80V | 42V | -40°C ~ 135°C | AEC-Q200 | - | - | - | - |
|
|
DR334A-104AECMC 100UH 500MA 2LN 700OHM SMD |
430 | 1.41 |
|
Datasheet |
- | - | 2 | 700 Ohms @ 3 MHz | 100 µH @ 100 kHz | 500mA | 100mOhm | 80V | 42V | -40°C ~ 135°C | AEC-Q200 | - | - | - | - |
|
|
DR334A-474BECMC 470UH 500MA 2LN 2KOHM SMD |
283 | 1.41 |
|
Datasheet |
- | - | 2 | 2 kOhms @ 2 MHz | 470 µH @ 100 kHz | 500mA | 280mOhm | 80V | 42V | -40°C ~ 135°C | AEC-Q200 | - | - | - | - |
|
PCMF3USB3S/CZCMC 6LN SMD ESD |
8,755 | 1.32 |
|
Datasheet |
15-UFBGA, WLCSP | Signal Line | 6 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
B82787C0104H002CMC 100UH 150MA 2LN 5.8KOHM SMD |
8,363 | 1.52 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SN5-400CMC 48UH 2A 2LN TH |
1,334 | 2.05 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 48 µH @ 100 kHz | 2A | 58mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|

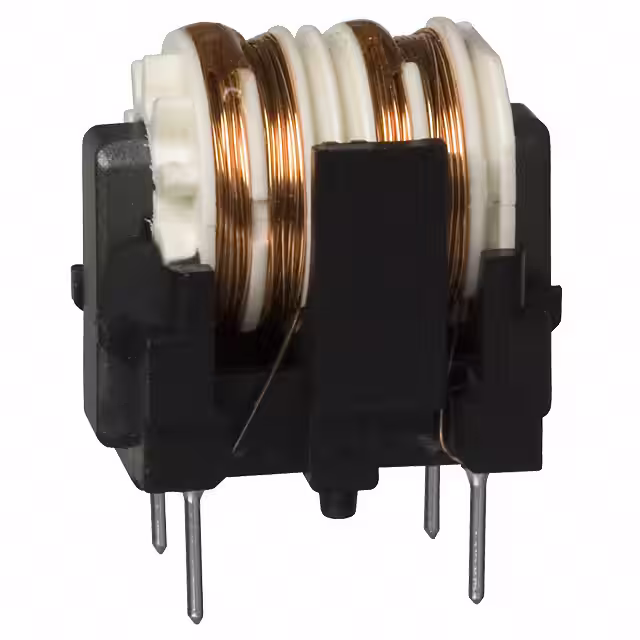

LF2020NP-222CMC 2.2MH 1.3A 2LN TH |
7,628 | 1.77 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1.3A | 240mOhm | - | - | - | - | - | - | - | - |
|
ACMP-5025-101-TCMC 6.5A 2LN 100 OHM SMD |
7,447 | 0.81 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 6.5A | 9mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-5025-251-TCMC 5A 2LN 250 OHM SMD |
2,411 | 1.83 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 250 Ohms @ 100 MHz | - | 5A | 14mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
