Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMT1-1-RCMC 66MH 740MA 2LN TH |
1,208 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 66 mH @ 10 kHz | 740mA | 1.2Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT1-10-RCMC 940UH 6.05A 2LN TH |
3,469 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 940 µH @ 10 kHz | 6.05A | 18mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT1-2-RCMC 49MH 880MA 2LN TH |
4,722 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 49 mH @ 10 kHz | 880mA | 850mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT1-3-RCMC 28MH 1.13A 2LN TH |
4,204 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 28 mH @ 10 kHz | 1.13A | 500mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT1-4-RCMC 21MH 1.37A 2LN TH |
1,856 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 21 mH @ 10 kHz | 1.37A | 350mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT1-6-RCMC 7.5MH 2.27A 2LN TH |
3,665 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 10 kHz | 2.27A | 130mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT1-7-RCMC 4.2MH 2.89A 2LN TH |
3,760 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 2.89A | 80mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT1-8-RCMC 2.4MH 3.85A 2LN TH |
2,806 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 10 kHz | 3.85A | 45mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PL8223TPOWER |
1,749 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.03 mH @ 10 kHz | 9A | 9.75mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8201TCMC 11.6A 2LN SMD |
3,328 | 10.03 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
TF3329B-153Y2R5-01CMC 2.5A 2LN TH |
2,392 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2.5A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF6340TU-102Y20R0-01CMC 20A 3LN TH |
4,976 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | - | 20A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
CMT3-2-RCMC 3.5MH 2.6A 2LN TH |
4,707 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 2.6A | 80mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT3-3-RCMC 2.7MH 3A 2LN TH |
3,608 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 3A | 55mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

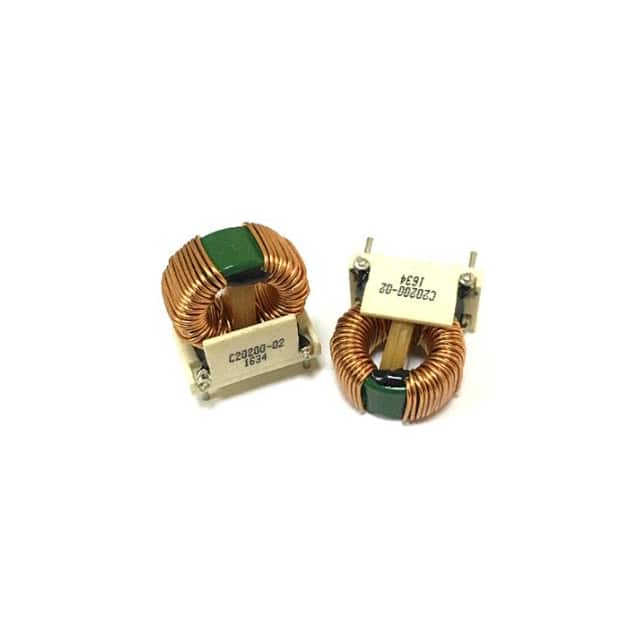

C20200-081,000uH, 10mOhm, 10Amp Max. |
4,946 | 6.70 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-065,000uH, 70mOhm, 3.7Amp Max |
3,691 | 6.60 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 5 mH @ 1 kHz | 3.7A | 70mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-0410,000uH, 170mOhm, 2.4Amp Max. |
2,619 | 6.50 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C20200-072,000uH, 22mOhm, 6.6Amp Max. |
1,021 | 5.60 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CMT-8116-BCMC 50MH 2.3A 2LN TH ESD |
2,920 | 6.45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 50 mH @ 1 kHz | 2.3A | 450mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

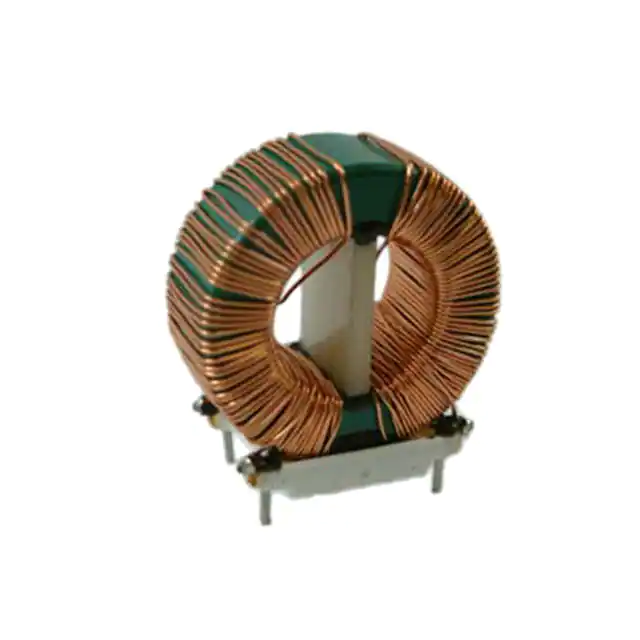

CMT-8117-BCMC 36MH 2.9A 2LN TH ESD |
2,774 | 6.45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
