Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

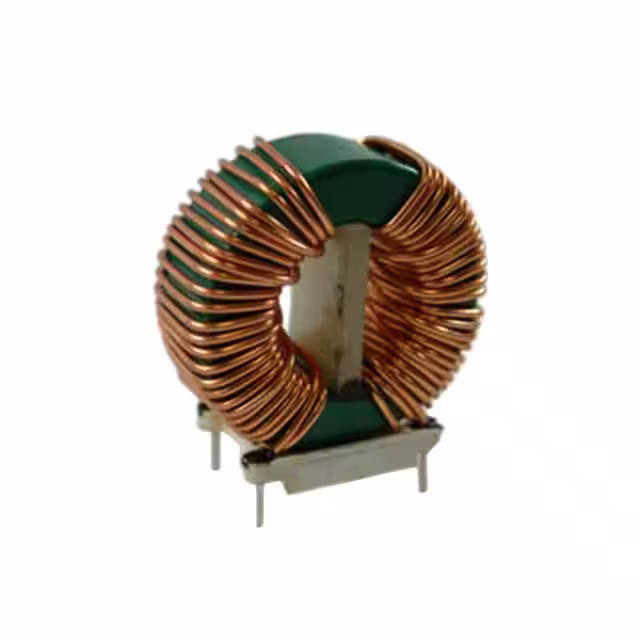

CMT-8118-BCMC 7.3MH 9.3A 2LN TH ESD |
4,112 | 6.45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

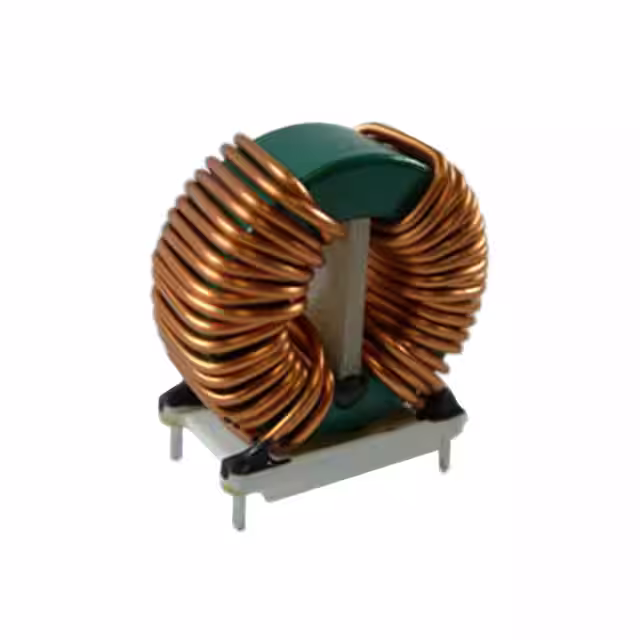

CMT-8119-BCMC 4MH 14.5A 2LN TH ESD |
3,236 | 6.45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8120-BCMC 2.4MH 17A 2LN TH ESD |
2,848 | 6.45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | - | - | - | - |
|

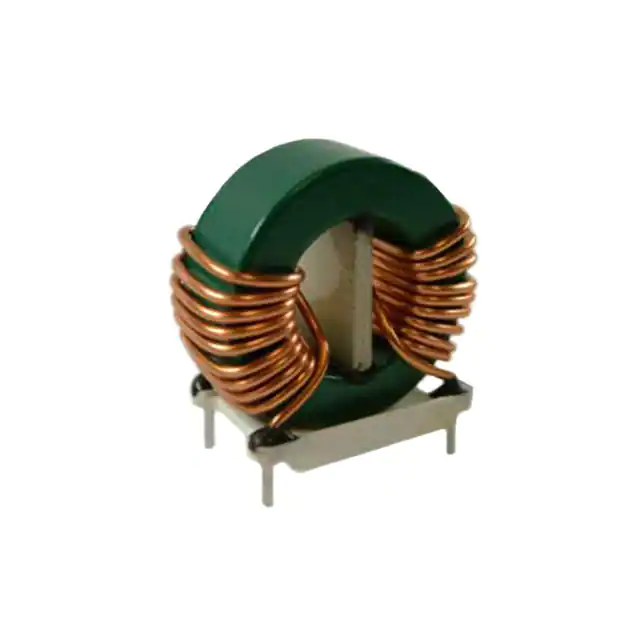

CMT-8121-BCMC 1MH 20A 2LN TH ESD |
3,531 | 6.45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
TF3329B-103Y3R0-01CMC 3A 2LN TH |
4,110 | 9.71 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
PL8202TCMC 9.7A 2LN SMD |
4,959 | 10.32 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 9.7A | 14mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8200NLTCMC 14A 2LN SMD |
3,465 | 10.35 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 14A | 8mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6123X2326123X232 |
1,450 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | 920 Ohms @ 100 kHz | 910 µH @ 100 kHz | 30A | 2.9mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
PL8223NLPOWER |
3,855 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.03 mH @ 10 kHz | 9A | 9.75mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
CMT2-1-RCMC 30MH 1.5A 2LN TH |
1,926 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 1.5A | 350mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT2-10-RCMC 1.6MH 5.75A 2LN TH |
1,065 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 5.75A | 26mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT2-2-RCMC 20MH 1.95A 2LN TH |
2,547 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1.95A | 220mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT2-3-RCMC 12MH 2.45A 2LN TH |
4,542 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 2.45A | 135mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT2-4-RCMC 8MH 2.8A 2LN TH |
2,069 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 2.8A | 100mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT2-5-RCMC 6MH 3.4A 2LN TH |
3,719 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 3.4A | 70mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT2-6-RCMC 4.8MH 3.95A 2LN TH |
3,391 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.8 mH @ 10 kHz | 3.95A | 53mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT2-7-RCMC 3.2MH 4.4A 2LN TH |
4,796 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.2 mH @ 10 kHz | 4.4A | 42mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT2-9-RCMC 2MH 5.45A 2LN TH |
4,807 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 5.45A | 28mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PL8803CMC 1A 2LN SMD |
4,649 | 10.25 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 1A | 450mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8803NLCMC 1A 2LN SMD |
3,824 | 10.25 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 1A | 450mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
