Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMC-01CMC 1.7A 2LN TH |
4,175 | 11.03 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.7A | 80mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
CMT4-1-RCMC 5.4MH 2A 2LN TH |
4,402 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.4 mH @ 10 kHz | 2A | 120mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT4-2-RCMC 3.5MH 2.6A 2LN TH |
4,485 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 2.6A | 80mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT4-3-RCMC 2.7MH 3A 2LN TH |
4,221 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 3A | 55mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT4-4-RCMC 1.3MH 4A 2LN TH |
2,651 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 10 kHz | 4A | 32mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMT4-5-RCMC 920UH 5A 2LN TH |
3,591 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 920 µH @ 10 kHz | 5A | 21mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMF64-3303SMLFCOMMON MODE TRANSFORMER CHOKE |
1,002 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 330 µH @ 10 kHz | 4A | 17mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF64-1503SMLFCOMMON MODE TRANSFORMER CHOKE |
1,239 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 150 µH @ 10 kHz | 5.5A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PL8228NLPOWER |
2,189 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 380 µH @ 10 kHz | 20A | 4.1mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8228POWER |
2,230 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 380 µH @ 10 kHz | 20A | 4.1mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8227NLPOWER |
3,584 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 500 µH @ 10 kHz | 16A | 4.25mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8227POWER |
2,230 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 500 µH @ 10 kHz | 16A | 4.25mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8223POWER |
3,397 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.03 mH @ 10 kHz | 9A | 9.75mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL1930NLTCMC 2LN SMD |
1,294 | 8.38 |
|
Datasheet |
Vertical, 6 Gull Wing | Power Line | 2 | - | - | - | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PL1930TCMC 2LN SMD |
3,282 | 8.38 |
|
Datasheet |
Vertical, 6 Gull Wing | Power Line | 2 | - | - | - | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
T60405S6123X4006123X400 |
3,527 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 4 | 1.5 kOhms @ 100 kHz | 1.61 mH @ 100 kHz | 12A | 9mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
T60405R6128X031CMC 900UH 30A 2LN 900 OHM TH |
2,788 | 13.96 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 900 Ohms @ 100 kHz | 900 µH @ 100 kHz | 30A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

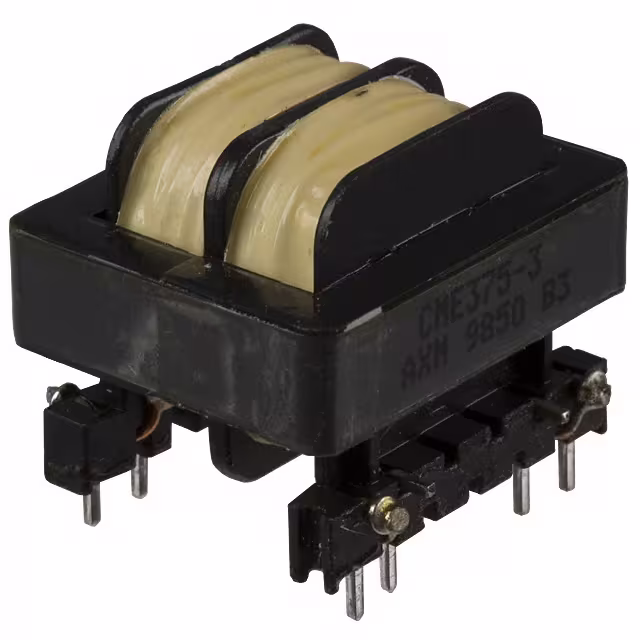

CME375-3CMC 10.9MH 3.5A 2LN TH ESD |
2,363 | 6.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10.9 mH @ 10 kHz | 3.5A | 122mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|

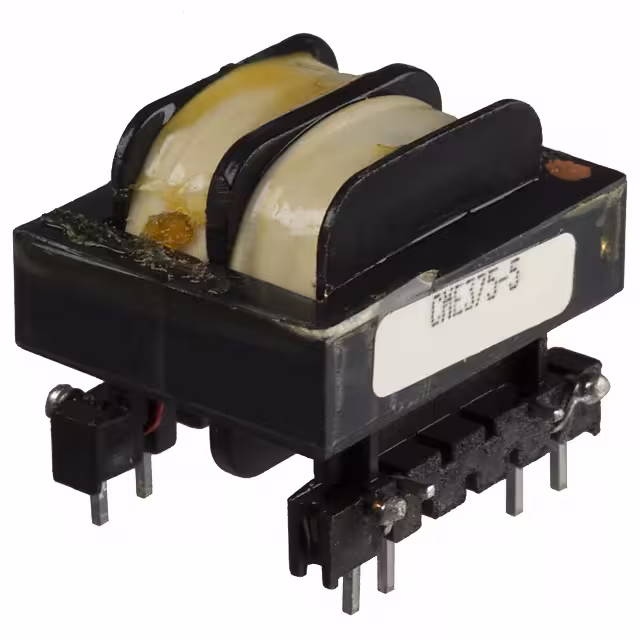

CME375-5CMC 17.8MH 2.7A 2LN TH ESD |
2,450 | 8.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17.8 mH @ 10 kHz | 2.7A | 196mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CME375-6CMC 43.6MH 1.75A 2LN TH ESD |
4,163 | 9.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 43.6 mH @ 10 kHz | 1.75A | 489mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
