Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60405R6128X2266128X226 |
1,856 | 0.00 |
|
- |
Vertical, 4 PC Pin | - | 2 | 3 kOhms @ 100 kHz | 2.8 mH @ 100 kHz | 25A | 3.8mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
PL8201CMC 11.6A 2LN SMD |
4,296 | 10.80 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8201NLCMC 11.6A 2LN SMD |
2,914 | 10.80 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

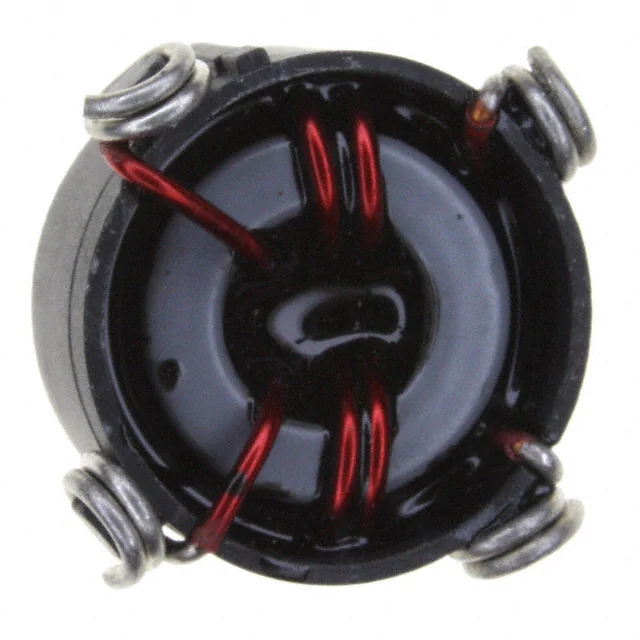

CM6296-104CMC 100UH 9.5A 2LN SMD |
4,682 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 1 kHz | 9.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-154CMC 150UH 9.5A 2LN SMD |
1,667 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 150 µH @ 1 kHz | 9.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-155CMC 1.5MH 2.5A 2LN SMD |
1,290 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.5 mH @ 1 kHz | 2.5A | 90mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-204CMC 200UH 8.5A 2LN SMD |
4,451 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 200 µH @ 1 kHz | 8.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-253CMC 25UH 10A 2LN SMD |
1,384 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 25 µH @ 1 kHz | 10A | 14mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-255CMC 2.5MH 2.2A 2LN SMD |
4,568 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 2.5 mH @ 1 kHz | 2.2A | 162mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-304CMC 300UH 7.5A 2LN SMD |
1,690 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 300 µH @ 1 kHz | 7.5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-454CMC 450UH 6.5A 2LN SMD |
1,744 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 450 µH @ 1 kHz | 6.5A | 24mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-503CMC 50UH 10A 2LN SMD |
2,651 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 50 µH @ 1 kHz | 10A | 14mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296-654CMC 650UH 5.5A 2LN SMD |
3,025 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 650 µH @ 1 kHz | 5.5A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM6296R-155CMC 1.5MH 2.5A 2LN SMD |
2,171 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.5 mH @ 1 kHz | 2.5A | 90mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296R-255CMC 2.5MH 2.2A 2LN SMD |
4,779 | 9.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 2.5 mH @ 1 kHz | 2.2A | 162mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
C201388A-802Nanocrystal 8.0mH 110.0mOhm 1.8A |
2,506 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 1.8A | 110mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
T60405R6128X230CMC 1.48MH 30A 2LN 1.62K OHM TH |
4,385 | 15.44 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.62 kOhms @ 100 kHz | 1.48 mH @ 100 kHz | 30A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
DFK-33-0002CMC 3A 2LN TH |
2,588 | 10.75 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 3A | 150mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
|
|
CM6149R-125CMC 1.2MH 300MA 2LN SMD |
2,784 | 10.35 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.2 mH @ 10 kHz | 300mA | 350mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6149R-155CMC 1.5MH 240MA 2LN SMD |
1,159 | 10.35 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.5 mH @ 10 kHz | 240mA | 500mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
