Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF25XV-100-1R3A016JVCMC 6.3MH 10A 2LN TH AEC-Q200 |
103 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.3 mH @ 100 kHz | 10A | 10.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-240-2R0A006JHCMC 900UH 24A 2LN TH AEC-Q200 |
120 | 12.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 24A | 1.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82726E6283B040CMC 1MH 28A 2LN TH |
140 | 14.53 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 28A | 2.1mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|

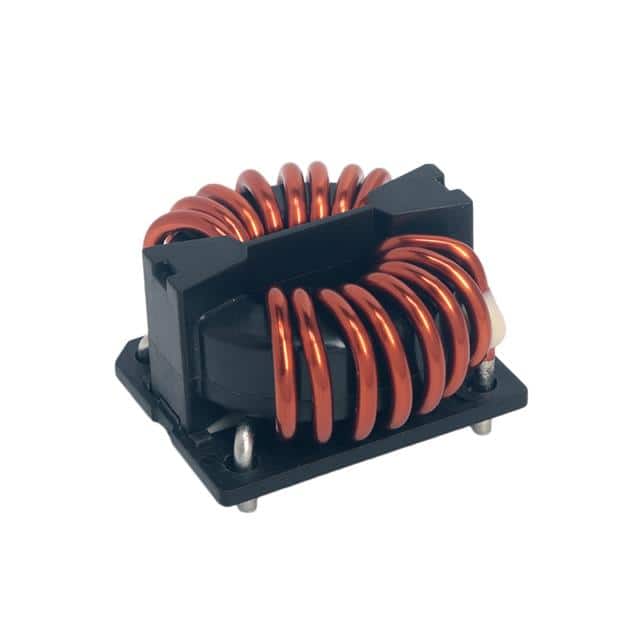

SCF29XV-250-2R2A008JHCMC 700UH 25A 2LN TH AEC-Q200 |
239 | 13.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 25A | 1.68mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-050-1R0A044JHCMC 21.2MH 5A 2LN TH AEC-Q200 |
223 | 13.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 21.2 mH @ 100 kHz | 5A | 39.9mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-300-2R4A005JHCMC 270UH 30A 2LN TH AEC-Q200 |
143 | 13.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 270 µH @ 100 kHz | 30A | 0.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

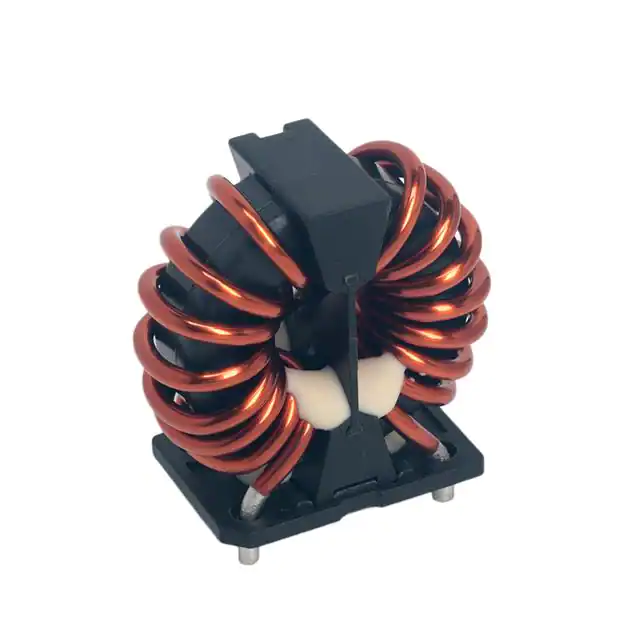

SCF29XV-050-1R0A044JVCMC 21.2MH 5A 2LN TH AEC-Q200 |
104 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 21.2 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82747E6353A040CMC 570UH 35A 3LN TH |
270 | 16.11 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 570 µH @ 100 kHz | 35A | 1.4mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
B82747S4303A041CMC 820UH 35A 3LN TH |
112 | 15.78 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 820 µH @ 100 kHz | 35A | 1.4mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
B82726E6203B041CMC 2.7MH 20A 2LN TH |
336 | 15.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 20A | 4.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
CM6350R-335CMC 3.3MH 400MA 2LN SMD |
790 | 13.34 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 3.3 mH @ 10 kHz | 400mA | 550mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

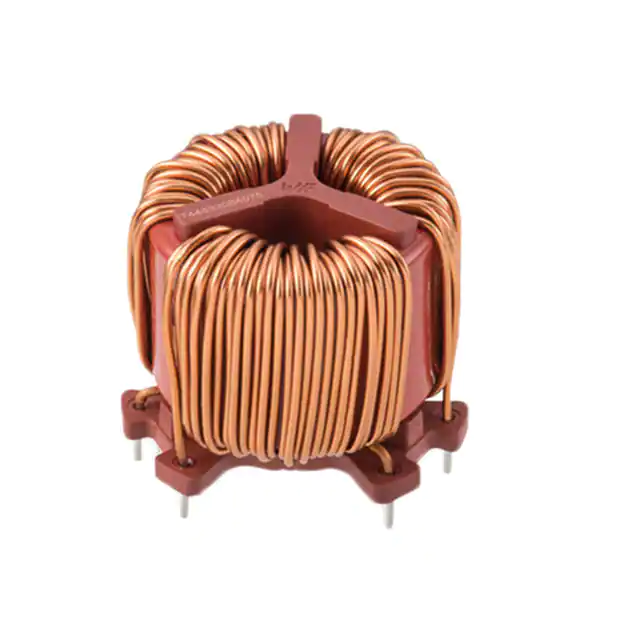

744833011180CMC 1.1MH 18A 3LN TH |
135 | 20.75 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 1.1 mH @ 10 kHz | 18A | 7mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-20-400CMC 4MH 20A 2LN TH |
132 | 14.61 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 20A | 13mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
CM6460R-505CMC 5MH 700MA 2LN SMD |
162 | 16.42 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 5 mH @ 10 kHz | 700mA | 320mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6560R-184CMC 180UH 7A 2LN SMD |
8,878 | 17.15 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 180 µH @ 10 kHz | 7A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6560R-754CMC 750UH 3A 2LN SMD |
253 | 17.15 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 10 kHz | 3A | 34mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

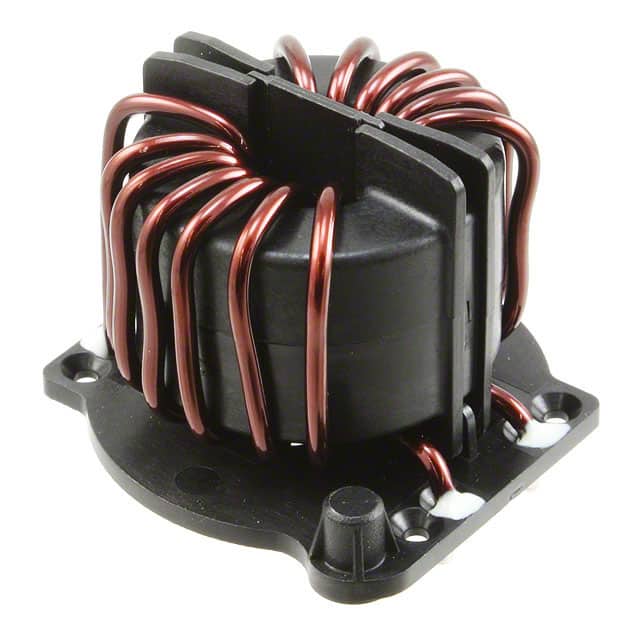

RB6122-16-1M0CMC 1MH 16A 2LN TH |
173 | 14.12 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 400 Hz | 16A | 4.8mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

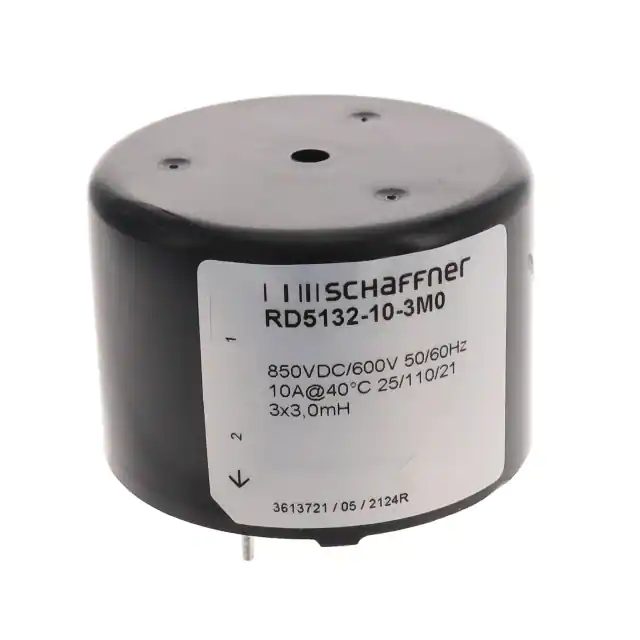

RD5132-10-3M0CMC 3MH 10A 3LN TH |
709 | 14.26 |
|
Datasheet |
- | Power Line | 3 | - | 3 mH @ 400 Hz | 10A (Typ) | 17.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
CM6460-504CMC 500UH 3.3A 2LN SMD |
1,804 | 16.42 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 10 kHz | 3.3A | 24mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

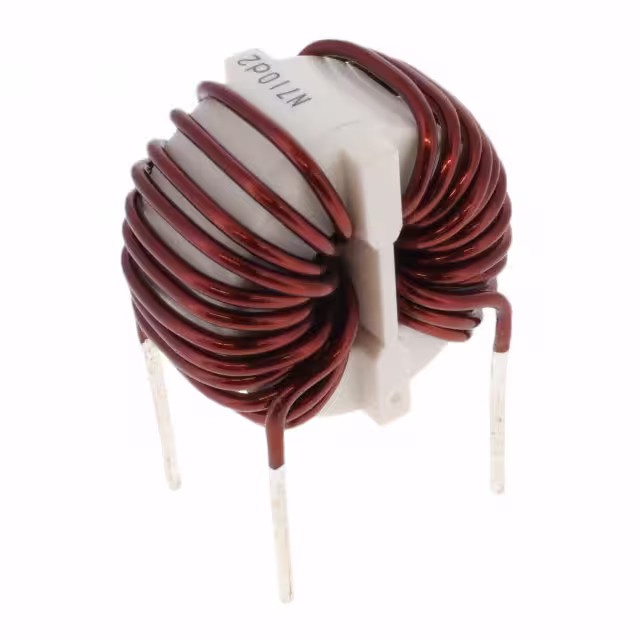

SCF27-15-700CMC 7MH 15A 2LN TH |
197 | 28.16 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 7 mH @ 100 kHz | 15A | 5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
