Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB8522-16-3M0CMC 3MH 16A 2LN TH |
204 | 18.66 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 3 mH @ 400 Hz | 16A | 8.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

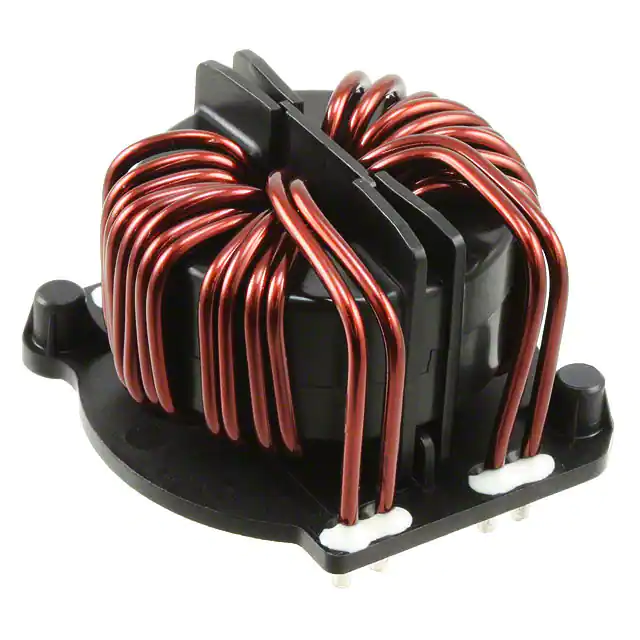

RB6122-50-0M3CMC 250UH 50A 2LN TH |
367 | 19.35 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 250 µH @ 400 Hz | 50A | 0.9mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

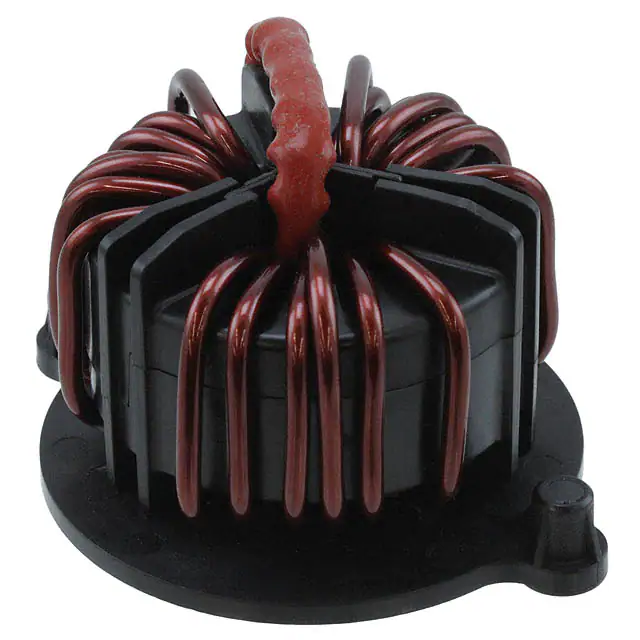

RB6132-25-0M5CMC 470UH 25A 3LN TH |
635 | 20.44 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 470 µH @ 400 Hz | 25A | 2.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

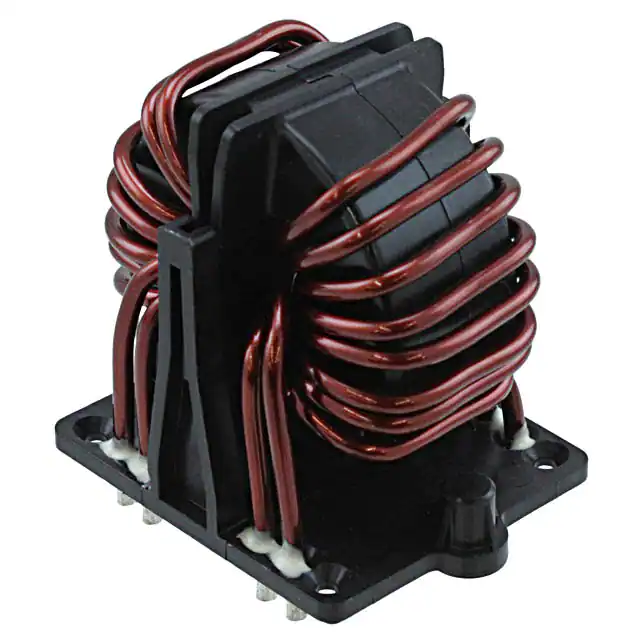

RB6522-50-0M3CMC 250UH 50A 2LN TH |
120 | 20.42 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 250 µH @ 400 Hz | 50A | 0.9mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF27-15-700HCMC 7MH 15A 2LN TH |
143 | 24.97 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 15A | 8.5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CM1011R-255CMC 2.5MH 2.8A 2LN TH |
173 | 22.02 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 2.5 mH @ 1 kHz | 2.8A | 73mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

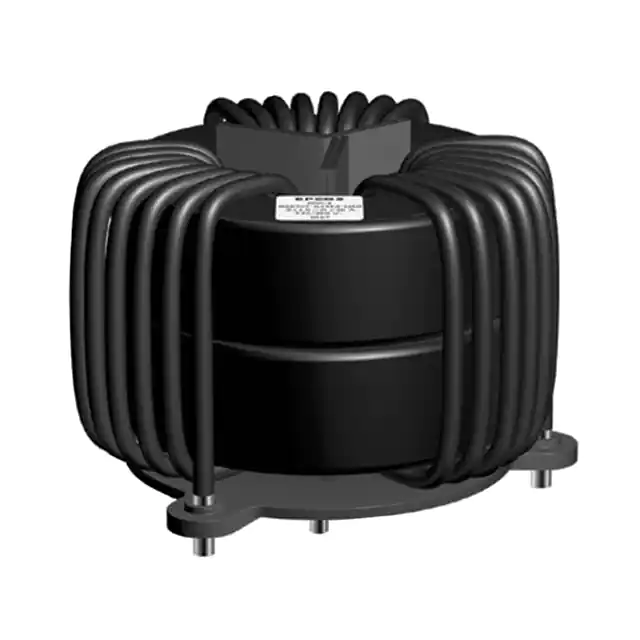

B82747S4423N020CMC 1.5MH 42A 3LN TH |
179 | 30.25 |
|
Datasheet |
Radial - 6 Leads | Power Line | 3 | - | 1.5 mH @ 10 kHz | 42A | 2.6mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | - | - | - | - |
|
EXC-14CT500UCMC 100MA 2LN 50 OHM SMD |
25,332 | 0.17 |
|
Datasheet |
0302 (0806 Metric) | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 2.3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

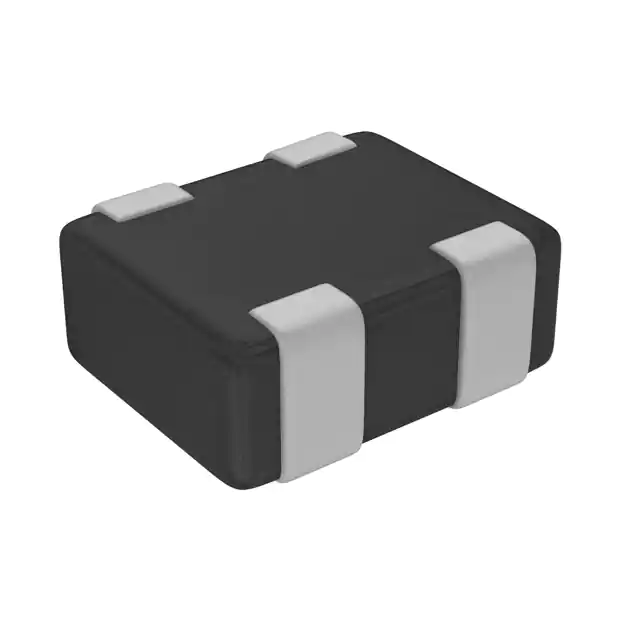

DLM0QSN650HY2DCMC 100MA 2LN 65 OHM SMD |
32,498 | 0.17 |
|
Datasheet |
0202 (0605 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 4.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
BWCU00201212301M02CMC 290MA 2LN 300 OHM SMD |
2,438 | 0.07 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 290mA | 400mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00201212181M02CMC 330MA 2LN 180 OHM SMD |
1,553 | 0.07 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|

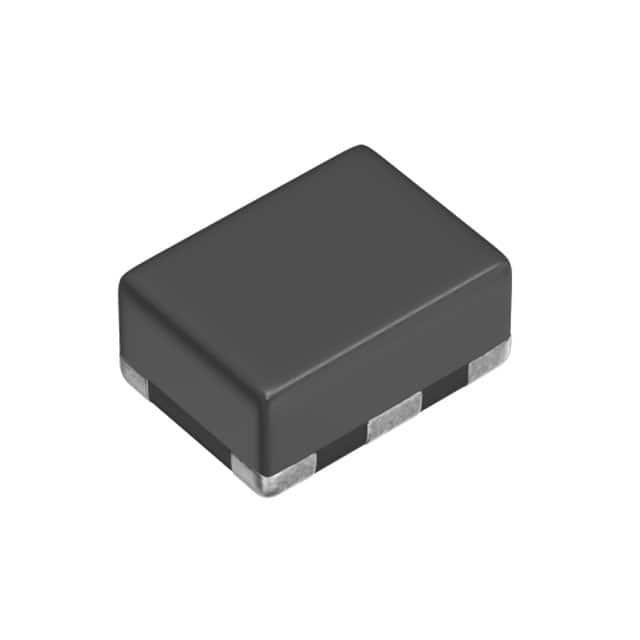

TCM0906C-400-3P-T200CMC 100MA 3LN 40 OHM SMD |
10,440 | 0.23 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 3 | 40 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|
EXC-X4CE600UCMC 100MA 2LN 60 OHM SMD |
9,199 | 0.44 |
|
Datasheet |
0202 (0505 Metric) | Signal Line | 2 | 60 Ohms @ 100 MHz | - | 100mA | 2.4Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-X4CH350XCMC 100MA 2LN 35 OHM SMD |
1,660 | 0.51 |
|
Datasheet |
0202 (0505 Metric) | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 2.7Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
EXC-14CG350UCMC 100MA 2LN 35 OHM SMD |
8,450 | 0.42 |
|
Datasheet |
0302 (0805 Metric) | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 2Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SDCW2012H-2-900TFCMC 280MA 2LN 90 OHM SMD |
2,000 | 0.41 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 400mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDCW2012-2-181TFCMC 330MA 2LN 180 OHM SMD |
1,913 | 0.41 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM-21H-121-TCMC 280MA 2LN 120 OHM SMD |
1,902 | 0.45 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 280mA | 400mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
MCZ1210AD900T002CMC 500MA 2LN 90 OHM SMD |
1,763 | 0.53 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 500mA | 200mOhm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM-21-670M-TCMC 400MA 2LN 67 OHM SMD |
2,000 | 0.44 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
