Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XZM-CT80A01CURRENT SENSE TRANSFORMER |
1,152 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MR-1-P5CURR SENSE XFMR 30A TH |
145 | 5.80 |
|
Datasheet |
MR | Bulk | Active | 60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | - | 25Ohm | - | Through Hole | 0.858" L x 0.760" W (21.80mm x 19.30mm) | 0.335" (8.50mm) | PC Pin |
|
|
SCS-8-3-30T-TRSMD CURRENT TRANSFORMER 0.50MH-T |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 500 µH | - | 30:1 | - | 3.9mOhm Primary, 320mOhm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
SCS-8-3-20T-TRSMD CURRENT TRANSFORMER 0.22MH-T |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 220 µH | - | 20:1 | - | 3.9mOhm Primary, 210mOhm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
SCS-8-3-40T-TRSMD CURRENT TRANSFORMER 0.88MH-T |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 880 µH | - | 40:1 | - | 3.9mOhm Primary, 500mOhm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
SCS-8-3-200T-TRSMD CURRENT TRANSFORMER 22.00MH- |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 22 mH | - | 200:1 | - | 3.9mOhm Primary, 8Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
SCS-8-3-60T-TRSMD CURRENT TRANSFORMER 2.00MH-T |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 2 mH | - | 60:1 | - | 3.9mOhm Primary, 810mOhm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
SCS-8-3-70T-TRSMD CURRENT TRANSFORMER 2.70MH-T |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 2.7 mH | - | 70:1 | - | 3.9mOhm Primary, 1Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
SCS-8-3-100T-TRSMD CURRENT TRANSFORMER 5.60MH-T |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 5.6 mH | - | 100:1 | - | 3.9mOhm Primary, 2Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
SCS-8-3-50T-TRSMD CURRENT TRANSFORMER 1.40MH-T |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 1.4 mH | - | 50:1 | - | 3.9mOhm Primary, 650mOhm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
SCS-8-3-125T-TRSMD CURRENT TRANSFORMER 8.70MH-T |
350 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 8.7 mH | - | 125:1 | - | 3.9mOhm Primary, 5.2Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
RL-10950CURRENT SENSE XFMR 50:1 2.75MH S |
300 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
055660TRANSF CRNT SENSE 2000:1 120H |
119 | 0.00 |
|
Datasheet |
0556xx, Kaschke | Tray | Active | 50Hz | Invasive | - | 120 H | 12.7kVµS | 2000:1 | - | 100Ohm | - | Through Hole | 1.063" L x 0.709" W (27.00mm x 18.00mm) | 0.689" (17.50mm) | PC Pin |
|
CT-07-50CURR SENSE XFMR 500:1 10A TH |
148 | 6.31 |
|
Datasheet |
CT | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | 500:1 | 500:1 | - | - | Through Hole | 0.748" L x 0.394" W (19.00mm x 10.00mm) | 0.795" (20.20mm) | PC Pin |
|
|
VST16/8EE-201S1C2TRANSFORMER |
600 | 0.00 |
|
Datasheet |
VST | Tape & Reel (TR) | Active | - | Invasive | 40 A | 42.2 mH | - | 1:200 | 200:1 | 0.7mOhm Primary, 10Ohm Secondary | - | Surface Mount | 0.776" L x 0.689" W (19.70mm x 17.50mm) | 0.425" (10.80mm) | Gull Wing |
|
|
VST16/8EE-200S1C2TRANSFORMER |
592 | 0.00 |
|
Datasheet |
VST | Tape & Reel (TR) | Active | - | Invasive | 40 A | 10 mH | - | 1:100 | 100:1 | 0.7mOhm Primary, 2.25Ohm Secondary | - | Surface Mount | 0.776" L x 0.689" W (19.70mm x 17.50mm) | 0.425" (10.80mm) | Gull Wing |
|
|
CBCT-210-1-CECORE BALANCE CURRENT TRANSFORMER |
3,011 | 0.00 |
|
Datasheet |
CBCT | Box | Active | - | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Panel Mount | 10.551" L x 2.165" W (268.00mm x 55.00mm) | 10.630" (270.00mm) | Terminal Block |
|

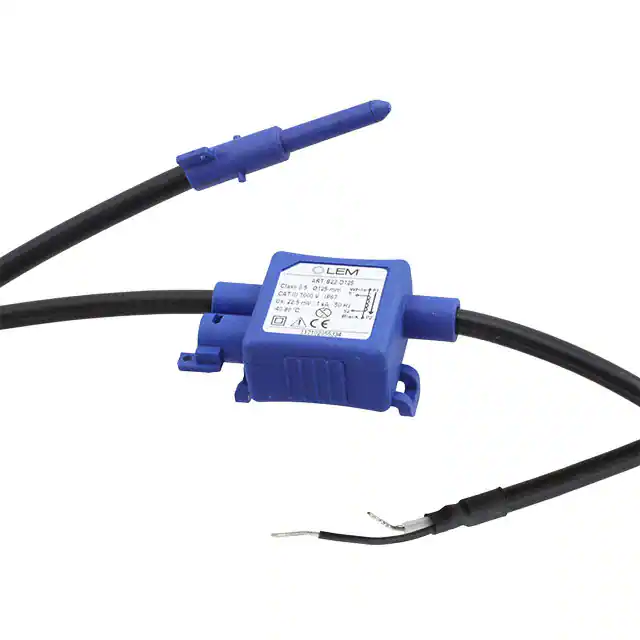

ART-B22-D125CURR SENSE XFMR FLEXIBLE COIL |
157 | 123.49 |
|
Datasheet |
ART | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | - | 258 µH | - | Rogowski Coil | - | 81Ohm | - | Free Hanging (In-Line) | 2.205" L x 1.326" W (56.01mm x 33.69mm) | 0.744" (18.91mm) | Wire Leads |
|
ART-B22-D175CURR SENSE XFMR FLEXIBLE COIL |
219 | 130.20 |
|
Datasheet |
ART | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | - | 343 µH | - | Rogowski Coil | - | 105Ohm | - | Free Hanging (In-Line) | 2.205" L x 1.326" W (56.01mm x 33.69mm) | 0.744" (18.91mm) | Wire Leads |
|

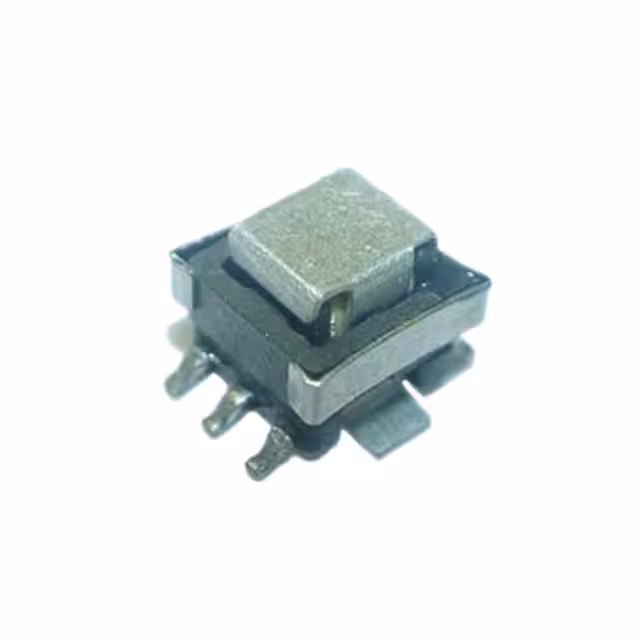

CSE5-100701CURR SENSE XFMR 1:70 10A SMD |
388 | 3.48 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 250kHz Min | Invasive | 10 A | 980 µH | - | 1:70 | - | 4.75Ohm Secondary | - | Surface Mount | 0.272" L x 0.303" W (6.90mm x 7.70mm) | 0.210" (5.33mm) | Gull Wing |
