Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78419A2289A003CURR SENSE XFMR 1:70 SMD |
3,511 | 7.12 |
|
Datasheet |
B78419 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 3 mH | - | 1:70 | - | 0.5mOhm Primary, 2.1Ohm Secondary | - | Surface Mount | 0.504" L x 0.535" W (12.80mm x 13.60mm) | 0.567" (14.40mm) | Gull Wing |
|

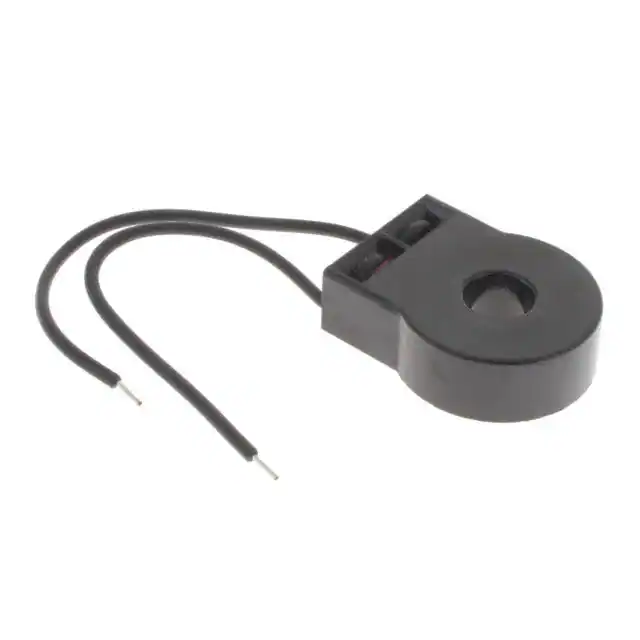

CT-06-75CURR SENSE XFMR TH |
1,809 | 9.85 |
|
Datasheet |
CT | Tray | Active | - | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Through Hole | 0.709" L x 0.280" W (18.00mm x 7.10mm) | 0.494" (22.40mm) | PC Pin |
|
CCX-1100CURR SENSE XFMR 1:2500 100A TH |
3,065 | 12.60 |
|
Datasheet |
CCX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 100 A | - | - | 1:2500 | - | 160Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
SPCT 50/30 125/5 A VA 1.25 CL 1-CU-ROHSCURR SENSE XFMR 125A DIN RAIL |
2,246 | 13.89 |
|
Datasheet |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 125 A | - | - | - | 125:5 | - | - | DIN Rail | 1.969" L x 1.693" W (50.00mm x 43.00mm) | 2.953" (75.00mm) | Terminal Block |
|
SPCT 50/30 80/5 A VA 1 CL 1-CU-ROHSCURR SENSE XFMR 80A DIN RAIL |
3,736 | 13.89 |
|
Datasheet |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 80 A | - | - | - | 80:5 | - | - | DIN Rail | 1.969" L x 1.693" W (50.00mm x 43.00mm) | 2.953" (75.00mm) | Terminal Block |
|
|
CCX-1150CURR SENSE XFMR 1:2500 150A TH |
3,159 | 14.60 |
|
Datasheet |
CCX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | 1:2500 | - | 135Ohm | - | Through Hole | 1.500" L x 0.626" W (38.10mm x 15.90mm) | 1.500" (38.10mm) | PC Pin |
|
SPCT 62/40 160/5 A VA 3 CL 1-CU-ROHSCURR SENSE XFMR 160A DIN RAIL |
4,877 | 16.44 |
|
Datasheet |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 160 A | - | - | - | 160:5 | - | - | DIN Rail | 2.441" L x 1.811" W (62.00mm x 46.00mm) | 3.169" (80.50mm) | Terminal Block |
|
SPCT 62/40 125/5 A VA 1 CL 1-CU-ROHSCURR SENSE XFMR 125A DIN RAIL |
4,748 | 16.44 |
|
Datasheet |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 125 A | - | - | - | 125:5 | - | - | DIN Rail | 2.441" L x 1.811" W (62.00mm x 46.00mm) | 3.169" (80.50mm) | Terminal Block |
|
MR-3CURR SENSE XFMR 60A CHAS MNT |
1,004 | 18.56 |
|
Datasheet |
MR | Bulk | Active | 60Hz | Non-Invasive (Solid Core) | 60 A | - | - | - | - | 30Ohm | - | Chassis Mount | 1.201" L x 1.102" W (30.50mm x 28.00mm) | 0.413" (10.50mm) | Wire Leads |
|
SPCT 62/30 75/5 A VA 1 CL 3-CU-ROHSCURR SENSE XFMR 75A DIN RAIL |
4,002 | 23.12 |
|
Datasheet |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 75 A | - | - | - | 75:5 | - | - | DIN Rail | 2.441" L x 1.811" W (62.00mm x 46.00mm) | 3.169" (80.50mm) | Terminal Block |
|

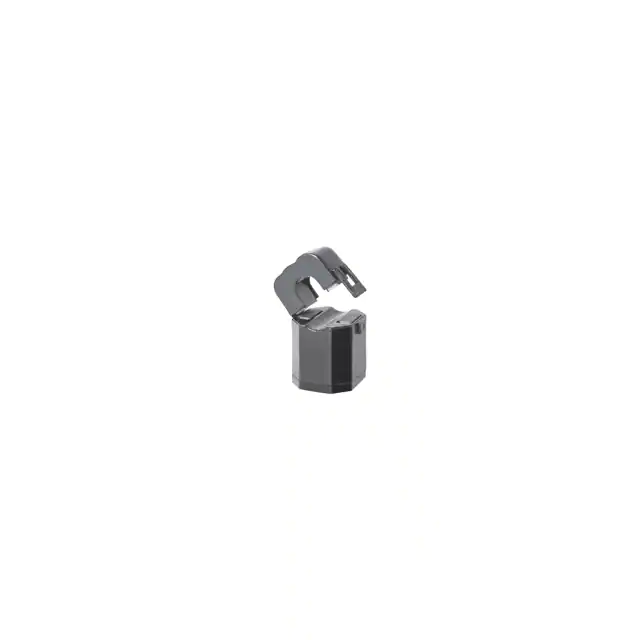

CTV1X60A333MVCURR SENSE XFMR 60A IN-LINE |
2,923 | 56.00 |
|
Datasheet |
- | Box | Active | - | Non-Invasive (Split Core) | 60 A | - | - | - | - | - | - | Free Hanging (In-Line) | 1.220" L x 1.102" W (31.00mm x 28.00mm) | 1.575" (40.00mm) | Wire Leads |
|
855-305/200-501CURR SENSE XFMR 200A CHAS MNT |
2,833 | 93.00 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|

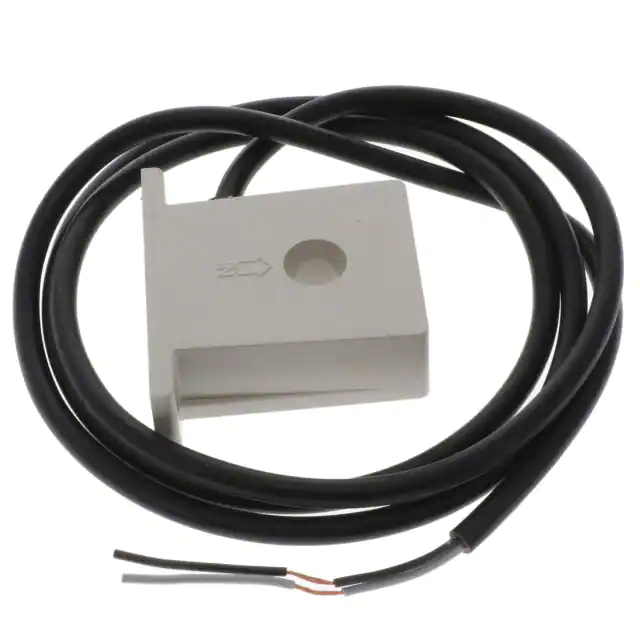

MI5CURR SENSE XFMR 5A CHAS MNT |
1,551 | 118.00 |
|
Datasheet |
- | Bag | Active | 40Hz ~ 1kHz | Non-Invasive (Solid Core) | 5 A | - | - | - | - | - | - | Chassis Mount | 2.047" L x 0.630" W (52.00mm x 16.00mm) | 1.772" (45.00mm) | Wire Leads |
|

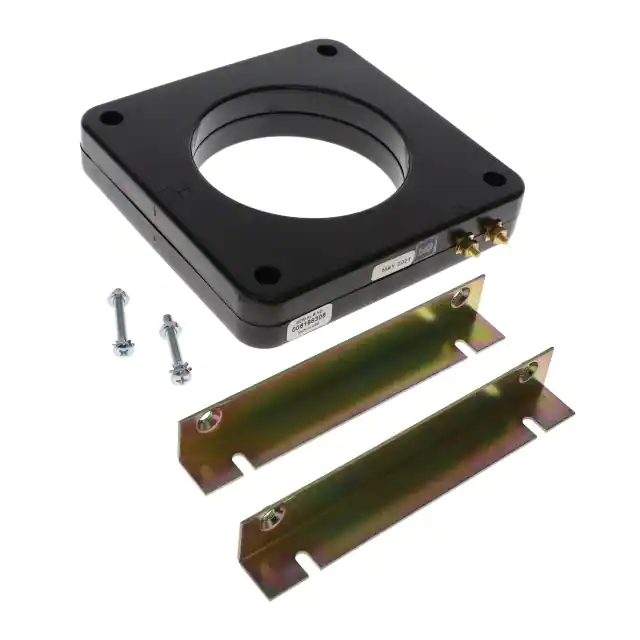

170SHT-501-ECURR SENSE XFMR CHAS MNT |
4,394 | 267.81 |
|
- |
CT | Bulk | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | 500:5 | - | - | Chassis Mount | 0.265" L x 0.265" W (6.73mm x 6.73mm) | 0.120" (3.05mm) | Stud |
|
TCD12BS32AECURR SENSE XFMR 21A DIN RAIL |
2,518 | 701.00 |
|
Datasheet |
- | Box | Active | - | Non-Invasive (Split Core) | 21 A | - | - | - | - | - | - | DIN Rail | 2.283" L x 8.701" W (58.00mm x 221.00mm) | 1.929" (49.00mm) | - |
|
53030CCURR SENSE XFMR 1:30 10A SMD |
1,000 | 0.73 |
|
Datasheet |
5300 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 180 µH | - | 1:30 | - | 7mOhm Primary, 850mOhm Secondary | - | Surface Mount | 0.283" L x 0.327" W (7.20mm x 8.30mm) | 0.213" (5.40mm) | Gull Wing |
|
|
53040CCURR SENSE XFMR 1:40 10A SMD |
1,000 | 0.73 |
|
Datasheet |
5300 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 320 µH | - | 1:40 | - | 7mOhm Primary, 1.1Ohm Secondary | - | Surface Mount | 0.283" L x 0.327" W (7.20mm x 8.30mm) | 0.213" (5.40mm) | Gull Wing |
|
PA1005.070QNLCURR SENSE XFMR 1:70 20A SMD |
560 | 2.07 |
|
Datasheet |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 980 µH | - | 1:70 | - | 0.75mOhm Primary, 4.75Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.070QNLTCURR SENSE XFMR 1:70 20A SMD |
900 | 1.14 |
|
Datasheet |
PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 980 µH | - | 1:70 | - | 0.75mOhm Primary, 4.75Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PMS6322.100NLTTRANSF CURRENT SENSE 1:100 50A |
4,108 | 0.00 |
|
Datasheet |
PMS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 4.5 mH | - | 1:100 | - | 500µOhm Primary, 2.6Ohm Secondary (Max) | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.295" (7.50mm) | Gull Wing |
