Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECST1V0805-1020-RCURR SENSE XFMR 20:1 10A SMD |
2,378 | 2.73 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 80 µH | - | 20:1 | - | 700mOhm Primary, 400mOhm Secondary Max | - | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
|
ECST1V0805-1125-RCURR SENSE XFMR 125:1 10A SM |
1,837 | 2.73 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 3 mH | - | 125:1 | - | 700mOhm Primary, 11.5Ohm Secondary Max | - | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
AP-2500CURR SENSE XFMR 15A T/H |
1,053 | 3.16 |
|
Datasheet |
AP | Tray | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2500:1 | 330Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
PMS9494.150NLTXFMR SENSE SMT EE8.5 30A 150:1 |
2,753 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Preliminary | 20kHz ~ 1MHz | Invasive | 30 A | 5 mH | - | 1.50:150 | 150:1.50 | 0.35mOhm Primary, 8.2Ohm Secondary | - | Surface Mount | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.283" (7.20mm) | Gull Wing |
|
CST25-0500CURR SENSE XFMR 1:500 25A TH |
1,609 | 1.92 |
|
Datasheet |
CST | Tube | Active | 50kHz ~ 500kHz | Invasive | 25 A | 470 mH | 1750VµS | 1:500 | - | 16Ohm | - | Through Hole | 0.669" L x 0.591" W (17.00mm x 15.00mm) | 0.472" (12.00mm) | PC Pin |
|
|
CST25-1000CURR SENSE XFMR 1:1000 25A TH |
2,786 | 0.00 |
|
Datasheet |
CST | Bulk | Active | 50kHz ~ 500kHz | Invasive | 25 A | 1.9 H | - | 1:1000 | - | 50Ohm | - | Through Hole | 0.669" L x 0.591" W (17.00mm x 15.00mm) | 0.472" (12.00mm) | PC Pin |
|
|
T60404E4627X0014627X001 |
4,102 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 200 A | 24.6 H | - | 1:1000 | 1000:1 | 14.2Ohm | - | Free Hanging (In-Line) | 1.181" L x 0.689" W (30.00mm x 17.50mm) | 1.201" (30.50mm) | Wire Leads |
|
|
ECSTA1V0805-1030-RCURR SENSE XFMR 30:1 10A SMD |
3,152 | 3.02 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 180 µH | - | 30:1 | - | 700mOhm Primary, 870mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|

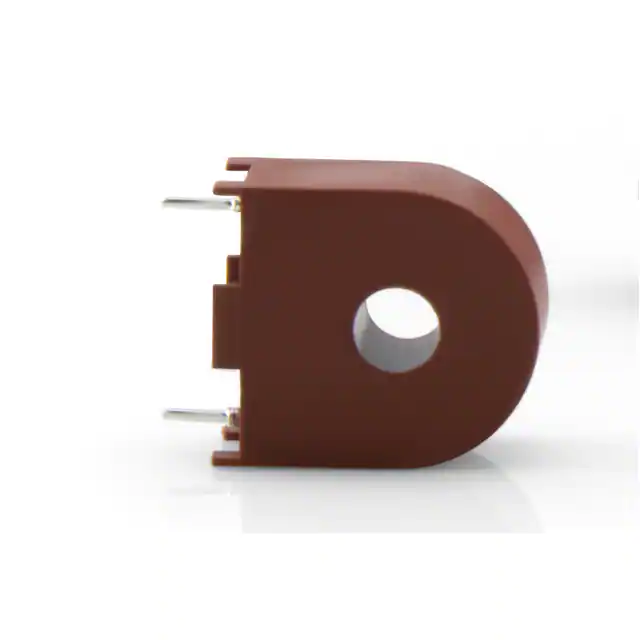

T60404E4658X039CURR SENSE XFMR 1500:1 6A TH |
2,456 | 0.00 |
|
Datasheet |
- | Box | Active | 50Hz | Non-Invasive (Solid Core) | 6 A | 8 H | - | 1:1500 | 1500:1 | 44Ohm | - | Through Hole | 0.661" L x 0.354" W (16.80mm x 9.00mm) | 0.748" (19.00mm) | PC Pin |
|
|
AS-200CURR SENSE XFMR 15A 1:50 VRT |
1,826 | 3.41 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.571" L x 0.772" W (14.50mm x 19.60mm) | 0.709" (18.00mm) | - |
|
|
AS-201CURR SENSE XFMR 15A 1:100 VRT |
4,760 | 3.44 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.571" L x 0.772" W (14.50mm x 19.60mm) | 0.709" (18.00mm) | - |
|
|
ECSTA1V0805-1020-RCURR SENSE XFMR 20:1 10A SMD |
1,323 | 3.02 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 80 µH | - | 20:1 | - | 700mOhm Primary, 400mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
|
ECSTA1V0805-1070-RCURR SENSE XFMR 70:1 10A SMD |
3,336 | 3.02 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 980 µH | - | 70:1 | - | 700mOhm Primary, 4.75Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
|
ECSTA1V0805-1060-RCURR SENSE XFMR 60:1 10A SMD |
3,713 | 3.02 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 730 µH | - | 60:1 | - | 700mOhm Primary, 2.3Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
|
ECSTA1V0805-1040-RCURR SENSE XFMR 40:1 10A SMD |
3,554 | 3.02 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 320 µH | - | 40:1 | - | 700mOhm Primary, 1.14Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
|
T60404E4623X1214623X121 |
1,634 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 40 A | 6.5 H | - | 1:2500 | 2500:1 | 60Ohm | - | Free Hanging (In-Line) | 1.331" L x 0.665" W (33.80mm x 16.90mm) | 1.413" (35.90mm) | Wire Leads |
|
|
ASM-030CURR SENSE XFMR 1-30A TH |
4,510 | 3.71 |
|
Datasheet |
ASM | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.990" L x 0.440" W (25.15mm x 11.18mm) | 1.000" (25.40mm) | - |
|
|
ASM-020CURR SENSE XFMR 1-20A TH |
4,646 | 3.59 |
|
Datasheet |
ASM | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.906" L x 0.610" W (23.00mm x 15.50mm) | 0.984" (25.00mm) | - |
|
|
AS-202CURR SENSE XFMR 15A 1:200 VRT |
4,700 | 3.49 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.571" L x 0.772" W (14.50mm x 19.60mm) | 0.709" (18.00mm) | - |
|
|
AS-300CURR SENSE XFMR 15A 1:50 VRT |
4,563 | 3.51 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.701" L x 0.902" W (17.80mm x 22.90mm) | 0.701" (17.80mm) | - |
